GC MS Gas Chromatograph Mass Spectrometer Quadrupole
1 Piece
$20,0001 Piece
$50,000Product information
High-quality GC MS Gas Chromatograph Mass Spectrometer Quadrupole supplied by Jiangsu Skyray Instrument Co., Ltd. Bulk wholesale pricing ranges from $20,000 to $50,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Chromatographic Column Diameter:
0.2~0.5mm
Production Capacity:
100 Units/Month
Chromatographic Column Length:
10~30cm
Packing Size:
74*74*70cm
HS Code:
90273000
Net Weight:
90kg
Certificate:
CE, ISO
Certification:
CE, ISO, IEC
Specifications
Chromatographic Column Diameter:
0.2~0.5mm
Production Capacity:
100 Units/Month
Chromatographic Column Length:
10~30cm
Packing Size:
74*74*70cm
HS Code:
90273000
Net Weight:
90kg
Certificate:
CE, ISO
Certification:
CE, ISO, IEC
Origin:
China
Specification:
Desktop Mass Spectrometer
Trade Term:
FOB, CIF, CFR, EXW
Model NO.:
GC-MS6800
Mobile Phase:
Gas
Chromatography Type:
Gas Chromatography
Ray Type:
Gc-Ms
Payment Term:
LC, T/T
Detector:
MSD
Spectrometer Detector:
Msd
Port Of Loading:
Shanghai Port
Trademark:
Skyray Instrument
Stationary Phase:
Solid Adsorbent
Transport Package:
Standard International Packing
Appliance:
The Analysis of Environmental Samples
Gaspath System:
Three
Energy Resolution:
≤7%
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2006-07-04
Annual Revenue Amount:
Not specified
Numbers Of Employees:
659
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ISO9001:2015
Product descriptions from the supplier
Instrument introduction

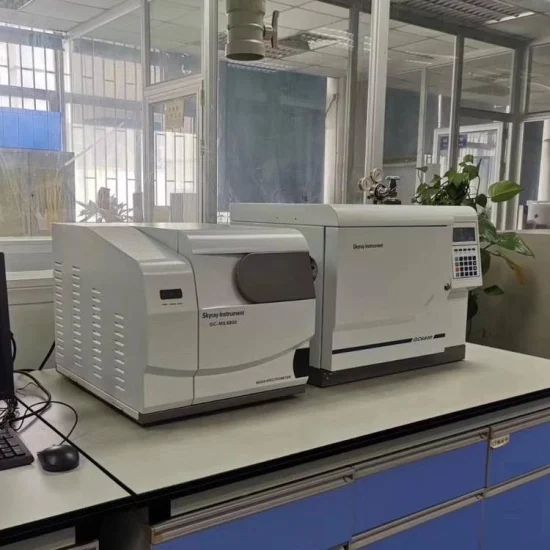

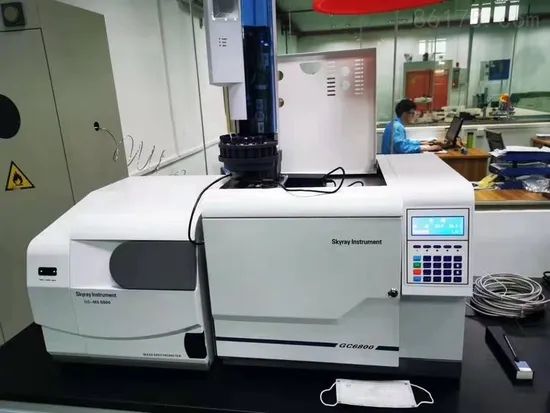

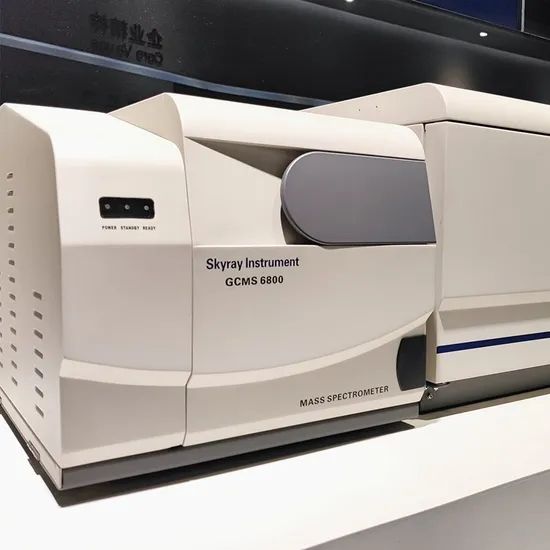

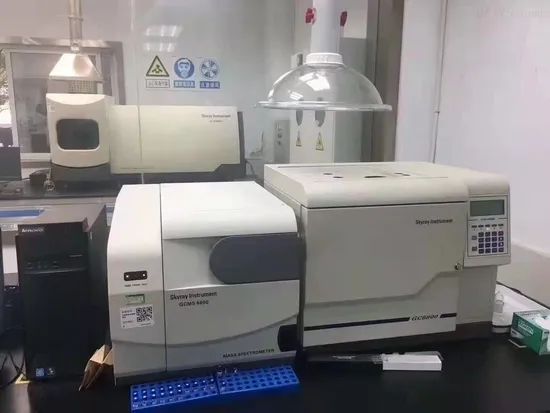

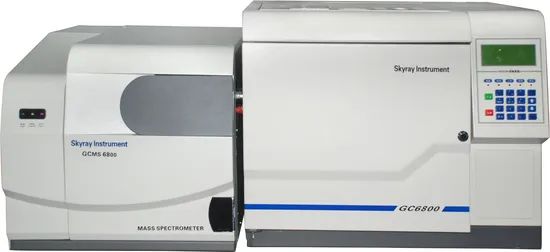

The GC-MS 6800 is a budget-friendly gas chromatography-mass spectrometry system developed by Skyray Instrument. It features multiple patented innovations and is commonly applied in industrial quality control, food safety, environmental monitoring, and similar fields.Instrument Features
Hardware
Electronic pressure/flow control system (EPC/EFC) for self-developed GC 6800 system;
Patented EI filament set provides highly efficient electron emission, a maximum of 350μA;
Quality mass analyzer with pre-filter reduces quadrupole pollution;
High-energy dynode electron multiplier ensures good sensitivity;
Vacuum system with quality mechanical and turbo molecular pumps guarantees stability and reliability;
Full scale gauges monitor vacuum states in real time;
Self protection system guarantees safety of operators and core parts under abnormal conditions;
RF power supply digital compensation technology ensures better sensitivity and resolution in full mass range.
Software
The software "ChemAnalyst" controls auto sampler (AS), gas chromatograph (GC) and mass spectrometer (MS); data are acquired and transferred by high-speed network card;
Full Scan and selective Ion Monitoring (SIM) modes are available;
the system supports manual and automatic tuning, display of total ion current (TIC) and mass chromatogram (MC);
Skyray Instrument is the sole officially recognized distributor for NIST/EPA/NIH in mainland China, ensuring access to the most up-to-date NIST software and free online updates (currently NIST 2011).
The data processing section searches target compounds in NIST 2011 based on mass spectra of samples, displays search results which include retention times, structural formula and standard mass spectra, and compares the abundances of standard and real target ions. Users can make accurate qualitative and quantitative analyses;
Superior quality: it uses high-end core parts, which ensures GC-MS 6800 high quality.
Meeting high demands: Skyray provides necessity parts, and meets multiple requirements from clients in different fields;
User-friendly design: it facilitates easy operation and convenient maintenance;
High-efficiency ionization source: modularization design, employing Skyray patented ion source, having high ionization efficiency, and enhancing sensitivity;
ChemAnalyst software: convenient operation, data acquisition and processing;
Highly cost-effective: offering more benefits while meeting all application demands;
Scientific solutions: We offer customers perfectly customized solutions;
Consumables with favorable price: most consumables and parts are self-developed, which save a lot of maintenance cost, while providing high performance;
Satisfactory post-sale service: Skyray makes a quick response to client's demands, with professional technicians offering 24-hour services.
Technical Specifications:
GC SpecificationInlet temperature: Max. 450ºC
Pressure range: 0-100psi,±0.002psi
Pressure control mode: Electronic pressure control (EPC), support CV and CC
Split mode: Split/splitless, max. split ratio: 1000:1
Column oven working temperature: Room temperature+4ºC~450ºC
Heating rate: Up to 120ºC/min
Temperature programming: 7 stages/ 8 platforms
Auto Sampler: Optional
MS specification
EI source ionization energy: 5 eV ---250 eV (Adjustable)
Mass range: 1.5- 1000amu
Resolution: Unit resolution (full width at half maximum)
Ion source temperature: 100-350ºC
Filament emission current: 0-350 μA
GC-MS Interface Temperature: Max. 450ºC
stability: ±0.10 amu/48 hrs
Sensitivity: Full scan, 1pg OFN at m/z 272 with S/N ≥30:1 (RMS)
Scan rate: Up to 10000 amu/s
Vacuum: Turbo molecular pump(67 L/s)
Detector: High-energy dynode electron multiplier
Applications fields:
1,Industrial inspection: textile, electricity & electronics, plastic cement, cosmetics;
2,Food hygiene: pesticide residues, flavors and fragrances;
3,Environmental protection: air, water, soil, solid waste;
4,Pharmaceutical: pharmaceutical industries, drug inspection;
5,Petrochemical: oil refineries, chemical plants;
6,Public security organ: explosives, forensic evidence
