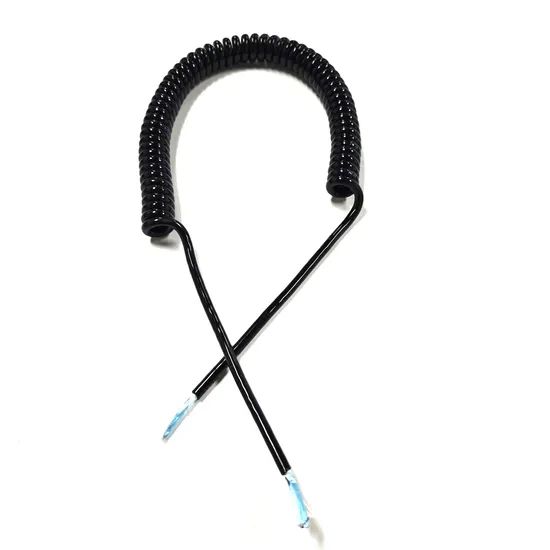

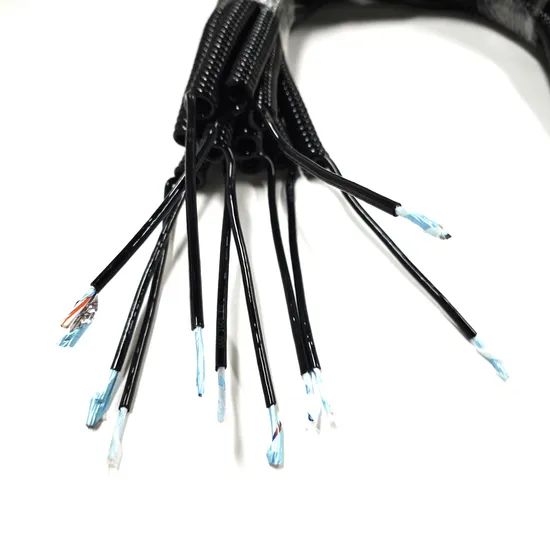

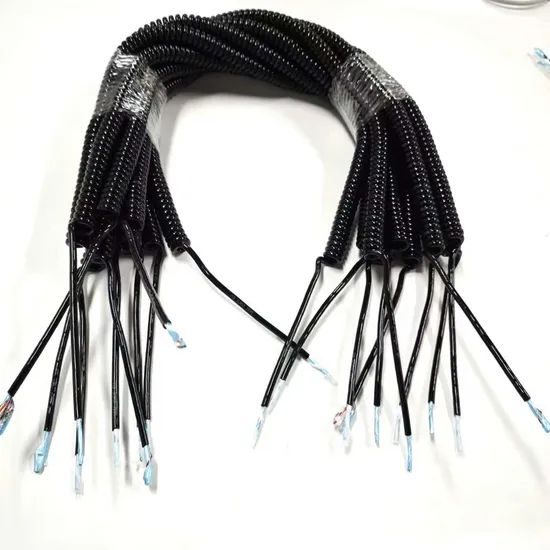

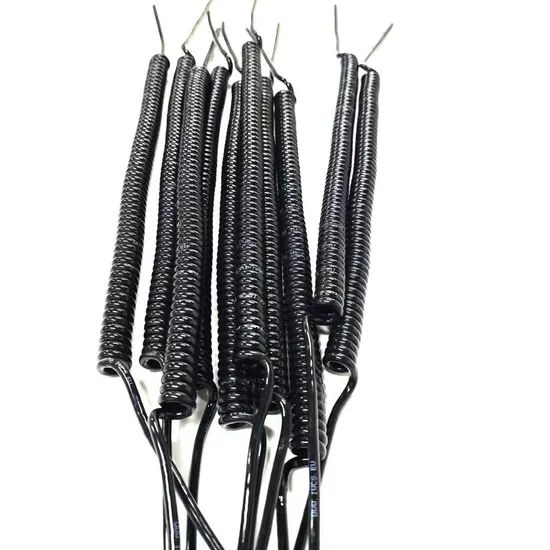

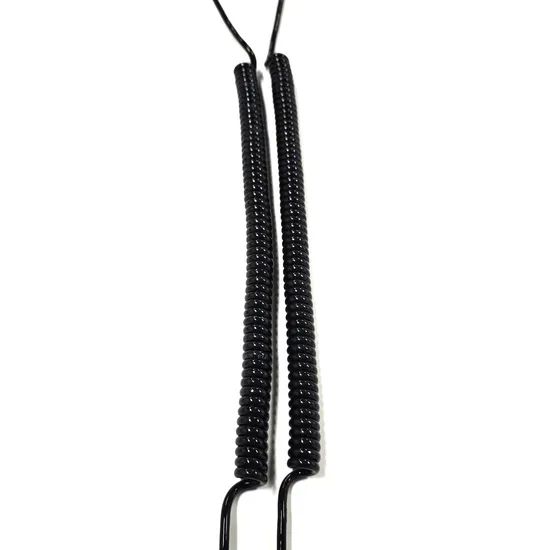

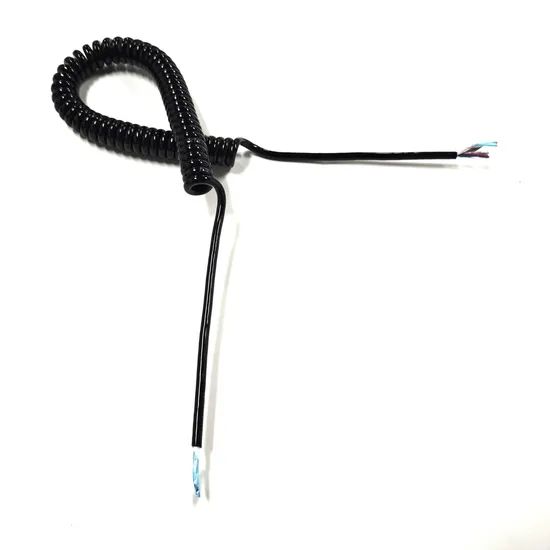

0 1mm2 6core Spiral Coiled Cable with Shield Extension Spring Cables

0.1MM2 6core spiral coiled cable with shield Extension spring cables

Technical parameters
Nominal voltage: 300/500V
Testing voltaage : 3000V
Insulation resistance: 10 Gohm×cm
 operating temperature-Fixed installation :   -35ºC-+70ºC
-Moving installation:   -20ºC-+90ºC
 Flame retardancy:   According to IEC60332-1or2

Product Features
1.5 times of the coil length
2.High resetting force
3.Extremely good Oil resistance,abrasion resistance,cold resistance,weatherability

Coiled cable can be used in an array of fields. Different industries such as retail, medical, dental, communications, robotics, electronics, among others, utilize these recoil curly cords in their various machines and equipment. Many gadgets and appliances like GPS units and powered coolers rely on a flexible coiled cable to function properly. From common key chains to specialized medical devices, the applications of coiled cable are virtually limitless. Here are a few examples of machines and devices that use a coiled cable:



Telecommunication Cable Assemblies

Car Manufacturing Contraptions

Garage Door Gears



Telephones

Rolling doors

Medical devices

Test Equipment

Handling Equipment

Audio and Video

Industrial

Robotics

Heart Defibrillators

Cell Phone Car Chargers

Global Positioning System (GPS) Units

Tractor-Trailers

Industrial Ice Cream Making Machines

Radar Detector

What's the price of the coiled cable?

Dear customers the price depended on below aspects:

Demanding quantity: how many pcs?

Cable specification: how many wires/cores and each wire section?

Cable sheath material?

Spiral coil diameter D=?

Spiral coil length L=?

Each end length L1=? L2=?

You can refer to below specification photo:

Coiled cable(also known as: spiral cable)

It is necessary to use coiled cables in almost all industries. Whether in communication (telephone, radio), medical technology, electric locomotive industry, mechanical engineering, or lighting industry, coiled cables are used everywhere.If you use PVC and PUR cables, the color of the coiled cable can be coordinated with the color of the object in most cases. At the same time we can also supply: shielded coiled cable, coiled cable for instrumentation, coiled cable for automobile power supply, coiled cable for transformer power supply, coiled cable for large-scale electro-mechanical equipment, coiled cable for washing machine power supply.



1.PVC coiled cable: High economy, low mechanical and chemical resistance, medium elasticity. It is suitable for installation and use in light industry, computer and other occasions.



2. PUR coiled cable: Good elasticity. It has excellent mechanical and chemical properties, especially cold resistance, oil resistance, weather resistance, abrasion resistance and tear resistance. It is suitable for use in machinery manufacturing, electric tools and other occasions. It is the best solution in most areas of application.



3. PUR shielded coiled cable: It has excellent chemical properties. Particularly resistant to cold, oil, weather, abrasion and tearing. The spiral overall shielding structure can resist all kinds of electromagnetic interference. Especially suitable for all occasions requiring minimal installation space, such as medical treatment, semiconductor, and chips.


Coiled Cable Materials

Coiled cable from Shanghai Fengy Cable is available with the following materials:



Conductor:fine strands copper wire, oxygen-free copper wire

Conductor Insulation:TPE/PE/PVC/TPE-E

Wrapping tape:Special non-woven wrap cushioning

Outer jacket material:TPU/PUR/TPE-E/PVC

Shield:tinned copper/aluminum foil wrapped shield

Outer sheath color:Black/White/Orange/Purple (special specifications can be produced according to customer requirements).

Working temperature: cold resistance-35ºC; temperature resistance within +90ºC

Production range: Standard section: 0.03~4 square meters (special specifications can be produced according to customer requirements).

Number of cores: 1~37 (special specifications can be produced according to customer requirements).

Lanka industrial Automation (Shanghai) Co.ltd is firslty specialized in developing and sale of drag chain cable,spiral cable,robot cable,servo motor cable,civil engineering cable and so on in China, cables have below features: high-fleixible,abrasion resistance,oil resistance,bending resistance,corrosion resistance. Our brand Hxin cable widely used in Mechanized automatic industry,medical,metallurgy,port,mine,salt lake system and so on. We provide customer hundreds of cables and design a bespoke custom made cable solution.we are professional manufacturer,provide fast delivery and high-quality cables with competitive price.

Our cable is produced according to VDE,EN,IEC standard and ISO9001-2008 Quality Management system,most of our cables have CE,ROHS certificates.our products have been sold to Europe,Asia and Africa Market.


Lanka cable is committed to serving in various fields of mechanized automatic industry under the management concept of "innavative, pragmatic,precise and integrity" and with the Spirit of value "Pioneering and innovative,quality to win trust" .at the same time,we improve product technology,optimize marketing services,seize market opportunities,lead Hxin cable to continue and healthy development.


Products:

spiral cable,TPU/PUR cable, flexibile drag chain cable, oil resistant and abrasion resistant cable,special rotor cable,elevator cable,photovoltaic cable, low smoke zero halogen cable,crane trolly cable,drum equipment cable,wind turbine cable,automotive circuit anti explosion anti aging cable,flame-retardant cable,fire resistant cable,servo machine cable,power cable,CCC,VDE,UL,CE certificate cable and related 20 series 1000kinds cable.

Sample

Give your requirements to us,we recommend the suitable cables for yousamples is free if we have stock,if not,we could customize it then charging some cost for sample.The samples'fee will return to you when we got your order more than 1000USD.

What's the MOQ of coiled cable?

Normally is 100pcs, but also depending on the length of the coiled cable that you need.



Do you ship internationally?

Yes, we ship worldwide.



How much will shipping cost?

Our shipping rates are based on:

1.the total weight of your order( including package)

2.your detailed address



What's the lead time of coiled cable?

For some standard specification that we have straight wire in stock the lead time is about 7days.

For some customized specification that without the straight wire in stock the lead time is about 14 days.



Will my parcel have tracking?

Yes, the tracking number will update to you once we arranged the shipment.



Which payment way that you support for coiled cable?

Our company support TT/WEST UNION/PAYPAL/AlLIBABA CREDIT GUARANTEE ORDER



Can coiled cable be assembled with different connectors?

Definitely. If our customers asking we help them to assemble the connector then we'll do it and will make this cable perfectly suit its intended application.

Each cable is tested to ensure the end-user can quickly and easily integrate the product in their overall system.
