1 6 12 18 24 Tubular Wire Winding Machine Tubular Wire Stranding Machine
set
Negotiable
Product information
High-quality 1 6 12 18 24 Tubular Wire Winding Machine Tubular Wire Stranding Machine supplied by SWAN Wire Engineering. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Warranty:
12 Months
Net Weight:
3ton
Design:
630/1+6+12++18+24
Automatic Grade:
Automatic
Application:
Cable Making Industry
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T
Condition:
New
Specifications
Warranty:
12 Months
Net Weight:
3ton
Design:
630/1+6+12++18+24
Automatic Grade:
Automatic
Application:
Cable Making Industry
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T
Condition:
New
Usage:
Power Cable and Conductor Stranding
Certification:
RoHS, ISO, CE
Trademark:
SWAN INT'L
Port Of Loading:
Shanghai Port
Origin:
Shanghai, China
Model NO.:
tubular wire stranding machine
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-08-12
Annual Revenue Amount:
Not specified
Numbers Of Employees:
8
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ISO, OHSAS, Reach, ROHS, UL
Product descriptions from the supplier

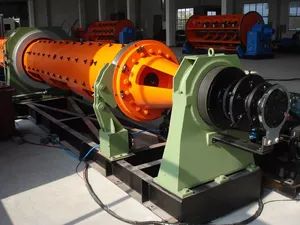

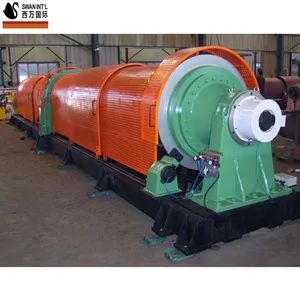

Tubular Stranding Machine
Product Series
01. Based on different bobbin size in stranding cage: PN200, PN315, PN400, PN500, PN630, PN710,
PND400, PND500, PND630, PND710
02. Based on different cores of stranding cable: 1+6(7B), 1+12 (13B), 1+18(19B)
03. Based on different supporting type: bearing type, support roller type.
04. Based on different type back-twist: gear type back-twist, back-twist ring type
05. Based on different pay-off tension control: magnetic powder brake type tension control, mechanical
automatic feedback type tension control, fixed tension mechanical friction type tension control.
06. Based on different take-up: Portal type, shaft-less type and shaft type in structure; φ1250, φ1600,
φ2000 in bobbin size.
07. Based on different capstan dia.: φ315, φ800, φ1000, φ1250, φ1500
08. Based on different control of main motor: DC speed regulation, AC frequency conversion speed regulation,
electromagnetic speed regulation

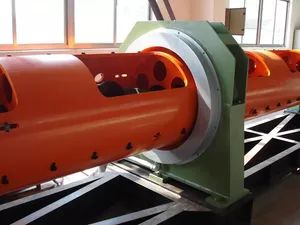

01. Fully bearing support: Adopt fully bearing to support stranding tube, which highly increase the producing
efficiency and ensure the smooth running, low noise and long service life.

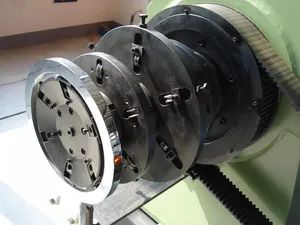

02. Convenient bobbin clamping: Adopt spring to clamp bobbin automatically and pneumatically loosen
bobbin with mechanical lock. Such designs are easy and safety to operate.
03. Wire broken protection: The wire broken protection function ensure the stop of machine automatically
once detect the wire broken.
Main Compositions
01. Pay-off
02. Wire guiding stand
03. Stranding cage
04. Closing die holder
05. Compacting device (selectable)
06. Nonmetal taping device (selectable)
07. Length counter

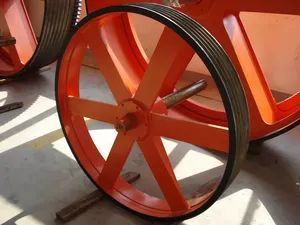

08. Dual wheel capstan
09. Take-up
10. Mechanical transmission system
11. Electric control system
12. Safety protection system
The machine is used for stranding steel wires, aluminum wires and copper wires with back-twist orcompacting. It also can strand insulated cores
