1 Non-Conventional Tools Nantong Container Gantry Milling Machining CNC Boring Machine Manufacture
Piece
Negotiable
Product information
High-quality 1 Non-Conventional Tools Nantong Container Gantry Milling Machining CNC Boring Machine Manufacture supplied by NANTONG YIJI MACHINERY CO., LTD.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Processing Precision:
0.01~0.02(mm)
MOQ:
1
Production Capacity:
300 Sets/Year
Table Area:
According to Customer
Numerical Control:
CNC/MNC
Transport Package:
Container
Movement Method:
Contour Control
Trade Term:
FOB, CIF, CFR
Specifications
Processing Precision:
0.01~0.02(mm)
MOQ:
1
Production Capacity:
300 Sets/Year
Table Area:
According to Customer
Numerical Control:
CNC/MNC
Transport Package:
Container
Movement Method:
Contour Control
Trade Term:
FOB, CIF, CFR
Certification:
GS, CE, ISO 9001
Performance Classification:
High-End CNC Machine Tools
Payment Term:
LC, T/T
Application:
Metal
Process Usage:
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Origin:
Nantong
Condition:
New
Control Method:
Open-Loop Control
Port Of Loading:
Shanghai Port
OEM,ODM:
Support
Trademark:
nantong
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-02-27
Annual Revenue Amount:
Not specified
Numbers Of Employees:
30
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shanghai Port
Certificates:
CQC, ISO, SGS
Product descriptions from the supplier
Machine Parameters
| Model | Unit | SKX2016 | SKX2500 | SKX3020 | SKX4025 |
| Travel | |||||
| X axis | mm | 2,200 | 2,700 | 3,200 | 4,200 |
| Y axis | mm | 1,600 / 2,000/2500/3000 | |||
| Z axis | mm | 800(1,000-opt.) | |||
| Distance from spindle nose to table | mm | 150 - 950(150 / 1,150-opt.) | |||
| Distance between two column | mm | 1,700 / 2,100/2600 | |||
| Working table | |||||
| Table Length | mm | 2,000 | 2,500 | 3,000 | 4,000 |
| Table Width | mm | 1,600 / 2,000 | |||
| Table Load | kg | 6,000 | 7,000 | 9,000 | 10,000 |
| T- Slot (Width x Number x Pitch) | mm | 22x7x180 / 22x9x180 | |||
| Spindle | |||||
| Spindle Taper | - | BT-50 / ISO-50 / CAT-50 | |||
| Spindle Speed | rpm | 3,000(6,000-opt.) | |||
| Spindle motor(cont./30 minutes rated) | kw | 18.5 / 22 (22/26-opt.) | |||
| Feed | |||||
| Rapid Traverse(X/Y/Z) | m/min | 12 / 12 / 15 | 10 / 12 / 15 | ||
| Cutting feedrate | mm/min | 7,000 | |||
| Accuracy | |||||
| Positioning Accuracy | mm | ±0.005 / 300 ; ±0.015 / Full travel | |||
| mm | P0.03 | P0.035 | |||
| Repeatability | mm | ±0.003 | |||
| mm | 0.025 | 0.028 | |||
| ATC | |||||
| Tool magazine capacity | pcs | 32 (24/40/60-opt.) | |||
| Max. tool size (full pocket/next pockets empty) | mm | Ø125/245 | |||
| Max. tool length | mm | 350 | |||
| Max. tool weight | kg | 20 | |||
| Others | |||||
| Power required | kva | 65 | |||
| Pneumatic input pressure | kg/cm2 | 6.5 | |||
| Machine net weight | tons | 20 / 22 | 22 / 24 | 24 / 26 | 28 / 30 |
| Floor space (LxWxH) | m | 8.5x5.1(5.5)x4.7 | 10.5x5.1(5.5)x4.7 | 12.5x5.1(5.5)x4.7 | 15.2x5.1(5.5)x4.7 |
Machine Configuration
| Automatic lubrication system |
| Spindle oil cooler |
| Air blast through spindle |
| Manual Pulse Generator |
| Working lamp |
| 3-color alarm lamp |
| RS-232 interface |
| Heat exchanger for electrical cabinet |
| Water gun and air gun interface |
| Cutting coolant system |
| Twin auger chip removal system |
| Belt type chip conveyor with cart |
| X axis Heidenhain Linear Scale |
| Sub-table |
| 3 axes manual pulse generator for mold processing |
| Coolant through spindle at 20/40/70 bar |
| Coolant through tool holder interface |
| Air conditioner for electrical cabinet |
| Transformer |
| Oil skimmer |
| Oil mist collector |

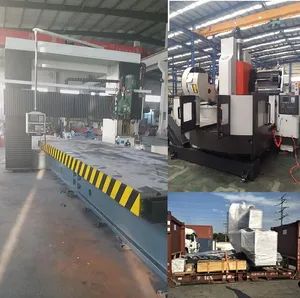

factory show
NANTONG YIJI MACHINERY CO., LTD
Nantong YIJI Machinery Co., Ltd was established in 1988, focusing on the production of vertical column CNC machine tools, floor-mounted boring machines, CNC gantry milling systems, automated processing solutions, and advanced industrial machinery. The company upholds a core philosophy centered on "Quality as foundation, excellence through involvement," continuously strengthening the reputation and reliability of the YIJI brand. Backed by specialized engineering, proven manufacturing expertise, rigorous quality control, rapid customization, and outstanding post-sales support, YIJI has built strong customer confidence. Its market presence has grown significantly, offering a broad and diverse product portfolio that is now in demand across 30 countries in Europe, North America, and Southeast Asia. The company has earned a solid reputation in the global market. It holds full import and export privileges, possesses an export product license, is certified under CE standards, and has successfully achieved ISO9001 quality management certification.
Innovation is endless. Techniques Change future. We will like to supply you our professional technology, quality machines and best service.
Warranty & After-sale service
1. 24-hours technical support by E-mail or telephone.
2. Provide extra accessories for the machine, Also provide service of make program according to your drawings Customized or special design is OK.
3. All of our products' warranty period for 12 months.
4. Man-made destroy will be exception
5.We can supply the materials or tech support to our customers to help them fix the problems.
We will pay the delivery charge if the repair, return or replacement cases happen.
1. How should i pay for my order ? what is the procession of this purchase ?
we accept TT by bank. you can do 30% prepayment at first, then we will start to make production.
when the machine is ready , we will take pictures to you, and then you can do the ballance.
after we got your payment. i will send the machine to you.
2. How about your service after sales ? can your engineer speak fluent english ?
Once you receive the machine, we provide full support covering setup, operation, and getting it running smoothly. Typically, our expert engineer will guide you via email or Skype. With extensive experience in CNC machine maintenance and troubleshooting, he communicates fluently in English, enabling quick resolution of any issues.
3.Are you a factory or trading company?
We are the manufacturer . as only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit our factory
4. How long is the delivery time?
Standard equipment typically takes 7–10 days to deliver; non-standard or custom-built models, based on client-specific needs, require 15–30 days.
5. How about the documents after shipment?
Aftershipment,will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by client.
6.How to master the stability of machine castings?
Numerical control machine components are fabricated from HT250 and HT300 alloys, undergoing double tempering and a single vibration aging process to eliminate internal stresses, thereby securing long-term structural integrity and sustained machine precision.
Welcome your inquiry!
