10 heads high speed mounting machine STM surface chip mounter Precision High Precision Production Capacity 300sets/Year Certification ISO, CE
1 Set
$250,0001 Set
$15,000Product information
High-quality 10 heads high speed mounting machine STM surface chip mounter Precision High Precision Production Capacity 300sets/Year Certification ISO, CE supplied by Ningbo Superior Machinery Co., Ltd.. Bulk wholesale pricing ranges from $15,000 to $250,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Mounting Capacity:
0402(01005inch)~ Max.35mm(h15mm)
Minimum Order Quantity:
1 Set
Warranty:
12 Months
Specification:
1669x1681x1509
Package Size:
167.00cm * 168.00cm * 151.00cm
Package Gross Weight:
1900.000kg
Production Capacity:
300sets/Year
Placement Speed:
40,000CPH(Optimal)
Specifications
Mounting Capacity:
0402(01005inch)~ Max.35mm(h15mm)
Minimum Order Quantity:
1 Set
Warranty:
12 Months
Specification:
1669x1681x1509
Package Size:
167.00cm * 168.00cm * 151.00cm
Package Gross Weight:
1900.000kg
Production Capacity:
300sets/Year
Placement Speed:
40,000CPH(Optimal)
HS Code:
8479896200
Automatic Grade:
Automatic
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Model NO.:
ESM110
Trade Term:
FOB, CIF, CFR, EXW
Precision:
High Precision
Speed:
High Speed
Type:
High-speed Chip Mounter
Certification:
ISO, CE
PCB Size:
L510xW400x1Lane(Standard)
Payment Term:
LC, T/T, PayPal, D/P, Western Union, Small-amount payment
Trademark:
MFGSP
Port Of Loading:
Ningbo Port Shanghai Port
Transport Package:
Standard Export Packaging
Payment Methods:
Support payments in USD
Placement Accuracy:
±40um@±3o/Chip ±
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, D/P, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port Shanghai Port
Certificates:
CERTIFICATE, ISO9001
Product descriptions from the supplier

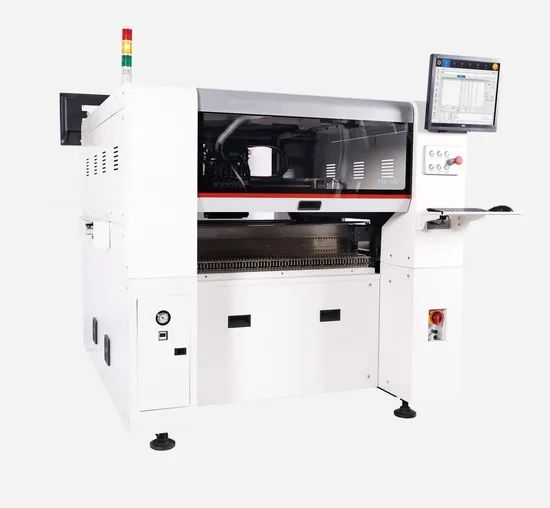

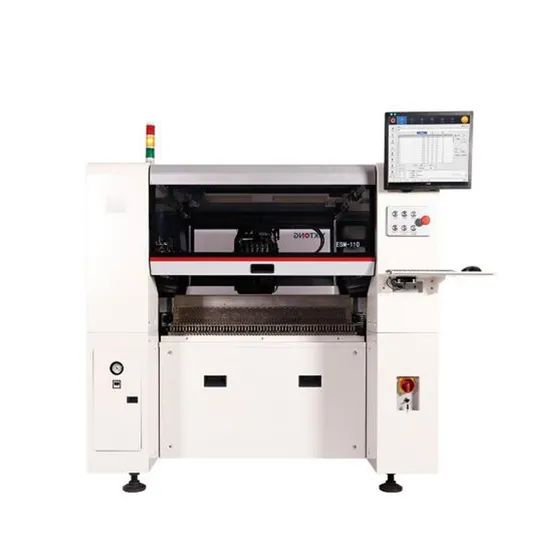

Chip Mounter

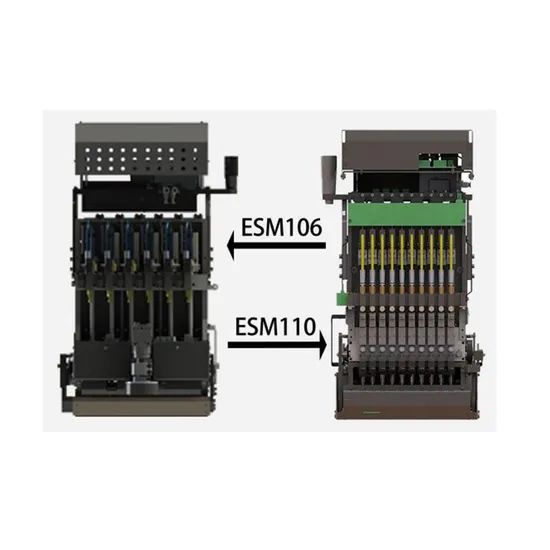

| Model | Type | ESM-106 | ESM-106D | ESM-110 |
| Specification | Number | 6 Heads | 6 Heads | 10 Heads |
| Specification | Len*Wid*Hei | 1669x1681x1509 | ||
| Weight | Weight | 1900KG | ||
PCB Board |
PCB Size | Min 50*50mm,Max 510*400mm | ||
| PCB Thickness | 05-5.0mm | |||
| Fixed form | Upper and lower clamping plates | |||
| Electrical Specifications |
Vacuum Pump | Three-phase 220V Power 0.2KW | ||
| Power | Three-phase 380V Power 4KW | |||
Mounting Capacity |
Placement Speed | 30000CPH* | 20000CPH* | 40000CPH* |
| Accuracy(CPK) | ±30um(XYZ),±0.03°(R) | |||
| Mounting Pressure |
40KPa | |||
Component Rang |
Fly Camera:: 20mm*17mm |
Fly Camera:: 23mm*18mm |
Fly Camera: 14mm*20mm |
|
| Fix Camera:50m (MFOV) |
Fix Camera:50m (MFOV) |
Fix Camera:35am (MFOV) |
||
Visual System |
Fid Camera Range |
L19mm*W14mm | L19mm*W14mm | L16mm*W12mm |
| Fid Camera Type | Imported Megapixel Camera | |||
| Mount Camera Type |
Fly Camera(Fix Camera) | |||
Feeder System |
Feede | Supports electric and pneumatic feeders,Max number of stations 60*2(8mm) | ||
| Tape Feeder | Supports 8/12/16/24/32/44/56/72/88mm Feeder | |||
| Rod Feeder | Quantity carried by a single vibrating Feeder:(4-20mm*3 tubes) | |||
| Tray Feeder | Support for backpack machines (Optional:40 discs),Bulk component tray | |||
| Motion Control System |
X Axis | High precision servo motor (control accuracy) | ||
| Y Axis | High precision dual drive servo motor(control accuracy) | |||
| Z Axis | High precision servo motor(control accuracy) | |||
| R Axis | High precision servo motor(control accuracy) | |||
| MES Interface | MES Interface | Supports TCP/IP,supports scanning gun,and optimizes the entire line(optional) | ||
 |
High-rigid integrally casting By utilizing a natural aging stress relief technique and an advanced annealing process for machine tools,Remove more than 90%residual internal stress,which effectively prevents deformation from long-term high-speed movement and is essential to maintaining long-lasting equipment accuracy. |
 |
XY axis gantry integral casting It eliminates assembly and is equipped with self-developed gantry dual-drive synchronous operation and control technology to achieve millisecond-level (ms)bilateral synchronization and high-precision motion;the X-axis is a high-rigidity industrial-grade integral cast beam,and the non-assembly process ensures long-term stability of accuracy. |
 |

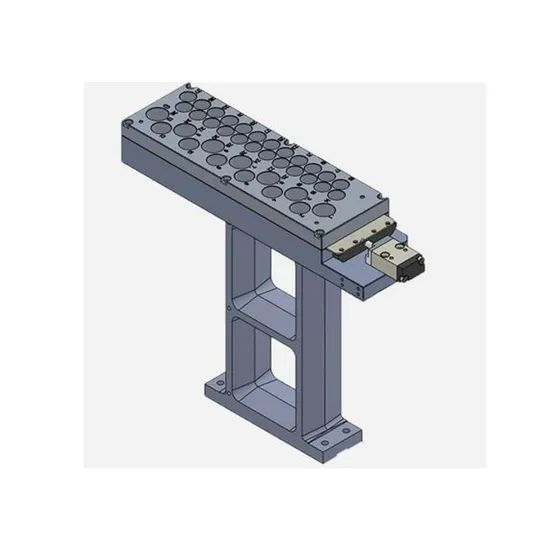

Integral casting of Anc-Nozzle station Cooperate with software settings to realize automatic replacement of nozzles during the placement process,maintaining high precision and stability for a long time under intensive and frequent working conditions. |
 |
Integral casting of head base of mounting The stress is removed through natural aging and high-tigidity process casting is completed,allowing the entire placement head to maintain the stability and high precision of the Z-axis and R-axis for a long time under high-intensity movement. |

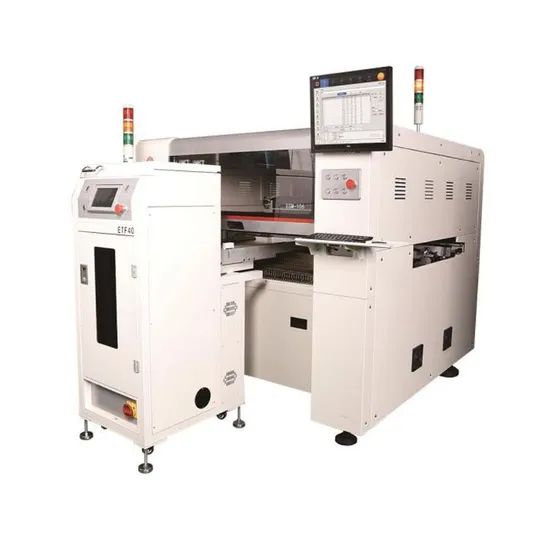

| ·Tray-IC cabinet: The tray material can be replaced without the equipment shutting down: ·Tray-IC cabinet: Can place 40 trays; |
 |
 |

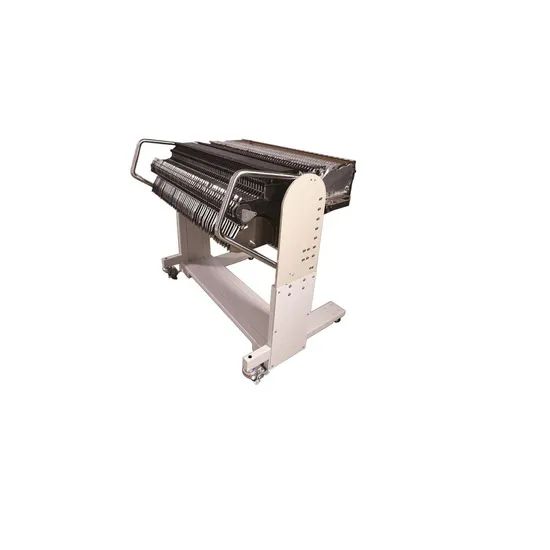

Feeder trolley(Suitable for trolley structure place) When switching vaccinations,through the cooperation of offine programming software, components can be installed offline in advance to achieve rapid line change; |
 |
·Electronic Feeder: Can communicate online with the surface mounter to achieve adaptive placement with stable and convenient material supply,suitable for 8mm-56mm; |
| ·Vibrating feeder Applicable component types:SOP,SOJ, PLCC,Connector,etc; |
 |
