100kn Instron Computer Universal Tensile Testing Machine Trademark EBP Weight 100-500Kg Model NO. UTM-100 Maxcapacity
1 set
$5,0001 set
$15,000Product information
High-quality 100kn Instron Computer Universal Tensile Testing Machine Trademark EBP Weight 100-500Kg Model NO. UTM-100 Maxcapacity supplied by EBPu Electromechanical Equipment (Zhejiang) Co., Ltd.. Bulk wholesale pricing ranges from $5,000 to $15,000 per set with a minimum order of 1 set. Inquiry for latest prices.
Load Control Speed:
0.01 - 50 Kn/S
Accuracy Grade:
1 or 0.5
Load Resolution:
1/300000
Deformation Resolution:
1/500000
Weight:
100-500Kg
Crosshead Travel:
1000mm
Maxcapacity:
100kn
Effective Test Width:
500mm
Specifications
Load Control Speed:
0.01 - 50 Kn/S
Accuracy Grade:
1 or 0.5
Load Resolution:
1/300000
Deformation Resolution:
1/500000
Weight:
100-500Kg
Crosshead Travel:
1000mm
Maxcapacity:
100kn
Effective Test Width:
500mm
Effective Tensile Space:
750mm
Production Capacity:
90 Sets Per Month
HS Code:
9024101000
Power Source:
AC380V
Function 6:
Auto Testing Machine
Function 3:
Benting Testing Machine
Function 2:
Compression Testing Machine
Control:
Computer Control
Display:
Computer Screen Digital Display
Product Name:
Computer Universal Tensile Testing Machine
Function 5:
Deformation Testing Machine
Trademark:
EBP
Load Way:
Electronic Load
Trade Term:
FOB, CFR, CIF, DDP, CIP, EXW
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Transport Package:
Plywood Box
Function 7:
Process Testing Machine
Oil Cylinder Position:
Servo Motor Control
Port Of Loading:
Shanghai, Ningbo
Loading Method:
Static Load
Function 1:
Tensile Testing Machine
Specification:
Tensile testing, compress testing, bending testing
Model NO.:
UTM-100
Type:
Universal Testing Machine
Function 4:
Yield Strength Testing Machine
Origin:
Zhejiang, China
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-10-28
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CFR, CIF, DDP, CIP, EXW
Port Of Loading:
Shanghai, Ningbo
Certificates:
3311961AML, CE Certificate, Certificate for Safe Transport of Goods, CERTIFICATION for SAFE TRANSPORT of GOODS, Contract and Trustworthy Enterprise, Credit Grade AAA Certificate, Credit Rating Certificate, HV Calibration Certificate, Integrity Management Demonstration Unit, ISO9001:2015, Quality Service Integrity Unit, SGS Certificate, Suppliers Credit Certification
Product descriptions from the supplier

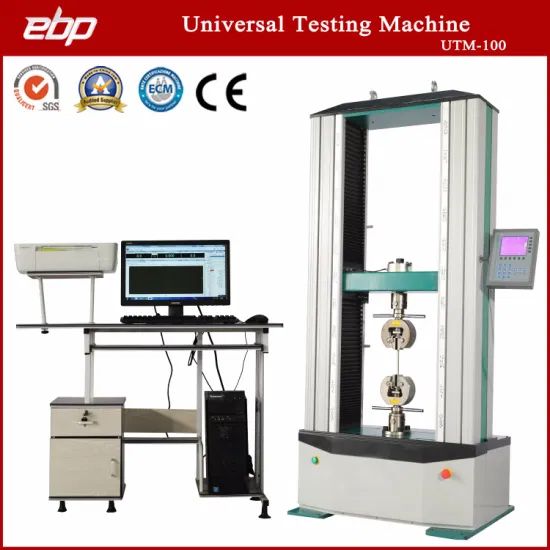

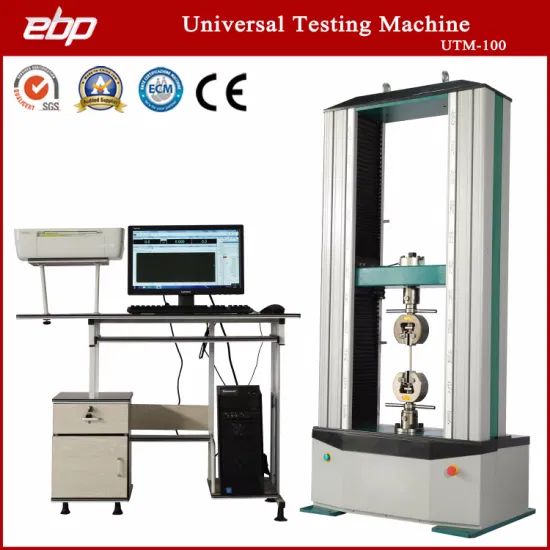

100KN Instron Computer Universal Tensile Testing Machine
1. Application
This testing machinesfeatures a computer, printer, and standard testing software to precisely measure key mechanical characteristics of metallic materials including tensile strength, yield strength, non-proportional extension strength, elongation, and elastic modulus. The system generates and outputs six types of graphs—force-displacement, force-deformation, stress-displacement, stress-deformation, force-time, and distortion-time—along with associated test values, and includes an automated diagnostic tool that identifies potential malfunctions. This robust testing solution is well-suited for use in mining and manufacturing operations, academic institutions, research laboratories, and engineering quality control departments. It serves as an optimal tool for quality assurance teams in construction projects, educational institutions, research centers, and industrial and mining sectors.
2. Test capability of machine and relevant Standard:
ASTM E8 - 16 Standard Test Methods for Tension Testing of Metallic Materials
ISO 6892-1 Materials --tensile testing
ASTM A370-05 Standard Test Methods and Definitions for Mechanical Testing of steel products
3. Main Technical Parameters:
| Model | UTM-100 |
| Max. load force | 100KN |
| Crosshead Travel | 1000mm |
| Effective tensile space | 750mm |
| Effective Test width | 500mm |
| Crossbeam travel speed | 0.001-500mm/min |
| Testing Specification | UTM-100 |
| Max.load | 100KN |
| Load accuracy | Class 1 (class 0.5 optional) |
| Load range | 1%-100%FS (0.4%-100%FS optional) |
| Load resolution | 1/300000 |
| Deformation Measurement Range | 0.2%~100%FS |
| Deformation accuracy | ≤±1% (≤±0.5% optional) |
| Deformation resolution | 1/500000 |
| Load control speed | 0.01~50 kN/s |
| Deformation control speed | 0.002~0.5mm/s |
| Control Specification | UTM-100 |
| Stress rate | 0.005%~5%FS/s |
| Stress rate accuracy range | When rate < 0.05% FS/s, the precision± 2% When rate ≥ 0.005%FS/s, the precision ±0.5% |
| Deformation rate | 0.005%~5%FS/s |
| Deformation rate accuracy range | When rate < 0.05% FS/s, the precision± 1% When rate ≥ 0.005%FS/s, the precision ±0.5% |
| Displacement control accuracy | ±0.5% |
| Constant load, deformation and displacement control | 0.5%~100%FS |
| Constant load, deformation and displacement control accuracy | Preset value≥10%FN, within the ±0.1% of preset value; Preset value<10%FN, within the ±1% of preset value |
| Clamping Specifications | UTM-100 |
| Tensile grip | Manual Wedge Fixture |
| Round specimen clamping range | Φ4-9mm,9-14, (14-20mm optional) |
| Flat specimen clamping range | 0-7mm, 7-14, (14-20mm optional) |
| Compression Plate | Φ100x100 mm |
| Bending fixture | 3 point bending fixture (optional) |
| Electronic Extensometer for metal material | YUU10/50 (optional) |
| Large deformation extensometer for rubber | DBX-800 (optional) |
4. Main Unit Feature:
4.1 Rigid floor-standing frame loading structure with upper space for tensile and lower one for compression and bending test
4.2 Precise ball screws withstand the whole loading with long-life use and compact layout.
The speed regulation mechanism is positioned beneath the surface and includes a synchronous toothed belt and pulley assembly enabling efficient power transfer, offering quiet operation and no need for regular servicing.
4.4 Fixed crossbeam as upper ones, and sits above the frame and with middle crossbeam as loading beam with smooth travel when testing . The high-accuracy sensor is installed below the crossbeam.
4.5 Load automatic withstanding,, stress, strain control, cycle control and self programming.
4.6 High precision load sensor for guarantee accurate and stable measure
4.7 Wide crossbeam travel speed from 0.05 ~ 500mm / min
4.8 Overload protection: as test force exceeds 2%-5% of the maximum test force of each file, overload protection, it will stop.
5. Components Supply list
| Item | Main body | Material | |
| 1 | Upper beam | 1set | |
| 2 | Cross beam | 1 set | |
| 3 | High precision screw ball | 2 sets | |
| 5 | Servo motor | Taiwan TECO Brand (Japan Panasonic Brand optional) | |
| 6 | Load sensor | China Brand (America Transcell Brand optional) | |
| 7 | Reducers | Taiwan Brand | |
| 8 | Synchronous belt | China Brand 1PC | |
| 9 | Computer | Lenovo, 1PC with LCD screen and all new | |
| 10 | Printer | HPA4 color ink-jet printer, 1PC | |
| Item | Clamping | QTY | |
| 1 | Manual Wedge Tensile fixture (hydraulic automatic clamping fixtures optional) |
1 set | |
| 2 | Round Jaws Φ4-9mm,9-14, (14-20mm optional) Flat Jaws: 0-7mm, 7-14, (14-20mm optional) |
2 sets | |
| 3 | Compression Plate | 1 set | |
| 4 | 3 point bending fixture (optional) | 1 set | |
6. Data Acquisition system
61. The data acquisition system of machine consists of two high precision A/D conversion channel and the maximum resolution should be 1/300000 (minimum)
USB-driven data logger featuring USB 2.0 and RS-232 PC connectivity, 5-button joystick, 2MB memory, auto-detection capability, built-in signal source, and 12-bit analog-to-digital resolution
7. Software
7.1 Batch and report processing program facility in doc and exl format
7.2 The software is fully compliance with the corresponding international standards like ISO, ASTM and GB standards
