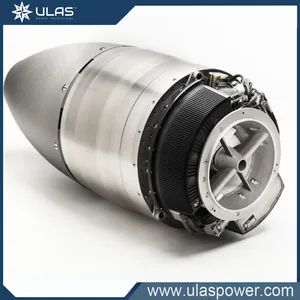

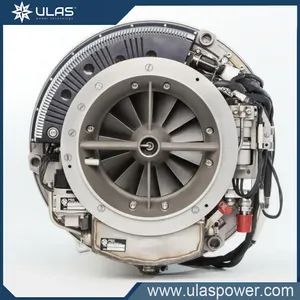

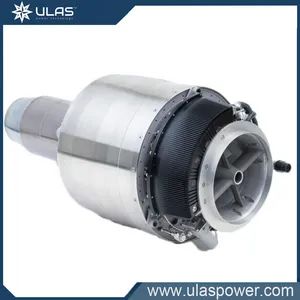

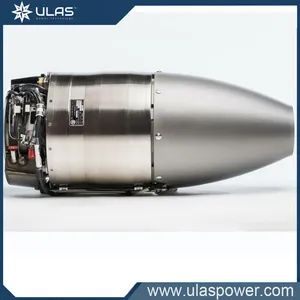

1100n Model Turbojet Engine Used in Aerospace
Piece
Negotiable
Product information
High-quality 1100n Model Turbojet Engine Used in Aerospace supplied by Gansu Jinchuan ULAS Power Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
1000
Max Thrust:
1100 N
Weight:
22kg
Specification:
272 mm
Length:
625 mm
Output:
750 W
Cooling Cylinder:
Air-Cooled
Origin:
China
Specifications
Production Capacity:
1000
Max Thrust:
1100 N
Weight:
22kg
Specification:
272 mm
Length:
625 mm
Output:
750 W
Cooling Cylinder:
Air-Cooled
Origin:
China
Type:
Combustion Engine
Fuel:
Diesel
Trade Term:
EXW, CFR, CIF, FOB
Speed:
High Speed
Port Of Loading:
Jinchang Port
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Piston Movement:
Rotary
Intake Pressure Impulse:
Supercharged
Trademark:
ULAS
Model NO.:
Ulas
Transport Package:
Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2020-12-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
15
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
EXW, CFR, CIF, FOB
Port Of Loading:
Jinchang Port
Certificates:
BV, ISO9001, SGS
Product descriptions from the supplier
A turbojet functions as a gas turbine by taking in ambient air through an inlet, compressing it with a compressor—axial, centrifugal, or a hybrid setup—blending fuel into the compressed air, igniting the mixture in the combustion chamber, and then sending the hot, pressurized exhaust through a turbine before expelling it via a nozzle.
Move into the jet age with one of these affordable and reliable jet turbine engines from ULAS.
Each ULAS turbine comes with a brushless ignition system for peak efficiency, an integrated fuel pump, and the sophisticated V3 electronic control unit. This control unit is fully tailor-made, driven by a 32-bit chip, and specifically developed for ULAS turbine use. It supports automatic kerosene start-up with automatic recovery, includes a BUS interface, a data port for recording operational data, a vivid color screen visible in bright light, telemetry integration, and a user-adjustable thrust setting. Furthermore, every turbine features a simple mounting kit, ready-to-install wiring, standard plumbing connections, and a full manual covering operation and setup procedures.
The WX110 stands as the standard turbine within its category, delivering strong performance with a maximum thrust of 1100 Newtons. It features an integrated FOD sensor, rapid throttle adjustment, and delivers outstanding value for money among its peers. Scheduled maintenance is as low as 50 hours, and the engine operates efficiently on either kerosene or diesel fuel.
DESCRIPTION:
110KG 1100N
85KG 850N
40KG 400N
Move into the jet age with one of these affordable and reliable jet turbine engines from ULAS.
Each ULAS turbine comes with a brushless ignition system for peak efficiency, an integrated fuel pump, and the sophisticated V3 electronic control unit. This control unit is fully tailor-made, driven by a 32-bit chip, and specifically developed for ULAS turbine use. It supports automatic kerosene start-up with automatic recovery, includes a BUS interface, a data port for recording operational data, a vivid color screen visible in bright light, telemetry integration, and a user-adjustable thrust setting. Furthermore, every turbine features a simple mounting kit, ready-to-install wiring, standard plumbing connections, and a full manual covering operation and setup procedures.
The WX110 stands as the standard turbine within its category, delivering strong performance with a maximum thrust of 1100 Newtons. It features an integrated FOD sensor, rapid throttle adjustment, and delivers outstanding value for money among its peers. Scheduled maintenance is as low as 50 hours, and the engine operates efficiently on either kerosene or diesel fuel.
| MAX THRUST | |||
| 1100 N | |||
| Max. SPECIFIC FUEL CONSUMPTION (SFC) | |||
| 0.111 Kg/N/h | |||
| Operating Speed of The Engine (RPM) | Idling | Max | |
| 30000 | 57000-60000 | ||
| ELECTRICAL POWER OUTPUT | |||
| 750 W | |||
| MAX. DIAMETER | |||
| 272 mm | |||
| LENGTH | |||
| 625 mm | |||
| DRY WEIGHT (WITH ACCESSORIES) | |||
| 22 Kg | |||
| FUEL | |||
| JET-A1, JP5, JP8 | |||
| OIL | |||
| 3 cST Or 5 cST | |||
DESCRIPTION:
- Excellent Thrust/Weight Ratio
- Low Fuel Consumption At Its Power Category
- Integrated Starter-generator
- Starting By Battery 24 V
- ECU
- Radial Compressor
- Annular Combustion Chamber
- Axial Turbine And Fixed Output Nozzle
- Compact, lightweight and powerful
- ECU
- Remote data terminal
- Data terminal screen is visible in sunlight
- Auto re-start
- Built in FOD screen
- Will run on kerosene or diesel
- Anodized can in silver
- Type: WX110 Jet Turbine Engine
- Thrust: 1100N
- RPM Range: 30,000~60000
- EGT: 700°C
- Fuel: Kerosene or diesel
- Lubrication: 5% with kerosene, 3% with diesel
- Start: Full auto start
- Restart: Auto restart
- Can Color: Silver
- Maintenance Intervals: 50hrs
- 1 x WX110 jet turbine
- 1 x Motor mount
- 1 x Data terminal with harness
- 1 x ECU
- 1 x Pump with wiring harness
- 1 x Motor cable
- 1 x Throttle cable
- 1 x Battery power cable
- 1 x Plumbing components and tubing
110KG 1100N
85KG 850N
40KG 400N
Vacuum Thermal Enclosure Self-operating Production Unit Multi-directional CNC Processor
Air Dry System Wax Processing Unit CNC
Parts
Turbo machine Blade assembly Flow nozzle
Turbine Blade Compressor Impeller Diffuser
ULAS is capable of meeting material specifications according to ASTM, SAE, AISI, ACI, DIN, EN, ISO and GB standards. We focus on more than 100 different ferrous and non-ferrous alloys. Dimensionally and geometrically complex investment castings are produced under the drawing, minimizing the need for secondary machining.
Investment casting of complex precision parts requires high-quality equipment capable of achieving tight tolerances with repeatable accuracy. Machinery and manufacturing processes must also be able to process large volumes quickly and seamlessly without compromising product quality.
ULAS integrates state-of-the-art technology and innovative machinery across every stage of the investment casting workflow. From tooling development and wax pattern creation to shell formation, molten metal filling, thermal processing, and final quality checks, each step leverages top-tier equipment managed by skilled professionals.
We have also developed 40kg, 85kg, 100kg, 125kg, 150kg etc. turbojet engine, widely used in aerospace.
