128X64 Graphic LCD Display FSTN Positive Cog LCD Module with Spi Interface
2-99 Piece
$3.4100-999 Piece
$3.11000 Piece
$2.9Product information
High-quality 128X64 Graphic LCD Display FSTN Positive Cog LCD Module with Spi Interface supplied by RONBO ELECTRONICS LIMITED. Bulk wholesale pricing ranges from $2.9 to $3.4 per Piece with a minimum order of 2 Piece. Inquiry for latest prices.
Package Gross Weight:
0.060kg
Package Size:
10.00cm * 5.00cm * 2.00cm
Production Capacity:
100000
Response Time:
30ms
HS Code:
901383010
Display Technology:
COG
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Specifications
Package Gross Weight:
0.060kg
Package Size:
10.00cm * 5.00cm * 2.00cm
Production Capacity:
100000
Response Time:
30ms
HS Code:
901383010
Display Technology:
COG
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Trade Term:
EXW
Type:
Graphic
Payment Term:
LC, T/T, D/P, PayPal, Western Union
LCD Drive Mode:
Multiplex Drive LCD Module
Touch Screen Type:
Option
Application:
POS, Doorbell, Medical, Cars and So on
Model NO.:
RBO12864-998
Specification:
Rohs
Trademark:
Ronbo
DOT Matrix Graphic LCD Module Type:
Row/Column-Driven Control Type
Origin:
Shenzhen, China
Payment Methods:
Support payments in USD
Viewing Angle:
TN＋FILM
Port Of Loading:
shenzhen port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-06-07
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
EXW
Port Of Loading:
shenzhen port
Certificates:
Business Registration Certificate, ISO 9001:2008, ROHS Certification, Subliencse Agreement
Product descriptions from the supplier

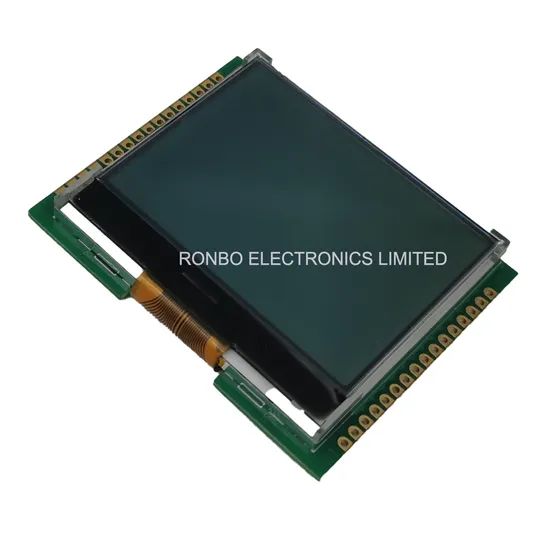

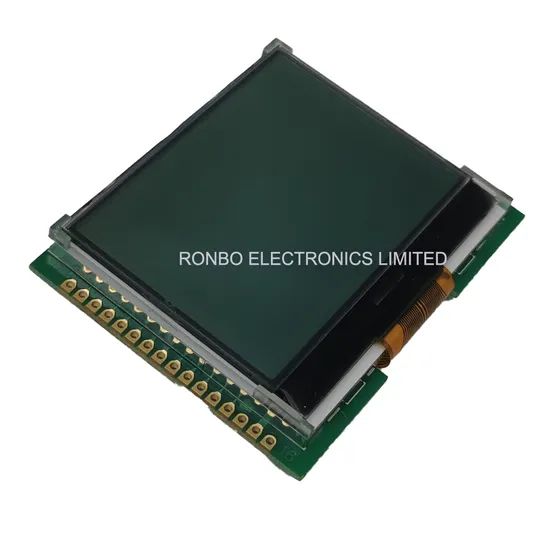

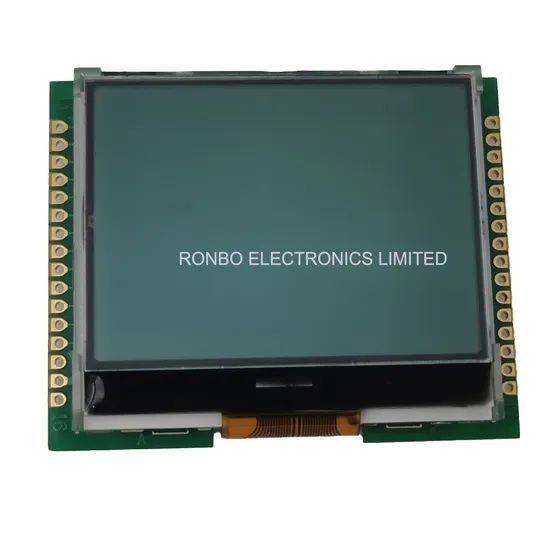

Customized 128x64 COG LCD Module FSTN Positive Transflective LCD Display
Product Specification:
* It is a monochrome COG LCD display andChip on Glass LCD Module.

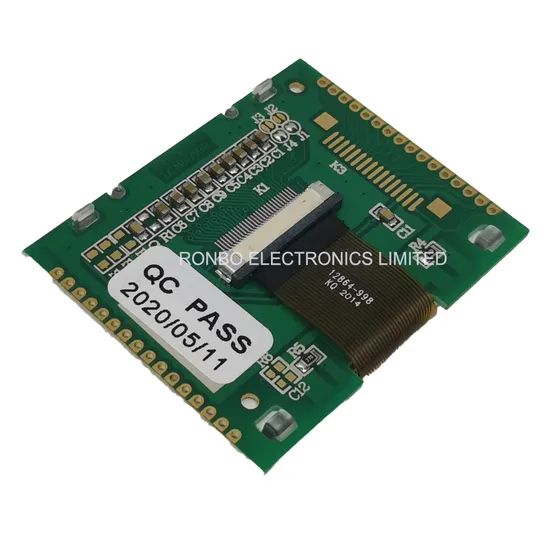

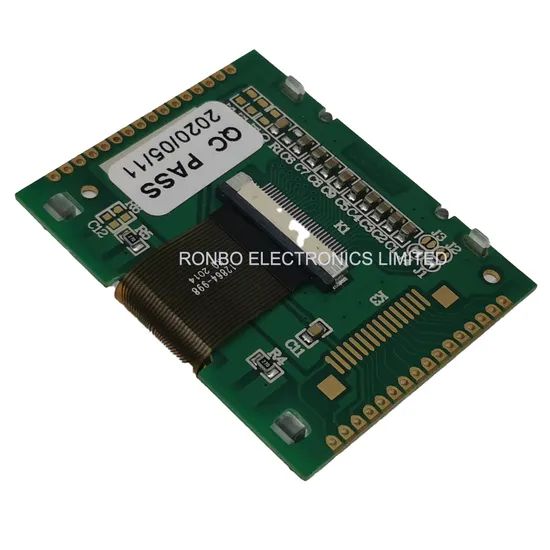

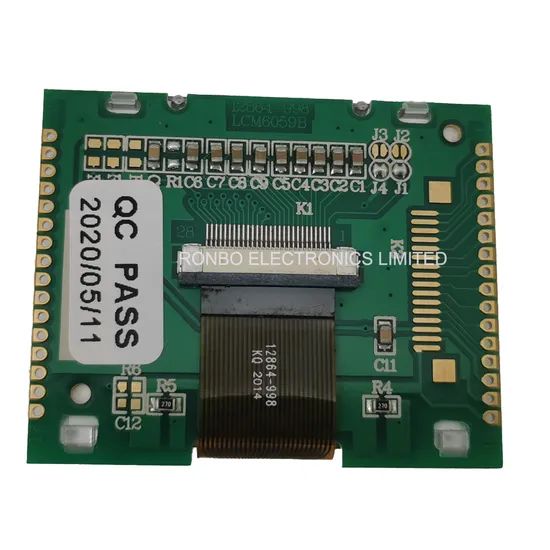

*It is composed of a monochrome LCD, driver IC, FPC and backlight unit.
*It is available in various LCD panel colors including gray, yellow/green and blue LCD options.
*It is Standard and Ready-made graphic LCD.
*Experienced Team for Your Custom Solution.
* RoHS compliant.
| Model NO.: | RBO12864-998 |
| Dots: | 128*64 |
| LCM Type: | COG |
| Module size(W*H*T): | 50.9x40.9xMax10.0 |
| Viewing Area(W*Hmm): | 37.0x28.0 |
| Dot size(W*Hmm) | 0.252x0.33 |
| Dot Pitch(W*Hmm) | 0.282x0.36 |
| Controller: | ST7565P or equivalent |
| Backlight: | White LED |
| LCD Type: | FSTN Positive, Transflective |
| Operating Temperature: | -30 ~ +80ºC |
| Interface: | MCU 8Bit FPC 32PIN, Pitch:0.8mm |
Interface Pin Function
| Pin No. | Symbol | Level | Description |
| 1 | NC | --- | |
| 2 | NC | --- | |
| 3 | /CS1 | I | This is the chip select signal. |
| 4 | /RES | I | When RES is set to "L", the setting are initialized. |
| 5 | RS | I | This is connect to the least significant bit of the Norman MPU address bus, and it determines whether the data bits are data or a command. |
| 6 | WR-/RW | I | The data bus are latched at the rising edge of the WR signal |
| 7 | /RD-E | I | The data bus is in output status when this signal is "L" |
| 8-15 | DB0~ DB7 | I/O | This is an 8-bit bi-directional data bus that connects to an 8-bit or 16-bit standard MPU data bus. |
| 16 | VDD | Power supply | Power supply |
| 17 | VSS | Power supply | Ground |
| 18 | VOUT | O | DC/DC voltage converter. |
| 19 | C3+ | O | DC/DC voltage converter |
| 20 | C1- | O | DC/DC voltage converter |
| 21 | C1+ | O | DC/DC voltage converter |
| 22 | C2+ | O | DC/DC voltage converter |
| 23 | C2- | O | DC/DC voltage converter |
| 24 | NC | --- | |
| 25 | V1 | O | DC/DC voltage converter |
| 26 | V2 | O | DC/DC voltage converter |
| 27 | V3 | O | DC/DC voltage converter |
| 28 | V4 | O | DC/DC voltage converter |
| 29 | V0 | O | DC/DC voltage converter |
| 30 | VR | O | DC/DC voltage converter |
| 31 | NC | ---- | |
| 32 | C86 | I | This is the MPU interface switch terminal. |
| 33 | PSB | I | This is the parallel data input/serial data input switch terminal. |
| 34 | NC | ---- | |
| 35 | IRS | I | Selects the resistors for the vo voltage level adjustment |
| 36 | NC | ---- |
Electrical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
| Supply Voltage For Logic | VDD-VSS | - | -- | 3.0 | 3.3 | V |
| Supply Voltage For LCM | VR-VSS |
Ta=-20ºC Ta=25ºC Ta=70ºC |
|
8.2 |
8.4 |
V V V |
| Input High Volt. | VIH | - | 0.8 VDD | - | VDD | V |
| Input Low Volt. | VIL | - | Vss | - | 0.2 VDD | V |
| Output High Volt. | VOH | IOUT=-0.5mA | 0.8 VDD | - | VDD | V |
| Output Low Volt. | VOL | IOUT=0.5mA | Vss | - | 0.2VDD | V |
|
Supply Current(No include LED Backlight) |
IDD | VDD=3.0V | -- | 80 | -- | mA |
NOTE:
1) Duty ratio=1/64, Bias=1/9
2) Measured in Dots ON-stat
| Dots | Size | Model | LCM Type |
Module size (W*H*Tmm) |
Viewing Area (W*Hmm) |
Active Area (W*Hmm) |
Dot size (W*Hmm) |
Dot Pitch (W*Hmm) |
Controller IC |
Backlight | Lcd Type | Interface |
| 128*32 | 1.4" | RBO12832C | COG | 40.0*17.5*2.0 | 37.2*10.2 | 35.81*8.93 | 0.25*0.25 | 0.28*0.28 | ST7567 | 1S2P=2LED | FSTN, STN BLUE, Y-G |
SPI, FPC 18PIN, Pitch:0.8mm, |
| 128*32 | 1.6" | RBO12832E | COG | 46.2*19.2*1.75 | 43.2*12.0 | 40.29*10.38 | 0.29*0.30 | 0.315*0.33 | ST7567 | 1S1P=1LED | FSTN, STN BLUE, Y-G |
SPI, FPC 12PIN, Pitch:0.8mm, |
| 128*32 | 2.0" | RBO12832A | COG | 57.0*25.0*2.85 | 51.0*16.0 | 48.61*13.72 | 0.35*0.39 | 0.38*0.43 | ST7565R | 1S2P=2LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 36PIN, Pitch:0.8mm, |
| 128*32 | 2.0" | RBO12832B | COG | 56.5*22.9*2.8 | 53.5*15.4 | 49.89*13.41 | 0.36*0.39 | 0.39*0.42 | ST7567 | 1S2P=2LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 30PIN, Pitch:0.8mm, |
| 128*32 | 2.1" | RBO12832D | COG | 61.4*30.6*2.9 | 54.3*18.6 | 51.16*14.68 | 0.36*0.42 | 0.40*0.46 | ST7567 | 1S2P=2LED | FSTN, STN BLUE, Y-G |
SPI, FPC 28PIN, Pitch:0.5mm |
| 128*32 | 2.7" | RBO12832R1 | COG | 80.0*35.2*56.5 | 69.0*21.0 | 65.87*16.43 | 0.465*0.465 | 0.515*0.515 | UC1623 | 1S4P=4LED | FSTN, STN BLUE, Y-G |
SPI, FPC 15PIN, Pitch:0.5mm, |
| 128*64 | 0.96" | RBO12864R12 | COG | 25.5*20.0*3.0 | 23.5*14.0 | 21.74*11.5 | 0.15*0.16 | 0.17*0.18 | UC1705 | 1S1P=1LED | FSTN, STN BLUE, Y-G |
SPI, FPC 12PIN, Pitch 0.5mm |
| 128*64 | 0.96" | RBO12864R19 | COG | 26.7*19.26*2.0 | 22.94*12.06 | 21.74*10.86 | 0.154*0.154 | 0.17*0.17 | ST7567A | 1S1P=1LED | FSTN, STN BLUE, Y-G |
SPI, FPC 14PIN, Pitch 0.7mm |
| 128*64 | 1.0" | RBO12864R9 | COG | 28.5*20.0*2.9 | 26.5*14.0 | 23.02*12.14 | 0.16*0.17 | 0.18*0.19 | UC1705 | 1S1P=1LED | FSTN, STN BLUE, Y-G |
SPI, FPC 12PIN, Pitch 0.6mm, |
| 128*64 | 1.0" | RBO12864H | COG | 32.0*23.5*8.2 | 29.0*16.35 | 25.58*14.06 | 0.18*0.20 | 0.20*0.22 | ST7567 | 1S1P=1LED | FSTN, STN BLUE, Y-G |
SPI, FPC 12PIN, Pitch 0.8mm |
| 128*64 | 1.2" | RBO12864W | COG | 35.2*23.2*3.5 | 30.6*14.6 | 26.86*12.14 | 0.19*0.17 | 0.21*0.19 | ST7567A | 1S1P=1LED | FSTN, STN BLUE, Y-G |
SPI, FPC 14PIN, Pitch 0.5mm, |
| 128*64 | 1.2" | RBO12864W1 | COG | 35.2*23.2*3.5 | 30.6*14.6 | 26.86*12.14 | 0.19*0.17 | 0.21*0.19 | ST7567A | 1S2P=2LED | FSTN, STN BLUE, Y-G |
SPI, FPC 10PIN, Pitch 1.0mm, |
| 128*64 | 1.2" | RBO12864R11 | COG | 34.6*22.7*3.75 | 30.6*14.2 | 27.82*11.5 | 0.1975*0.16 | 0.2175*0.18 | ST7567 | 1S2P=2LED | FSTN, STN BLUE, Y-G |
SPI, FPC 12PIN, Pitch 0.5mm |
| 128*64 | 1.4" | RBO12864K1 | COG | 33.7*33.0*4.2 | 30.7*23.0 | 28.78*20.97 | 0.205*0.308 | 0.225*0.328 | ST7567 | 1S2P=2LED | FSTN, STN BLUE, Y-G |
SPI, FPC 12PIN, Pitch 0.6mm |
| 128*64 | 1.4" | RBO12864R1 | COG | 33.7*30.5*1.7 | 30.7*23.0 | 28.78*20.97 | 0.205*0.308 | 0.225*0.328 | ST7567 | 1S2P=2LED | FSTN, STN BLUE, Y-G |
SPI, FPC 12PIN, Pitch 0.5mm |
| 128*64 | 1.4" | RBO12864R13 | COG | 33.7*30.5*1.7 | 30.7*23.0 | 28.78*20.97 | 0.21*0.31 | 0.23*0.33 | UC1705 | 1S1P=1LED | DFSTN/ NEGATIVE |
SPI, FPC 13PIN, Pitch 0.8mm |
| 128*64 | 1.5" | RBO12864J | COG | 39.0*31.5*5.9 | 36.0*20.0 | 31.97*16.93 | 0.22*0.24 | 0.25*0.27 | ST7567R | 1S2P=3LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 30PIN, Pitch 0.5mm |
| 128*64 | 1.5" | RBO12864J1 | COG | 40.8*31.5*3.6 | 36.0*20.0 | 31.97*16.93 | 0.22*0.24 | 0.25*0.27 | ST7567R | 1S2P=3LED | FSTN, STN BLUE, Y-G |
SPI, FPC 10PIN, Pitch 1.0mm |
| 128*64 | 1.5" | RBO12864R15 | COG | 33.65*30.5*1.8 | 31.65*23.8 | 30.65*22.8 | 0.219*0.336 | 0.221*0.356 | UC1701E | 1S2P=2LED | FSTN, STN BLUE, Y-G |
SPI, FPC 12PIN, Pitch 0.8mm |
| 128*64 | 1.6" | RBO12864R16 | COG | 42.0*25.0*1.85 | 39.5*17.5 | 37.5*15.5 | 0.27*0.22 | 0.29*0.24 | ST7567A | 1S2P=2LED | FSTN, STN BLUE, Y-G |
SPI, FPC 12PIN, Pitch 0.5mm |
| 128*64 | 1.7" | RBO12864R2 | COG | 43.0*33.0*4.75 | 40.0*25.0 | 37.1*21.74 | 0.27*0.32 | 0.29*0.34 | ST7567A | 1S2P=2LED | FSTN, STN BLUE, Y-G |
SPI, FPC 6PIN, Pitch 1.0mm |
| 128*64 | 1.7" | RBO12864R18 | COG | 41.8*31.5*2.7 | 38.0*24.3 | 35.44*22.38 | 0.257*0.33 | 0.277*0.35 | ST7567A | 1S2P=2LED | FSTN, STN BLUE, Y-G |
SPI, FPC 20PIN, Pitch 0.5mm |
| 128*64 | 1.8" | RBO12864O | COG | 43.5*33.8*3.5 | 39.8*25.5 | 37.09*23.01 | 0.26*0.33 | 0.29*0.36 | UC1701X | 1S3P=3LED | FSTN, STN BLUE, Y-G |
SPI, FPC 14PIN, Pitch 0.8mm, |
| 128*64 | 1.8" | RBO12864R | COG | 46.1*32.0*4.2 | 43.6*22.4 | 41.7*20.36 | 0.306*0.298 | 0.326*0.318 | ST7567A | 1S3P=3LED | FSTN, STN BLUE, Y-G |
SPI, FPC 12PIN, Pitch 0.5mm |
| 128*64 | 1.8" | RBO12864R4 | COG | 47.6*44.5*4.6 | 41.8*26.1 | 39.28*22.83 | 0.29*0.34 | 0.307*0.357 | ST7565R | 1S3P=3LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 30PIN, Pitch 0.5mm, |
| 128*64 | 1.8" | RBO12864R10 | COG | 48.0*37.0*3.2 | 44.0*29.0 | 40.93*24.93 | 0.29*0.36 | 0.32*0.39 | ST7567 | 1S3P=3LED | DFSTN/ NEGATIVE |
MCU 8Bit, FPC 30PIN, Pitch 0.5mm, |
| 128*64 | 1.8" | RBO12864U | COG | 55.2*39.8*4.0 | 45.2*27.0 | 40.92*24.28 | 0.28*0.34 | 0.32*0.38 | ST7567 | 1S4P=4LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 24PIN, Pitch 0.5mm, |
| 128*64 | 1.8" | RBO12864-998 | COG | 50.9*40.9*5.7 | 37.0*28.0 | 36.07*23.01 | 0.252*0.33 | 0.282*0.36 | ST7565P | 1S2P=2LED | FSTN, STN BLUE, Y-G |
SPI/MCU 8Bit, 16Pin Header, |
| 128*64 | 2.0" | RBO12864B | COG | 50.3*39.3*4.5 | 44.0*29.0 | 40.93*24.93 | 0.29*0.36 | 0.32*0.38 | ST7567 | 1S4P=4LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 30PIN, Pitch:0.8mm |
| 128*64 | 2.0" | RBO12864C | COG | 53.1*33.3*2.8 | 50.1*24.0 | 46.05*22.05 | 0.33*0.315 | 0.36*0.345 | ST7565R | 1S4P=4LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 30PIN, Pitch:0.5mm |
| 128*64 | 2.0" | RBO12864C1 | COG | 57.3*36.3*4.4 | 53.0*24.6 | 46.05*22.05 | 0.33*0.315 | 0.36*0.345 | ST7567 | 1S3P=3LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 20PIN, Pitch 0.5mm. |
| 128*64 | 2.0" | RBO12864D | COG | 51.3*35.8*8.5 | 47.1*26.5 | 44.78*22.38 | 0.33*0.33 | 0.35*0.35 | ST7567 | 1S3P=3LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 20PIN, Pitch 0.8mm. |
| 128*64 | 2.2" | RBO12864F | COG | 56.4*37.0*5.3 | 53.8*28.8 | 48.61*24.93 | 0.35*0.36 | 0.38*0.39 | ST7567 | 1S4P=4LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 30PIN, Pitch 0.5mm. |
| 128*64 | 2.2" | RBO12864M | COG | 58.8*38.5*4.4 | 53.6*29.0 | 48.62*24.94 | 0.36*0.37 | 0.38*0.39 | ST7567 | 1S3P=3LED | FSTN, STN BLUE, Y-G |
SPI, FPC 10PIN, Pitch 1.0mm |
| 128*64 | 2.2" | RBO12864R14 | COG | 56.0*39.0*5.0 | 52.8*27.3 | 48.6*24.28 | 0.34*0.34 | 0.38*0.38 | ST7567 | 1S3P=3LED | DFSTN/ NEGATIVE |
SPI, FPC 10PIN, Pitch 0.5mm |
| 128*64 | 2.4" | RBO12864A2 | COG | 65.3*44.5*5.0 | 58.3*32.0 | 49.89*27.49 | 0.37*0.41 | 0.39*0.43 | ST7567A | 1S4P=4LED | FSTN, STN BLUE, Y-G |
SPI, FPC 12PIN, Pitch 0.5mm |
| 128*64 | 2.4" | RBO12864L | COG | 75.4*40.11*4.0 | 70.0*29.7 | 57.57*25.0 | 0.361*0.42 | 0.391*0.45 | ST7567 | 1S4P=4LED | FSTN, STN BLUE, Y-G |
SPI, FPC 10PIN, Pitch 1.0mm |
| 128*64 | 2.4" | RBO12864S | COG | 60.0*45.0*5.0 | 56.4*32.0 | 49.89*27.49 | 0.36*0.4 | 0.39*0.43 | ST7567 | 1S2P=2LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 36PIN, Pitch 0.8mm, |
| 128*64 | 2.4" | RBO12864S1 | COG | 59.1*41.2*4.8 | 53.0*31.0 | 47.33*26.21 | 0.34*0.38 | 0.37*0.41 | ST7565R | 1S3P=3LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 30PIN, Pitch 0.8mm, |
| 128*64 | 2.4" | RBO12864-438 | COG | 59.6*50.6*5.7 | 54.3*32.0 | 49.89*27.49 | 0.36*0.4 | 0.39*0.43 | ST7567 | 1S3P=3LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, 16Pin Header, |
| 128*64 | 3.0" | RBO12864A | COG | 71.3*48.2*5.3 | 65.5*38.0 | 60.77*32.93 | 0.45x 0.49 | 0.475x 0.515 | ST7567 | 1S4P=4LED | FSTN, STN BLUE, Y-G |
MCU 8Bit FPC 36PIN, Pitch:0.8mm |
| 128*64 | 3.0" | RBO12864A1 | COG | 71.3*48.2*5.0 | 66.0*38.0 | 60.78*32.94 | 0.45*0.49 | 0.475*0.515 | ST7567 | 1S4P=4LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 36PIN, Pitch 0.5mm |
| 128*64 | 3.0" | RBO12864A3 | COG | 71.3*48.2*5.3 | 66.0*38.0 | 60.78*32.94 | 0.45*0.49 | 0.475*0.515 | ST7567 | 1S4P=4LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 20PIN, Pitch 0.5mm |
| 128*64 | 3.3" | RBO12864V | COG | 80.0*51.0*9.7 | 70.7*38.8 | 66.54*33.26 | 0.505*0.505 | 0.52*0.52 | ST7567 | 1S4P=4LED | FSTN, STN BLUE, Y-G |
MCU 8Bit FPC 24PIN, Pitch 0.5mm, |
| 128*64 | 3.3" | RBO12864V1 | COG | 80.2*51.2*5.7 | 72.0*40.0 | 66.52*33.24 | 0.505*0.505 | 0.52*0.52 | ST7567 | 1S3P=3LED | FSTN, STN BLUE, Y-G |
SPI, FPC 10PIN, Pitch 1.0mm, |
| 128*64 | 3.5" | RBO12864G | COG | 84.5*59.5*5.2 | 78.5*45.5 | 72.93*39.65 | 0.54*0.59 | 0.57*0.62 | ST7565P | 1S6P=6LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 30PIN, Pitch 0.5mm, |
| 128*64 | 3.5" | RBO12864G1 | COG | 84.5*59.5*5.2 | 78.5*45.5 | 72.93*39.65 | 0.54*0.59 | 0.57*0.62 | ST7565P | 1S6P=6LED | FSTN, STN BLUE, Y-G |
SPI, FPC 20PIN, Pitch 0.5mm |
| 128*128 | 2.2" | RBO128128C | COG | 51.4*57.4*5.3 | 45.4*43.9 | 38.37*40.93 | 0.275*0.295 | 0.30*0.32 | UC1617S | 1S3P=3LED | FSTN, STN BLUE, Y-G |
SPI, FPC 14PIN, Pitch 1.0mm, |
| 128*128 | 2.2" | RBO128128D | COG | 47.85*52.8*2.1 | 44.0*40.5 | 38.0*38.0 | 0.282*0.282 | 0.297*0.297 | UC1617S | 1S3P=3LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 22PIN, Pitch 0.5mm, |
| 128*128 | 2.2" | RBO128128G | COG | 57.3*50.3*4.3 | 49.0*37.0 | 45.03*33.0 | 0.324*0.23 | 0.352*0.258 | UC1617S | 1S3P=3LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 20PIN, Pitch 0.5mm, |
| 128*128 | 2.2" | RBO128128G1 | COG | 57.3*50.3*4.3 | 49.0*37.0 | 45.03*33.0 | 0.324*0.23 | 0.352*0.258 | UC1617S | 1S3P=3LED | FSTN, STN BLUE, Y-G |
SPI, FPC 12PIN, Pitch 1.0mm, |
| 128*128 | 2.8" | RBO128128E | COG | 55.0*60.2*4.5 | 48.78*48.78 | 44.78*44.78 | 0.30*0.30 | 0.32*0.32 | ST7541 | 1S3P=3LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 30PIN, Pitch 0.5mm, |
| 128*128 | 2.8" | RBO128128E1 | COG | 57.2*62.4*4.2 | 48.78*47.48 | 44.78*43.88 | 0.33*0.323 | 0.35*0.343 | ST7541 | 1S3P=3LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 30PIN, Pitch 0.5mm, |
| 128*128 | 3.2" | RBO128128F | COG | 67.0*73.0*5.6 | 63.0*63.0 | 55.01*55.01 | 0.40*0.40 | 0.43*0.43 | ST7541 | 1S4P=4LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 34PIN, Pitch 0.5mm, |
| 128*128 | 3.2" | RBO128128F1 | COG | 66.0*71.5*4.9 | 60.0*59.6 | 55.02*55.02 | 0.41*0.41 | 0.43*0.43 | ST7571 | 1S4P=4LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 24PIN, Pitch 0.8mm, |
| 128*128 | 3.2" | RBO128128H | COG | 66.0*71.5*4.85 | 60.0*59.6 | 54.82*55.02 | 0.41*0.41 | 0.43*0.43 | ST7571 | 1S4P=4LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 20PIN, Pitch 0.5mm, |
| 128*128 | 3.2" | RBO128128H1 | COG | 66.0*71.5*4.85 | 60.0*59.6 | 54.82*55.02 | 0.41*0.41 | 0.43*0.43 | ST7571 | 1S4P=4LED | FSTN, STN BLUE, Y-G |
SPI, FPC 12PIN, Pitch 1.0mm, |
| 132*64 | 2.2" | RBO13264A | COG | 57.5*41.0*4.6 | 54.0*30.2 | 48.81*26.21 | 0.34*038 | 0.37*0.41 | ST7565R | 1S3P=3LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 28PIN, Pitch 0.8mm, |
| 132*64 | 2.2" | RBO13264A1 | COG | 59.2*41.7*3.9 | 54.4*31.9 | 48.82*26.21 | 0.34*038 | 0.37*0.41 | ST7567 | 1S3P=3LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 20PIN, Pitch 0.5mm, |
| 132*64 | 2.2" | RBO13264B | COG | 63.6*37.0*5.85 | 54.6*28.6 | 52.12*25.26 | 0.375*0.37 | 0.395*0.395 | ST7567 | 1S3P=3LED | FSTN, STN BLUE, Y-G |
SPI, FPC 12PIN, Pitch 1.0mm, |
| 132*64 | 3.5" | RBO13264C | COG | 77.0*47.5*4.4 | 72.0*36.5 | 68.62*33.26 | 0.50*0.50 | 0.52*0.52 | ST7567 | 1S5P=5LED | FSTN, STN BLUE, Y-G |
SPI, FPC 10PIN, Pitch 0.5mm, |
| 160*160 | 3.2" | RBO160160B | COG | 66.0*71.5*4.6 | 60.0*60.0 | 54.38*54.38 | 0.32*0.32 | 0.34*0.34 | UC1698U | 1S6P=6LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 18PIN , Pitch 0.8mm, |
| 160*160 | 3.2" | RBO160160C | COG | 66.0*71.5*4.6 | 60.0*60.0 | 54.38*54.38 | 0.32*0.32 | 0.34*0.34 | UC1698U | 1S4P=4LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 30PIN , Pitch 0.5mm, |
| 160*160 | 3.2" | RBO160160C1 | COG | 66.0*71.5*4.6 | 60.0*60.0 | 54.38*54.38 | 0.32*0.32 | 0.34*0.34 | UC1698U | 1S4P=4LED | FSTN, STN BLUE, Y-G |
SPI, FPC 14PIN, Pitch 0.5mm, |
| 160*160 | 3.2" | RBO160160D | COG | 66.0*71.5*4.6 | 60.0*60.0 | 54.38*54.38 | 0.32*0.32 | 0.34*0.34 | ST75256 | 1S4P=4LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 20PIN , Pitch 0.5mm, |
| 160*160 | 3.2" | RBO160160D1 | COG | 66.0*71.5*4.6 | 60.0*60.0 | 54.38*54.38 | 0.32*0.32 | 0.34*0.34 | ST75256 | 1S4P=4LED | FSTN, STN BLUE, Y-G |
SPI, FPC 12PIN, Pitch 1.0mm, |
| 192*64 | 1.5" | RBO19264B | COG | 41.4*22.2*3.2 | 37.6*14.2 | 36.46*12.59 | 0.17*0.177 | 0.19*0.197 | ST7525 | 1S3P=3LED | FSTN, STN BLUE, Y-G |
SPI, FPC 10PIN, Pitch 1.0mm, |
| 192*64 | 1.8" | RBO19264A | COG | 55.5*22.3*3.0 | 45.2*16.4 | 42.2*13.4 | 0.20*0.19 | 0.22*0.21 | ST7539 | 1S1P=1LED | FSTN, STN BLUE, Y-G |
SPI, FPC 12PIN, Pitch 0.5mm, |
| 192*65 | 1.8" | RBO19265A | COG | 56.7*21.8*3.5 | 43.28*18.0 | 40.88*13.95 | 0.193*0.195 | 0.213*0.215 | UC1604C | 1S2P=2LED | FSTN, STN BLUE, Y-G |
SPI, FPC 14PIN, Pitch 0.5mm, |
| 192*65 | 1.8" | RBO19265B | COG | 56.7*24.3*3.5 | 43.28*18.0 | 40.88*13.95 | 0.193*0.195 | 0.213*0.215 | UC1604C | 1S2P=2LED | FSTN, STN BLUE, Y-G |
SPI, FPC 14PIN, Pitch 0.5mm, |
| 192*64 | 1.9" | RBO19264R1 | COG | 46.0*29.0*3.1 | 43.0*21.0 | 41.26*18.98 | 0.19*0.272 | 0.215*0.297 | ST7525 | 1S2P=2LED | DFSTN/ NEGATIVE |
SPI, FPC 12PIN, Pitch 1.0mm, |
| 192*64 | 2.0" | RBO19264D | COG | 53.6*26.1*3.9 | 50.0*17.5 | 47.98*15.98 | 0.23*0.23 | 0.25*0.25 | ST7525 | 1S3P=3LED | FSTN, STN BLUE, Y-G |
SPI, FPC 10PIN, Pitch 1.0mm, |
| 192*64 | 2.0" | RBO19264D1 | COG | 53.6*26.1*3.9 | 50.0*17.5 | 47.98*15.98 | 0.23*0.23 | 0.25*0.25 | UC1609C | 1S3P=3LED | FSTN, STN BLUE, Y-G |
SPI, FPC 12PIN, Pitch 1.0mm, |
| 192*64 | 2.4" | RBO19264E | COG | 27.75*67.2*3.5 | 21.5* 57.5 | 18.54* 55.66 | 0.27*0.27 | 0.29*0.29 | UC1604C | 1S2P=2LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 24PIN , Pitch 0.8mm, |
| 192*64 | 2.4" | RBO19264E1 | COG | 27.75*67.2*3.5 | 21.5* 57.5 | 18.54* 55.66 | 0.27*0.27 | 0.29*0.29 | UC1604C | 1S2P=2LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 24PIN , Pitch 0.5mm, |
| 192*64 | 3.0" | RBO19264F | COG | 82.7*37.7*5.1 | 78.0*28.0 | 74.86*24.94 | 0.37*0.37 | 0.39*0.39 | ST7525 | 1S5P=5LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 20PIN , Pitch 0.5mm, |
| 192*64 | 3.0" | RBO19264F1 | COG | 82.7*37.7*5.1 | 78.0*28.0 | 74.86*24.94 | 0.37*0.37 | 0.39*0.39 | ST7525 | 1S5P=5LED | FSTN, STN BLUE, Y-G |
SPI, FPC 10PIN, Pitch 1.0mm, |
| 192*64 | 3.5" | RBO19264C | COG | 90.0*45.0*4.6 | 84.62*34.06 | 80.62*30.06 | 0.40*0.45 | 0.42*0.47 | ST7525 | 1S5P=5LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 20PIN , Pitch 0.5mm, |
| 192*64 | 3.5" | RBO19264C1 | COG | 90.0*45.0*4.6 | 84.62*34.06 | 80.62*30.06 | 0.40*0.45 | 0.42*0.47 | ST7525 | 1S5P=5LED | FSTN, STN BLUE, Y-G |
SPI, FPC 12PIN, Pitch 1.0mm, |
| 240*64 | 2.0" | RBO24064D | COG | 54.4*24.4*3.2 | 50.6*15.1 | 47.98*12.78 | 0.18*0.18 | 0.2*0.2 | UC1638C | 1S3P=3LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 30PIN , Pitch 0.5mm, |
| 240*64 | 2.0" | RBO24064D1 | COG | 54.4*24.4*3.2 | 50.6*15.1 | 47.98*12.78 | 0.18*0.18 | 0.2*0.2 | UC1638C | 1S3P=3LED | FSTN, STN BLUE, Y-G |
SPI, FPC 20PIN, Pitch 0.5mm, |
| 240*64 | 4.0" | RBO24064C | COG | 110.2*42.72*5.2 | 100.0*28.52 | 91.17*25.89 | 0.375*0.375 | 0.405*0.405 | UC1638C | 1S6P=6LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 30PIN , Pitch 0.5mm, |
| 240*64 | 4.0" | RBO24064C1 | COG | 110.2*42.72*5.2 | 100.0*28.52 | 91.17*25.89 | 0.375*0.375 | 0.405*0.405 | UC1638C | 1S6P=6LED | FSTN, STN BLUE, Y-G |
SPI, FPC 20PIN, Pitch 0.5mm, |
| 240*64 | 4.3" | RBO24064A | COG | 126.2*55.1*5.0 | 111.0*37.0 | 105.57*31.97 | 0.41*0.47 | 0.44*0.50 | ST75256 | 1S8P=8LED | FSTN, STN BLUE, Y-G |
SPI, FPC 24PIN, Pitch 0.5mm, |
| 240*64 | 4.3" | RBO24064B | COG | 115.0*50.2*5.0 | 111.0*37.0 | 105.57*31.97 | 0.41*0.47 | 0.44*0.50 | UC1608X | 1S6P=6LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 30PIN , Pitch 0.5mm, |
| 240*64 | 4.3" | RBO24064B1 | COG | 116.0*48.5*5.2 | 112.0* 37.5 | 103.0*34.0 | 0.40*0.50 | 0.43*0.53 | UC1638C | 1S7P=7LED | FSTN, STN BLUE, Y-G |
SPI, FPC 20PIN, Pitch 0.5mm, |
| 240*128 | 2.0" | RBO240128D | COG | 51.3*35.8*4.2 | 47.1*26.5 | 42.7*22.13 | 0.158*0.153 | 0.178*0.173 | UC1638C | 1S3P=3LED | FSTN, STN BLUE, Y-G |
SPI, FPC 20PIN, Pitch 0.5mm, |
| 240*128 | 2.0" | RBO240128D1 | COG | 51.3*35.8*4.2 | 47.1*26.5 | 42.7*22.13 | 0.158*0.153 | 0.178*0.173 | UC1638C | 1S3P=3LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 30PIN , Pitch 0.5mm, |
| 240*128 | 2.6" | RBO240128C | COG | 71.3*52.2*5.3 | 65.0*38.0 | 57.58*34.54 | 0.22*0.25 | 0.24*0.27 | UC1638C | 1S3P=3LED | FSTN, STN BLUE, Y-G |
SPI, FPC 20PIN, Pitch 0.5mm, |
| 240*128 | 2.6" | RBO240128C1 | COG | 71.3*52.2*5.3 | 65.0*38.0 | 57.58*34.54 | 0.22*0.25 | 0.24*0.27 | UC1638C | 1S3P=3LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 30PIN , Pitch 0.5mm, |
| 240*128 | 2.8" | RBO240128B | COG | 71.5*48.2*5.2 | 66.5*38.0 | 61.18*32.62 | 0.235*0.235 | 0.255*0.255 | UC1638C | 1S3P=3LED | FSTN, STN BLUE, Y-G |
SPI, FPC 20PIN, Pitch 0.5mm, |
| 240*128 | 2.8" | RBO240128B1 | COG | 71.5*48.2*5.2 | 66.5*38.0 | 61.18*32.62 | 0.235*0.235 | 0.255*0.255 | UC1638C | 1S3P=3LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 30PIN , Pitch 0.5mm, |
| 240*128 | 3.5" | RBO240128A | COG | 88.6*56.4*5.6 | 80.4*42.4 | 73.18*39.02 | 0.285*0.285 | 0.305*0.305 | UC1638C | 1S5P=5LED | FSTN, STN BLUE, Y-G |
SPI, FPC 20PIN, Pitch 0.5mm, |
| 240*128 | 3.5" | RBO240128A1 | COG | 88.6*56.4*5.6 | 80.4*42.4 | 73.18*39.02 | 0.285*0.285 | 0.305*0.305 | UC1638C | 1S5P=5LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 30PIN , Pitch 0.5mm, |
| 240*160 | 2.2" | RBO240160E | COG | 60.0*45.0*5.0 | 54.2*32.5 | 47.97*26.53 | 0.18*0.16 | 0.2*0.18 | UC1638C | 1S2P=2LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 30PIN , Pitch 0.5mm, |
| 240*160 | 2.2" | RBO240160E1 | COG | 60.0*45.0*5.0 | 54.2*32.5 | 47.97*26.53 | 0.18*0.16 | 0.2*0.18 | UC1638C | 1S2P=2LED | FSTN, STN BLUE, Y-G |
SPI, FPC 20PIN, Pitch 0.5mm, |
| 240*160 | 2.5" | RBO240160D | COG | 66.2*54.2*4.5 | 60.0* 42.0 | 52.78*35.18 | 0.2*0.2 | 0.22*0.22 | UC1638C | 1S4P=4LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 30PIN , Pitch 0.5mm, |
| 240*160 | 2.5" | RBO240160D1 | COG | 66.2*54.2*4.5 | 60.0* 42.0 | 52.78*35.18 | 0.2*0.2 | 0.22*0.22 | UC1638C | 1S4P=4LED | FSTN, STN BLUE, Y-G |
SPI, FPC 20PIN, Pitch 0.5mm, |
| 240*160 | 3.3" | RBO240160C | COG | 84.55*61.2*4.9 | 78.35*48.0 | 69.58*43.98 | 0.27*0.255 | 0.29*0.275 | UC1638C | 1S5P=5LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 30PIN , Pitch 0.5mm, |
| 240*160 | 3.3" | RBO240160C1 | COG | 84.55*61.2*4.9 | 78.35*48.0 | 69.58*43.98 | 0.27*0.255 | 0.29*0.275 | UC1638C | 1S5P=5LED | FSTN, STN BLUE, Y-G |
SPI, FPC 20PIN, Pitch 0.5mm, |
| 240*160 | 3.5" | RBO240160A | COG | 85.0*62.8*5.4 | 77.58*51.6 | 71.98*47.98 | 0.28*0.28 | 0.30*0.30 | ST7586S | 1S8P=8LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 26PIN , Pitch 0.8mm, |
| 240*160 | 5.0" | RBO240160B | COG | 116.0*77.0*4.75 | 106.31*62.0 | 101.11*56.79 | 0.406*0.34 | 0.421*0.355 | UC1638C | 1S8P=8LED | FSTN, STN BLUE, Y-G |
MCU 8Bit, FPC 30PIN , Pitch 0.5mm, |
| 240*160 | 5.0" | RBO240160B1 | COG | 116.0*77.0*4.75 | 106.31*62.0 | 101.11*56.79 | 0.406*0.34 | 0.421*0.355 | UC1638C | 1S8P=8LED | FSTN, STN BLUE, Y-G |
SPI, FPC 20PIN, Pitch 0.5mm, |
Customized graphic LCD:
*It can be customized for monochrome LCD, backlight, FPC and PCB Board with a little tooling charge, and customized shape is suitable for customer's mechanical design.
* LED backlights are available in various colors including yellow/green, white, blue, and Backlight with different brightness is customized according to your request.
*Including different options of polarizer in reflective, transmissive or transflective types, and also with polarizer positive mode and negative mode options.
*It is available to add a connection board for each item to change the interface from FPC to pins or cables, We can offer a variety of pin out connections to suit your requirements.
* The LCD panel technologies include TN, STN, FSTN, FFSTN types, and are available with viewing angles of 6:00, 12:00, 3:00, and 9:00 o'clock.
* Extensive range of LCD graphic displays with various backlight and LCD type combinations.
Product Application:
| Telecommunication Devices | Telephone, Interphone, Smart Watch, Tablet PC, PDA |
| Consumer Products |
Camera, DVD Player, Cell Phone, Game Player, Digital Photo Frame, E-Book Reader, Mp3 Player, MP4 PMP, Netbook PC |
| Technical Equipment | Elevator Controller, Industrial Machine, Security Monitor, POS |
| Office Automation | Printer, Scanner, Fax Machine, Desktop Monitor, Desktop Monitor |
| Home Appliances | Air-condition Display, Refrigerator, Video Doorbell, Smart Machine |
| Automobile Display | GPS, Protable Navigation, Video Player, Speedometer, Recorder |
| IT Products | Digital Video, Media Player, Advertising Machine |
| Medical Equipment | Ultrasound Machine, Medial Monitor, Medical Imaging, Healthcare |
Packaging & Shipping & Delivery
Packaging Details:
All the products are packed in right way to keep it safe.
For small sizes of products we use tray + carton,
For bigger sizes we use foam slot + carton.
we also design packages according to customers' requirements
Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
For large quantity orders: we ship by buyer's cargo agent in China,
we can also ship by air or sea transportation by our cargo agent.
Delivery Details:
Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
Our Advantage:
| Rich experience | Good knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client |
| Advanced Equipment | Full automatic FPC&IC bonding machine, film attaching machine, CNC machine, polish machine advance production equipment ensure product quality |
| Quality Assurance | Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment |
| Fast response | Quickly realize your customized ideas, and have a sample ready in short time |
| Low MOQ | Depends on product |
| Stable supply | 1~10 years supply period |
| Extensive range | Providing complete solution from Mono to Color LCD module, Optical bonding between display to cover glass as well as cover glass to touch screen |
| Large production capacity | Operation capacity 2KK monthly |
| Quality guarantee | RoHS compliant |
| Management | ISO 9001:2008, ISO 14001:2004 |
Product Line:
☆Clean Room class[email protected], Pressurec 0.8kgf
☆Antistatic floor, resistance : 1x10 ohm to 1x10 ohm
☆COG production lines: 4 .
☆Backlight production lines: 2 .
☆Existing machine capacity will be 1KK per month.
Quality Policy:
All materials we purchase for making any orders are high quality andRoHS compliant, and Control quality with ISO 9001:2008 management system.
Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment
Certification:
FAQ:
Q: How can I get some samples?
A:We don't provide free one, but we can have a discount when you reorder according to different quantity, and you will win at least 3% discount.
Q: What is the MOQ?
A: It depends on different products. Please keep in touch with sales to confirm the MOQ.
Q: How do you control quality?
A:All materials we purchase for making any orders are high quality andRoHS compliant, and Control quality with ISO 9001:2008, ISO 14001:2004 management system.
Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment0*480 CapacitouScreenCDsplay
Q: Does your product have any warranty?
A: Yes, we offer 12 months warranty for our products.
Q: What's your payment method?
A:Payment: T/T, Paypal, Western Union, etc.
For samples: payment in advance.
For mass production: 30% deposit and 70% balance before shipment.
Q: Do you offer custom solution?
A: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements.
User Reviews
Write a review
File a complaint
Supplier Review
Summary by Vivian
TRUST STARS
3.8/5
0 Reviews
Company Verification
0/4
Profile Completeness
56%
Avg. Product Score
0/5
Responsiveness
0%
Certification
Business Registration Certificate, ISO 9001:2008, ROHS Certification, Subliencse Agreement
Related searches
Frequently Asked Questions (FAQs)
How can I buy & import LCD Display from China?
You can contact verified China supplier RONBO ELECTRONICS LIMITED through platforms like Freshdi.com to purchase 128X64 Graphic LCD Display FSTN Positive Cog LCD Module with Spi Interface. For direct inquiries, please contact Miss Agatha Chen, the company’s representative. The supplier has a 3.8-star rating on Freshdi and has verified. You’ll receive product details, pricing, and shipping terms directly from supplier.
What are the payments and trade terms for 128X64 Graphic LCD Display FSTN Positive Cog LCD Module with Spi Interface?
For 128X64 Graphic LCD Display FSTN Positive Cog LCD Module with Spi Interface, RONBO ELECTRONICS LIMITED accepts LC, T/T, D/P, PayPal, Western Union as the preferred payment method, the trade term is EXW, and shipments are typically arranged from port shenzhen port, ensuring secure and timely international delivery.
What is the current price of 128X64 Graphic LCD Display FSTN Positive Cog LCD Module with Spi Interface?
The supplier RONBO ELECTRONICS LIMITED offers 128X64 Graphic LCD Display FSTN Positive Cog LCD Module with Spi Interface at negotiation.
What are the specifications of 128X64 Graphic LCD Display FSTN Positive Cog LCD Module with Spi Interface from China?
128X64 Graphic LCD Display FSTN Positive Cog LCD Module with Spi Interface is sourced from China and meets international export standards. Key specifications include: Package Gross Weight: 0.060kg, Shipping Cost: Contact the supplier about freight and estimated delivery time., Refund policy: Claim a refund if your order doesn't ship, is missing, or arrives with product issues., Specification: Rohs, HS Code: 901383010, Origin: Shenzhen, China, Trade Term: EXW, Payment Term: LC, T/T, D/P, PayPal, Western Union
You are viewing details for 128X64 Graphic LCD Display FSTN Positive Cog LCD Module with Spi Interface. The information provided here is either posted directly by the supplier, who is responsible for its accuracy, or collected by Freshdi AI from publicly available sources. Freshdi strives to make product information as useful and reliable as possible, but we do not guarantee complete accuracy. If you notice any incorrect or misleading details, please use the Report Product option so our team can review and address it quickly.
$3.4
/ Piece
Min. order: 2 Piece
