140t Polyester Silk Screen Printing Mesh
10 Meter
$1010 Meter
$80Product information
High-quality 140t Polyester Silk Screen Printing Mesh supplied by Hebei Meshtech Technology Co.,LTD. Bulk wholesale pricing ranges from $10 to $80 per Meter with a minimum order of 10 Meter. Inquiry for latest prices.
Width:
0.6m-3.68m
Product Name:
140t Polyester Silk Screen Printing Mesh
Delivery Time:
3-5 Days for Inventory
Length:
30m, 50m or at Your Request
HS Code:
5911200090
Specification:
64T
Production Capacity:
80000 Square Meter/Square Meters Per Week
Order Repeat:
98% Repeat Orders
Specifications
Width:
0.6m-3.68m
Product Name:
140t Polyester Silk Screen Printing Mesh
Delivery Time:
3-5 Days for Inventory
Length:
30m, 50m or at Your Request
HS Code:
5911200090
Specification:
64T
Production Capacity:
80000 Square Meter/Square Meters Per Week
Order Repeat:
98% Repeat Orders
Trade Term:
FOB, CFR, CIF, DDP, FCA, EXW
Sample:
Free
Application:
Garment, Textile, Graphic, Digital, Glass etc
Origin:
Hebei China
Payment Term:
LC, T/T, PayPal, Western Union
Elasticity:
Low
Features:
Low Elongation and High Tensile
Trademark:
MAISHI
Transport Package:
Paper Carton
Printing:
Polyester Screen Printing
Guarantee:
Replacement & Return Avaliabe
Port Of Loading:
Tianjin Xingang, Shanghai, Beijing
Color:
White, Yellow
Model NO.:
printing mesh
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
1995-08-02
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, CFR, CIF, DDP, FCA, EXW
Port Of Loading:
Tianjin Xingang, Shanghai, Beijing
Certificates:
CQC, FDA, SCAN ISO2008, SGS, SON
Product descriptions from the supplier
140T polyester silk screen printing mesh
MAISHI buy polyester screen printing mesh material yarn from Jintong, Switzerland and Japan, we inspect those yarn arrived (tolerance, tensile strength, physics test etc.).
During production, first we put the warp wires on the beam, drawing the warp wires into heddle and reed. Then our experienced weaver will start weaving mesh according to orders.
Initial survey is taken during and after weaving. Then the heat setting treatment and physical properties inspection will be done before we get tentative finished rolls (normally 60-500 meters rolls).
In the end, after the final inspection, we will cut the mesh into small rolls (20m-50m) according to customer orders.
Testing
MAISHI test polyester silk screen printing mesh before the goods dispatched from our factory to ensure their quality.Make sure customers get perfect quality.
Testing include:
1> Mesh count inspect
2> Thickness inspect
3> Thread dia & hole inspect
4> Elongation test
5> Tensile test
For Polyester mesh screen, we have two kind of packing type:
1.Fold the polyester wire mesh into plastic bag ,then in carton.Suitable for small quantity and have no requirement on the crease.
2.Pack the mesh with paper and plastic bag,then in carton.Suitable for large quantity and the mesh has better surface then folding type.

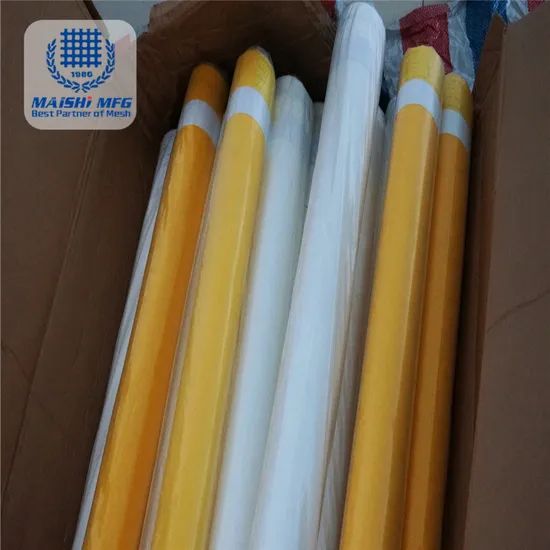

Folding packing
Rolling packing

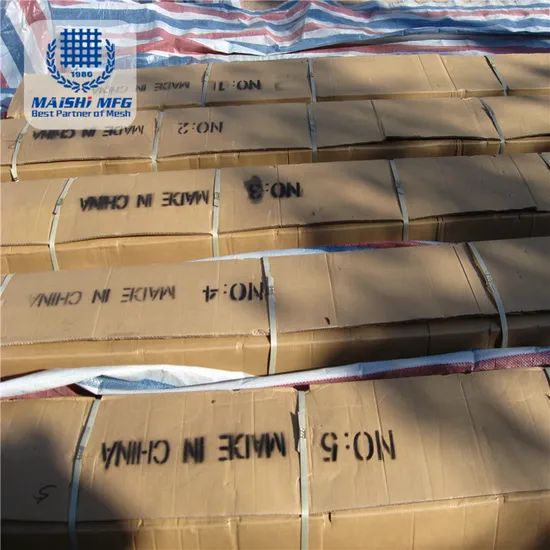

Paper carton package
Outside pack with weater-proof weaving cloth
Application
1> Ceramic printing / Glaze printing
2> Garment Printing
3> Glass printing
4> PCB printing
Andother applicationsinclude:
CD/DVD Printing,
Ceramic Decorating,
Graphic Screen Printing (Glass Containers, Labels,Large Format UV Graphic, Small Format UV Graphic, Solvent Graphics, Tubes and Cartridges),
Package Printing,
Printed Electronics,
Printing on Glass,
Solar Cell Printing,
Textile Printing,
Tableware.
Information needed for quote
Any need for Polyester printing mesh, please contact us and let us know your specifications, include:
1. Material
2. Mesh count
3. Wire diameter or hole size
4. Mesh color
5. Roll size
6. If you can tell your application, it will be much helpful
7. Quantity
Maishi is always here for you!
In the field of mesh fabrics forsilk screen printing mesh, nowadays the low-elongation screen mesh has already replaced the traditional silk mesh and is dominating the screen printer in the world due to its tensile strength, elastic memory and resistance to chemicals, abrasion heat and moisture. It is said "can be used to print on anything except air and water", which is exactly what MAISHI is producing now in a wide range of mesh counts, and our products offer significant advantages over the traditional monofilament nylon.
 |
1.Material: 100% Polyester 2.Mesh count: 18mesh(7T)-420mesh(165T) 3. Width: 0.6m-3.65m 4.Length: 30-70m per roll 5.Thread diameter:31-350um 6.Color: white/yellow/orange 7.Packing: PVC bag inside for each roll, then carton,then waterproof bag outside |
Normal specifications
| Maishi Monofilament Polyester silk screen printing mesh | ||||||
| model | mesh count |
APERTURE | THREAD DIAMETER |
OPENING | thickness | INK THROUGH VOLUME THEORETICALLY |
| mesh/inch | micron | micron | % | micron | cm 3 /m 2 | |
| 6-400 | 15 | 1300 | 400 | 65 | 780-810 | 560 |
| 10-250 | 25 | 700 | 250 | 49 | 508-518 | 355 |
| 12-250 | 30 | 610 | 250 | 53 | 495-505 | 305 |
| 15-250 | 38 | 467 | 250 | 49 | 489-501 | 213 |
| 18-150 | 45 | 410 | 150 | 53 | 255-275 | 138 |
| 21-150 | 55 | 330 | 150 | 46 | 260-280 | 123 |
| 24-100 | 60 | 316 | 100 | 57 | 136-145 | 109 |
| 24-120 | 60 | 302 | 120 | 51 | 230-240 | 104 |
| 30-120 | 75 | 213 | 120 | 41 | 235-345 | 102 |
| 32-100 | 80 | 212 | 100 | 46 | 145-155 | 69 |
| 36-90 | 90 | 183 | 90 | 44 | 160-165 | 65 |
| 39-55 | 100 | 195 | 55 | 56 | 88-96 | 55.0 |
| 39-80 | 100 | 166 | 80 | 43 | 125-130 | 59.0 |
| 43-80 | 110 | 147 | 80 | 40.8 | 127-132 | 53 |
| 48-70 | 120 | 135 | 70 | 41 | 108-120 | 45.5 |
| 54-55 | 135 | 118 | 55 | 47 | 88-96 | 44.5 |
| 54-64 | 135 | 115 | 64 | 38.5 | 95-105 | 38.9 |
| 54-70 | 135 | 108 | 70 | 34 | 108-120 | 40 |
| 58-55 | 145 | 118 | 55 | 38 | 89-94 | 39.5 |
| 61-64 | 155 | 105 | 64 | 42 | 98-107 | 33 |
| 64-45 | 160 | 105 | 48 | 43 | 73-82 | 36.5 |
| 64-55 | 160 | 98 | 55 | 38 | 85-95 | 36.1 |
| 64-64 | 160 | 88 | 64 | 30 | 95-105 | 30.7 |
| 68-55 | 175 | 85 | 55 | 34 | 85-90 | 29 |
| 72-48 | 180 | 90 | 48 | 36 | 75-84 | 33.1 |
| 77-55 | 190 | 81 | 55 | 30 | 88-97 | 26.6 |
| 80-45 | 200 | 75 | 45 | 36 | 65-74 | 27.7 |
| 80-48 | 200 | 72 | 48 | 33 | 75-84 | 28.7 |
| 90-48 | 230 | 56 | 48 | 25 | 77-85 | 23.5 |
| 100-40 | 250 | 58 | 40 | 33 | 62-71 | 21.3 |
| 110-40 | 280 | 48 | 40 | 27 | 65-71 | 18.4 |
| 110-34 | 280 | 54 | 34 | 35.5 | 52-57 | 20.2 |
| 120-34 | 305 | 45 | 34 | 30.5 | 52-57 | 18.4 |
| 140-34 | 355 | 31 | 34 | 19.5 | 56-62 | 14.4 |
| 150-31 | 380 | 36 | 31 | 29 | 43-47 | 13.1 |
| 150-34 | 380 | 30 | 34 | 20.5 | 56-62 | 14.9 |
| 165-31 | 420 | 31 | 31 | 23 | 52-58 | 12.88 |
D (DENIER) =MICRON 9D=31MICRON, 12D=34MICRON, 16D=40MICRON, 22D=48MICRON, 30D=55MICRON; 40D=64MICRON, 50D=70MICRON, 60D=80MICRON, 80D=90MICRON, 100D=100MICRON Notice:Other abnormal specification can be produced if the quantity more than 3000sqm |
||||||
MAISHI buy polyester screen printing mesh material yarn from Jintong, Switzerland and Japan, we inspect those yarn arrived (tolerance, tensile strength, physics test etc.).
During production, first we put the warp wires on the beam, drawing the warp wires into heddle and reed. Then our experienced weaver will start weaving mesh according to orders.
Initial survey is taken during and after weaving. Then the heat setting treatment and physical properties inspection will be done before we get tentative finished rolls (normally 60-500 meters rolls).
In the end, after the final inspection, we will cut the mesh into small rolls (20m-50m) according to customer orders.
Testing
MAISHI test polyester silk screen printing mesh before the goods dispatched from our factory to ensure their quality.Make sure customers get perfect quality.
Testing include:
1> Mesh count inspect
2> Thickness inspect
3> Thread dia & hole inspect
4> Elongation test
5> Tensile test
Packing
For Polyester mesh screen, we have two kind of packing type:
1.Fold the polyester wire mesh into plastic bag ,then in carton.Suitable for small quantity and have no requirement on the crease.
2.Pack the mesh with paper and plastic bag,then in carton.Suitable for large quantity and the mesh has better surface then folding type.
Folding packing
Rolling packing
Paper carton package
Outside pack with weater-proof weaving cloth
Screen Printing Mesh Characteristics:
- Faster tensioning without damage to the threads
- Improved fabric strength
- Faster tension stabilization
- Higher tension threshold and breaking point
- Less tension loss during the stretching process
- Faster turnaround time from the screen room to the pressroom
- Improved registration due to stable tension
- Faster Print speeds
Features & advantages of polyester silk screen printing mesh fabric:
1. Faster turnaround time from the screen room to the pressroom
2. Good diathermancy
3. High air permeability
4. Acid resistance and Alkali resistance
5. Long working life
6. Hard wear
7. Three factories for manufacturing
8. Imported weaving machines from Switzerland and Italy
Application
Polyester printing mesh Mainly usage for different mesh count as following:
|
GRADES |
Usage |
|
21T, 24T |
Beach towels, Pennant inks, |
|
34T,32T~36T, 39T, 43T |
Textile inks, Opaque inks textile, T-shirts |
|
49T, 48T, |
Textile inks, Finer textile design, Water based inks. |
|
62T, 64T, |
Enamel inks, Very fine textile ink |
|
77T |
Paper & Board inks, & textile |
|
90T |
Vinyl inks, Plastic inks, Plastisol inks, |
|
110T, 120T |
Halftone printing, Paper & Board Vinyl |
|
150T,165T |
U.V. printing, or very fine halftone work, solvent inks |
1> Ceramic printing / Glaze printing
2> Garment Printing
3> Glass printing
4> PCB printing
Andother applicationsinclude:
CD/DVD Printing,
Ceramic Decorating,
Graphic Screen Printing (Glass Containers, Labels,Large Format UV Graphic, Small Format UV Graphic, Solvent Graphics, Tubes and Cartridges),
Package Printing,
Printed Electronics,
Printing on Glass,
Solar Cell Printing,
Textile Printing,
Tableware.
Information needed for quote
Any need for Polyester printing mesh, please contact us and let us know your specifications, include:
1. Material
2. Mesh count
3. Wire diameter or hole size
4. Mesh color
5. Roll size
6. If you can tell your application, it will be much helpful
7. Quantity
Maishi is always here for you!
