140t Silk Screen Printing Polyester Monofilament Mesh
10 Meter
$510 Meter
$20Product information
High-quality 140t Silk Screen Printing Polyester Monofilament Mesh supplied by Hebei Meshtech Technology Co.,LTD. Bulk wholesale pricing ranges from $5 to $20 per Meter with a minimum order of 10 Meter. Inquiry for latest prices.
Width:
0.6m to 3.68m
Specification:
140T
Thread Diameter:
34micron
HS Code:
5911200090
Production Capacity:
780, 000 Square Meters Per Week
Origin:
China
Trade Term:
FOB, CFR, CIF, DDP, FCA, EXW
Payment Term:
LC, T/T, PayPal, Western Union
Specifications
Width:
0.6m to 3.68m
Specification:
140T
Thread Diameter:
34micron
HS Code:
5911200090
Production Capacity:
780, 000 Square Meters Per Week
Origin:
China
Trade Term:
FOB, CFR, CIF, DDP, FCA, EXW
Payment Term:
LC, T/T, PayPal, Western Union
Elasticity:
Low
Trademark:
MAISHI
Structure:
Monofilament
Transport Package:
Paper Carton Box
Printing:
Polyester Screen Printing
Port Of Loading:
Tianjin Xingang, Shanghai, Beijing
Color:
Yellow, White
Model NO.:
polyester monofilament mesh
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
1995-08-02
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, CFR, CIF, DDP, FCA, EXW
Port Of Loading:
Tianjin Xingang, Shanghai, Beijing
Certificates:
CQC, FDA, SCAN ISO2008, SGS, SON
Product descriptions from the supplier

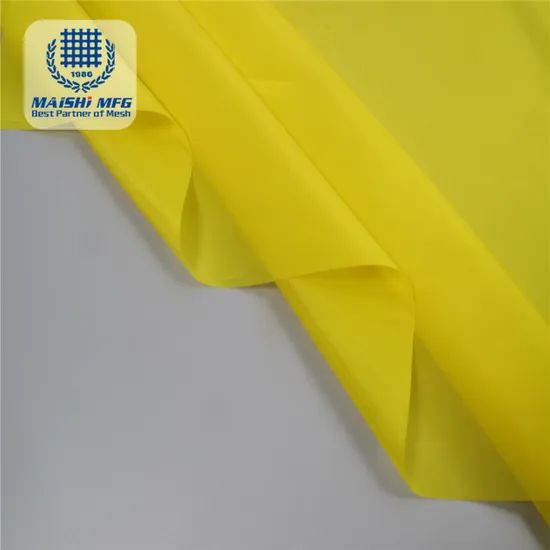

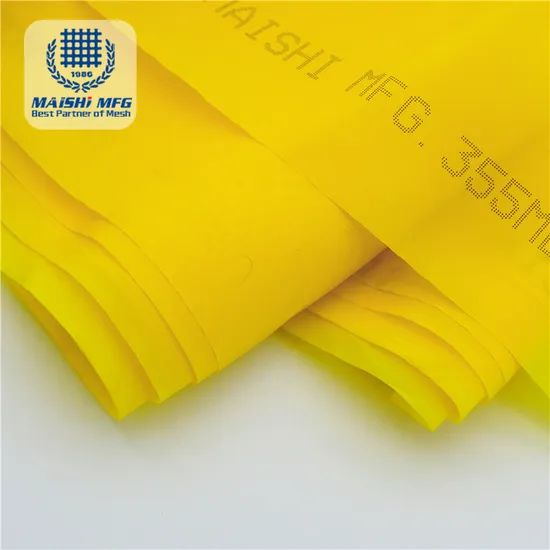

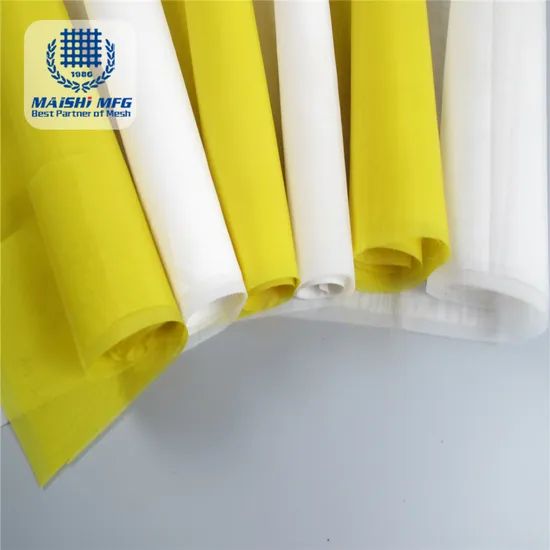

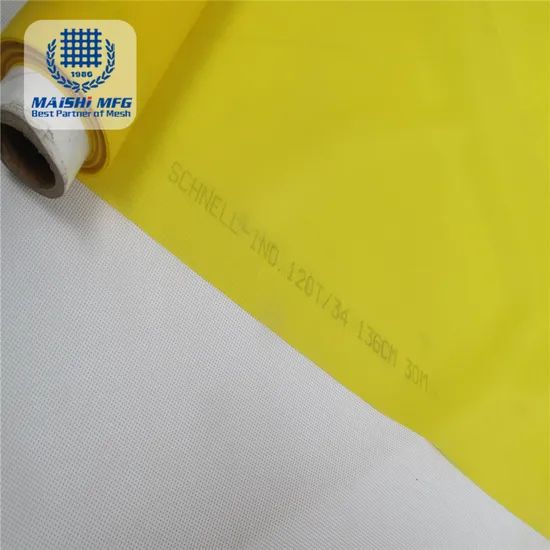

Polyester monofilament meshis a plain woven mesh bolting cloth made with polyester monofilament yarn.
Polyester mesh has high strength, corrosion resistance, good abrasion resistance, and long life. So it is widely used for screen printing, beneficiation, flour, wastewater treatment, sugar refining, pharmaceuticals, ceramics, food (fruit and vegetable juice pressing), paper,and coal washing industry.
1. Characters:
Material :manufactured by 100% polyester monofilament yarns
Opening :the mesh with great precision exact and regular square holes
Chemicals :no unwanted chemicals,no any chemicals treatment in the production process
Safe Grade :very safe,very thin,food grade
Shape :can made by disc,tube,piece,roll any sizes and shape,max roll length1000m
Temperature :high tensile,use temperature under 200ºC
Dimensoinal :very good dimensional stability
2. Features
1.100% Polyester Monofilament Material
2.Excellent Tear Resistance
3.Excellent Dimensional Stability
4.Higher Tension Strength & Break Point
5.Low Elongation
3. Normal specifications
| Maishi Monofilament Polyester Screen Printing Mesh Fabric | ||||||
| model | mesh count |
APERTURE | THREAD DIAMETER |
OPENING | thickness | INK THROUGH VOLUME THEORETICALLY |
| mesh/inch | micron | micron | % | micron | cm 3 /m 2 | |
| 6-400 | 15 | 1300 | 400 | 65 | 780-810 | 560 |
| 10-250 | 25 | 700 | 250 | 49 | 508-518 | 355 |
| 12-250 | 30 | 610 | 250 | 53 | 495-505 | 305 |
| 15-250 | 38 | 467 | 250 | 49 | 489-501 | 213 |
| 18-150 | 45 | 410 | 150 | 53 | 255-275 | 138 |
| 21-150 | 55 | 330 | 150 | 46 | 260-280 | 123 |
| 24-100 | 60 | 316 | 100 | 57 | 136-145 | 109 |
| 24-120 | 60 | 302 | 120 | 51 | 230-240 | 104 |
| 30-120 | 75 | 213 | 120 | 41 | 235-345 | 102 |
| 32-100 | 80 | 212 | 100 | 46 | 145-155 | 69 |
| 36-90 | 90 | 183 | 90 | 44 | 160-165 | 65 |
| 39-55 | 100 | 195 | 55 | 56 | 88-96 | 55.0 |
| 39-80 | 100 | 166 | 80 | 43 | 125-130 | 59.0 |
| 43-80 | 110 | 147 | 80 | 40.8 | 127-132 | 53 |
| 48-70 | 120 | 135 | 70 | 41 | 108-120 | 45.5 |
| 54-55 | 135 | 118 | 55 | 47 | 88-96 | 44.5 |
| 54-64 | 135 | 115 | 64 | 38.5 | 95-105 | 38.9 |
| 54-70 | 135 | 108 | 70 | 34 | 108-120 | 40 |
| 58-55 | 145 | 118 | 55 | 38 | 89-94 | 39.5 |
| 61-64 | 155 | 105 | 64 | 42 | 98-107 | 33 |
| 64-45 | 160 | 105 | 48 | 43 | 73-82 | 36.5 |
| 64-55 | 160 | 98 | 55 | 38 | 85-95 | 36.1 |
| 64-64 | 160 | 88 | 64 | 30 | 95-105 | 30.7 |
| 68-55 | 175 | 85 | 55 | 34 | 85-90 | 29 |
| 72-48 | 180 | 90 | 48 | 36 | 75-84 | 33.1 |
| 77-55 | 190 | 81 | 55 | 30 | 88-97 | 26.6 |
| 80-45 | 200 | 75 | 45 | 36 | 65-74 | 27.7 |
| 80-48 | 200 | 72 | 48 | 33 | 75-84 | 28.7 |
| 90-48 | 230 | 56 | 48 | 25 | 77-85 | 23.5 |
| 100-40 | 250 | 58 | 40 | 33 | 62-71 | 21.3 |
| 110-40 | 280 | 48 | 40 | 27 | 65-71 | 18.4 |
| 110-34 | 280 | 54 | 34 | 35.5 | 52-57 | 20.2 |
| 120-34 | 305 | 45 | 34 | 30.5 | 52-57 | 18.4 |
| 140-34 | 355 | 31 | 34 | 19.5 | 56-62 | 14.4 |
| 150-31 | 380 | 36 | 31 | 29 | 43-47 | 13.1 |
| 150-34 | 380 | 30 | 34 | 20.5 | 56-62 | 14.9 |
| 165-31 | 420 | 31 | 31 | 23 | 52-58 | 12.88 |
D (DENIER) =MICRON 9D=31MICRON, 12D=34MICRON, 16D=40MICRON, 22D=48MICRON, 30D=55MICRON; 40D=64MICRON, 50D=70MICRON, 60D=80MICRON, 80D=90MICRON, 100D=100MICRON Notice:Other abnormal specification can be produced if the quantity more than 3000sqm |
||||||
4. Production process
Material yarn from Jintong, Switzerland and Japan, we inspect those yarn arrived (tolerance, tensile strength, physics test etc.).
During production, first we put the warp wires on the beam, drawing the warp wires into heddle and reed. Then our experienced weaver will start weaving mesh according to orders.
Initial survey is taken during and after weaving. Then the heat setting treatment and physical properties inspection will be done before we get tentative finished rolls (normally 60-500 meters rolls).
In the end, after the final inspection, we will cut the mesh into small rolls (20m-50m) according to customer orders.
5. Mesh Test
MAISHI test printing mesh before the goods dispatched from our factory to ensure their quality.Make sure customers get perfect quality.
Testing include:
1> Mesh count inspect
2> Thickness inspect
3> Thread dia & hole inspect
4> Elongation test
5> Tensile test
6. Packing
Forpolyester monofilament mesh, we have two kind of packing type:
1.Fold the mesh into plastic bag ,then in carton.Suitable for small quantity and have no requirement on the crease.
2.Pack the mesh with paper and plastic bag,then in carton.Suitable for large quantity and the mesh has better surface then folding type.
Folding packing

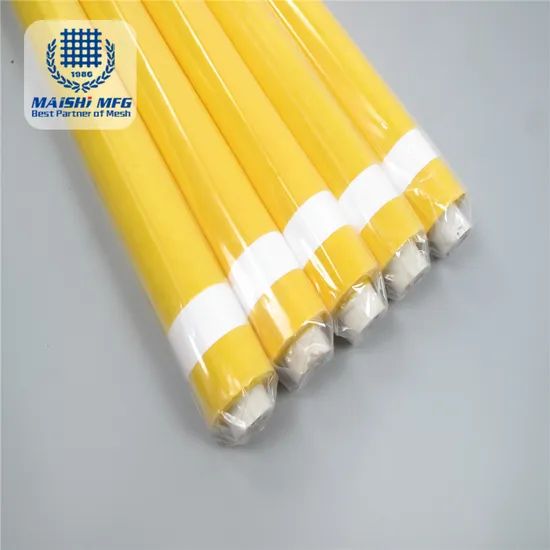

Rolling packing

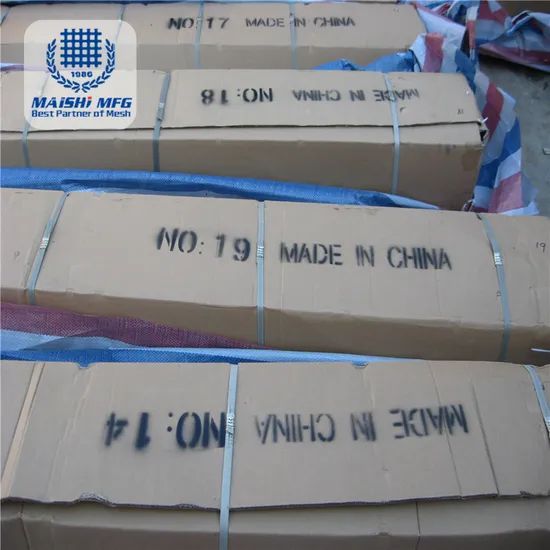

Paper carton package
Outside pack with weater-proof weaving cloth
7. Polyester mesh Application
1> Ceramic printing / Glaze printing
2> Garment Printing
3> Glass printing
4> PCB printing
Andother applicationsinclude:
CD/DVD Printing,
Ceramic Decorating,
Graphic Screen Printing (Glass Containers, Labels,Large Format UV Graphic, Small Format UV Graphic, Solvent Graphics, Tubes and Cartridges),
Package Printing,
Printed Electronics,
Printing on Glass,
Solar Cell Printing,
Textile Printing,
Tableware.
Any need for printing mesh, please contact us and let us know your specifications, include:
1. Material
2. Mesh count
3. Wire diameter or hole size
4. Mesh color
5. Roll size
6. If you can tell your application, it will be much helpful
7. Quantity
Maishi is always here for you!
