150W Single Head Single Table Qcw Fiber Laser Welding Machine
Set
Negotiable
Product information
High-quality 150W Single Head Single Table Qcw Fiber Laser Welding Machine supplied by Jiangmen Smart Technology Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
The Laser Wavelength:
1060nm
Laser Power:
150W /200W
Production Capacity:
5000sets/Year
HS Code:
845611
Control:
Automatic
Type:
Automatic Laser Welding Machine
Application:
Biomedicine, Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry
Origin:
China
Specifications
The Laser Wavelength:
1060nm
Laser Power:
150W /200W
Production Capacity:
5000sets/Year
HS Code:
845611
Control:
Automatic
Type:
Automatic Laser Welding Machine
Application:
Biomedicine, Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry
Origin:
China
Technical Class:
Continuous Wave Laser
Power Density:
Deep Fusion Welding
Trade Term:
FOB, EXW, CFR, CIF
Payment Term:
LC, T/T, PayPal, D/P, Small-amount payment, Western Union, Money Gram
Laser Classification:
Optical Fiber Laser
Trademark:
SMART
Transport Package:
Wooden Cases
Model NO.:
ZXJN-QCW150S
Port Of Loading:
Zhenzhen Port, Guangzhou Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2020-07-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, D/P, Small-amount payment, Western Union, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
Zhenzhen Port, Guangzhou Port
Certificates:
Certificates
Product descriptions from the supplier
150W One Head One Table QCW welding machine
Mode:ZXJN-QCW150S
Laser type: Fiber laser
Operatingmode: Pulse/continuous
The laser wavelength,:1064nm
Average power (pulse): 150W
Average power (continuous): 250W
Average peak power: 1500W
Fiber output quantity:1 way
Optical fiber core diameter :50 microns
Fiber length :5m
Operating temperature range :10-50 ºC
Cooling way: Forced air cooling (delivered)
Aiming and positioning mode: Red light indicator, CCD
Demand for electricity: Single phase 220V VAC 50HZ
Electricity power :1KW
Welding table configuration parameters
| Model name | ZXJN-QCW150S 150WOneHeadOne TableQCW welding machine |
| Control system | PLC control system + motion control card |
| Matching welding joint | A set of collimating welding joints |
| Matching laser | 150/1500 quasi-continuous fiber laser set |
| Platform configuration | XYZ three axis T type platform, one set of one Y axis platform |
| Platform trip | 300 * 500 * 800 (Y) (Z) (X) mm |
| Motion platform repeated positioning accuracy | (+ / - 0.02 mm |
| station | Single head double station |
| Degree of automation | Manual loading and unloading, automatic welding |
| Products fixture | Customer should bring along their own |
| The welding trajectory | Any of points, lines, circles, squares, or rectilinear arcs |
| Dimensions (Table) | The plane figure |
| Laser type | Fiber laser |
| Operating mode | Pulse/continuous |
| The laser wavelength | 1064nm |
| Average power (pulse) | 150W |
| Average power (continuous) | 250W |
| Average peak power | 1500W |
| Fiber output quantity | 1 way |
| Optical fiber core diameter | 50 microns |
| Fiber length | 5m |
| Operating temperature range | 10-50 ºC |
| Cooling way | Forced air cooling (delivered) |
| Aiming and positioning mode | Red light indicator, CCD |
| Demand for electricity | Single phase 220V VAC 50HZ |
| Electricity power | 1KW |
QCW Fiber Laser Weling Machine Advantage

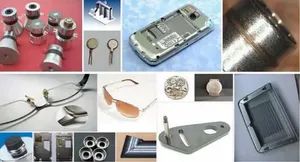

Welding sample
Laser Welding Machine:
Laser welding is a welding method that uses a focused laser beam as an energy source to bombard the weldment with the generated heat. Because the laser has optical properties such as refraction and focusing, so laser welding is very suitable for welding of micro-parts and parts with poor weld ability. Laser welding has the characteristics of low heat input, small welding deformation, and is not affected by electromagnetic fields. The welding process is of thermal conductivity type, that is, the surface of the work piece is heated by laser radiation, and the surface heat is diffused to the inside through heat conduction. By controlling the laser power, swing width, frequency and other parameters, the work piece is melted to form a specific molten pool
Remarks:
note:The whole equipment (except for vulnerable parts and consumables, non-resistible natural disasters, war and illegal operations, man-made sabotage, etc.) warranty period is 1 year.
Q1:What is the delivery time for the machine?
A1:Standard models delivery time is usually7-15 days
Customizedmodels delivery time is usually within 15-30 working days.
Q2:Are the displayed prices final offers?
A2: No, It is a price range. The final quotation depends on the buyer's requirements.
Q3: I don't know which one is suitable for me?
A3:Please tell me your
1) Your materials
2)The desired effect
3)Max size of your material
4) Maxmarking or cuttingthickness
5) Popular cut thickness
Q4:How to install and use it?
A4:Before shipment, we will install, debug and test production in the production plant.Andprovide training videos and English user manuals for the installation, operation, maintenance and troubleshooting of the machine. When you encounter installation, usage or adjustment issues, we will provide technical guidance via email, fax, phone /Messenger/WhatsApp, etc.
If need we will send one mechanical engineerfor machine installation guidance andproduction debugging. Payment is required depending on different countries and regions.
Q5:How do you provide after-sales service?
A5:You need to confirm with our engineers in the group now what the problem is, and our engineers will check if they can solve it by remote technical guidance. If need we will send one mechanical engineerfor machine installation guidance andproduction debugging.
Q6:This machine has problems within the warranty period. What should I do?
A6:The quality guarantee period is 12 months from the date when the goods arrive at the destination port. Except for man-made damage, we are responsible for providing spare parts free of charge during the warranty period. After the quality guarantee period, if any repair or replacement of parts is required, payment must be made.
Q7What is the wholesale price?
A7:If you are a wholesaler, distributor or agent, please contact us to obtain wholesale prices.
Q8:Are you a manufacturer or a trading company?
A8:we area manufacturercompany, Combining geographical advantages, we have11years of manufacturing and we are also working together with our raw material suppliers developing new items every year, to reduce material cost and offer final discount to customers.
Q9:How do you handle quality control and product inspection?
A9:We implement strict quality control measures and have a dedicated inspection team to ensure all products meet international standards before shipping. Finally we provide clients with production pictures and videosfor checking before delivery.
Q10:Can you do OEM/ODM?
A10:Yes, we offer customized solutions for OEM and ODM projects, tailored to meet specific customer requirements and branding.
Q11:May we visit your factory?
A11:We welcome potential clients to visit our factory.Please schedule an appointment in advance to ensure we can provide you with a comprehensive tour.
Q12:Can products be customized?
A12:Absolutely, we can customize our products based on your specifications and requirements.
Q13:What is the MOQ (Minimum Order Quantity)?
A13:The MOQ for our products is [1set], and we are willing to discuss this further for long-term partnerships or special circumstances.
Q14:Do you have a product catalog?
A14:Yes, we have a detailed product brochure that includes technical specifications and high-resolution images. We can provide it upon request.
Q15:Do you have technical specifications for the product?
A15:We can provide detailed technical specifications for every product we offer.
Q16:Can we customize the LOGO?
A16:Yes, we can customize the product with your company's logo, subject to certain design guidelines and approval processes.
Q17:What is your regular packaging?
A17:Standard packing by seaor air
