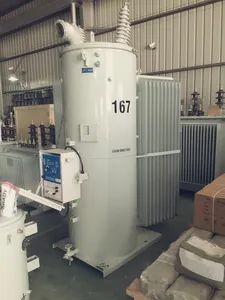

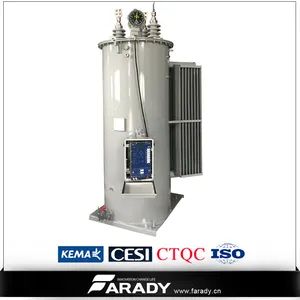

15kv Single Phase Voltage Regulator

13.8kv single phase ac auto line voltage regulator

Technical Specification
VR-8 single-phase step voltage regulators are tap-changing autotransformers designed to automati- cally regulate  distribution line voltages in a range of plus or minus 10% in 32 steps of approximately 5/8% each. The following  ratings are available:
1.Voltage: 2500 Volts (60 kV BIL) through 33000 Volts (200 kV BIL)
2. Current: 50 through 1665 Amps
3. KVA: 33 through 1000
4. Frequency: 50 or 60 Hertz
Internal potential winding taps and/or an external ratio correction transformer are provided on all ratings so that  each regulator may be applied within a range of system voltages.

A  digital  control system automatically operates the  tap  changer  mechanism  to maintain  system voltage within desired limits.  The  control system is  externally programmable to allow precise  setting of control limits  and provides sophisticated capabilities for special control require- ments, communication, and data logging.

Overhead type  voltage regulators are supplied  with  support  brackets for pole mounting  and  have bolt-down provisions for pad-mounted applications.  Substation type  voltage regulators are  provided with rectangular substation bases. Elevating platforms are available as an option.

FAQ
1,Why I buy Farady transformer

After compare quality,delivery and price you will find out answer

2,How is your farady electrical transformer waranty

12+12month after manufacture date,you total got 2 year waranty

3,Is that possible to be one of distributor of Farady Electric in my country

Yes,once you action is fast enough

4,More question......

Feel free to contact you you will get immediately reply

Company Information
We are professional manufacturer of power transformer,electrical transformer,step voltage regulator,oil immersed and cast resin dry type transformer

ISO9001&14001 approval company

Each series transformer we manufacutured was type tested

Professional technical team ensure our product was always advanced amony your competitor
Founded in 2006, with a registered capital of 10 million USD, Zhejiang Farady Electric enjoys about 10 years experience in distribution transformer manufacture.
Farady is located in Liushi of Yueqing, a costal city, which is often referred as the Electric Products Capital in China. Boardered by the State road, highway, and high-speed railway, close to

SHANGHAI/NINGBO/WENZHOU sea ports, and the Yongqiang International airport in Wenzhou, we enjoy a great advantage in transportation which thus can guarantee our clients the fast shipping.

Our main products include: step voltage regulator up to 35kV, conventional and complete self-protection transformer, single phase pad mounted transformer, withstand high overload transformer, capacity-adjustable transformer, amorphous transformer, energy-saving transformer, etc green transformer. All the products of ours have passed the national laboratory type test, which also wins the STATE GRID of China as one of our contractors.
The company is equipped with the state-of-the-art technology, sophisticated facilities, ISO9001 quality management system certification and ISO14001 environment certification approval.

We also enjoy the Certification of New Hi-tech Enterprises, National Spark Program, and own more than 70 item transformer patents, with which our products are not only popular in the domestic market but also exported to Southeast Asia, South America, Africa and the middle east.

Today, boasting the value of products specialization, brand management, and business globalization, with the sprits of pragmatism, innovation, efficiency, and responsibility, Farady Company is dedicated to become the biggest name in the international business of transformers in China, and contributes its share to the transformation from the Made in China into the Invented in China.
