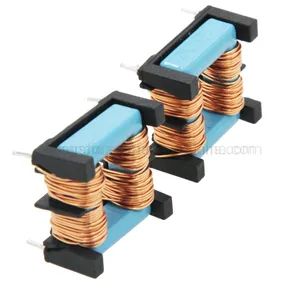

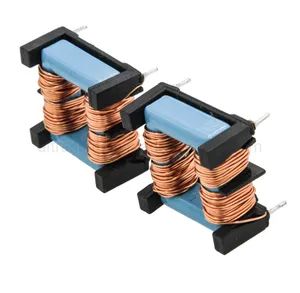

15mH Flat Wire Common Mode Inductor
100-1999 Pieces
$1.282000 Pieces
$1.11Product information
High-quality 15mH Flat Wire Common Mode Inductor supplied by AL Transfo Technology Limited. Bulk wholesale pricing ranges from $1.11 to $1.28 per Pieces with a minimum order of 100 Pieces. Inquiry for latest prices.
Tolerance:
+-20%
Operating Temperature:
-40 to +125
Weight:
100g
Production Capacity:
50000PCS/15days
HS Code:
85045000
Trademark:
AL
Brand:
AL TRANSFO
Model NO.:
AL-I282
Specifications
Tolerance:
+-20%
Operating Temperature:
-40 to +125
Weight:
100g
Production Capacity:
50000PCS/15days
HS Code:
85045000
Trademark:
AL
Brand:
AL TRANSFO
Model NO.:
AL-I282
ODM/OEM:
Acceptable
Origin:
China
Nature Of Operation:
Choke Coil
Insulation Class:
Class B, Class F,Class H
Structure Of Magnetizer:
Copper Coil
Transport Package:
Export Standard Package/Carton
Trade Term:
FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW
Inductor Value:
Fixed Inductor
Working Frequency:
High Frequency
Business:
Manufactures Direct Supplying
Packaging Form:
Power Coils
Range Of Application:
Power Measurement
Application:
Power, Electronic, Instrument, Lighting, Rectifier
Structure Of Winding:
Single Coil
Inductance:
Support Custom
Size:
Support Custom
Color:
Support Custom
Payment Term:
T/T, D/P, PayPal, Western Union, Small-amount payment
Specification:
custom
Port Of Loading:
shanghai, shengzhen
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
1993-02-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW
Port Of Loading:
shanghai, shengzhen
Certificates:
CE, ISO, TEST REPORT
Product descriptions from the supplier
Flat wire common mode inductor electrical characteristics:
Magnetic core specifications: 1415 super; thin skeleton.
Using square closed magnetic core, the coaxial wire is automatically wound.
Rating voltage: AC / DC 250V.
Insulation withstand voltage: AC1.5kV 60sec.
Operating temperature range: -25°C to + 125°C
Storage temperature range:-25ºCto +100ºC
Power range: 60-150W
|
|
Electrical characteristics:(at 25ºC) |
||||
|
Model |
Inductance(mH) |
Wire diameter |
DC Resistance(mΩ) |
Corresponding circle wire diameter |
Working current(A) |
|
1415-28.0mH |
28.0 min |
0.10*1.0-58Ts REF |
320 Max |
0.352 |
1.0-1.5A |
|
1415-18.0mH |
18.0 min |
0.13*1.0- 48Ts REF |
240 Max |
0.401 |
1.5-2.0A |
|
1415-14.0mH |
14.0min |
0.15*1.0- 44Ts REF |
200Max |
0.430 |
1.8-2.2A |
|
1415-12.0mH |
12.0 min |
0.15*1.5- 40Ts REF |
160 Max |
0.529 |
2.0-2.8A |
|
1415-10.0mH |
10.0min |
0.2*1.0-35Ts REF |
140 Max |
0.493 |
2.0-2.5A |
|
1415-8.0mH |
8.0min |
0.2*1.5-32Ts REF |
70 Max |
0.609 |
2.5-3A |
Inductance test frequency: 1 KHZ 0.25V
AL TRANSFO could design and produce according to customer requirements !
Our Services
Other products
FAQ
Q1: Are you a manufacturer or trading company?
A: We are a manufacturer with over 27 years of manufacturering experience.
Q2: What kind of products do you produce?
A: We have abundant strength which integrates design, production, selling of transformer, inductor, filter, etc.
Q3: Can you accept to use our logo?
A: Yes, We accept OEM and ODM production.
Q4: Can you provide free samples?
A: Yes, we can provide free samples, Exact Qty can be negotiable.
