1L, 3L, 5L Lab Kneader Mixer, Lab Internal Mixer, Lab Rubber Kneader
1 Set
$2,8002-4 Set
$2,7505 Set
$2,700Product information
High-quality 1L, 3L, 5L Lab Kneader Mixer, Lab Internal Mixer, Lab Rubber Kneader supplied by Qingdao Guangyue Rubber Machinery Manufacturing Co., Ltd.. Bulk wholesale pricing ranges from $2,700 to $2,800 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Production Capacity:
120 Sets/Month
HS Code:
8477800000
Automatic Grade:
Automatic
Origin:
China
Rotor:
Chromed Plated
Customized:
Customized
Trade Term:
FOB, CFR, CIF, DDP, DAP
Type:
General Rubber Machinery
Specifications
Production Capacity:
120 Sets/Month
HS Code:
8477800000
Automatic Grade:
Automatic
Origin:
China
Rotor:
Chromed Plated
Customized:
Customized
Trade Term:
FOB, CFR, CIF, DDP, DAP
Type:
General Rubber Machinery
Lubrication:
Grease or Thin Oil
Trademark:
Guangyue
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Money Gram
Type Of General Rubber Machinery:
Material Processing Machine
Condition:
New
Control:
PLC
Port Of Loading:
Qingdao
Type Of Tire Machinery:
Rubber Regeneration Machinery
Structure:
Vertical
Seal:
Without Oil or Dust Leakage
Specification:
X(S)N-35/30
Model NO.:
XN-3L
Transport Package:
in Bulk or as Per Customer's Request
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-04-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Money Gram
Preferred Trade Term:
FOB, CFR, CIF, DDP, DAP
Port Of Loading:
Qingdao
Certificates:
CE Certificate, ISO 9001, SGS, SGS cert
Product descriptions from the supplier

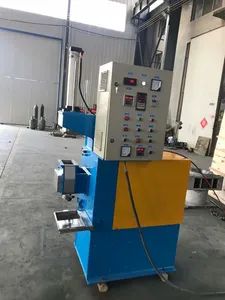

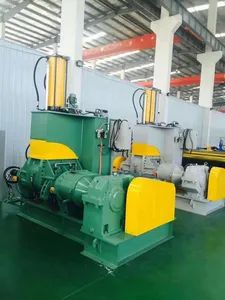

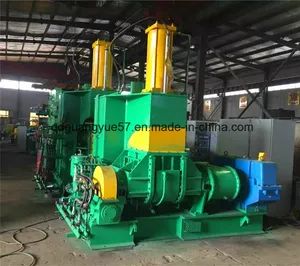

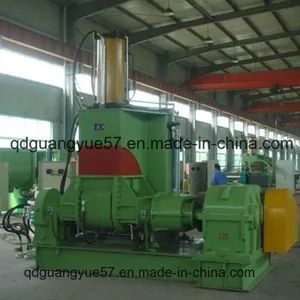

3L Lab kneader mixer/lab internal mixer/lab rubber kneader
It consists of a "W" shape body and two side boards made of high quality steel plates by means of extrusion forming and welding, which are jacked to take the flow of cooling water or steam. It is plated with hard chrome on its internal walls.
Thermal Resistance:
There is a plug-in thermal resistance in middle section of the bottom of the chamber to be connected to electrical system to inspect and display the temperate.
Rotor:
It is designed to the hollow blades of Banbury type. The hollows are connected with axial hole of rotor shaft used as cooling or heating passage. The top edges of blades and the end faces of ~ rotor shaft are surface welded with cobalt-base hard alloy and grinding, then plating with hard chrome and polishing.
Cooling/heating system:
A common piping system is adopted for either cooling or heating material in mixing operation. Through the system cooling water or steam is fed in three ways to the cavities of the rotors blades, the mixing chamber and the top RAM.
Tilting mechanism:
It consists of a rotor with brake, cycloidal gear reducer, TP type worm and worm gear, etc...It is able to actuate the mixing chamber tilting by 140° Around the front rotors.
Dust sealing device:
At the joint between the top of the mixing chamber and the cantilevered arm of the machine frame, the dust sealing assemblies with curved slotted partings are used obtaining an excellent and reliable sealing purpose.
The end face of the rotor is sealed by end contact sealing with nor oil-lubrication and is seals well and is wear-resistant and durable.
Main driving system:
The part is made up with main motor, reducer, connecting gears. It realizes odd-speed rotation of the rotors with running face one other.
Pneumatic control system:
Pneumatic control system is controlled by XG order. The bi-directional air cylinder makes the RAM up or down. In case the over load occurs in the mixing chamber, the top RAM can be raised automatically or manually if necessary, so as to protect motor from overload.
Electric control system:
Imported PLC device and electric control components which are all imported products or imported technology products are adopted in the electric control system as to raise control reliability.
-Qingdao Chaoguangyue Industry Co.,Ltd established in 1971,we are specializing in producing rubber machines,and we had a great feedback from our customers.
-Superior quality:we have obtained ISO9001,CE,SGS certification,we can guarantee the quality of the machines.
-All adopt 35CrMo material hardened surface reducer,it has the advantage of low noise,large transmission power,wear,impact resistance,adopt quenching gear for transmission to improve machine's life.
-Fast delivery time:within 20 working days.
-Competitive price compared with others with the same quality.
-Comfortable after-sales service:Quality problems of our machines will be attached high attention,we will response within 24 hours and we will solve the problem ASAP.
-Great supports for marketing.
1.Q:Are you a trading company or a factory?
A:We are 100% real manufacturer,we have more than 30000 square meters of factory buildings and workshops for producing machines,welcome to visit our factory.
2.Q:Do you have machine warranty?
A:Yes,we have 2 years warranty,however,the using life of our machines is usually more than 10 years.
3.Q:I have special requirement about machines,such as length,diameter,or others,can you meet it?
A:Yes,we can manufacture various non-standard specifications of machines,if you have special requirement,please contact us.
4.Q:I want to purchase your company's open mixing mill,can you send me a quotation?
A:Sure,please tell me the model of the open mixing mill that you need,I will provide you a suitable price.If you don't know which model suits you,contact me,I will recommend a suitable machine to you.
5.Q:What's your payment term?
A:30% of total value in advance by TT,a further 70% will be paid before loading.
6.Q:What's your MOQ?
A:The MOQ is 1 set,but if you order more than 1 machine,you will get different discounts according to the quantity.
7.Q:How is the safety of your machine?
A:Our rubber open mixing mill can equip four kinds of safety protecting devices:pole-type safety device,push botton safety device,chest touch safety device and treadle type safety decive.These devices can protect workers' safe.
If you have any questions about our machines,please contact me any time and I'm glad to provide service to you!
Mixing chamber:
It consists of a "W" shape body and two side boards made of high quality steel plates by means of extrusion forming and welding, which are jacked to take the flow of cooling water or steam. It is plated with hard chrome on its internal walls.
Thermal Resistance:
There is a plug-in thermal resistance in middle section of the bottom of the chamber to be connected to electrical system to inspect and display the temperate.
Rotor:
It is designed to the hollow blades of Banbury type. The hollows are connected with axial hole of rotor shaft used as cooling or heating passage. The top edges of blades and the end faces of ~ rotor shaft are surface welded with cobalt-base hard alloy and grinding, then plating with hard chrome and polishing.
Cooling/heating system:
A common piping system is adopted for either cooling or heating material in mixing operation. Through the system cooling water or steam is fed in three ways to the cavities of the rotors blades, the mixing chamber and the top RAM.
Tilting mechanism:
It consists of a rotor with brake, cycloidal gear reducer, TP type worm and worm gear, etc...It is able to actuate the mixing chamber tilting by 140° Around the front rotors.
Dust sealing device:
At the joint between the top of the mixing chamber and the cantilevered arm of the machine frame, the dust sealing assemblies with curved slotted partings are used obtaining an excellent and reliable sealing purpose.
The end face of the rotor is sealed by end contact sealing with nor oil-lubrication and is seals well and is wear-resistant and durable.
Main driving system:
The part is made up with main motor, reducer, connecting gears. It realizes odd-speed rotation of the rotors with running face one other.
Pneumatic control system:
Pneumatic control system is controlled by XG order. The bi-directional air cylinder makes the RAM up or down. In case the over load occurs in the mixing chamber, the top RAM can be raised automatically or manually if necessary, so as to protect motor from overload.
Electric control system:
Imported PLC device and electric control components which are all imported products or imported technology products are adopted in the electric control system as to raise control reliability.
| Type | Full | Feeding | Power | Speed | Discharge | Heating |
| XN-3 | 3L | 2L | 0.75KW | 63/42rpm | Manual / Hydraulic tilting |
Electric heating / Running Hot Oil / Steam |
| XN-5 | 5 | 3 | 1.1 - 3 | 63 / 42 | ||
| XN-20 | 20 | 12 | 3-5.5 | 63/42 | ||
| XN-50 | 50 | 30 | 4-7.5 | 63/42 | ||
| XN-100 | 100 | 60 | 5.5-7.5 | 43/29 | ||
| XN-200 | 200 | 120 | 7.5-15 | 43/29 | Hydraulic tilting / B ottom pumping / Screwing Extruding |
Electri c heating / Running Hot Oil / Steam |
| XN-300 | 300 | 180 | 11-18.5 | 43/29 | ||
| XN-500 | 500 | 300 | 18.5-30 | 43/29 | ||
| XN-1000 | 1000 | 600 | 22-55 | 32/22 | ||
| XN-1500 | 1500 | 900 | 30-90 | 32/22 | ||
| XN-2000 | 2000 | 1200 | 45-110 | 32/22 | ||
| XN-3000 | 3000 | 1800 | 55-130 | 33/22 | ||
| Remarks: 1,Temperature range: 0-300°, 2, Pressure range:-0.1-0.6MPa, 3,Frequency inverter control the main motor speed,if necessory. |
||||||
WHY CHOOSE US?
-Qingdao Chaoguangyue Industry Co.,Ltd established in 1971,we are specializing in producing rubber machines,and we had a great feedback from our customers.
-Superior quality:we have obtained ISO9001,CE,SGS certification,we can guarantee the quality of the machines.
-All adopt 35CrMo material hardened surface reducer,it has the advantage of low noise,large transmission power,wear,impact resistance,adopt quenching gear for transmission to improve machine's life.
-Fast delivery time:within 20 working days.
-Competitive price compared with others with the same quality.
-Comfortable after-sales service:Quality problems of our machines will be attached high attention,we will response within 24 hours and we will solve the problem ASAP.
-Great supports for marketing.
BUSINESS FAQ
1.Q:Are you a trading company or a factory?
A:We are 100% real manufacturer,we have more than 30000 square meters of factory buildings and workshops for producing machines,welcome to visit our factory.
2.Q:Do you have machine warranty?
A:Yes,we have 2 years warranty,however,the using life of our machines is usually more than 10 years.
3.Q:I have special requirement about machines,such as length,diameter,or others,can you meet it?
A:Yes,we can manufacture various non-standard specifications of machines,if you have special requirement,please contact us.
4.Q:I want to purchase your company's open mixing mill,can you send me a quotation?
A:Sure,please tell me the model of the open mixing mill that you need,I will provide you a suitable price.If you don't know which model suits you,contact me,I will recommend a suitable machine to you.
5.Q:What's your payment term?
A:30% of total value in advance by TT,a further 70% will be paid before loading.
6.Q:What's your MOQ?
A:The MOQ is 1 set,but if you order more than 1 machine,you will get different discounts according to the quantity.
7.Q:How is the safety of your machine?
A:Our rubber open mixing mill can equip four kinds of safety protecting devices:pole-type safety device,push botton safety device,chest touch safety device and treadle type safety decive.These devices can protect workers' safe.
If you have any questions about our machines,please contact me any time and I'm glad to provide service to you!
