1X1 Rib Collar and Cuff Knitting Machine Origin China Condition New HS Code 8447120000 Knitting Style Flat Trademark Arrow
Set
Negotiable
Product information
High-quality 1X1 Rib Collar and Cuff Knitting Machine Origin China Condition New HS Code 8447120000 Knitting Style Flat Trademark Arrow supplied by Hefei HD Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
2000sets/Month
Specification:
2450*750*1750mm
HS Code:
8447120000
Model NO.:
AS80-(1+1)S
Trademark:
Arrow Star
Certification:
CE, ISO9001: 2000
Origin:
China
Computerized:
Computerized
Specifications
Production Capacity:
2000sets/Month
Specification:
2450*750*1750mm
HS Code:
8447120000
Model NO.:
AS80-(1+1)S
Trademark:
Arrow Star
Certification:
CE, ISO9001: 2000
Origin:
China
Computerized:
Computerized
Knitting Method:
Double
Knitting Machine Cut:
E14
Trade Term:
FOB, CIF, CFR, EXW
Knitting Style:
Flat
Needle Bar Style:
Flatbed Knitting Machine
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Needle Style:
Latch Needle
Condition:
New
Port Of Loading:
Shanghai Port, Ningbo Port, Yiwu Port
Knitting Product Type:
Sweater
Transport Package:
Wodden Case Packing
After Sales Service:
on Line /Door-to-Door Service
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2021
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port, Ningbo Port, Yiwu Port
Certificates:
CE
Product descriptions from the supplier

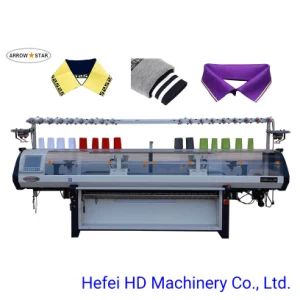

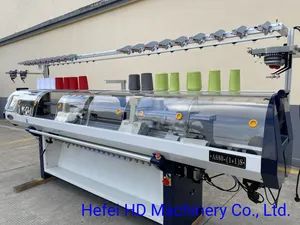

Double Head Fully Jacquard 1+1 System Flat Knitting Machine For Collar
can make high definition collar, sweater, carpet, muslim cap, beanie, hat, scarf, blanket, baby clothes, cardigan, Jerseys, school uniform, gloves, rib, cuff, pocket, trousers and shawl.
Besides Double Head Fully Jacquard 1+1 System Flat Knitting Machine For Collar, we can also supply double system sweater flat
knitting machine, three system sweater flat knitting machine, single system sweater flat knitting machine, single system with
double carriage collar & cuff knitting machine 80inch 2+2 and three system shoes upper knitting machine etc.
can make high definition collar, sweater, carpet, muslim cap, beanie, hat, scarf, blanket, baby clothes, cardigan, Jerseys, school uniform, gloves, rib, cuff, pocket, trousers and shawl.
Besides Double Head Fully Jacquard 1+1 System Flat Knitting Machine For Collar, we can also supply double system sweater flat
knitting machine, three system sweater flat knitting machine, single system sweater flat knitting machine, single system with
double carriage collar & cuff knitting machine 80inch 2+2 and three system shoes upper knitting machine etc.
Specification:
| Gauge | 12G,14G,16G |
| Knitting width |
80inch, 100inch, 120inch optioned |
| Knitting function | Knitting miss, turk, transfer, pointel, intarsia, jacquard, apparent or hide shaping and other regular or irregular patterns |
| Knitting system |
Double carriage with two system |
| Knitting speed |
Max 1.6m/s |
| Stitch density | Controlled by stepping motor, 32 section stitch selectable adjustable scope supported by subdivision technology. 0-650, the stitch of the knitwear can be accurately controlled. |
| Dynamic stitch |
Various density changes and controls can be carried out in the same line. |
| Racking |
Controlled by sevro-motor racking within 2 inches and with fine adjusting function. |
| Takedown roller | Programmed instruction controlled by stepping motor, 32levels selection adjustable range:0-100. |
| Transfer |
Simultaneous transfer, front or back, independent of carriage direction. Split stitch possible without exchanging yarn carriers. |
| Sinker system | controlled by stepping motor, adjustable to different knitwear, up to be various results of shaping and patterns. |
| Needle selection |
Advanced encoder reading pin. 8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width jacquard needle selector. |

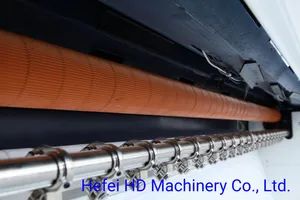

| Yam feed roller |
Prevention coiling device yam feed roller, Electroplating ceramic roller, effective anti static. |
| Yam ariers | The new design of the color change device(lever principle), to eliminate the yarn feeder does not take. 2 sets of yarns are equipped with rollers to reduce yam breakage. |
| Top tension |
24units. One-touch easy threading. Large knots cause machine stop. Small knots cause 0-9 courses at specified knot detection speed, then automatically resume at set speed. |
| Stop motion | Yarn break, large knot, fabric pileup, shock detection, piece count, Over-torque, program error, etc. |
| Drive system | Belt drive. AC servo motor. No lubrication necessary. |
| Protection system |
Automatically alarm when yarn-breaking knots floating yarn rewind end of knitting, fail of racking needle breakage error programming occur also set up the safety auto-lock protect device. |
| Needle detector |
Knitting area alarm, non alarm outside weave area. Automatic reset |
