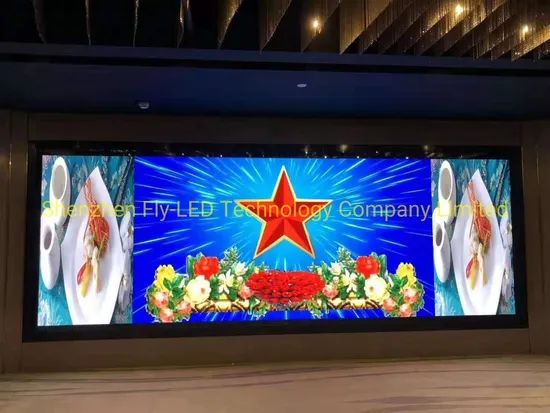

2.5mm Real LED Display Mobile Jumbotron LED Display
1-999 Piece
$101000 Piece
$8Product information
High-quality 2.5mm Real LED Display Mobile Jumbotron LED Display supplied by Shenzhen Fly-LED Technology Company Limited. Bulk wholesale pricing ranges from $8 to $10 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Working Temperature:
-25to +55degrees Centigrade
Storage Temperature:
-40 to +85degrees Centigrade
Minimum Order Quantity:
1 Piece
Scanning Mode:
1/32 Scan
Brightness:
1000 CD
Production Capacity::
1000000
Optimal Viewing Distance:
12~200m
Module Size:
160*160mm or 160*320mm
Specifications
Working Temperature:
-25to +55degrees Centigrade
Storage Temperature:
-40 to +85degrees Centigrade
Minimum Order Quantity:
1 Piece
Scanning Mode:
1/32 Scan
Brightness:
1000 CD
Production Capacity::
1000000
Optimal Viewing Distance:
12~200m
Module Size:
160*160mm or 160*320mm
Pixel Density:
160000
Pixel Configuration:
1R,1G,1B
Warranty:
2 Years or 3 Years
Pixel Pitch:
2.5mm
Model NO.:
2.5mm
Operating Voltage:
220V or 110V
Drive Mode:
32s Constant Current Drive
Average Power Consumption:
400 Watt
Module Resolution:
64*64=4096 Pixels
HS Code:
853210
Certification:
CE, CCC, ETL
Transport Package:
Carton Box
Drive Device:
Constant Current Driver IC
Graphics Card:
DVI
Trade Term:
FOB, CIF
Tube Chip Color:
Full Color
IP Rating:
IP40
Payment Terms::
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Payment Term:
LC, T/T, PayPal, Western Union, Money Gram
Display Type:
LED Video Display
Trademark:
LED screen
Grayscale/Color:
Logic Output 16384, CRT Vision 256 Gray, Color: 16
LED Type:
SMD2020
Port Of Loading:
ShenZhenGuangZhou
Origin:
Shenzhen
Port::
Shenzhen, China
Brightness Adjustment Method:
Software 100-Level Adjustable, Automatically or Ma
Application:
Stage Performance, Advertising, Shopping Guide, Shipping Mail
Display Function:
Video Display, Image & Text Display, Text Display, Market Display
System Operating Platform:
WIN2000
Specification:
customized
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2019-09-07
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union, Money Gram
Preferred Trade Term:
FOB, CIF
Port Of Loading:
ShenZhenGuangZhou
Certificates:
ISO 9000, ISO 9001
Product descriptions from the supplier
Product Description
Indoor LED Display Module High Definition
Let's see the led display detailed.
More led display Rental screen Parameters
Company Profile
Fly- LED Co., Ltd.specialized in manufacturing indoor and outdoor high-definition full color LED display application products.
Our company has professional production equipment and excellent technology, industry veteran, high-quality, high standards of modern management team, a high level of professional and technical developer, has many years of operating experience and well-trained, a significant number of skilled workers.
Our products has passed CE, FCC and ROHS ceritificate. reliable quality, advanced technology, perfect technology, automation of form a complete set of production equipment, standard production line, perfect sales network and good pre-sales after ssales service is to provide high quality products and continuous development of our roots.
Products are exported to North America, Europe and the Middle East region and other overseas markets, such as Sweden, UK, Italy, Germany, Romania, Serbia, Poland, Turkey, Spain, USA, Ruaais, Canada, Singapore, Japan,etc.
Our Services
We are here, waiting for you.
Welcome to have any request.
Call us directly, +86-14774985433.
Product Description
P2.5 led display specificaiton
Our 2.5mm indoor LED video wall panels are 4k UHD compatible and provide a high 3,840 hertz refresh rate which allow pictures and video to be taken of the LED wall without scan and flicker lines appearing in the images.
The panels are also bright enough to be used with stage lighting and indoor areas where direct sunlight enters the room such as skyline ballrooms and atriums.
The panels also are curvable allowing a unique design for your event! These panels are also power efficient using dramatically less power than older LED walls.
P2.5 led display specificaiton
Our 2.5mm indoor LED video wall panels are 4k UHD compatible and provide a high 3,840 hertz refresh rate which allow pictures and video to be taken of the LED wall without scan and flicker lines appearing in the images.
The panels are also bright enough to be used with stage lighting and indoor areas where direct sunlight enters the room such as skyline ballrooms and atriums.
The panels also are curvable allowing a unique design for your event! These panels are also power efficient using dramatically less power than older LED walls.
Item | P2.5 indoor LED Display screen |
Pixel Pitch | 2.5mm |
Pixel Composition | 1R1G1B |
Pixel Density | 160000/m² |
Module Size(W*H) | 320*160 mm or 160*160mm |
Resolution of Module | 128*64(dot) |
Color Capability | 4.4 trillion |
Brightness | 1000cd/m² |
View Angle (V/H) | 120°(V)/120°(H) |
The Best View Distance | ≥2.5 Meters |
Driving Method | 1/32 Constant Driving |
Control Way | Synchronization or Asynchronization |
Maximum Power Consumption | 900 w/m² |
Average Power Consumption | 600 w/m² |
Grey scale | 65536 levels per color |
Refresh Rate | ≥960 Hz/s |
Working Voltage | AC 220V±10% 50Hz AC 110V±10% 60Hz |
Operating Temperature | -20°C~+60°C |
Life Span | >100, 000 Hours |
Let's see the led display detailed.
More led display Rental screen Parameters
| Model | P2 | P 2.5 | P2.9 | P3.9 | P4.8 | |
| Pixel Pitch(mm) | 2 | 2.5 | 2.9 | 3.9 | 4.8 | |
| Pixel Density(dot/m2) | 262144 | 147456 | 112896 | 65536 | 43264 | |
| LED Type | SMD1515 | SMD2020 | SMD2121 | SMD2121 | SMD2121 | |
| Module Size(mm*mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | |
| Cabinet Size(mm*mm*mm) | 500*500*73 | 500*500*73 | 500*500*73 | 500*500*73 500*1000*73 | 500*500*73 500*1000*73 | |
| Cabinet Weight(±0.25kg) | 8 | 8 | 8 | 8/12 | 8/12 | |
| Cabinet Resolution(px*px) | 256*256 | 192*192 | 168*168 | 128*128 128*256 | 104*104 104*208 | |
| Viewing Angle(Deg) | H160/V120 | H160/V120 | H160/V120 | H160/V120 | H160/V120 | |
| Brightness(cd/m2) | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Gray Scale(bit) | 16 | 16 | 16 | 16 | 16 | |
| Refresh Rate(Hz) | 3840 | 3840 | 3840 | 1920-3840 | 1920-3840 | |
| Max Power Consumption(W/sqm) | 400 | 400 | 400 | 400 | 400 | |
| Average Power Consumption(W/sqm) | 120 | 120 | 120 | 120 | 120 | |
| Input Voltage(V) | AC 100-240 | AC 100-240 | AC 100-240 | AC 100-240 | AC 100-240 | |
| Ingress Protection | IP20 | IP20 | IP20 | IP20 | IP20 | |
| Working Environment | Indoor | |||||
| High Resolution SMD Indoor P3 Module, Stable Quality, Wholesale LED Display | ||
| Item | Unit | Parameter |
| Pixel Pitch | mm | 3 |
| Pixel Density | dots/sqm | 111111 |
| Resolution of Module | dots | 64*64 |
| Module Size | mm | 192*192 |
| HUB | 75b | |
| Led Package | SMD2121 | |
| Pixel Configuration | 1R1G1B | |
| Chip Brand of LEDs | Epistar | |
| Module Weight | kgs/pc | 0.36 |
| Brightness (White Balance) | nits(cd/m2) | 2,000 |
| Red Wavelength | nm | 620-625 |
| Green Wavelength | nm | 520-525 |
| Blue Wavelength | nm | 470-475 |
| Scan Mode | 1/4 16can | |
| View Distance | M | 2~50 |
| Best View Distance | M | 2~30 |
| Viewing Angle-Horizontal | deg. | 120 |
| Viewing Angle-Vertical | deg. | 120 |
| Module Maximum Power | W | 33.4 |
| Max. Power Consumption | W/sq.m | 1000 |
| Avg. Power Consumption | W/sq.m | 350 |
| Working Voltage | AC 110V/220V input, DC5V output | |
| Power Supply | AC 110/220V | |
| Waterproof Grade | IP24 | |
| Refresh Rate | Hz/S | 3,000 |
| Frame Rate | Hz/S | ≥ 60 |
| Gray Scale | 4096 grades gray | |
| Display Color | 256*256*256 | |
| Display Function | Text,news,advertising,flash,animation | |
| Input Signal | RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI,UXGA,COMPOSITION,etc. | |
| Luminance Degradation | Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25 | |
| Defective Dot Rate | < 0.0001 | |
| Life Span | hours | 100,000 |
| MTBF | hours | > 10,000 |
| Storage Temperature | -35 -- +80 | |
| Working Temperature | -20 -- +80 | |
| Working Humidity | 10%-90%RH | |
| Control System | Synchronization or Asynchronization | |
| Quality Certificate | ETL,CE,RoHS,TUV,FCC class A,ISO9001:2008 | |
| Warrenty | 2 Years | |
| Working Environment | Outdoor | |
| Other Fertures | LED&ICs in Departed PCB | |
| Note: The above parameter is just for reference. Changes can be made by customer requirement | ||
| P5 Full Color SMD3528 Indoor Module | ||
| Item | Unit | Parameter |
| Pixel Pitch | mm | 5.00 |
| Resolution of Module | dots | 32x16 |
| Module Size | mm | 160x80 |
| Module Weight | kg | 0.25 |
| Pixel Configuration | SMD3528 1R1G1B | |
| Chip Brand of LEDs | Epistar | |
| Pixel Density | dots/sqm | 40,000 |
| Brightness (White Balance) | nits(cd/sq.m) | ≥2000 |
| Red Wavelength | nm | 620-625 |
| Green Wavelength | nm | 520-525 |
| Blue Wavelength | nm | 470-475 |
| Scan Mode | 1/16 Scan | |
| Viewing Distance | M | 3--35 |
| Best View Distance | M | 5--15 |
| Viewing Angle-Horizontal | deg. | 120 |
| Viewing Angle-Vertical | deg. | 120 |
| Module Maximum Power | W | 25 |
| Max. Power Consumption | W/sq.m | 1,000 |
| Avg. Power Consumption | W/sq.m | 300 |
| Working Voltage | 5V 40A | |
| Power Supply | AC 110/220V | |
| Refresh Rate | Hz/S | 3,000 |
| Frame Rate | Hz/S | ≥60 |
| Gray Scale | 4096 grades gray | |
| Display Function | Text,news,advertising,flash,animation | |
| Input Signal | RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI,UXGA,COMPOSITION,etc. | |
| Luminance Degradation | Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25 centigrade. | |
| Defective Dot Rate | <0.0001 | |
| Life Span | hours | 100,000 |
| MTBF | hours | >5,000 |
| Storage Temperature | centigrade | -35 -- +80 |
| Working Temperature | centigrade | -20 -- +60 |
| Control System | Synchronization or Asynchronization | |
| Quality Certificate | CE,CCC,ISO9001:2008 | |
| Warrenty | 2 Years | |
| Working Environment | Indoor | |
Company Profile
Fly- LED Co., Ltd.specialized in manufacturing indoor and outdoor high-definition full color LED display application products.
Our company has professional production equipment and excellent technology, industry veteran, high-quality, high standards of modern management team, a high level of professional and technical developer, has many years of operating experience and well-trained, a significant number of skilled workers.
Our products has passed CE, FCC and ROHS ceritificate. reliable quality, advanced technology, perfect technology, automation of form a complete set of production equipment, standard production line, perfect sales network and good pre-sales after ssales service is to provide high quality products and continuous development of our roots.
Products are exported to North America, Europe and the Middle East region and other overseas markets, such as Sweden, UK, Italy, Germany, Romania, Serbia, Poland, Turkey, Spain, USA, Ruaais, Canada, Singapore, Japan,etc.
Our Services
Training | Free of charges;In our workshop, we provide all the training including process of operation, installation, maintenance, system set up, etc. |
Warranty | 1, 2years, .From beginning of installation finished the led display, During it , we will be responsible for all the quality problem. 2, After the completion of the project, we will conduct life maintenance of the system continuously and update the and software. 3, For the hardware equipment, we only collect expenses on components. |
Guarantee | 1, All the life time for Technology support , system update ,maintenance . 2, We guarantee that the equipment we provide are brand new, complete and unused before delivery . |
Remark
| 1. We are manufacturer of LED display. We only provide the Screen, Cabinet and module, but do not take charge for the installation in overseas; Technical support is available. 2. The above offer included the cabinet, power supply, power cord,and other basic components; etc. 3. The above offer do NOT included the delivery, insurance, installation and debugging cost; 4. Packing with Ply-wood box, or Carton ; If need flight case packing, up cost will be USD180/PC, 2-4cabinets/case 5.Problems during use. some spare parts for you, once the screen get problems, please follow up below steps to solve it: Step1: Take some pictures about the working status of the screen; Step2: Replace the broken cabinet by the new cabinet; Step3: Contact with us, and send the pictures to us, we will help you to analyze the problems. Step4: If it is necessary, please post it to our company, we will maintain it for you as soon as possible, and then deliver it to you. |
FAQ
Q1: What is the lead time? Indoor LED Display Standard Display Stand poster
A: Sample:2-5 days; small quantity: 15-20 days; large order:
Q2: Is it all right to make customers'own brand name?
A: That's all right to make your own brand name. Could be OEM or ODM.
Q3: Is it available for samples? RGB Indoor LED Display
A:yes, of course. sample is free, and you may pay freight cost. that would be reasonable
Q4:Is there a middle man draining your profit?
A:Get rid of them,it's information age.Factory Directly Supply,Provide good price, high-quality, quick-delivery, best quality service.
Q5: What is the min.order? RGB Outdoor Indoor LED Display.
You can order any quantity you want.
Q6:The display could be customer made ?
Yes , of course , any type you want , please tell me , we can disign and discuss together
Q7:How to place an order?
1. Sample approval.
2. Client makes 30%-50% deposit after receiving our PI.
3. Client approves our pp sample, and get the testing report if any necessary .
4. Mass Production.
5. Arrange shipment.
6. Supplier arranges necessary documents and sends copy of these documents.
7. Client effect balance payment.
8. Supplier sends original documents or telex release the good.
We are here, waiting for you.
Welcome to have any request.
Call us directly, +86-14774985433.
User Reviews
Write a review
File a complaint
Supplier Review
Summary by Vivian
TRUST STARS
3.0/5
0 Reviews
Company Verification
0/4
Profile Completeness
56%
Avg. Product Score
0/5
Responsiveness
0%
Certification
ISO 9000, ISO 9001
Related searches
Frequently Asked Questions (FAQs)
How can I buy & import LCD Display from China?
You can contact verified China supplier Shenzhen Fly-LED Technology Company Limited through platforms like Freshdi.com to purchase 2.5mm Real LED Display Mobile Jumbotron LED Display. For direct inquiries, please contact Mr. James, the company’s representative. The supplier has a 3.0-star rating on Freshdi and has verified. You’ll receive product details, pricing, and shipping terms directly from supplier.
What are the payments and trade terms for 2.5mm Real LED Display Mobile Jumbotron LED Display?
For 2.5mm Real LED Display Mobile Jumbotron LED Display, Shenzhen Fly-LED Technology Company Limited accepts LC, T/T, PayPal, Western Union, Money Gram as the preferred payment method, the trade term is FOB, CIF, and shipments are typically arranged from port ShenZhenGuangZhou, ensuring secure and timely international delivery.
What is the current price of 2.5mm Real LED Display Mobile Jumbotron LED Display?
The supplier Shenzhen Fly-LED Technology Company Limited offers 2.5mm Real LED Display Mobile Jumbotron LED Display at negotiation, with a minimum order quantity (MOQ) of 1 Piece.
What are the specifications of 2.5mm Real LED Display Mobile Jumbotron LED Display from China?
2.5mm Real LED Display Mobile Jumbotron LED Display is sourced from China and meets international export standards. Key specifications include: Grayscale/Color: Logic Output 16384, CRT Vision 256 Gray, Color: 16, System Operating Platform: WIN2000, Model NO.: 2.5mm, Module Size: 160*160mm or 160*320mm, Trademark: LED screen, Trade Term: FOB, CIF, Payment Term: LC, T/T, PayPal, Western Union, Money Gram, Minimum Order Quantity: 1 Piece
You are viewing details for 2.5mm Real LED Display Mobile Jumbotron LED Display. The information provided here is either posted directly by the supplier, who is responsible for its accuracy, or collected by Freshdi AI from publicly available sources. Freshdi strives to make product information as useful and reliable as possible, but we do not guarantee complete accuracy. If you notice any incorrect or misleading details, please use the Report Product option so our team can review and address it quickly.
$10
/ Piece
Min. order: 1 Piece
Mr. James
Year Established: 2019-09-07
Visit Store
