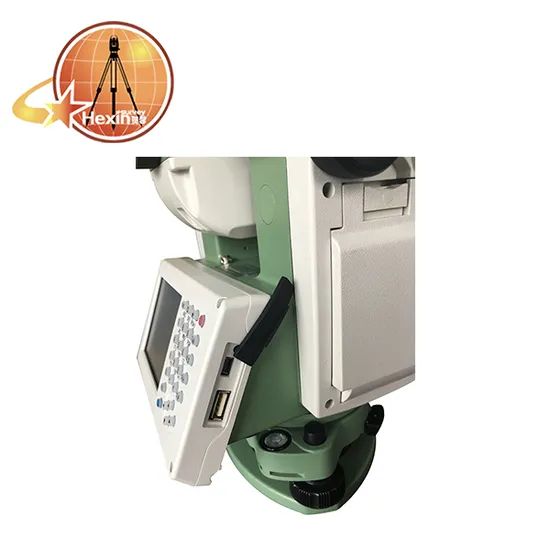

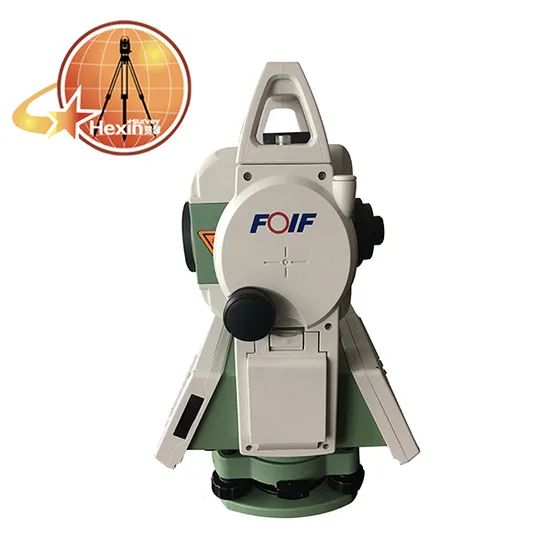

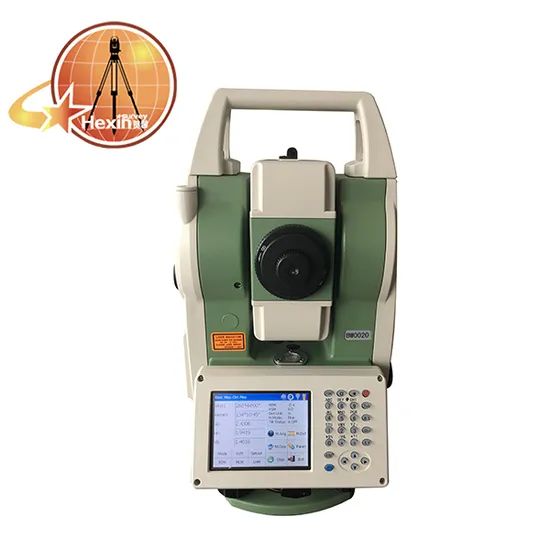

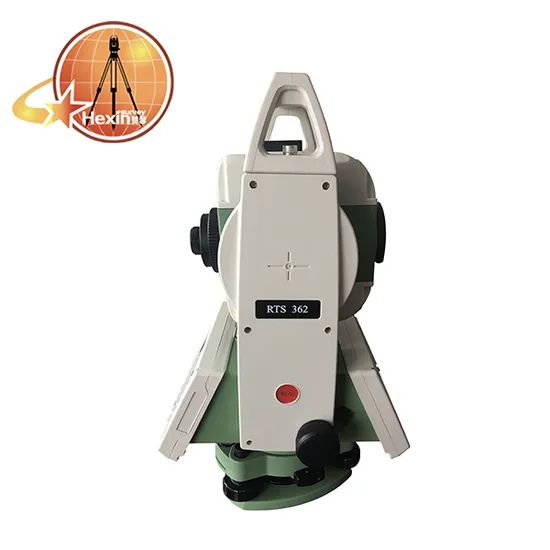

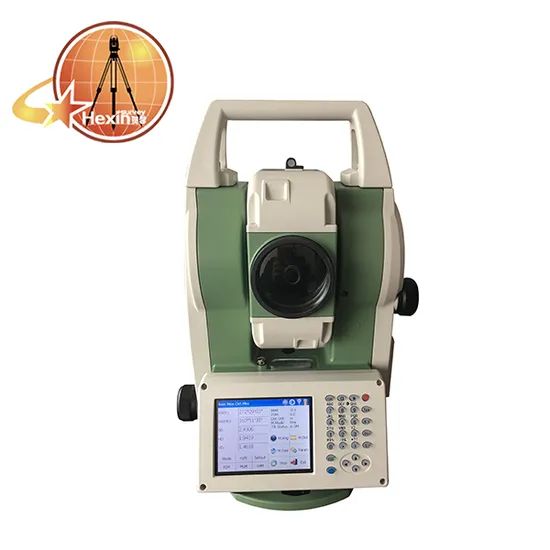

2" Accuracy Surveying Instruments Accessories Foif Rts362 Total Station
1-4 Piece
$2,7005-9 Piece
$2,65010 Piece
$2,600Product information
High-quality 2" Accuracy Surveying Instruments Accessories Foif Rts362 Total Station supplied by Shanghai Hexin Survey Instrument Co., Ltd.. Bulk wholesale pricing ranges from $2,600 to $2,700 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Transport Package:
1 Piece Packed in 1 Inner Carton
Warranty:
1 Year
Production Capacity:
10000 Pieces/ Year
Carton Weight:
13kg
Keyboard:
2 Sides Alphanumeric
Accuracy:
2"
Single Prism:
3000m
Specification:
62*42*49
Specifications
Transport Package:
1 Piece Packed in 1 Inner Carton
Warranty:
1 Year
Production Capacity:
10000 Pieces/ Year
Carton Weight:
13kg
Keyboard:
2 Sides Alphanumeric
Accuracy:
2"
Single Prism:
3000m
Specification:
62*42*49
Working Time:
8 Hours
HS Code:
9015800090
Angle Measurement:
Absolute Encoder
Trade Term:
CIF, FOB, CFR
Compensator:
Dual-Axis Compensation
Trademark:
FOIF
Model NO.:
FOIF RTS362
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Horizontal Line:
None
Vertical Lines:
None
Origin:
Shanghai China
Port Of Loading:
Shanghai Port
After Sales Service:
Yes
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-08-26
Annual Revenue Amount:
Not specified
Numbers Of Employees:
12
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
CIF, FOB, CFR
Port Of Loading:
Shanghai Port
Certificates:
Star suppliers
Product descriptions from the supplier
PRODUCT DESCRIPTION
KEY FEATURES
Trigger key
Compact design with Windows CE 5.0 operating system
Endless drives, collimate target faster with two hands operation
Smart battery managing system, display battery life in real-time
Professional onboard software: FOIF FieldGenius, Carlson SurvCE or FOIF Survey
llminated keyboard with light sensor, turn on in dark surroundings automatically
Long reflectorless measuring distance reaches to 500m(R500) or 1000m(R1000)
3.5" colour TFT LCD (320 x 240 dots) touch screen, transflective sunlight readable display
500m- 1000m long range Bluetoothtable-free connection offers solution of semi-automaticdata collection optional)
PRODUCT SHOW
PRODUCT SPECIFICATION
| Model | RTS362 | RTS365 |
| Angle Measurement | ||
| Reading system | Absolute Encoder | |
| Angle Unit | 360/400gon/6400mil, selectable | |
| Display resolution | 0.5/1"/5" | |
| Accuracy | 2" 5" | |
| Telescope | ||
| Magnification | 30X | |
| Field of View | 1°30' | |
| Minimum Fousing Distance | 1.0m | |
| Length | 156mm | |
| Image | Erect | |
| Objective aperture | 45mm | |
| Compensator | ||
| compensator | Dual-axis | |
| Range | ±3' | |
| Accuracy | 1" | |
| Distance Measurement (with Reflector) | ||
| Single Prism | 1 to 3000m | |
| Reflective Sheet /RP60 | 800m | 800m |
| Accuracy | 2mm+2ppm | |
| Measuring Time | 3s | 3s |
| Distance Measurement (Reflectorless) | ||
| Reflectorless Range R500 | 500m | 500m |
| Reflectorless Range R1000 | 1000m | 1000m |
| Accuracy | 2mm+2ppm | |
| Measuring Time | 1.5s-5S (prism standard mode) | |
| Communication | ||
| Memory | 4G internal memory | |
| Interface | USB/RS-232C/Bluetooth (factory optional) | |
| Operation | ||
| Dimensions | 175*178*340mm | |
| Weight (including batteries) | 6kg | |
| Display | LCD, 6 lines *20 characters (96*160 dots) | |
| Keyboard | 2 sides Alphanumerical key board | |
| CPU | ARM9 Core | |
| Laser Plummet | ||
| Laser class | class 2/ IEC60825-1 | |
| Accuracy | 1mm/1.5m | |
| Laser spot brightness | adjustable | |
| Laser wave length | 635nm | |
| Environmental | ||
| Plate level vial | 30"/2mm | |
| Circular level vial | 8'/2mm | |
| Dust & Waterproof (IEC60529 standard) | IP54 | |
| Power Supply | ||
| Battery Type | 3400mAh Li-ion Rechargeable | |
| Output Voltage/ Capacity | 7.4V(DC) | |
| Continuous operation Time | Approx. 8 hours(at +20) (single distance measurement every 30 seconds) | |
| Charger | FDJ6-LI(100V/240V) | |
| Charging time | Approx. 4 hours | |
PAYMENT
COMPANY INFORMETION
Shanghai Hexin Survey Instrument Co., LTD has 8 years' experience in geodetic surveying and cadastration surveying, we are a professional and leading enterprise in the surveying industry in MainlandChina. We specialize in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying accessory, GPS receiver, mapping software, etc.The marketing model advocated by us is not a simple sense of "selling products", instead, pre-sales service, services during operation and after-sales service are integrated in entire operating activities. It makes the customers feel that they purchased not only a commodity, but also a professional service.We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
FAQ
Q:How to turn off voice broadcast of receiver?
A: a. Enter the WEBUI, find the voice switch in the settings page and turn it off.
b. Controller Software→Device→Device Setting, turn off the "enable voice", and click"ok"
Q: Can the base station and rover station be interchangeable?
A: The difference between the rover station and the base station is that the accessories are different, the function and hardware configuration are the same.You can use the controller to choose the working mode of the device and set it as the base station or rover station.
Q: What is CORS?
A: CORS is called a continuous operating reference station system. It can be understood as a bas e station that is erected at a fixed known point and works continuously for 24 hours and sends its own data to a specific serverthrough the network. The use of CORS operation eliminates the need for a base station, and CORS is equivalent to a base station in a normal network operation.
