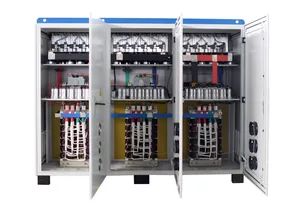

200kVA DC/AC 380V off Grid Three Phase Wind Power Inverter
Piece
Negotiable
Product information
High-quality 200kVA DC/AC 380V off Grid Three Phase Wind Power Inverter supplied by Changzhou Shengshijia Electronic Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Specification:
1280× 2000× 2060mm
Production Capacity:
400 Sets Per Year
HS Code:
8504403090
Certification:
CE, ROHS, ISO9001, CCC
Origin:
China
Type:
DC/AC Inverters
Trade Term:
FOB
Trademark:
Neture
Specifications
Specification:
1280× 2000× 2060mm
Production Capacity:
400 Sets Per Year
HS Code:
8504403090
Certification:
CE, ROHS, ISO9001, CCC
Origin:
China
Type:
DC/AC Inverters
Trade Term:
FOB
Trademark:
Neture
Circuit Topologies:
Push-pull Type
Model NO.:
SHJ-NBQ200K-T380
Nature Of Wave String:
Sine Wave Inverter
Power Source:
Solar Power, Wind Power
Phase:
Three
Payment Term:
To be discussed
Transport Package:
Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
Made-In-China 10 years Qualified Supplier, Satellite Finder CE Certificate, Satellite Finder RoHS, TV Antenna Amplifier CE, TV Wall Socket CE, Wind and Solar Hybrid Street Lamp CE, Wind Generator CE Certificate
Product descriptions from the supplier
200KVA 380V/480V DC off grid three phase inverter
Power Frequency Pure Sine Wave InverterFeatures:
○ For desolate area like mountain, island, pasturing area, etc.
○For transportation system like beacon light, traffic light, street light, etc.
○For communication system: unattached operation microwave middle station, optical
cable maintenance station, etc.
○Forsolarpower station, wind-solar power station, park charging station, family
power house, factory power station, etc.
○For solar building: has good business future.
○For the new technology application project.
200KVA off grid three phase inverter technical parameters
300KVA off grid three phase inverter technical parameters
500KVA off grid three phase inverter technical parameters
Power Frequency Pure Sine Wave InverterFeatures:
- Complete isolation-type inverter technology, noiseless output.
- Adoption of advanced SPWM technology, pure sine wave output.
- Dynamic current loop control technology to ensure inverter reliable operation.
- Wide DC input voltage range.
- Excellent EMC design.
- Low output harmonic distortion (THD≤3%).
- LED indicators for input voltage range, load power range, normal output & failure state.
- Optional energy saving mode.
- Extensive protections: reverse polarity, short-circuit, overload, under/over input voltage, over-temperature, and inverter's inner fault identification protections.
- Wide working temperature range (industrial level).
- Continuous operation at full power.
○ For desolate area like mountain, island, pasturing area, etc.
○For transportation system like beacon light, traffic light, street light, etc.
○For communication system: unattached operation microwave middle station, optical
cable maintenance station, etc.
○Forsolarpower station, wind-solar power station, park charging station, family
power house, factory power station, etc.
○For solar building: has good business future.
○For the new technology application project.
200KVA off grid three phase inverter technical parameters
| Type | SHJ-NBQ200K-T380 | SHJ-NBQ200K-T480 | |
| DC input | Input rated voltage | 380 VDC | 480 VDC |
| Input rated current | 584.4A | 463.3A | |
| Input DC voltage allowing range | 320-500 VDC | 400-620 VDC | |
| ACinput (ACbypass) |
Allow input voltage range | 220 VAC / 380 VAC / 400 VAC ± 15% VAC | |
| Input rated current | 550A / 300A / 290A | ||
| Bypass transfer time | ≤100ms(4ms optional) | ||
| AC output | Rated capacity | 200KVA | |
| Output rated power | 160KW | ||
| Output rated voltage and frequency | 220 VAC / 380 VAC / 400 VAC,50Hz / 60Hz | ||
| Output rated current | 550A / 300A / 290A | ||
| Output voltage accuracy | 220 VAC / 380 VAC / 400 VAC ± 2% | ||
| Output frequency accuracy | 50Hz / 60Hz ± 0.05% | ||
| Wave | Pure sine wave (Isolation transformer) | ||
| THD. | ≤3%(Linear load) | ||
| Power factor (PF) | 0.8 | ||
| Overload capacity | 120%,10minutes | ||
| Overcurrentcapacity | 200%,10 seconds | ||
| Crest factor (CF) | 3:1 | ||
| Inverter efficiency | >95% | ||
| Working Environment | Dielectric strength | 1500VAC,1minute | |
| Noise (1m) | ≤50dB | ||
| Ambient temperature | -10ºC~+50ºC | ||
| Humidity | 0~90%, No condensation | ||
| Altitude | <2000m Higher than2000m rated power should be reduced |
||
| Production function | Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection | ||
| Communication interface | RS485/WIFI/GPRS/Ethernet (optional) | ||
| Pure Sine Wave | Yes | ||
| Equipped With Copper Transformer | Yes | ||
| Solar Charger | Optional | ||
| AC Charger | Optional | ||
| Generator Port | Optional | ||
| Size | 1280*2000*2060mm | ||
| Weight | 2000 kg | ||
300KVA off grid three phase inverter technical parameters
| Type | SHJ-NBQ400K-T480 | |
| DC input | Input rated voltage | 480 VDC |
| Input rated current | 694.4A | |
| Input DC voltage allowing range | 400-620 VDC | |
| ACinput (ACbypass) |
Allow input voltage range | 220 VAC / 380 VAC / 400 VAC ± 15% VAC |
| Input rated current | 830A / 450A / 430A | |
| Bypass transfer time | ≤100ms(4ms optional) | |
| AC output | Rated capacity | 300KVA |
| Output rated voltage and frequency | 220 VAC / 380 VAC / 400 VAC,50Hz / 60Hz | |
| Output rated current | 830A / 450A / 430A | |
| Output voltage accuracy | 220 VAC / 380 VAC / 400 VAC ± 2% | |
| Output frequency accuracy | 50Hz / 60Hz ± 0.05% | |
| Wave | Pure sine wave (Isolation transformer) | |
| THD. | ≤3%(Linear load) | |
| Power factor (PF) | 0.8 | |
| Overload capacity | 120%,10minutes | |
| Overcurrentcapacity | 200%,10 seconds | |
| Crest factor (CF) | 3:1 | |
| Inverter efficiency | >96% | |
| Working Environment | Dielectric strength | 1500VAC,1 minute |
| Noise (1m) | ≤50dB | |
| Ambient temperature | -10ºC~+50ºC | |
| Humidity | 0~90%, No condensation | |
| Altitude | <2000m Higher than2000m rated power should be reduced |
|
| Production function | Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection | |
| Communication interface | RS485/WIFI/GPRS/Ethernet (optional) | |
| Pure Sine Wave | Yes | |
| Equipped With Copper Transformer | Yes | |
| Solar Charger | Optional | |
| AC Charger | Optional | |
| Generator Port | Optional | |
| Size | 1280*2000*2060mm | |
| Weight | 2500k | |
500KVA off grid three phase inverter technical parameters
| Type | SHJ-NBQ500K-T480 | |
| DC input | Input rated voltage | 480 VDC |
| Input rated current | 1157A | |
| Input DC voltage allowing range | 400-620 VDC | |
| ACinput (ACbypass) |
Allow input voltage range | 220 VAC / 380 VAC / 400 VAC ± 15% VAC |
| Input rated current | 1380A / 760A / 725A | |
| Bypass transfer time | ≤100ms(4ms optional) | |
| AC output | Rated capacity | 500KVA |
| Output rated voltage and frequency | 220 VAC / 380 VAC / 400 VAC,50Hz / 60Hz | |
| Output rated current | 1380A / 760A / 725A | |
| Output voltage accuracy | 220 VAC / 380 VAC / 400 VAC ± 2% | |
| Output frequency accuracy | 50Hz / 60Hz ± 0.05% | |
| Wave | Pure sine wave (Isolation transformer) | |
| THD. | ≤3%(Linear load) | |
| Power factor (PF) | 0.8 | |
| Overload capacity | 120%,10minutes | |
| Overcurrentcapacity | 200%,10 seconds | |
| Crest factor (CF) | 3:1 | |
| Inverter efficiency | >96% | |
| Working Environment | Dielectric strength | 1500VAC,1minute |
| Noise (1m) | ≤50dB | |
| Ambient temperature | -10ºC~+50ºC | |
| Humidity | 0~90%, No condensation | |
| Altitude | <2000m Higher than2000m rated power should be reduced |
|
| Production function | Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection | |
| Communication interface | RS485/WIFI/GPRS/Ethernet (optional) | |
| Pure Sine Wave | Yes | |
| Equipped With Copper Transformer | Yes | |
| Solar Charger | Optional | |
| AC Charger | Optional | |
| Generator Port | Optional | |
| Size | 2150*1400*2300mm | |
| Weight | 2600 kg | |
