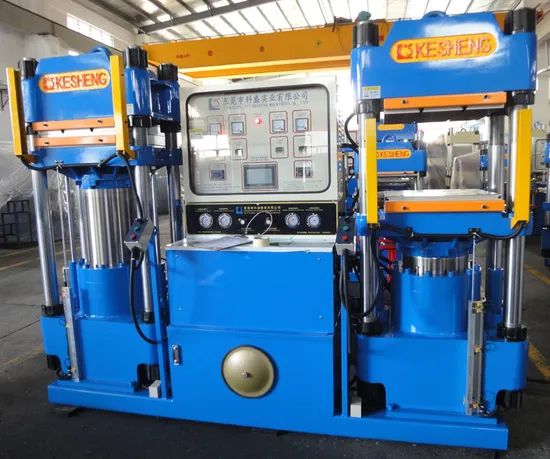

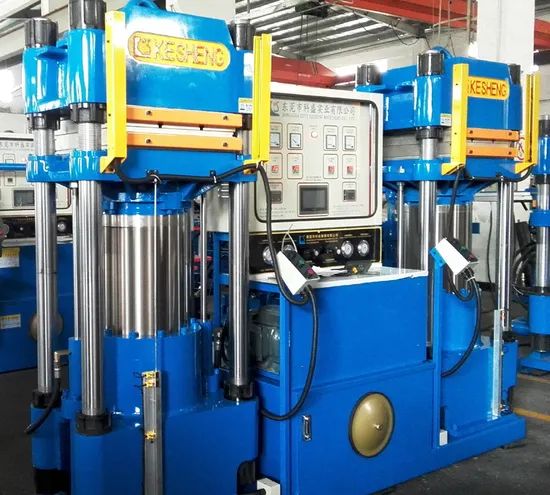

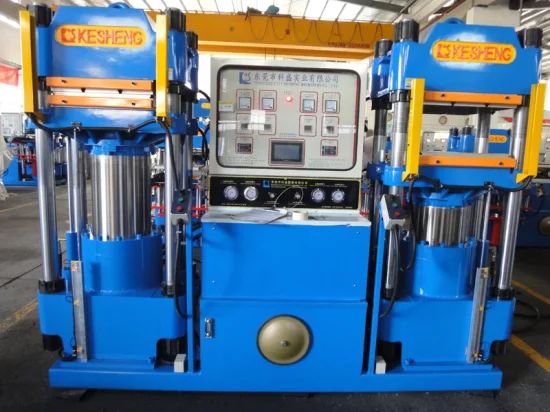

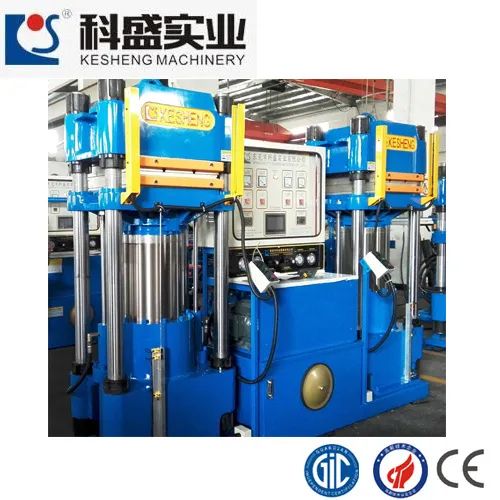

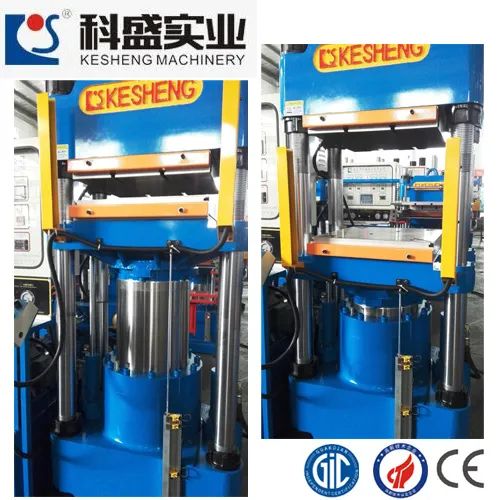

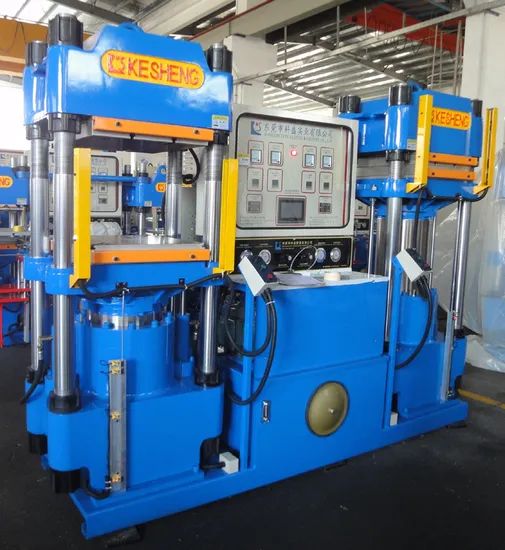

200t Rubber Products Making Machine Equipment with CE Approved
1 set
$14,000Product information
High-quality 200t Rubber Products Making Machine Equipment with CE Approved supplied by Dongguan Kesheng Intelligent Equipment Technology Co., Ltd.. Bulk wholesale pricing is $14,000 per set with a minimum order of 1 set. Inquiry for latest prices.
Horse Power:
10HP*2
Mould Open Type:
2 Layer Mould Open Style
Clamping Force:
200 Ton
Electrical Power:
22kw
Stroke:
250mm
Machine Size:
2930*2350*2100mm
Main Sylinder Diameter:
300mm
Heating Plate Size:
560 X 560mm
Specifications
Horse Power:
10HP*2
Mould Open Type:
2 Layer Mould Open Style
Clamping Force:
200 Ton
Electrical Power:
22kw
Stroke:
250mm
Machine Size:
2930*2350*2100mm
Main Sylinder Diameter:
300mm
Heating Plate Size:
560 X 560mm
Gross Weight:
7000kg
Production Capacity:
800 Sets/Year
HS Code:
84774090
Automatic Grade:
Automatic
Specification:
CE
Customized:
Customized
Origin:
Dongguan China
Structure:
Double Work Station
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
KESHENG
Model NO.:
KSH-200T single
Payment Term:
LC, D/P, T/T, PayPal, Western Union, Small-amount payment
Transport Package:
Naked Pack / Wooden Case
Port Of Loading:
Shenzhen Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2006-03-13
Annual Revenue Amount:
Not specified
Numbers Of Employees:
171
Preferred Payment Term:
LC, D/P, T/T, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port
Certificates:
ISO14001, ISO9001:2015
Product descriptions from the supplier
200T rubber silicone products making equipment, with hot compress function, vulcanizing, double working station rubber and silicone molding machine, 2 layer open mould style, high precision, full automatic, fast speed hydraulic machine.
Machine main feature:
1. With proofread slow speed of mold function, proofread mold more accurate, more secure
2. Suitable for variety 2-layers or multi-layers molds, it is a kind of new multi-function machine
3. Adopt dual power individual circuit design, stable, quiet, low failure rate, two axes can be operated simultaneously
4. With adjustable slow speed of mold features to suit different types of modules
5. Out-In mold positioning accuracy, positioning 100% security, to ensure that mold does not damage
Applicable products:
Applied to industrial rubber parts, Auto parts, medical bottle stoppers, household ware, cookware, silicone/rubber multi-layer molded products
Parameter:
Dongguan City Kesheng machinery Co., Ltd
Rubber machine, silicone material molding machine, injection machine, rubber machinery manufacturers / suppliers in China, providing high-precision rubber injection molding machine, rubber & silicone pressing machine, full automatic high speed molding press and so on.
Machine core parts:
Adopt foreign imported, such as Japan Mitsubishi PLC control system, Germany's Siemens control system, Taiwan PanelMaster HMI, Japan YUKEN oil pump, Taiwan heating pipes, Taiwan Victoria solenoid valves, Denmark TRAFAG pressure sensors, Japan NOK oil seal, Taiwan Tatung motors, Omron thermostat, Germany Busch vacuum pump, Fujitsu and other international brands accessories, stable quality, superior performance, low failure rate.
Main parts instruction for plate & vacuum rubber machine
Dongguan City Kesheng machinery Co., Ltd is located in Dongguan city, Guangdong, China, covers an area of 28000 square meters. Our company was established since 2003 and founded by a group of professional engineers who are well experience in rubber & silicone machinery manufacturing. To meet our customers' requirements, we have been adhering to design innovation, quality first and also provide custom made service.
Any inquiry please feel free to contact with us, thank you for your attantion.
Machine main feature:
1. With proofread slow speed of mold function, proofread mold more accurate, more secure
2. Suitable for variety 2-layers or multi-layers molds, it is a kind of new multi-function machine
3. Adopt dual power individual circuit design, stable, quiet, low failure rate, two axes can be operated simultaneously
4. With adjustable slow speed of mold features to suit different types of modules
5. Out-In mold positioning accuracy, positioning 100% security, to ensure that mold does not damage
Applicable products:
Applied to industrial rubber parts, Auto parts, medical bottle stoppers, household ware, cookware, silicone/rubber multi-layer molded products
Parameter:
| Model | 100Ton | 150Ton | 200Ton | 250Ton | 300Ton | 350Ton | 400Ton | 450Ton |
| Clamping force(Ton) | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Stroke(mm) | 250 | 250 | 250 | 250 | 300 | 300 | 300 | 300 |
| Heating plate size(mm) | 400x400 | 450x460 | 560x560 | 600x650 | 650x650 | 750x700 | 850x850 | 1000x1000 |
| Main cylinder diameter(mm) | 250 | 300 | 355 | 400 | 450 | 475 | 500 | 560 |
| Horse power(HP) | 5x2 | 5x2 | 10x2 | 10x2 | 10x2 | 15x2 | 15x2 | 15x2 |
| Electrical power(KW) | 12 | 17 | 22 | 34 | 34 | 43 | 48 | 72 |
| Gross weight(KG) | 4500 | 5500 | 7000 | 9000 | 11000 | 15000 | 17500 | 21500 |
| Machine size(L*W*H mm) | 2360x1650x1850 | 2650x2000x2000 | 2930x2350x2100 | 3200x2700x2500 | 3460x2630x2500 | 3650x2600x2610 | 3750x2700x2800 | 4200x3300x3300 |
Dongguan City Kesheng machinery Co., Ltd
Rubber machine, silicone material molding machine, injection machine, rubber machinery manufacturers / suppliers in China, providing high-precision rubber injection molding machine, rubber & silicone pressing machine, full automatic high speed molding press and so on.
Machine core parts:
Adopt foreign imported, such as Japan Mitsubishi PLC control system, Germany's Siemens control system, Taiwan PanelMaster HMI, Japan YUKEN oil pump, Taiwan heating pipes, Taiwan Victoria solenoid valves, Denmark TRAFAG pressure sensors, Japan NOK oil seal, Taiwan Tatung motors, Omron thermostat, Germany Busch vacuum pump, Fujitsu and other international brands accessories, stable quality, superior performance, low failure rate.
Main parts instruction for plate & vacuum rubber machine
| NO. | Item | Branch/Material | Remarks |
| 1 | Motor | Taiwan Tatung | Large torque type, quiet and silent |
| 2 | Oil Pump | Japan branch | Collective style circuit design |
| 3 | PLC | Japan Mitsubishi | Independent written, easy to operate |
| 4 | LCD touch screen | Taiwan PanelMaster | Clear and intuitive, convenient, easy to operate |
| 5 | Heating pipes | Taiwan branch | Nickel-chromium alloy wire, never rust |
| 6 | Oil seal | Japan NOK | Wear-resistant, durable, no leakage |
| 7 | Solenoid valve | Taiwan Victoria | Controlled fast, long life |
| 8 | Other electrical configuration |
Japan Fujitsu, Great Wall, Chint and so on |
Performance and stability |
| 9 | Thermostat | Omron | Using PID correction, temperature uniform distribution, the error value at ± 3 ºC |
| 10 | Pressure sensor | Denmark TRAFAG | Conduction pressure accurate, unbiased, and easy to use |
| 11 | Heating control system |
Taiwan Solid State Relays |
temperature uniform distribution, the error value at ± 3 ºC |
| 12 | Machine body casting | FCD50 Ductile Iron | Aging passivation, high tensile strength |
| 13 | Column | Carbon Steel | Hardness up to HRC55--58 |
| 14 | Work plate | Size as per quotation | 45 # high carbon steel, grinding, surface nitriding hardness HRC50-55 |
| 15 | Machine Middle body | Umbrella tapered design | Make the machine rise and fall by force, the mold cavity pressure evenly, the product is not lack of material, no bubbles |
| 16 | Vacuum Pump | Germany Busch | Evacuated quickly, can reach 760 mm Hg within 5 seconds |
Dongguan City Kesheng machinery Co., Ltd is located in Dongguan city, Guangdong, China, covers an area of 28000 square meters. Our company was established since 2003 and founded by a group of professional engineers who are well experience in rubber & silicone machinery manufacturing. To meet our customers' requirements, we have been adhering to design innovation, quality first and also provide custom made service.
Any inquiry please feel free to contact with us, thank you for your attantion.
