2020 Reliable Quality OEM Hydraulic Hose Crimper for Rubber Machinery

Product description:

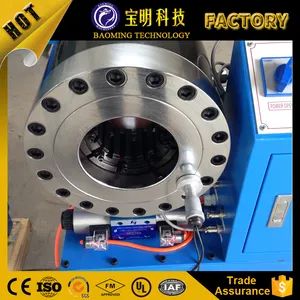

The DX68 CNC hose crimping system incorporates a computerized control system, delivering rapid crimping with consistent results. It offers precise crimping, strong clamping power, quiet operation, and intuitive handling. The dual-slope eight-flap die holder, fitted with an accurate alignment mechanism, ensures uniform mold distribution. Designed primarily for high-pressure hydraulic hose connections in mechanical applications, this machine also handles steel pipe crimping, including large-diameter and non-standard shaped pipes.This device has a compact, lightweight design, strong power output, quiet operation, and simple controls. The compression level can be finely tuned using a calibrated scale. The dual-slope eight-tab mold base, fitted with an accurate guidance system, ensures a more uniform distribution across the mold base.




Installation and Operation
Fill the system with 70 liters of Great Wall 46# anti-wear hydraulic fluid. When ambient temperature drops below 10ºC, include an additional 10% of transformer oil.
Ensure the electrical supply is properly connected according to the machine specifications, so the motor's rotation aligns with the indicated direction, and grounding for safety must be implemented.
2. Regulating the scale
The measuring scale controls the degree of buckling. Turning it clockwise reduces the buckling, while turning it counterclockwise increases it. The scale is fastened to the oil cylinder end cap via three socket head bolts and three springs mounted on the scale’s base. By manually pulling the scale (perpendicular to the end cap), it can smoothly separate from the cap. Upon release, it returns to its original position due to the spring tension. Prior to powering up the machine, verify that the scale’s extension movement is smooth and that the lead wire connection is secure.
Align the primary scale to the 0 mark on the secondary scale, power up the unit for a preliminary operation, and check whether all functions operate smoothly. Should the piston exhibit sluggish motion during back-and-forth travel, loosen the bleed screw located at the top of the oil cylinder to release trapped air.
4. Pressure regulation
The pressures for buckling and mold opening are adjusted using two dials located at the rear of the oil cylinder (refer to figure); turning the dials clockwise raises the pressure, while turning them counterclockwise lowers it (the settings are fully optimized at the factory).
5. Operation

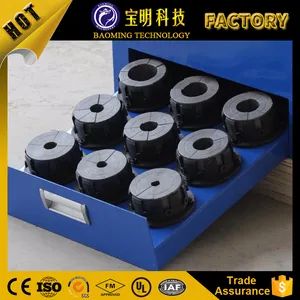

According to the rubber hose diameter, choose the appropriate mold from the locking pipe technical specification chart and secure it onto the mold base. Adjust the scale position accurately using the values listed in the table to perform the pipe clamping operation. Once clamping is complete, measure the outer diameter of the pipe sleeve with a vernier caliper to verify compliance with the reference parameters. Should the measurement fall short, fine-tune the scale until the required dimensions are achieved. Since pipe sleeve suppliers vary, differences in dimensions, composition, hardness, and other attributes are inevitable. These variations impact the clamping outcome significantly; thus, the table values serve as a guide only, and final specifications must be validated through pressure testing.


Notices

1. When buckling, make the joint to locate the mould center as much as possible, the joint is not buckled on the hex nut.
2. Prevent tool and other foreign matter from entering the locking head.
3. Each time the operation is completed, the eight-block mold foundation must be extended as far as possible, ensuring the spring reaches its fully extended position. Otherwise, the spring risks being compromised.
4. When working, the hand should not stretch into the locking head.
5. The power supply must be switched off when maintenance is done.

Maintenance

1. For three years from the date of purchase, we ensure the machine remains in optimal working condition. Any assembly issues will be fixed at no cost (or replaced if needed) while the warranty is active. Damage caused by misuse or unforeseen incidents is not covered under the warranty.
2. Hydraulic fluid levels in the tank must be regularly monitored; when levels drop below adequate amounts, fluid should be added promptly. If the fluid becomes contaminated, it must be purified through filtration or completely substituted.
   The locking head must maintain a clean internal environment. Prevent foreign particles from entering the locking head's oil cylinder through the mold during operation, as this could disrupt proper function. Remove any contaminants introduced by the mold body promptly when assembling the joint.
   Frequently fill suitable grease into the mould body for lubrication.

Promise
For three years from the date of purchase, we ensure the machine remains in optimal working condition. Any assembly issues will be fully covered and fixed (or swapped if needed) while under warranty. Damage caused by misuse or unforeseen incidents is excluded from warranty coverage.

Troubleshooting

Our service:

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory & Office.


After-Sales Service

* Warranty for 3 years.
* Training how to instal and use the machine.
* Provide free quick-wear part.

Payment Term:

Trade Assurance

* PAY to our company's CITIBANK account designated by ******.com with credit card or bank transfer.
* 100% product quality protection; 100% on-time shipment protection; 100% payment protection.

T/T

* 100% T/T in advance(normal models in stock).
* 50% T/T in advance, balance paid before delivery(for the customized models).

Our factory also have accept the payment by western union,paypal and money gram.


FAQ:
1.Question:Are you manufacturer or trading company?
Answer:We are manufacturer since 1997.

2.Question:Certificates ?
Answer:CE,ISO

3.Question:Delivery time?
Answer:The machines arein stock now,can be delivered as you need.

4.Question:What is theMOQ?
Answer:1 set for you test.

5.Question:Can I get some discount ?
Yes, friend.The more you buy, the more you save.

6.Question:What is the payment?
Answer:T/T in advance,as most of our crimping machine model are in stock.
L/C,western union,paypal and money gram also can be accepted.

7.Question:Can you make customized designs or LOGO?
Of course, we are professional OEM manufacturer.

8.Question:Can I visit your factory?
You're more than invited to drop by our factory at your convenience. Kindly reach out to us first to schedule your visit, and our vehicle will escort you there.


Why choose BAOMING FACTORY?

1.High Quality CE UL ISO approved DX68 hose crimping machine.

2.Great Affordable manual hose crimping machine,Best Quality you ever have.

3.Samway produce the hose crimping machine up to 800mm diameter hose with 2500 ton pressing force.

4.Fast delivery, our factory can dispatch the machine within 24 hours once receive the payment and promise to ship nomally 7 working days on board.

Discounts available with bulk purchase

Braided hose crimper DX68 Up to 2'' 6SP R15 Hydraulic Hose Compact in Size Affordable Great Machine

220V 240V single phase  50/60hz, 380V/400v/415v/440v 3 phase machine have stock.

This cost-effective braided hose crimping machine handles 2" 4SP/4SH hydraulic lines, featuring cutting-edge technology including a SIEMENS motor, SIEMENS control system, Rexroth hydraulic valves, and NOK seals, ensuring reliable and durable performance.

Finn Power Series braided hose crimpers are designed for maintenance and light manufacturing, featuring cost-effective and space-saving construction, perfect for general hose fitting requirements.

Main clients:RYCO,PIRTEK,PARKER USA,CATERPILAR etc.

OEM service:Our factory hydraulic hose crimping machine for sale up to 30",crimping range up to 1000mm available,5000 ton crimping force.

Warranty:Our factory hose crimping machine provide 3 years warranty from date of purchasing.
