2024 High Speed 4 Axis CNC Drilling Cutting Machinery Window and Door Making Machine
Set
Negotiable
Product information
High-quality 2024 High Speed 4 Axis CNC Drilling Cutting Machinery Window and Door Making Machine supplied by Shandong Zhengke Automation Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Air Pressure:
0.6-0.8MPa
Production Capacity:
1000 Sets/Year
Spindle Power:
12kw
Maximum Speed:
24000/Min
Voltage:
380V
Power:
380V/3phase/50Hz or Customized
Type:
4 Axis Processing Center
HS Code:
8464201000
Specifications
Air Pressure:
0.6-0.8MPa
Production Capacity:
1000 Sets/Year
Spindle Power:
12kw
Maximum Speed:
24000/Min
Voltage:
380V
Power:
380V/3phase/50Hz or Customized
Type:
4 Axis Processing Center
HS Code:
8464201000
Specification:
9800*2500*2800mm
Automatic Grade:
Automatic
CNC Or Not:
CNC
Trade Term:
FOB, EXW, CFR, CIF
Certification:
ISO, CE, SGS
Spindle Taper Hole:
ISO-30
Payment Term:
LC, T/T, Western Union
Condition:
New
Port Of Loading:
Qingdao
Origin:
Shandong, China
Model NO.:
WDJ4-CNC-7000
Transport Package:
Wooden Box or Plastic Film
Trademark:
Zhengke
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2023-03-15
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
Qingdao
Certificates:
CE, certificate, certificates, SGS audited supplier
Product descriptions from the supplier
High Speed 4 Axis CNC Drilling Cutting Machinery Window and Door Making Machine
| Power supply | 380V/3Phase/50Hz or customized |
| Spindle power | 12kW |
| Maximum speed | 24000/min |
| Air pressure | 0.6~0.8Mpa |
| Spindle taper hole | ISO-30 |
| Tool magazine form | rotary tool magazine |
| Tool magazine capacity | 12 |
| X/Y/Zaxisstroke | 7000mm/1500mm/600mm |
| X axis feedingspeed | 0~55m/min |
| Y/Zaxis feedingspeed | 0~40m/min |
| X-axis servo motor | 1.8KW |
| Y-axis servo motor | 0.85KW |
| Z-axis servo motor | 1.3KW |
| Rotary tool magazine servo motor | 400W |
| C-axis rotation range | ±110º |
| Processing length | 7000mm |
| Processing width | 400mm |
| Processing height | 300mm |
| Repeat positioning accuracy | ±0.05mm |
| Machining accuracy | ±0.1mm/m |
| Overall dimension | 9800×2500×2800mm |
| Weight | 4500kg |
Features
- This machine can realize one-time clamping of raw materials, and complete multi-process processing such as milling keyhole grooves, flow grooves, air pressure balance holes, and installation holes according to processing needs.(Programming customization)
- The machine adopts Shenzhen Han's (PA) machine tool numerical control system, which can complete continuous automatic milling of profiles of different specifications and sizes, with powerful functions.
- CAD drawings can be imported into the system conveniently and easily, and can be connected to domestic and foreign window and door and curtain wall system software such as German Klaes, Chuangao, Duter, Singer Schüco, Changfeng, etc.
- It is suitable for the processing of complex parts such as various aluminum, copper, PVC, industrial profiles, building curtain walls, sun rooms and so on.
- High-quality imported servo motors, ball screws, linear guide pairs and bearings are used to ensure that the machinehas high machining accuracy, high stability and reliability. The feed movement is pre-stretched to ensure stable machining accuracy.
Tool magazine

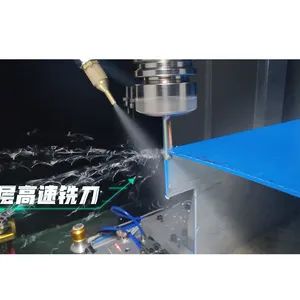

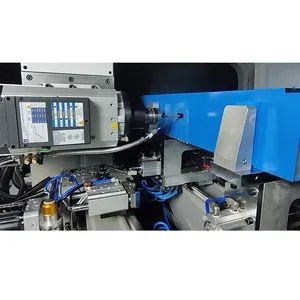

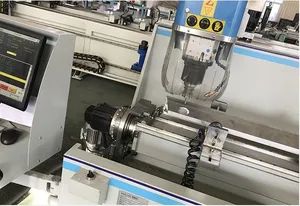

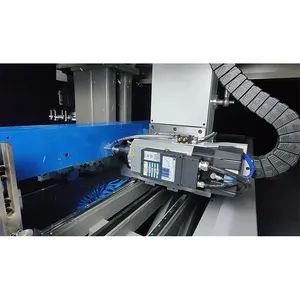

Sample Photos
Packing Details
Company Profile
Shandong Zhengke Automation Co., Ltd. was founded in 2014, located in Jiyang Industrial Park, Jinan, Shandong Province. The company covers an area of 5000 square meters, the core team of 50 people. Have independent technology design, research and development team. Have modern office space. Is the domestic professional glass machinery high-tech enterprises.
The company focuses on glass cutting machine.glass edging machine.glass washing machine.glass tempering machinery.insulating glass machine.glass tempering machine.laminated glass machine...etc. The company has more than 1500 terminal customers, with good reputation, won the recognition of the majority of customers.
We have 2 independent technical patents, 12 Copyrights and 2 trademarks. The company developed a series of glass two-component glue machine advanced technology, sensitive reversing, continuous stability, high production efficiency, high degree of automation, easy to use; Widely used in two-component silicone structural adhesive, polysulfide adhesive, polyamine glue and other high accurate ratio, uniform mixing and fast operation occasions. Solve the phenomenon of high waste and low efficiency caused by manual work, is the ideal glass bonding production machine.
The company adheres to the business philosophy of "Honest and trustworthy, and prosper enterprises with science and technology", based on talent, technology, service and reputation, not only to provide customers with high quality glass machine, but also to provide you with case debugging machine, technical consulting guides, staff operation training and other comprehensive after-sales service.
Our Advantages
- We provide professional glass production solutions.
- Professional online service team, any mail or message will reply within 24 hours.
- We have a strong team provide wholehearted service to customer at any time.
- We insist on Customer is Supreme, Staff toward Happiness.
- Put the Quality as the first consideration;
- OEM & ODM, customized design/logo/brand and package are acceptable.
- Advanced production equipment, strict quality testing and control system to make sure superior quality.
- Competitive price: we are a professional glass machine manufacturer in China, there is no middleman's profit, and you can get the most competitive price from us.
- Good quality: good quality can be guaranteed, it will help you keep the market share well.
- Fast delivery time: we have our own factory and professional manufacturer, which save your time to discuss with trading companies. We will try our best to meet your request.
