2024 Pulse Heat Soldering Machine Equipment Trademark CLY Model NO. 618SH Origin Guangzhou Specification 450KG Production Capacity 1000
1-4 Piece
$4,2005 Piece
$4,000Product information
High-quality 2024 Pulse Heat Soldering Machine Equipment Trademark CLY Model NO. 618SH Origin Guangzhou Specification 450KG Production Capacity 1000 supplied by Guangzhou Chuang Li You Machinery Co., Ltd.. Bulk wholesale pricing ranges from $4,000 to $4,200 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
1000
Package Size:
123.00cm * 92.00cm * 175.00cm
Package Gross Weight:
450.000kg
Specification:
450KG
Model NO.:
618SH
Trademark:
CLY
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Specifications
Production Capacity:
1000
Package Size:
123.00cm * 92.00cm * 175.00cm
Package Gross Weight:
450.000kg
Specification:
450KG
Model NO.:
618SH
Trademark:
CLY
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF
Origin:
Guangzhou
Port Of Loading:
Guangzhou Huangpu Port
Payment Term:
LC, T/T
Payment Methods:
Support payments in USD
Training:
Teach Online or Learning for Training Videos
Transport Package:
Wooden Box
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-09-27
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF
Port Of Loading:
Guangzhou Huangpu Port
Certificates:
CE
Product descriptions from the supplier
| Model NO. | 618SH | Use LCD Screen Repair | Tab Bonding |
| Other Name | LCD Repair Bonding Machine | Peak Power | 1500W |
| Voltage | AC220V | Hot Pressing Time | Can Be Set (S) |
| Work Pressure | 0.3~0.4 (MPa) |
Machine Shape Size | 1800(L)X1200(W)X1520(H)mm |
| Peak Temperature | + / - 0.3 Degrees Celsius | Weight | 450kg |
Product Description:
- Features:
- 1. Repair any screen below 100 inches.
- 2. Refurbish various screen types like black belt, black line, color line, ribbons, multi-line, flower screen, black screen, white show, caused by FPC/TAB/COF.
- 3. Pulse heating precision of +/-0.3ºC.
- 4. Response time from room temperature to 180 degrees in just 2 seconds.
- 5. Plane precision (hot-pressing side): 0.005 mm.
- 6. Low repair rate and easy operation.
Company Name: Guangzhou Chuang Li You Machinery Co., Ltd.
| Model number | 618SH |
| Heating Mode | Pulse |
| PID Temperature Control System Brand | Siemens temperature control module |
| Temperature curve:Factory Reset | |
| Peak temperature + / - 0.3 degrees Celsius | |
| From room temperature to 180 degrees response time for 2 seconds | |
| Brand:the United State OMEAG | |
| Heat Press Head | Materials: titanium alloy |
| Place of origin: the United States | |
| Plane precision (hot-pressing side) : 0.005 mm | |
| Industrial Control Unit | PLCS:DELTA |
| HDMI:Weinview | |
| Imaging Unit | COF counterpoint: under counterpoint (optical path: lens>quartz>ITO electrode COF package) |
| PCB counterpoint: no | |
| Microscope magnification: 20 ~ 100 consecutive times | |
| Number of lens: 2 | |
| COF counterpoint display: 19 inch | |
| PCB counterpoint display:no | |
| Light above:yes | |
| Light down:no | |
| COF Trimming Unit | Place of origin: Taiwan |
| Type of guide rail:V guide rail | |
| Accuracy: 0.01 | |
| Adjustable direction: X/Y/R | |
| X-y range: + / - 6.5mm | |
| R range:coarse adjustment 360 degrees, fine adjustment + / - 5 degrees | |
| COF Fixture | Mechanical clamping fixture way,Z to tilt radius can be adjusted/ Adjustable horizontal angel/COF can be extended |
| Lens Fine-Tuning Unit | Type of guide rail: precise cross rail . Control mode: X - Y - Z micrometer control |
| Position Detection | NO |
| Silicone Skin/Tefloon | Change position manually |
| LCD Drive (Platform) | Sliding or fixed optional manually |
| Alarm | Abnormal:temperature/thermocouple anomaly/actions |
| Heat Seal Head Counterpoint | Independent pneumatic,Pressure reducing valve be adjusted manually |
| Control Way | Touch screen + button operation |
| Parameter Setting | According to the need to set to storage more groups of hot-pressing parameters |
| Voltage | AC220 v |
| Peak Power | 1500W |
| Weight | 450kg |
| Size Of Machine (mm) | 1800(L)X1200(W)X1520(H)mm |
Product Description: LCD TV Repair Bonding Machine
Company: Guangzhou Chuang Li You Machinery Co., Ltd.
Payment and Delivery:Payment terms include EXW/FOB/CIF, with options for 100% deposit in advance or 50% deposit and 50% before delivery. Delivery time is approximately one week.
Warranty and Support:Standard 1-year warranty with lifelong technical support provided.
Training:Two training methods offered: factory training and video training. More details availablehere.
Packaging:The machine is carefully packaged for shipping.
Installation:Refer to the disassembly procedure video for guidance on installing the machine upon receipt.
618SH Specification

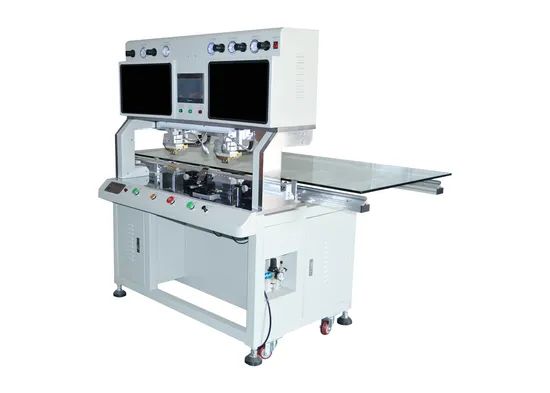

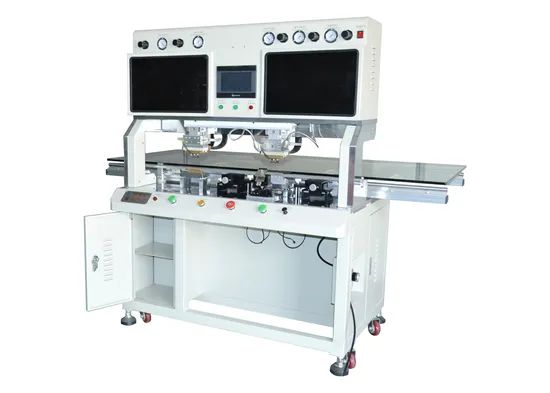

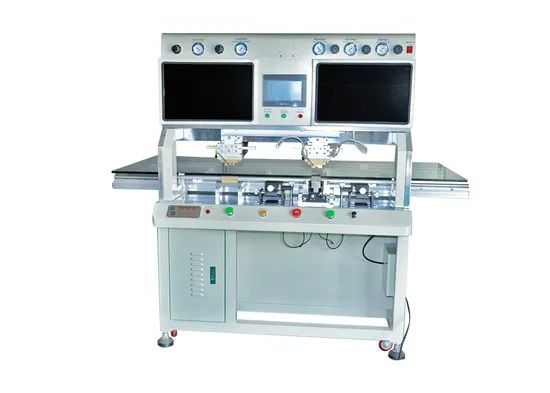

Double Head Manual platform Automatic Pressure Machine
Equipment Details:
- Equipment Model Number:618SH (Double Head)
- Device Description:Repair screen machine / Bonding machine
- Device Uses:FPC, COF, TAB, LCD Panel, and PCB combination bonding
- Applicable LCD panel specifications:7″-100″
- Applicable LCD panel thickness:0.3MM-1.1MM (Single glass)
- Bonding IC number:Multiple / Panel Can be set
- Bind direction:X or Y Unidirection
- Bonding IC size:Replaceable blade according to IC specifications
Equipment Features:
- Device processing time:TFT, 3.8S/chip
- Production Beats:TAB, 100 pcs/H
- Bonding Accuracy:Within ± 1.5μm (support 4K screen)
- Highest positioning accuracy setting:±0.5μm
- Equipment requirements for the work environment:Clean, No dust, Clean room
- Supply Pressure:0.3~0.5Mpa (Dry air source)
- Power Supply:AC 220V±10%, 50HZ, 1500W
Additional Information:
With 616DH, Guangzhou Chuang Li You Machinery Co., Ltd. provides all necessary accessories for ACF/COF/TAB repairing, eliminating the need to purchase extra accessories.
| No. | Name | Model No. | Quantity | Unit | Specification | Remark |
| 1 | Double Head Bonding Machine | 618SH | 1 | Set | Single Head | |
| 2 | ACF Anisotropic Conductive Film | AC-7206U-18 | 1 | Piece | 1.2X50M | Glass special |
| 3 | ACF Anisotropic Conductive Film | AC-2056R-35 | 1 | Piece | 2.0X50M | PCB special |
| 4 | Acetone Liquid | BT-H1 | 1 | Bottle | 500ML | |
| 5 | Absolute Alcohol | CH3CH2OH | 2 | Bottle | 500ML | |
| 6 | ACF Removing Liquid | G-450 | 1 | Bottle | 500ML | |
| 7 | Hitachi Blue Glue | 1 | Bottle | 100ML | ||
| 8 | Fuji Silicone | 1 | Piece | 50M | ||
| 9 | Tefloon | 1 | Piece | 50M | ||
| 10 | Heating Solder Iron | 1 | Piece | 30W | ||
| 11 | Alcohol Bottle | 2 | Bottle | |||
| 12 | TAB Cutter | 1 | Piece | |||
| 13 | Optical Microscope | 1 | Piece | |||
| 14 | LCD Test Board | HXV59 | 1 | Piece | ||
| 15 | Air Compressor | OTS550 | 1 | Piece | Mute Oil-free | |
| 16 | Cleanroom Wipers | 1 | Piece | |||
| 17 | Cotton Swab | 1 | Piece | |||
| 18 | Handheld Magnifier | 1 | Piece | |||
| 19 | Precision Tweezers | Elbow, Straight | 2 | Piece | High Hardness Hyperfine |
