24 7 Automatic Rkl 07 Radar Flow Monitor Meter with Wide Temperature Range
1 Piece
$1,2191 Piece
$1,115Product information
High-quality 24 7 Automatic Rkl 07 Radar Flow Monitor Meter with Wide Temperature Range supplied by Hunan Rika Electronic Tech Co., Ltd.. Bulk wholesale pricing ranges from $1,115 to $1,219 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Working Temperature:
-40~+85℃
Range:
0.03-20 M/S(It Has to Do with The Flow)Pattern)
Transport Package:
1 Piece Per Carton
Specification:
220×120x84mm
Frequency:
24GHz
Package Gross Weight:
4.700kg
Package Size:
42.00cm * 37.00cm * 23.00cm
Cable Length:
5m Default,Customizable
Specifications
Working Temperature:
-40~+85℃
Range:
0.03-20 M/S(It Has to Do with The Flow)Pattern)
Transport Package:
1 Piece Per Carton
Specification:
220×120x84mm
Frequency:
24GHz
Package Gross Weight:
4.700kg
Package Size:
42.00cm * 37.00cm * 23.00cm
Cable Length:
5m Default,Customizable
Output Signal Type:
Analog Type
Certification:
CE
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Feature:
Corrosion Resistant
Customized:
Customized
Supply:
DC6-30V(Suggested Use 12V)
Trade Term:
FOB, CIF, CFR, EXW
IP Rating:
IP68
Protection Grade:
IP68
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Production Process:
Normal Wirewound
Material:
Plastic
Model NO.:
RKL-07
Output:
RS485(Modbus-RTU)
Trademark:
Rika
Port Of Loading:
Shenzhen Port,Guangzhou Port
Resolution:
Speed:0.01m/S;Distance:1mm
Accuracy:
Speed:±1%Fs;Distance:±3mm
Payment Methods:
Support payments in USD
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-04-26
Annual Revenue Amount:
Not specified
Numbers Of Employees:
69
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port,Guangzhou Port
Certificates:
RoHS, CE
Product descriptions from the supplier

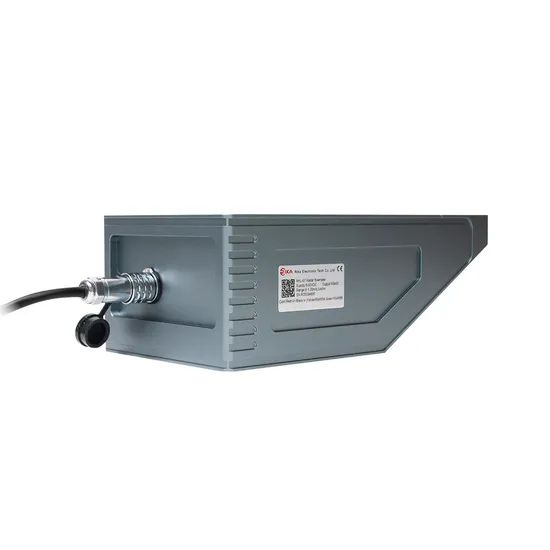

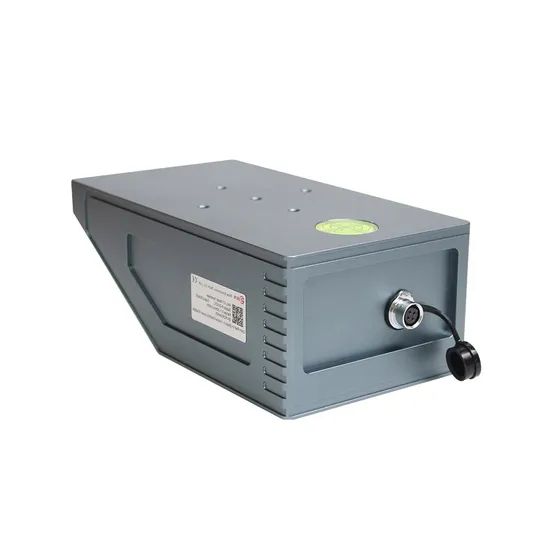

24/7 Automatic RKL-07 Radar Flow Monitor Meter with Wide Temperature Range
The RKL-07 radar flowmeter This smart system is built to constantly track moving water in rivers and open waterways, integrating a cutting-edge radar velocity sensor with a high-precision radar water depth sensor. It enables exact, contact-free readings of water surface speed and depth. In standard, uniform riverbeds, established mathematical models ensure reliable flow calculations. In complex, uneven sections, the system applies refined point sampling techniques and advanced calculus to compute flow rates with high accuracy. The contactless technology is specifically crafted to ignore sediment, underwater vegetation, and floating materials, leading to lower upkeep expenses and improved durability and operational efficiency.
FEATURES
- This cutting-edge two-in-one product delivers direct and precise flow calculations with unparalleled efficiency.
- Boasting simple construction and installation, it features low power consumption, making it both economical and highly applicable for diverse settings.
- Engineered with a high IP68 protection level, this device is virtually maintenance-free, ensuring consistent performance.
- Its design ensures that the natural state of water flow remains undisturbed, providing consistently accurate measurement data.
- Offering 24/7 online automatic monitoring, this advanced system operates seamlessly without the need for ongoing supervision.
APPLICATIONS
- Precision monitoring for river water level measurement.

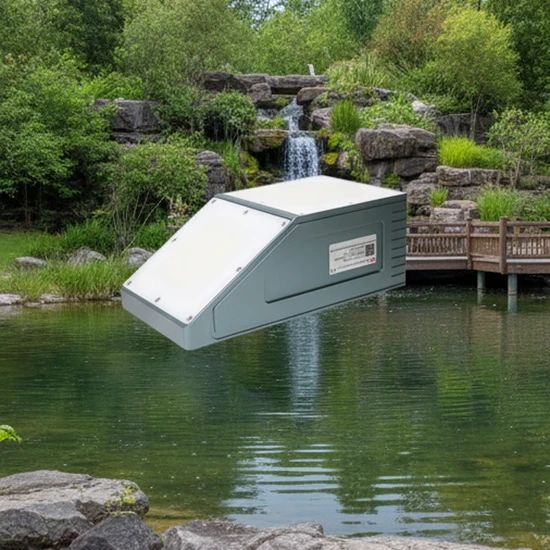

- Reliable solutions for lake water level measurement.
- Accurate shallow water level measurement capabilities.
- Comprehensive hydrographic survey capabilities.

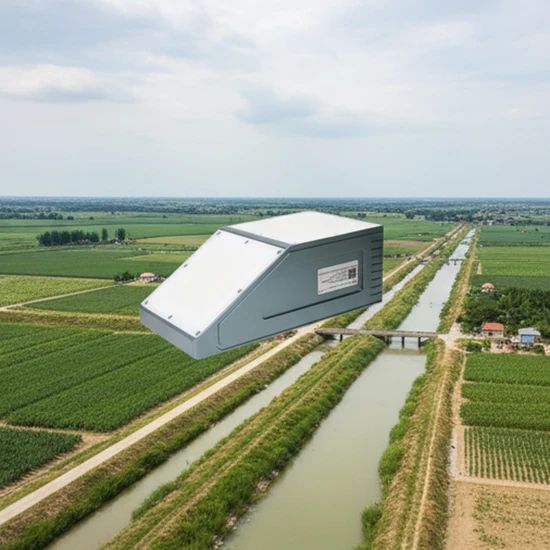

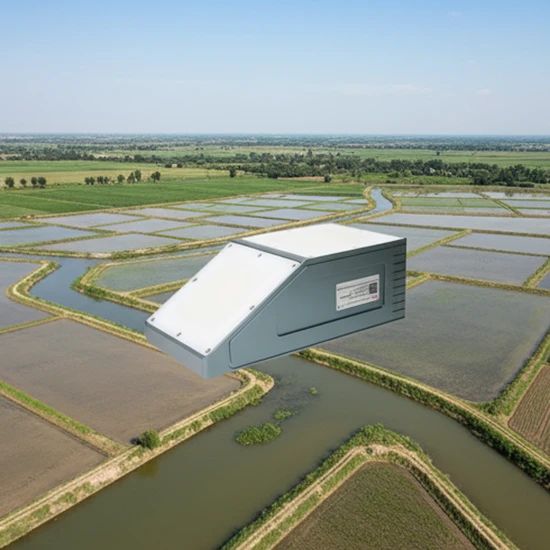

- Advanced irrigation open channel water flow monitoring system, ensuring optimal water management.
SPECIFICATION
| Item | Technical Specification | |
| Speed | Distance | |
| Range | 0.03~20 m/s(It has to do with the flow)pattern) | 0.4-40m |
| Accuracy | ±1%FS | ±3mm |
| Resolution | 0.01m/s | 1mm |
| Antenna style | 14×32° | 11×11° |
| Frequency | 24GHz | |
| Supply | DC6~30V(suggested use 12v) | |
| Power consumption | Working current:80mA@12V;Sleep current:1mA@12V | |
| Output | RS485(MODBUS-RTU) | |
| Working temperature | -40~+85ºC | |
| Protection grade | IP68 | |
| Product size | 220×120x84mm | |
| Weight | 5.8kg | |
| Cable length | 5m default,customizable | |
Testimonial
Q: Are you the final manufacturer?
Q: Do you offer the OEM service?
A: We provide OEM solutions and can create custom logo branding for your needs. However, the smallest order we accept is 10 pieces for the initial shipment.
Q: Do you offer free samples?
A: Sorry , we do not offer free samples . You should pay for the samples and freight cost.
Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union .
Q: What is your delivery time?
A: Delivery takes 6 to 8 business days after payment is received. For orders exceeding 100 pieces, an additional 3 to 5 business days are required.
Q: What is your normal delivery way?
A: Goods will be sent by DHL / FEDEX / UPS / EMS / TNT / or other proposed forwarders.
Q: How is your quality assurance service?
A: Our service is free exchange within one month and 12 months quality guarantee if non-manmade damage.
Q: Could we make a visit to your factory?
A: Yes, you are welcomed . But before that, we will do the visiting investigation.
