3 Bedrrom Light Steel Framing Structure Expandable Container Home Villa

A versatile 20-foot expandable container house ideal for a granny flat, compact residence, mobile home, seaside retreat, and many other uses! Excellent choice for budget-friendly housing, short-term stays, vacation getaways, or on-site worker housing.

Specifications

• 36m² Total Area - 5.9m(L) x 6.2m(W) x 2.5m(H)
• 17.4m² Living & Kitchen, 3.3m² Bathroom, 7.8m² Bedroom One, 5m² Bedroom Two
• Approx. Weight - 4.5 tonnes

• main structure	galvanized steel
  szie	5900mm*6200mm*2500mm
  wall material	50mm thickness sandwich panel
  floor material	MGO board
  door	anti-theft steel door
  window	PVC + glass
  electrical	local standard
  application	affordable and decent home, management office, shelter, clinic, accormmodation

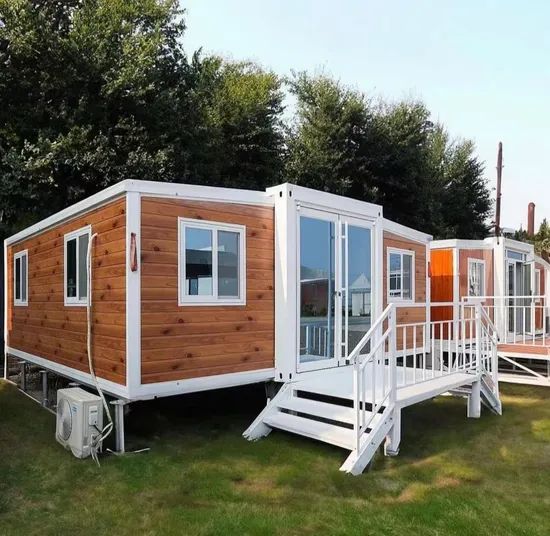

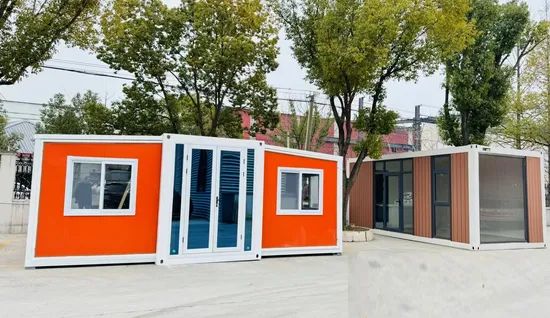

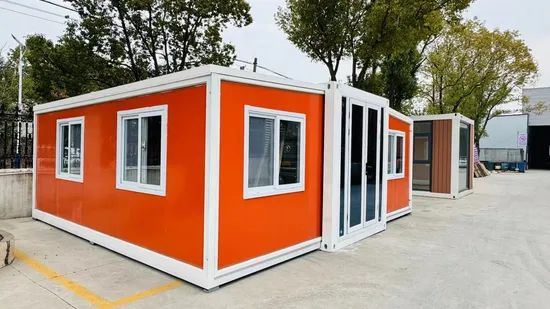

Outside view

Inner view

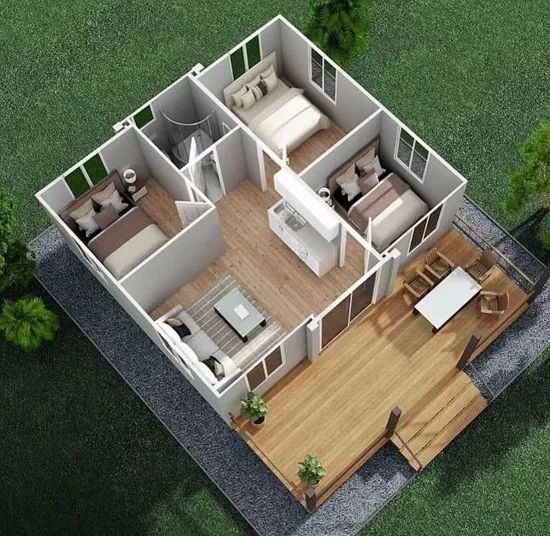

Standard Layout designs

Standard Inclusions

Construction

• 50mm EPS Galvanised steel sandwich panel walls/ceiling
• Heavy duty galvanised steel frame
• Robust doors with aluminium frames and double glazed tempered glass windows
• Ceiling and floor skirting board trim with corner trim and capping
• Standard grey PVC flooring
• 18mm fibre cement subfloor board base, pre-fitted to steel frame.

Rooms

• Kitchen with cabinetry, stone benchtops, cupboards, sink, requires assembly but comes partly assembled
• Bathroom with shower, toilet, washer-basin (basin with space for washer underneath), mirror vanity cupboard, grey marble pattern tiles
• Two Bedrooms, one large and one small, includes interior doors and at least one window per bedroom

Electrical

• Pre-wired outlets, switches and power for bedrooms, bathroom, kitchen and living space
• Dedicated power for kitchen appliances, electric hot water and air conditioning
• Local standards approved electrical cabling
• 50A rear input with waterproof connector
• Round LED oyster for each room with pre-fitted light switches.

Plumbing

• Pre-fitted hot/cold inlets for kitchen sink, bathroom basin, toilet and shower
• Plumbing fittings, taps, shower and fixtures with WaterMark certification
• Separate drain pipes for waste water and grey water

Please note that the listed price does not include any furniture, home options, customisations, additions or upgrades.

Installation: a crane will be needed

Shipping Method

• 2 units of 20ft expandable home fit in one 40HC shipping container
• 1 unit of 30ft expandable home fits in one 40HC shipping container
• 1 unit of 40ft expandable home fits in one 40HC shipping container

About Us
China Chengdu Yuwen Co., Ltd. was founded in 2010, headquartered in Chengdu—the city known as the birthplace of the panda—and operates manufacturing facilities in Sichuan, Anhui, Shanghai, Jiangsu, and Guangdong.

Having evolved over a decade, we now stand as a leading expert in prefabricated, modular, and container-based housing, delivering superior value to clients globally. Driven by innovation and sustainability, we design energy-efficient, affordable, user-friendly, and imaginative solutions using our in-house knowledge. Our international reach spans countries including Canada, Finland, Saint Kitts and Nevis, Singapore, Zambia, Nigeria, Greece, and PNG, among others. We remain eager to expand into emerging markets and forge fresh partnerships.

Certificates
TUV
SGS
Export License
Business License

FREQUENTLY ASKED QUESTIONS

Q:Who will arrange shipping to my site?
A:We can arrange the shipping from our port to yours.

Q:What's the lead time?
A:Usually it's 25 days.

Q:What's your production capacity?
A:Our production capacity is 300 units per month.

Q:What's your incoterm and payment term?
A: EXW, FOB, CIF, it's up to the clients; our payment term is 30% as down payment; 70% before delivery.

Q:Can we come to your factory to have a look if possible?
A:Sure you can.

Q:Which is your nearest port?
A:Shanghai and Guanghzou.

Thanks for your time and please contact us for more information.
