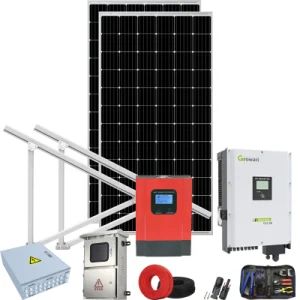

3 Kw Solar Power System on Grid for Solar Cooling System Power 3kw Origin Zhejiang Standard Standard Model NO. SMSH-3KW HS Code
Set
Negotiable
Product information
High-quality 3 Kw Solar Power System on Grid for Solar Cooling System Power 3kw Origin Zhejiang Standard Standard Model NO. SMSH-3KW HS Code supplied by Jinhua SunMaster Solar Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Max. DC Input Voltage:
1000V
Max. DC Input Power:
10kw
Rated AC Output Power:
1kw
System Capacity:
1kw
Solar Panel Power:
250W*60PCS
Power:
3kw
10 Kw Solar System:
3kw Solar Power System
Production Capacity:
50, 000 PCS/Year
Specifications
Max. DC Input Voltage:
1000V
Max. DC Input Power:
10kw
Rated AC Output Power:
1kw
System Capacity:
1kw
Solar Panel Power:
250W*60PCS
Power:
3kw
10 Kw Solar System:
3kw Solar Power System
Production Capacity:
50, 000 PCS/Year
HS Code:
8502390000
Specification:
CE RoHS
Certification:
CE, ISO, RoHS
Transport Package:
Carton or Wood Boxes
Soalr Ower System Upgrade:
Easy Upgrade Solar Power System
Trade Term:
FOB, CIF, CFR
Service:
Free Design
Solar System Technology:
IGBT
Controller:
Intelligent Controller
Payment Term:
LC, T/T, Western Union
Battery Type:
Lead-Acid AGM
Solar Cell:
Poly Crystalline 156
Solar Panel Type:
Polycrystalline Silicon PV Module
Model NO.:
SMSH-3KW
Trademark:
SUNMASTER
Port Of Loading:
Shanghai, Ningbo
Standard:
Standard
Certificate:
TUV IEC Ce RoHS
Origin:
Zhejiang
Type:
off-Grid System AC
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-11-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
52
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shanghai, Ningbo
Certificates:
Others, CE
Product descriptions from the supplier
| Connecting Diagram |
| Configuration List |
| Item | Certification | Description | Q'ty | Warranty |
| Solar panel | TUV / IEC / EC | Mono or Poly | 2 pcs | 20 years |
| Inverter | CGC / CQC / VDE | One (MPPT) tracking/ 50/60Hz; 230Vac 1500W/ SM-SH1500W | 1 set | 5 years |
| Distribution box (Optional) |
CE | Lighting Protection. Air switch,Fusegar, knifeswitch, | 1 set | 5 years |
| Mounting system | CE | Slant roof bracket/ Cement Ground bracket/ Soil ground bracket | 1set | 10 years |
| PV cable | TUV/ UL | DC port PV1-F1*4mm² | 20m | 10 years |
| AC port YJV-3*6mm² | 10m | 10 years |
| Solar Panel |
| Type | MONO | POLY | ||
| Power class | 280W | 335W | 270W | 320W |
| Open Circuit Voltage (Voc) | 43 | 44 | 43 | 43.8 |
| Short Circuit Voltage (Isc) | 8.35 | 9.92 | 8.23 | 9.42 |
| Max power Voltage (Vmp) | 36 | 36 | 36 | 36.5 |
| Max Power Current (Imp) | 7.78 | 9.3 | 7.35 | 8.76 |
| Efficiency | ≥17.1% | ≥17.2% | ≥16.5% | ≥16.4% |
| Dimension (mm) | 1650x991x35 | 1960x991x35 | 1650x991x35 | 1960x991x35 |
| Weight (kg) | 18±5% | 22.5±5% | 18±5% | 22.5±5% |
| Solar Inverter |
| Ambient temperature range | -25~+60ºC(>45ºCdeloading) |
| Relative humidity | 0~95% |
| Max operating altitude | 4000m (>3000m derating) |
| Protection degree | IP65 |
| Topology | Transformerless |
| Night power consumption (W) | <1 |
| Cooiong method | Natural convection |
| Noise emision (dB) | <25 |
| Display | LCD |
| Warranty (Year) | 5/10/15/20/25 (Optional) Years |
| Solar Controller |
| Rated Charge current(A) | 40A | |
| Rated DC voltage(V) | 24/48 automatic identification | |
| Solar input Max voltage(V) | 42/84 | |
| Battery | Over charge protective voltage(V) | 28.6/57.2 |
| Battery | Over charge recover voltage(V) | 27.4/54.8 |
| Battery | Constant charge voltage(V) | 27/54 |
| Battery | Over discharge alarm voltage(V) | 20/40 |
| Environment Humidity and temperature | 0-90% No condense,55ºC | |
| Protective Functions | Protection against anti-charge at night,battery over charge, over discharge protection,Joint-reversed of solar modules | |
| Solar Battery |
| Nominal Voltage | 12V | |
| Nominal Capacity | 100Ah(10hr,1.80V/cell,25ºC) | |
| Approximate Weight | 27.5 kg | |
| Internal Resistance | 5.5 mΩ(Lead terminal) | |
| Terminal | Lead wire(4.0mm²×1.8m) | |
| Maximum Charge Current | 25 A | |
| Ambient Temperature | -35~55 ºC | |
| Dimension | Length | 329mm(±2 mm) |
| Width | 172mm(±2 mm) | |
| Container Height | 214mm(±2 mm) | |
| Total Height | 236mm(±2 mm) | |
| Case | ABS | |
| PV Combiner Box |
| Components | Parameter | Function |
| Circuit breaker (Air switch) | 40A | When the current of the protected,circuit exceeds the specified value,the circuit breaker will automatically break off to protect the whole circuit. |
| Fusegear | 40A | When the current of the protected circuit exceeds the specified value,fusegear will break off automatically |
| Surge protective device (SPD) | UC:420V lmax:20KA In: 10KAUp≤1.8KV |
Photovoltaic lightning protection device |
| One phase self dual over voltage protection device | Working range 220V,50Hz, over voltage protection Uvo=270V±5V Under voltage protection Uoe= 170±5V |
When the circuit voltage is highet or lower, it will shut down automatically.when the voltage reaches standard level, it will recover automatically. |
| Knife switch | / | automatic/ by hand |
|

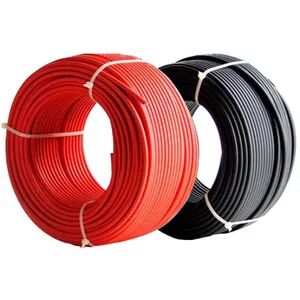

Conductor
|
Tinned Fine Re Copper Strand, according to VDE0295/IEC60228. Class 5
|
||
|
Insulation
|
Polyolefin Copolymer electron-beam coss-linked
|
||
|
Sheath Jacket
|
Polyolefin Copolymer electron-beam coss-linked
|
||
|
Nominal Voltage
|
Uo/U=600V/1000VAC, 1000V/1800VDC
|
||
|
Test Voltage
|
6500V, 50Hz, 5Min
|
||
|
Temperature Rating
|
-40°C-125°C ,More than 25 Years (TUV)
|
||
|
Fire Performance
|
IEC 60332-1
|
||
|
Smoke Emission
|
IEC61034, EN 50286-2
|
||
|
Low Fire Load
|
DIN 51 900
|
||
|
Certification
|
TUV 2PFG 1169/08 2007 PV1--F
|
||
| Mounging System |
The wind capacity of such mounting system can reach (40m/s, 32.5kg/ square meters, level 13), snow load capacity can reach 70kg/ square eters
The whole system has strong safety performance.
Can be customized based on customer's cactual situation
The mounting system can be desingned with best solution based on slope roof, flat ground and soil ground
