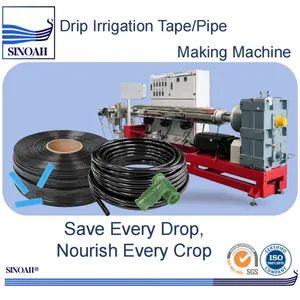

350m Minoutput Drip Tape Production Line Precision Plastic Pipe Extruder for Agriculture Irrigation

NO.	Components
1	Dripper Sorting Collating Device
2	High-Speed Dripper Conveyor Device
3	Automatic Loading and Drying System
4	Hopper and Dryer Hopper
5	Single-Screw Servo Extruder and Temperature Control System
6	Vacuum Forming Device
7	Secondary Cooling Device
8	Traction Punching Device and Control System
9	Dual-Station Automatic Winding Device
10	Wheel Tension Collecting Device
11	Industrial Chiller
12	Water Storage Tank

Dripper Sorting Collating Device

Sorting Method	Automatic Sorting
Sorting Speed	2300 pcs/min
Sorting Collating Unit Diameter	1480mm
Sorting Collating Unit Drive Method	AC Variable Frequency Controller
Inner Motor	1.5 kw
External Motor	2.2kw

High-Speed Dripper Conveyor Device

Conveying mode	Compressed Air and Drive by Servo
Servo Motor (Panasonic)	750 w
Conveying Speed	3000 drippers/min
Applicable Dripper Size	23mm*6mm*2.1mm
Rotation Speed	300 rpm

Automatic Loading and Drying System

Material Automatic Vacuum Loading
Loading Capacity	300 kg/h
Motor Power	1.5 kw

Hopper and Dryer Hopper

Capacity	50 kg
Heating Power	5 kw
Blowing Power	0.18 kw

Single-Screw Servo Extruder and Temperature Control System

Screw Model	SJ-75/38
Diameter	85 mm
Length to Diameter Ratio	38:1
Servo motor (Inovance)	80 kw
Extruder Height	2.85m (Including Suction Device)
Extrusion Capacity	160 kg/h
Material	38CrMoAlA
Surface Treatment	Nitriding, Polishing



Barrel Material	38CrMoAlA
Inner Surface Treatment	Nitriding, Polishing
Heating Control Zones	5 Zones
Heating Method	Heating Rings with Copper Inside and Steel Outside
Heating Power	22 kw
Cooling System	Air cooling with Fans on the Barrel
Cooling Fan Power	120w × 4



Gearbox
Model	ZLYG225
Brand	Guomao
Gear Type	Helical Gear
Gear Material	20CrMnTi
Gear Surface Heat Treatment	Gear Surface Hardening
Roller Material	40 Cr
Lubrication System	Pressure Lubrication System



Screen Changer

Type 160

Vacuum Forming Device

Compression Servo Motor (Panasonic)	400 w
Vacuum Pump	2.2 kw
Water Pump	750 W * 2
Tank Material	Stainless Steel
Tank Length	4m
Center Height	1000mm
Automated Open-Close Vacuum Control System

Secondary Cooling Device

Length	4 m
Method	Immersion
Material	Stainless Steel

Traction Punching Device and Control System

Punching Type	4-Hole Punching
Punching Motor	Servo 750 w (Four Groups)
Maximum Punching Speed	>3200 Punches/min
Traction Device Servo Motor (Panasonic)	3 kw
Maximum Traction Speed	>450 meters/min

Wheel Tension Collecting Device

When operational at production speeds >420 meters/min, it can be normally operated by one person.


Dual-Station Automatic Winding Device

Servo Motor	3 kw
Drive and Motor (Panasonic)	750 kw
Maximum Winding Speed	>450 meters/min
Winding Method	Automatic
Roll Changing Method	Manual
Winding Length	≤ 2000m

Industrial Chiller

Capacity

20P

Water Storage Tank

Capacity

1 m³



Supplementary Details

Equipment Operating Environment (Indoor)
Power Supply	Three-phase 380V
Temperature	10-35°C
Humidity	Below 55% RH
Production Environment
Voltage	380-415V
Installation Voltage	380-415V
Cooling Water Temperature	16-20°C
Air Pressure	0.45 Mpa-0.8 Mpa
Raw Material	HDPE, LDPE
Size of the Production Line	30m*2m*2m

Installation Instruction

Sinoah delivers full-scale installation assistance and technical services for customers abroad. Comprehensive documentation and accessible online video tutorials are provided to help users set up and activate the equipment efficiently. In cases requiring advanced technical expertise, our team sends qualified engineers to the customer’s location for on-site, expert support. This hands-on service guarantees accurate setup and peak equipment performance, though customers are responsible for the associated expenses. By offering this global support model, Sinoah ensures timely, reliable assistance wherever customers are located, improving overall satisfaction and system dependability.




Diameter	Wall Thickness	Spacing	Production Speed	Single Roll Length
16mm	0.15-0.2mm	300mm	300 m/min (Aiming 350 m/min)	1000-2000m
16mm	0.15-0.2mm	200mm	300 m/min (Aiming 350 m/min)	1000-2000m
16mm	0.15-0.2mm	150mm	300 m/min (Aiming 350 m/min)	1000-2000m
16mm	0.15-0.2mm	100mm	230m/min	1000-2000m
Diagram		Application Scenario
Customized		Farmland: soybeans, cotton, wheat, corn, etc. Vegetable Plot: potatoes, green leafy vegetables, tomatoes, cucumbers, etc.

Sinoah implements top-tier safety protocols in both packaging and shipping of equipment, guaranteeing every item arrives at its destination intact. Each product begins with a layer of pearl cotton for shock absorption, is then enclosed in PVC film, and finally secured with branded tape that boosts brand visibility and adds extra safeguarding. All units are placed on robust wooden pallets to maintain balance and prevent damage throughout delivery. Tailoring transport methods to the geographic distance of international destinations, we utilize a broad alliance of trusted freight partners. This long-standing industry foundation delivers dependable, secure, and timely shipments.

Sinoah (Tianjin) Agricultural Machinery Co., Ltd., a subsidiary of the group, is a professional enterprise engaged in the production and export of drip irrigation tape production equipment, drip irrigation Specialized in drip irrigation components such as tubing, dripper templates, and complementary tools. Backed by state-of-the-art manufacturing equipment and refined production methods, we deliver top-tier, dependable solutions. Pioneering drip irrigation adoption within the country, we have secured multiple patents for innovation and technical development through sustained research and development efforts.
Our drip irrigation tape manufacturing machinery delivers consistent output, operates at high efficiency, and boasts minimal downtime, earning strong market recognition. The equipment has been exported to more than 60 countries and regions, fostering enduring partnerships with leading global brands. Acknowledging the critical importance of water conservation and plant requirements, we have defined our mission as "Save Every Drop, Nourish Every Crop" We are dedicated to enhancing water use efficiency and boosting farm yields via advanced drip irrigation systems. This strategy not only strengthens the financial performance of farming operations but also reflects an environmentally sound practice and supports long-term agricultural sustainability."


Q: Are you a factory or trade company?
A: We combine manufacturing with commerce. Our in-house facility focuses on a wide range of plastic extrusion equipment, backed by nearly two decades of expertise. Equipped with state-of-the-art technology and extensive operational knowledge, we look forward to a successful partnership with you. WOngoing improvements are being made to the machine, with a consistent focus on advancing its technological capabilities. For additional details, please reach out to us for a detailed conversation.
Q: I want to have a cheaper price, how can I get it?
A: Our products can be customized, and the price is negotiable. If you want to have a cheaper price, please contact the sales person to discuss the details of the technical configuration, and they will provide you the most favorable price.
Q: Can I have a catalog of your products?
A: Yes, please contact the sales person or click our official website  to get the catalog.
Q: What is the procedure when you buy our machine?
A: Finalize tech specs and equipment setup -----verify pricing----execute agreement and issue PO---dispatch initial payment - begin manufacturing---notify you upon completion-you visit our facility for inspection---you approve the unit ----complete final payment-shipment---dispatch our engineers to your site for installation---provide ongoing support and supply replacement parts at no extra cost.
Q: Do you have a technical engineer come to our factory and install the machine?
Absolutely. Prior to dispatching the equipment, we conduct a full machine inspection and share the demonstration video with the client. Following this, our technician will visit the client’s facility to set up and verify the systems. In parallel, we will train the staff on how to operate and maintain the machines.
Q: If I buy your machines, can I get any other services?
Upon purchase, customers receive a one-year warranty covering the machine and free replacement of parts that wear out over time. Additionally, our sales team and technical experts are available around the clock for online support to address any issues you may encounter.
Q: I want to have a cheaper price, how can I get it?
A: Our machine can be customized, The cost can be discussed. For a lower rate, reach out to the sales representative to review the machine setup options, and they’ll offer you the best possible deal.
Q:How to order?
You may email us your purchase order, or request a proforma invoice instead. To proceed, we’ll require the details below for your request.
1) Product information: quantity, specification including size, material, technological and packing requirements and so on.
   2) Delivery time required.
3) Shipping information-company name, street address, phone & fax number, destination sea port.
Q: Where is your company located? How can I visit there?
A: Our factory is located in Tianjin. Welcome to visit us.
Q: What's your MOQ?
A: We will accept your order above 2, 000, 000 meters, and samples can be sent to you for testing.
Q: What kind of package for your products?
A: Carton, or based on your requirements.
Q:Whether my own customized products can be made?
A: Sure, we are glad to receive your customized order. Such as print your logo on the products or package will be well accepted. Your Logo can be put on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker.
Q: Can you supply product inspection certificate?
A: We can supply the certification for you, if needed.
Q: Can you delivery the goods to us by sea, by air, or by air express?
A: Of course, we can. But will not suggest shipping by sea, if the volume less than 1CBM.
Q: How long is your delivery time?
A: Generally it will take 15-20 days after 30% deposit been received
Q: What's your payment term?
A: 100% TT, or decided after negotiation between both parties.
Q: How to solve the quality problem after received the goods?
A: Send the product photos to us by email, or send a sample of it to us by express. Once the problem has been confirmed, we will give you a satisfied solution.
