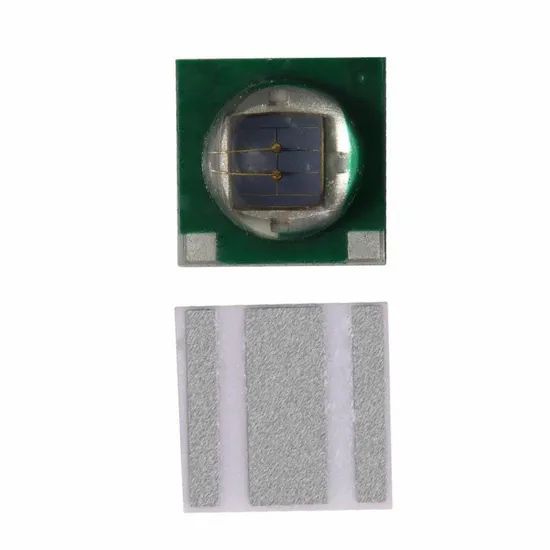

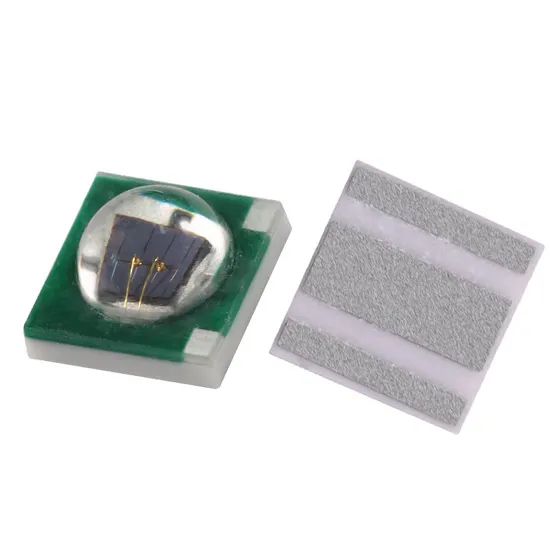

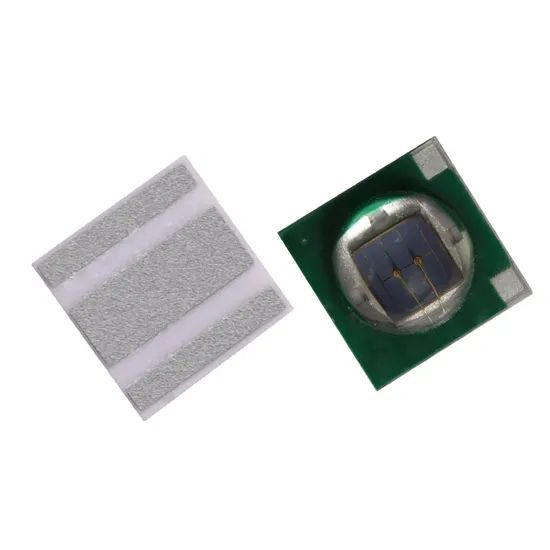

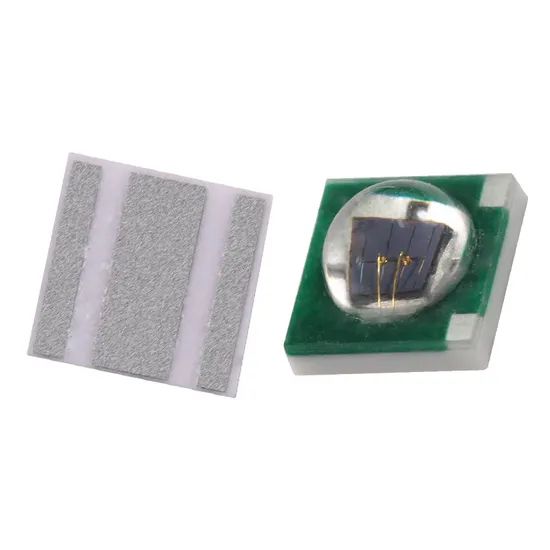

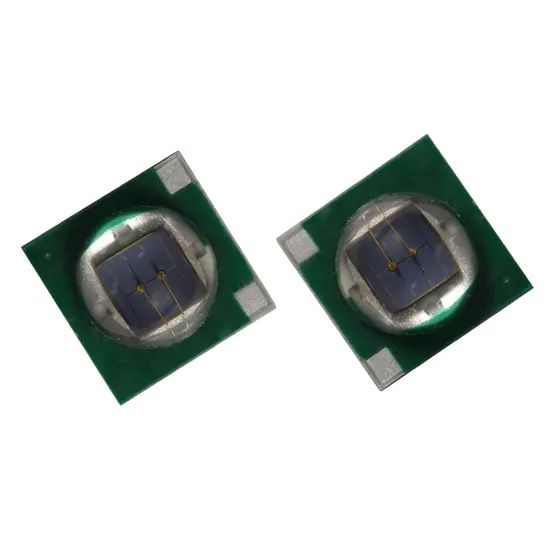

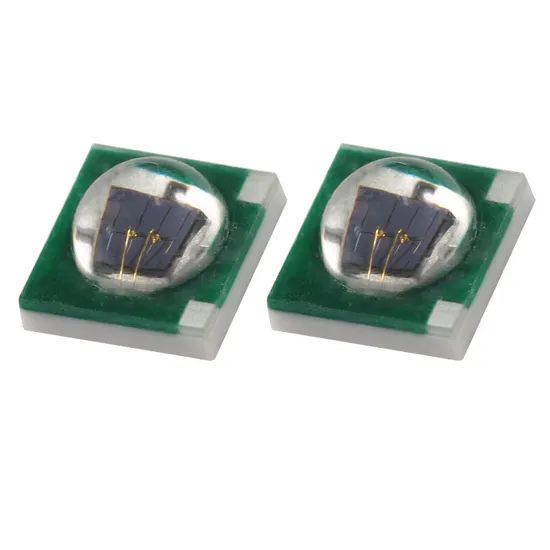

3535 Infrared SMD LED 1650nm IR LED Power 3W Origin China Life 100000h IP Rating IP33 LED Chips Sanan Beam Angle 120° Trademark
1-299 Piece
$30.5300-999 Piece
$301000 Piece
$29.8Product information
High-quality 3535 Infrared SMD LED 1650nm IR LED Power 3W Origin China Life 100000h IP Rating IP33 LED Chips Sanan Beam Angle 120° Trademark supplied by Shenzhen Trillion Auspicious Lighting Co., Ltd.. Bulk wholesale pricing ranges from $29.8 to $30.5 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Storage Temperature(℃):
-40° -- 85°
Package Gross Weight:
0.001kg
Voltage(V):
0.7-0.9V
Warranty(Year):
1 Year
Production Capacity:
100000000/Week
Life:
100000h
Beam Angle:
120°
Wavelength:
1650-1660nm
Specifications
Storage Temperature(℃):
-40° -- 85°
Package Gross Weight:
0.001kg
Voltage(V):
0.7-0.9V
Warranty(Year):
1 Year
Production Capacity:
100000000/Week
Life:
100000h
Beam Angle:
120°
Wavelength:
1650-1660nm
Package Size:
2.00cm * 2.00cm * 1.00cm
Specification:
3.45mm× 3.45mm× 2.1mm
Current:
350-700mA
Power:
3W
Transport Package:
Carton
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Base Material:
Copper
Trade Term:
FOB, EXW
IP Rating:
IP33
Emitting Color:
Infrared
Trademark:
RZXLED
Certification:
RoHS, CE
Model NO.:
S3535-1650NM-3W-N120
LED Chips:
Sanan
Port Of Loading:
Shenzhen Port
Payment Methods:
Support payments in USD
Payment Term:
T/T, LC, Western Union, PayPal
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-11-20
Annual Revenue Amount:
Not specified
Numbers Of Employees:
8
Preferred Payment Term:
T/T, LC, Western Union, PayPal
Preferred Trade Term:
FOB, EXW
Port Of Loading:
Shenzhen Port
Certificates:
CE, Product Inspection Report, Trademark Registration Certificate
Product descriptions from the supplier
| Item | S3535-1650NM-3W-N120 |
| Brand Name | RZXLED |
| Power | 3W |
| Voltage | 0.7-0.9V |
| Viewing Angle | 120° |
| Wavelength | 1650-1660NM |
| Forward Current | 350-700mA |
| MW@350mA | 11-13mW |
(1)All dimensions are in millimeters (inches);(2) Tolerances are ±0.2mm (0.008inch) unless otherwise noted.
Application
| Infrared applications systems | infrared lllumination for cameras |
| secunrity monitoring | wireless communication |
Feature
| 3.45mm×3.45mm×2.1mm | Wide viewing angle 120° |
| colorless transparent silica gel |
RoHS compliant |
| Infrared (invisible light) wavelength 1650nm |
Electrostatic sensitive material |
Note:
1.The label on the minimum packing unit shows;Part Number,Lot Number,Ranking,Quantity
2.Keep away from water,moisture in order to protect the LEDs
3.The LEDs may be damaged if the boxes are dropped pr receive a strong impact against them.soprecautions must to taken to prevent any damage
Preservation and use:
1.Before opening the package, the LED should be stored at 30ºC/60%RH or less.After opening the package, the LED should be placed in an environment of 20-30ºC/30%RH or less.
2.To avoid the impact of the environment, it is recommended to dehumidify after unpacking at 60ºC/24H. All the leds are needed to be vacuumed to avoid failure
3.If the desiccant faded or expired use, dry baking: 60±5ºC/24 hours.
4.LED Glue surface easy to dust, need to do the relevant dust prevention measures.
pick and place
When taking the LED, you should only touch the bracket. Tools such as tweezers should not put pressure on the lens.Don't stab or push the lens.
Heat treatment
When driven by excessive current, the Tj (node temperature) of LED will exceed the period limit value, which leads to a serious shortening of LED life. Thermal treatment measures should effectively reduce the thermal resistance of application products.Common practice: install LED packages on metal matrix PCB boards.1W LED products require the surface heat dissipation
area of the metal substrate to be at least 30cm squared (over 80cm squared is recommended for 3W products), and its thermal conductivity is higher than 2.0w /mK.LED and gold substrate are combined by thermal conductive adhesive with good thermal conductivity. The thermal conductivity coefficient is required to be higher than 1.0w /mK and the thickness is less than 100um.
Clean
If you need to clean, use a clean, soft cloth dipped in alcohol to gently remove foreign matter. Do not use a cleaner such as acetone to avoid possible corrosion damage.
Electrical precautions
1.Led Reverse drive is not allowed
2.Current limiting measures are necessary, otherwise slight voltage changes will lead to large current changes, which may lead to LED failure.
3.Under the premise that the luminous quantity meets the requirements, it is recommended to use the drive current lower than the rated current, which is conducive to improving the reliability of the product.
Anti-static precautions
LED is electrostatic sensitive devices, in the process of preservation, use to take anti-static measures.Static electricity and surge can lead to changes in product characteristics, such as forward voltage reduction, which can be serious and even damage the product.So for the whole process (production, testing, packaging, etc.) and LED direct contact staff should do a good job to prevent and eliminate electrostatic measures.All related equipment and machinery should be properly grounded.The grounding ac resistance is less than 1.0 ohm, the table mat with surface resistance of 106-109 ohm is needed on the work table.Ion fans must also be installed in electrostatic environments and equipment.During the operation, the operator should use anti-static bracelet, anti-static mat, anti-static overalls, working shoes, gloves, anti-static capacity.
1.Before opening the package, the LED should be stored at 30ºC/60%RH or less.After opening the package, the LED should be placed in an environment of 20-30ºC/30%RH or less.
2.To avoid the impact of the environment, it is recommended to dehumidify after unpacking at 60ºC/24H. All the leds are needed to be vacuumed to avoid failure
3.If the desiccant faded or expired use, dry baking: 60±5ºC/24 hours.
4.LED Glue surface easy to dust, need to do the relevant dust prevention measures.
pick and place
When taking the LED, you should only touch the bracket. Tools such as tweezers should not put pressure on the lens.Don't stab or push the lens.
Heat treatment
When driven by excessive current, the Tj (node temperature) of LED will exceed the period limit value, which leads to a serious shortening of LED life. Thermal treatment measures should effectively reduce the thermal resistance of application products.Common practice: install LED packages on metal matrix PCB boards.1W LED products require the surface heat dissipation
area of the metal substrate to be at least 30cm squared (over 80cm squared is recommended for 3W products), and its thermal conductivity is higher than 2.0w /mK.LED and gold substrate are combined by thermal conductive adhesive with good thermal conductivity. The thermal conductivity coefficient is required to be higher than 1.0w /mK and the thickness is less than 100um.
Clean
If you need to clean, use a clean, soft cloth dipped in alcohol to gently remove foreign matter. Do not use a cleaner such as acetone to avoid possible corrosion damage.
Electrical precautions
1.Led Reverse drive is not allowed
2.Current limiting measures are necessary, otherwise slight voltage changes will lead to large current changes, which may lead to LED failure.
3.Under the premise that the luminous quantity meets the requirements, it is recommended to use the drive current lower than the rated current, which is conducive to improving the reliability of the product.
Anti-static precautions
LED is electrostatic sensitive devices, in the process of preservation, use to take anti-static measures.Static electricity and surge can lead to changes in product characteristics, such as forward voltage reduction, which can be serious and even damage the product.So for the whole process (production, testing, packaging, etc.) and LED direct contact staff should do a good job to prevent and eliminate electrostatic measures.All related equipment and machinery should be properly grounded.The grounding ac resistance is less than 1.0 ohm, the table mat with surface resistance of 106-109 ohm is needed on the work table.Ion fans must also be installed in electrostatic environments and equipment.During the operation, the operator should use anti-static bracelet, anti-static mat, anti-static overalls, working shoes, gloves, anti-static capacity.
