36 Cores 1u Rack Mount Patch Panel with Telescopic Rails Model NO. RPP-UP HS Code 85371090 Specification RoHS Trademark HNK or
1 Piece
$30Product information
High-quality 36 Cores 1u Rack Mount Patch Panel with Telescopic Rails Model NO. RPP-UP HS Code 85371090 Specification RoHS Trademark HNK or supplied by HNK Optic Equipment Co., LIMITED. Bulk wholesale pricing is $30 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Material:
1.2mm Cold Rolled Steel
Size:
1u(H) X 19”(W) X 375mm(D)
Production Capacity:
3000PCS/Month
Fiber Cores:
36 Cores (1u)
HS Code:
85371090
Trade Term:
FOB, CIF, CFR, EXW
Transport Package:
Foam Board/Bag +Carton
Trademark:
HNK or OEM
Specifications
Material:
1.2mm Cold Rolled Steel
Size:
1u(H) X 19”(W) X 375mm(D)
Production Capacity:
3000PCS/Month
Fiber Cores:
36 Cores (1u)
HS Code:
85371090
Trade Term:
FOB, CIF, CFR, EXW
Transport Package:
Foam Board/Bag +Carton
Trademark:
HNK or OEM
Payment Term:
LC, T/T
Material Coating:
Painted Glossy White
Model NO.:
RPP-UP
Specification:
RoHS
Port Of Loading:
Shenzhen Port, Hongkong Port
Origin:
Shenzhen, China
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-03-02
Annual Revenue Amount:
Not specified
Numbers Of Employees:
31
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port, Hongkong Port
Certificates:
ISO9001:2008
Product descriptions from the supplier

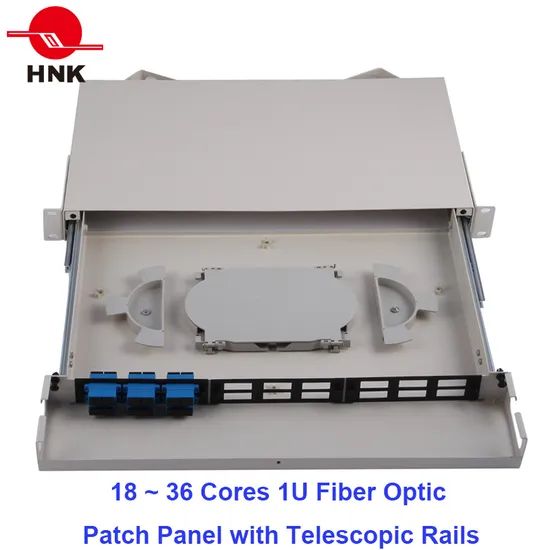

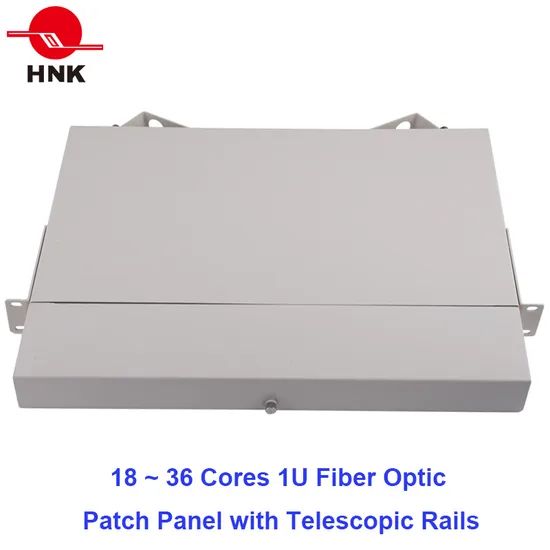

Fiber Optic Patch Panel with Telescopic Rails(Rack Mount 1U 19")
Provides professional cable management and ease of fiber termination with a cost effective mechanical
pull-out mechanism. Fiber Optic Patch Panel could accommodate 3 adapter panels and terminate a range
of 18 to 36 fiber connection, enable terminating, splicing, distributing and storage of fiber optic cables in a
compact 1U spaces.
Specifications
Provides professional cable management and ease of fiber termination with a cost effective mechanical
pull-out mechanism. Fiber Optic Patch Panel could accommodate 3 adapter panels and terminate a range
of 18 to 36 fiber connection, enable terminating, splicing, distributing and storage of fiber optic cables in a
compact 1U spaces.
Certification and Compliance
. TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-1
. CEA/EIA-310-E (Cabinets, Racks, Panels and Associated Equipment standard.)
. ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
. GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
. UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
. RoHS (Directive on Restriction of Hazardous Substances. )
. TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-1
. CEA/EIA-310-E (Cabinets, Racks, Panels and Associated Equipment standard.)
. ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
. GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
. UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
. RoHS (Directive on Restriction of Hazardous Substances. )
Features
. Detachable the front cover.
. Easy access with Telescopic rail pull-out system.
. Professional cable storage and protection.
. Quick-stud system ensures easy closing /opening of the drawer.
. 1U rackmount can be loaded with up to 3 panels (6-, 8-, or 12- fiber panels).

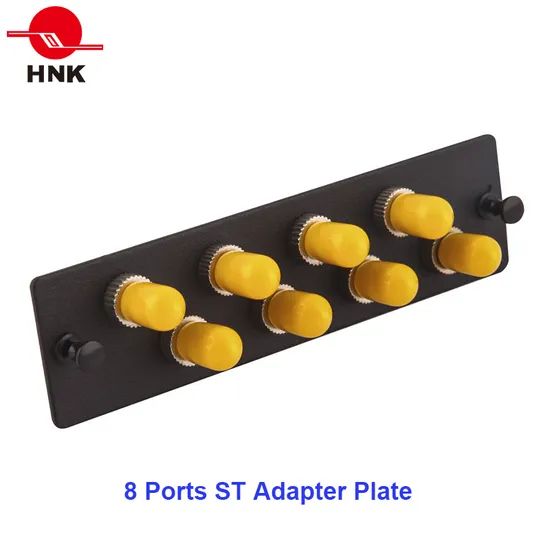

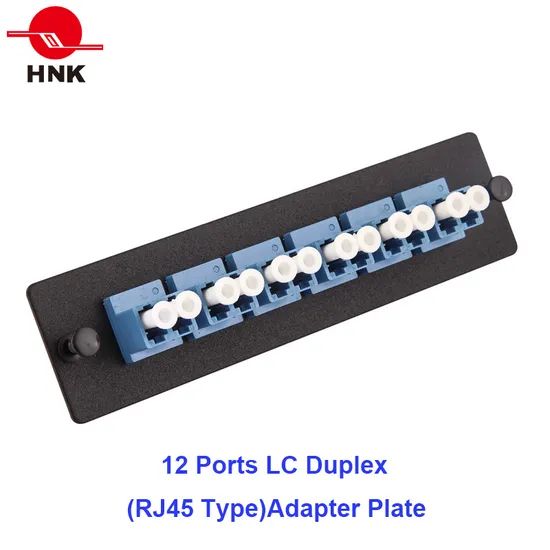

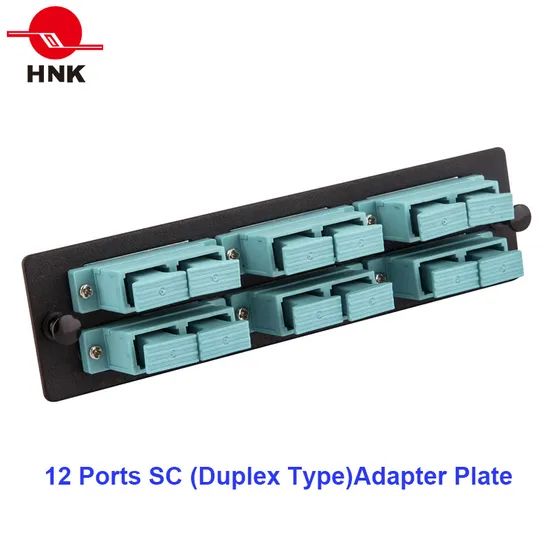

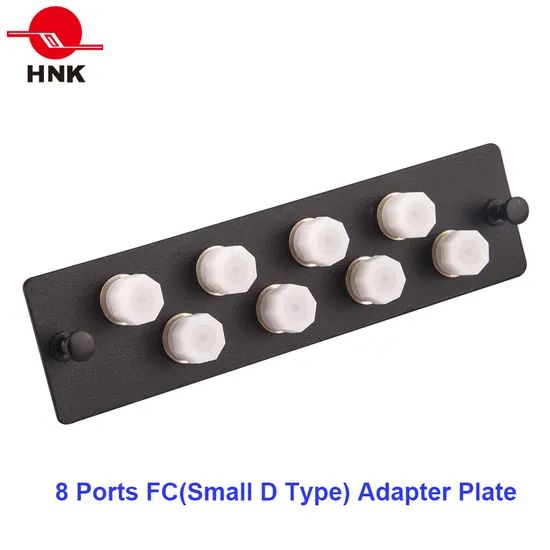

. Can load SC, FC, ST, LC adapter, only change the different plates.
. Detachable the front cover.
. Easy access with Telescopic rail pull-out system.
. Professional cable storage and protection.
. Quick-stud system ensures easy closing /opening of the drawer.
. 1U rackmount can be loaded with up to 3 panels (6-, 8-, or 12- fiber panels).
. Can load SC, FC, ST, LC adapter, only change the different plates.
Specifications
| Patch Panel | Adaptor | ||
| Size(H×W×D )mm | 1U(H) x 19"(W) x 375mm(D) | Multimode Insertion Loss | 0.2dB Maximum |
| Material | 1.2mm Cold Rolled Steel | Singlemode Insertion Loss | 0.2dB Maximum |
| Material Coating | painted glossy white | Mating durability | >500 Mating Cycles |
| Humidity | 0-90%, non-condensing | Multimode Adaptor Wavelength | 850 to 1300nm |
| Operating Temperature | -10°C to 60°C | Singlemode Adaptor Wavelength | 1310 to 1550nm |
| Storage Temperature | -40°C to 85°C | ROHS Compliant | Yes |
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number: XX-AA-BBC(DEF)
Ordering Guide
Connector Type Code
Ordering Sample
Using the available configurations amend/create product codes using the formula below.
Part Number: XX-AA-BBC(DEF)
Ordering Guide
| XX | patch panel Type | WPP=wall mount patch panel, RPP=rack mount patch panel |
| AA | Product ID | UP |
| BB | Port Capacity | 012=12 Ports, 018=18 Ports, 024=24 Ports, 036=36 Ports |
| C | configuration | E=only patch pane, L=With Adapter Panels, F=With Adapter Panels and Pigtails |
| D | Connector Type | FP,SP,SA,LP |
| E | Fiber Type | OM1=62.5/125 OM1, OM2=50/125 OM2, OM3=50/125 OM3, OM4=50/125 OM4, G652D=9/125 G652D, G657A=9/125 G657A |
| F | Fiber Length | 05=0.5M, 10=1M, 20=2M |
Connector Type Code
| Code | Connector | Code | Connector | Code | Connector | Code | Connector |
| FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
| SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
| MU | MU | DN | DIN | MT | MTRJ | E2 | E2000 |
Ordering Sample
| Part Number | Description |
| RPP-UP-E | 1U RPP-UP Type Rack Mount Patch Panel without adaptor plate and pigtail. |
| RPP-UP-36FSPG652D15 | 1U 36 Fibers RPP-UP Type Rack Mount Patch Panel With Duplex SC/PC SM Adapter Plate and 1.5M Singlemode G652D SC/PC Pigtail. |
