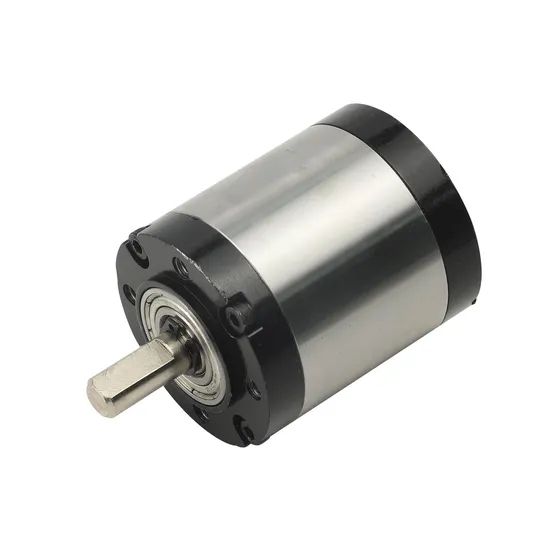

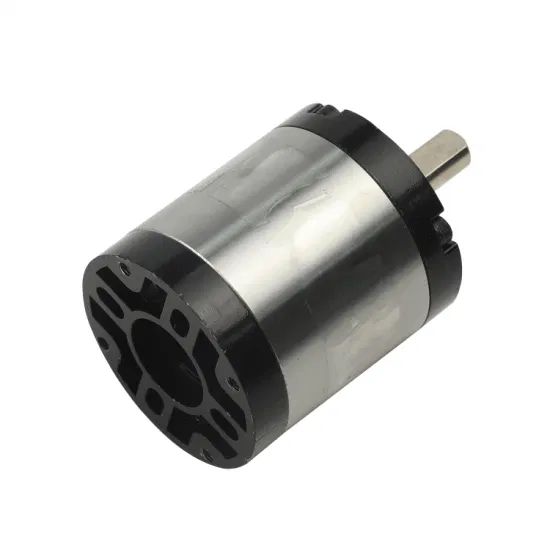

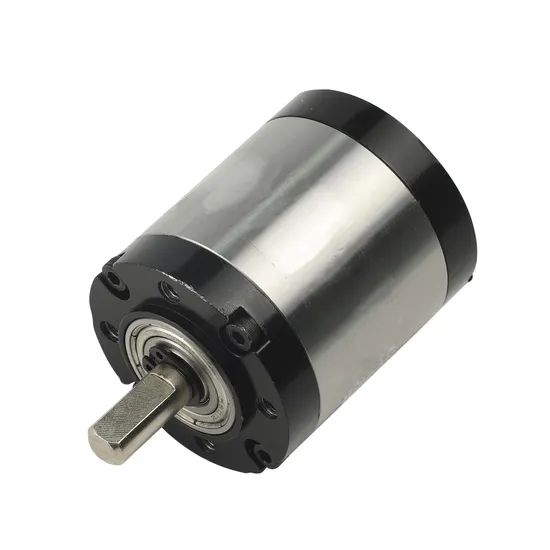

36mm Planetary Gearbox with Motors Encoder and Controller OEM Yes Origin China Layout Coaxial Step Three-Step Model NO. Planetary

We are a factory specialized in metal parts hardware & metal gearbox geared motor through powder metallurgy process .We services with ODM/OEM gearbox design and development , gearmotors manufacture.
A planetary gear set is made up of three types of gears , a sun gear , planet gears and a ring gear . The sun gear at high speed is located at the center of the gears , and transmits torque to the planet gears which are typically mounted on the moveable carrier .The planet gears around the central axis rotation ,mesh with the sun gear and an outer ring gear . As all the planet carriers turns , it delivers low-speed, high-torque output .

Features:
A planetary gearbox usually useded in the transmission :
For precise positioning
For a robot to increase the torque
For printing press to reduce the speed of the rollers

The advantages of planetary gear motors :

1. Increased repeatability . Its  Its greater speed radial and axial load offers reliability and robustness, minimizing the misalignment of the gear. In addition, uniform transmission and low vibrations at different loads provide a perfect repeatability.
2. Perfect precision: Most rotating angular stability improves the accuracy and reliability of the movement.
3. Lower noise level because there is more surface contact. Rolling is much softer and jumps are virtually nonexistent.
4. Greater durability: Due to its torsional rigidity and better rolling. To improve this feature, your bearings help reduce the losses that would occur by rubbing the shaft on the box directly. Thus, greater efficiency of the gear and a much smoother operation is achieved.
5. Increased torque transmission: With more teeth in contact, the mechanism is able to transmit and withstand more torque. In addition, it does it in a more uniform manner.
6. Very good levels of efficiency: Planetary reducers offer greater efficiency and thanks to its design and internal layout losses are minimized during their work. In fact, today, this type of drive mechanisms are those that offer greater efficiency.
7. Maximum versatility: Its mechanism is contained in a cylindrical gearbox, which can be installed in almost any space.

Description:
Product Name : 36mm planet gearbox with DC brushed motors  high torque geared motor / Speed reducer / steel gearbox

No-load Speed: 3-1,386 rpm

Rated Load Speed: 3-1,294 rpm
No-load Current: 315-335 mA

Rated Load Current: 1,679-1,684 mA

32mm
Gearbox Type: Planetary
Material: Steel

No-load Speed: 3-1,375 rpm

Rated Load Speed: 3-1,280 rpm


No-load Current: 300-325 mA

Rated Load Current: 1,679-1,684 mA

16mm

No-load Speed: 4-1,373 rpm

Rated Load Speed: 3-1,125 rpm
No-load Current: 85-110 mA

Rated Load Current: 130-150 mA

20mm

No-load Speed: 7-1,636 rpm

Rated Load Speed: 7-1,420 rpm
No-load Current: 70-90 mA

Rated Load Current: 125-130 mA


No-load Speed: 6-1,886 rpm

Rated Load Speed: 5-1,675 rpm
 No-load Current: 100-120 mA

Rated Load Current: 295-300 mA


Gear Ratio : 5:1 , 10:1 , 20:1 , 25:1 , 30:1 , 40:1 , 50:1 , 60:1 ,70:1…100:1...  optional
Gearbox diameter : 6mm , 8mm , 12mm , 16mm , 22mm , 24mm ,28mm, 32mm ,36mm, 38mm , 42mm ......
12-24V available .
