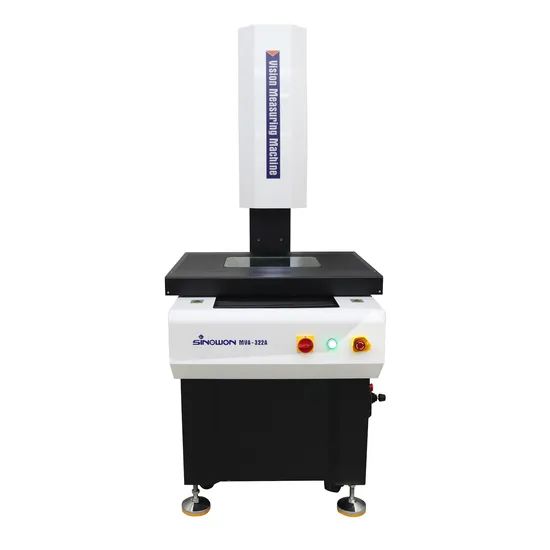

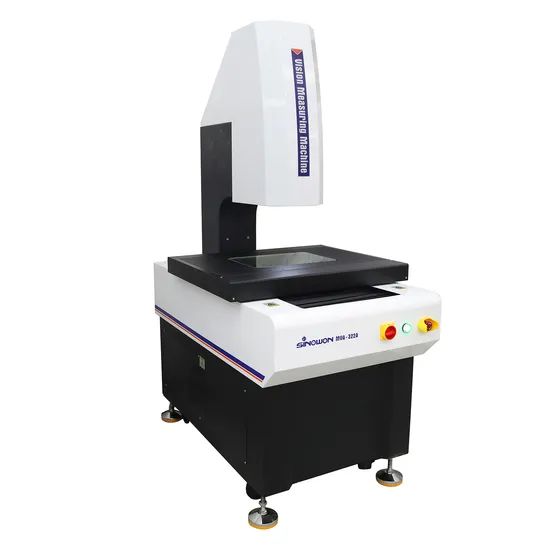

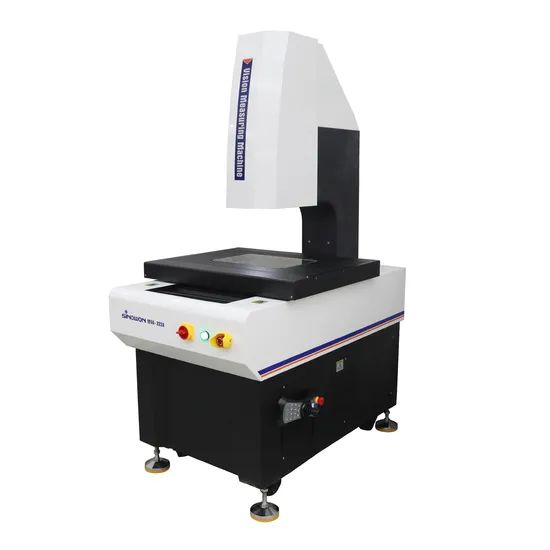

3D Auto Tolerance Measuring Machine for Straightness
Set
Negotiable
Product information
High-quality 3D Auto Tolerance Measuring Machine for Straightness supplied by Sinowon Innovation Metrology Manufacture Limited. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Dimension:
(1257*920*1640)mm
Production Capacity:
10 Sets/Month
Load Capacity:
25kg~50kg
Repeatability:
2um
Weight:
600kg
HS Code:
90318020
Power Supply:
AC220V/50Hz; 110V/60Hz
Specification:
CE
Specifications
Dimension:
(1257*920*1640)mm
Production Capacity:
10 Sets/Month
Load Capacity:
25kg~50kg
Repeatability:
2um
Weight:
600kg
HS Code:
90318020
Power Supply:
AC220V/50Hz; 110V/60Hz
Specification:
CE
Origin:
China
Trade Term:
FOB, CFR, CIF, EXW
Software System:
Fully-Auto Measuring Software
Payment Term:
LC, T/T
Model NO.:
MVA-542B
Transport Package:
Polywood
Port Of Loading:
SHENZHEN, Hong Kong, Guangzhou
Trademark:
SINOWON
Accuracy:
Xy-Axis:1.8+L/200(Um)
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2005-05-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
SHENZHEN, Hong Kong, Guangzhou
Certificates:
Calibration Certificate of hardness block 3/3, Calibration Certificate of Hardness Blocks 1/3, Calibration Certificate of Hardness Blocks 2/3, SINOWON CE Certificate of Coordinate Measuring Machine, SINOWON CE Certificate of Digital Readout 1, SINOWON CE Certificate of Digital Readout 2, Sinowon CE Certificate of Hardness Tester, SINOWON CE Certificate of Metallurgical Specimen Preparation Machine, SINOWON CE Certificate of Microscope, SINOWON CE Certificate of Profile Projector, SINOWON CE Certificate of Testing Machine, SINOWON CE Certificate of Ultrasonic Hardness Tester 2, SINOWON CE Certificate of Ultrasonic Hardness Tester1, Sinowon ISO Certificate, SU-100 Calibration Report 1/3, SU-100 Calibration Report 2/3, SU-100 Calibration Report 3/3, SU-100 Verification Certificate 1/3, SU-100 Verification Certificate 2/3, SU-100 Verification Certificate 3/3
Product descriptions from the supplier

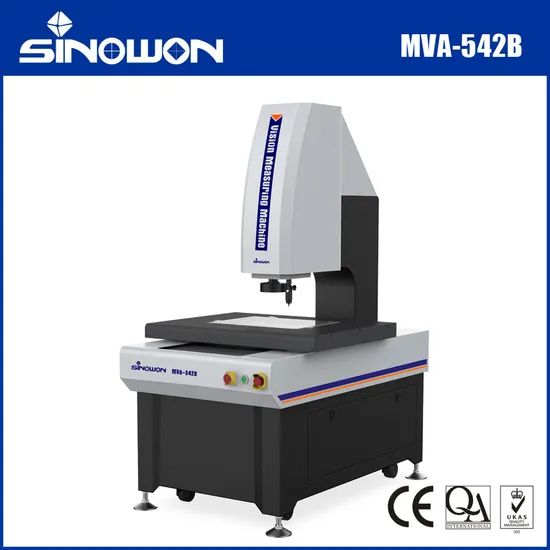

3D Ultra-high Precision Cantilever Automatic Vision Measuring Machine
MVA-542B
MVA-542B
Product Characteristic
- XYZ three-axis CNC automatic precision control, precise positioning;
- Indian Marble base and pillar, good stability;
- Precision linear guides, grinding-grade ball screws and AC servo motors, etc., ensure the accuracy and stability of the motion system;
- 0.1μm high-precision grating ruler to ensure the positioning accuracy and measurement accuracy of the system;
- High-resolution digital camera to meet the needs of clear observation and precise measurement;
- 8.3X high-definition optical lens, accurate zoom, one-time pixel correction;
- Program-controlled 5-ring 8-area LED surface illumination and parallel LED contour illumination system intelligently realize 256-level brightness adjustment;
- iMeasuring series automatic Vision measurement software, powerful and easy to operate.
Specifications:
| Commodity | Ultra-high Precision Cantilever Automatic Vision Measuring Machine MVA Series | |||
| Model | MVA-322 | MVA-432 | MVA-542 | |
| X/Y Axis Travel | (300*200)mm | (400*300)mm | (500*400)mm | |
| Z Axis Travel | 200mm | |||
| X/Y/Z axis Linear Scale | European Linear Scale Resolution: 0.1um | |||
| Guidance Mode | P-Class Precision linear guide, double-track double slider guide. | |||
| Operation Mode | Joystick controller, Mouse operation, automatic detection program | |||
| Accuracy* | XY Axis:≤1.8+L/200(um) | |||
| Z Axis:≤4.0+L/200(um) | ||||
| Repeatability | 2um | |||
| Illumination System |
Contour | LED parallel contour illumination | ||
| Contour | 0~255 Stepless adjustable 5-ring 8-division LED surface illumination | |||
| Video System** | 1/2.9"/1.6Mpixel High Resolution Digital Camera | |||
| 8.3X Motorized Zoom Lens Optical Magnification: 0.6X~5.0X; Video Magnification: 20X~170X (21" monitor) | ||||
| Measuring Software | iMeasuring | |||
| Operating System | Support WIN10/11-32/64 bit operating system | |||
| Language | English, Simplified Chinese, traditional Chinese, other languages can be added | |||
| Working Environment | Temperature 20ºC±2ºC, temperature change<1ºC/Hr; humidity 30%~80%RH; vibration<0.02g's, ≤15Hz. | |||
| Power Supply | AC220V/50Hz; 110V/60Hz | |||
| Load Capacity | 25Kg~50Kg | |||
| Dimension(WxDxH) | (1146*720*1664)mm | (1331*840*1664)mm | (1257*920*1640)mm | |
| Packing Size(WxDxH) | (1290*970*1920)mm | (1390*1060*1940)mm | (1450*1170*1900)mm | |
| Net Weight | 380Kg | 450Kg | 600Kg | |
L is measured length(mm), the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.
Magnification is approximate value, it is related to the dimension of monitor and resolution.
Field of view(mm) = (diagonal*Horizontal*Vertical)
0.5X or 2X objective is optional available and realize image magnification: 13X~86X or 52X~344X.
Product Configuration Model Description(Example with MVA-542)
| Product Category | 2.5D | 3D | 2.5D | 3D |
| Commodity | 2.5D Automatic Vision Measuring Machine |
3D Automatic Contact & Vision Measuring Machine |
2.5D Automatic Laser-Scan & Vision Measuring Machine |
3D Automatic Multisensory Measuring Machine |
| Model | MVA-542A | MVA-542B | MVA-542C | MVA-542D |
| Type | A | B | C | D |
| Significance | Optical Zoom-lens Sensor | Zoom-lens Sensor and Contact Probe Sensor | Zoom-lens Sensor and Lazer Sensor | Zoom-lens Sensor, Contact Probe Sensor and Lazer Sensor |
| Contact Probe | Without | MCP-Kit1 | Without | MCP-Kit1 |
| Lazer Module | Without | Without | Omron Laser | Omron Laser |
| Software Version | iMeasuring4.1 | iMeasuring4.2 | iMeasuring5.0 | iMeasuring5.1 |
Cantilever Automatic Vision Measuring Machine Models and Specifications
| Model | Code# | Model | Code# | Model | Code# |
| MVA-322A | 522-180G | MVA-432A | 522-180H | MVA-542A | 522-180J |
| MVA-322B | 522-280G | MVA-432B | 522-280H | MVA-542B | 522-280J |
| MVA-322C | 522-380G | MVA-432C | 522-380H | MVA-542C | 522-380J |
| MVA-322D | 522-480G | MVA-432D | 522-480H | MVA-542D | 522-480J |
Application:
Semiconductor Manufacturing: Wafers, front-ends, back-ends, and components
Precision Metal Processing: Machining, Stamping, Powder Metallurgy Injection Molding
Precision plastic
Semiconductor Manufacturing: Wafers, front-ends, back-ends, and components
Precision Metal Processing: Machining, Stamping, Powder Metallurgy Injection Molding
Precision plastic
Software Introduction
iMeasuring vision software is a Windows-based digital tool for geometric coordinate analysis. It enables non-contact assessments via imaging, laser, and confocal probes, as well as direct probe contact. Compliant with ISO, GPS, and ASME standards for geometric dimensioning and tolerancing, it performs precise evaluations of linear and geometric features including form, alignment, and location of component elements.
1.Software Interface
2. Geometric measurement:
[2D Elements]: Point, Line, Circle, Arc, Curve, Keyway, Rectangle, Ellipse, Ring, Contour Scan. Features: Automatic detection and sizing of lines, circles, and arcs. Extreme point detection is available for identifying the peak value on components.
[3D Components]: Plane, Sphere, Cone, Cylinder, Groove. Features: Intuitive and user-friendly interface that encompasses standard 3D shapes. Enables creation of points, lines, circles, arcs, ellipses, rectangles, grooves, rings, distances, angles, elevations, open paths, closed paths, planes, cones, cylinders, and spheres.
3. Measurement Toolbar:
Realize point measurement, line measurement, circle measurement, arc measurement, ellipse measurement, rectangle measurement, groove measurement, ring measurement, curve measurement, contour measurement, height measurement, etc.
4. Construction toolbar
Based on element type, it offers diverse building operations including move, turn, isolate, merge, align, perpendicular, reflection, balance, cross, and touch.
2. Construct midpoints, intersections, lines, circles, arcs, ellipses, rectangles, grooves, O-rings, distances, angles, heights, open clouds, closed clouds, planes, calculation functions, and more.
5. Multiple Sensor Configurations:
5.1 Optical imaging
2D: distance (maximum distance, minimum distance, average distance), angle, diameter, radius, cone angle, height;
Straightness, flatness, roundness, perpendicularity, inclination, parallelism, symmetry, concentricity, position, point profile, curve profile.
5.2 Touch Probes
3D: distance, angle, diameter, radius, cone angle, height;
Straightness, flatness, roundness, cylindricity, perpendicularity, inclination, parallelism, symmetry, concentricity, position, point profile, curve profile.
iMeasuring vision software is a Windows-based digital tool for geometric coordinate analysis. It enables non-contact assessments via imaging, laser, and confocal probes, as well as direct probe contact. Compliant with ISO, GPS, and ASME standards for geometric dimensioning and tolerancing, it performs precise evaluations of linear and geometric features including form, alignment, and location of component elements.
1.Software Interface
2. Geometric measurement:
[2D Elements]: Point, Line, Circle, Arc, Curve, Keyway, Rectangle, Ellipse, Ring, Contour Scan. Features: Automatic detection and sizing of lines, circles, and arcs. Extreme point detection is available for identifying the peak value on components.
[3D Components]: Plane, Sphere, Cone, Cylinder, Groove. Features: Intuitive and user-friendly interface that encompasses standard 3D shapes. Enables creation of points, lines, circles, arcs, ellipses, rectangles, grooves, rings, distances, angles, elevations, open paths, closed paths, planes, cones, cylinders, and spheres.
3. Measurement Toolbar:
Realize point measurement, line measurement, circle measurement, arc measurement, ellipse measurement, rectangle measurement, groove measurement, ring measurement, curve measurement, contour measurement, height measurement, etc.
4. Construction toolbarBased on element type, it offers diverse building operations including move, turn, isolate, merge, align, perpendicular, reflection, balance, cross, and touch.2. Construct midpoints, intersections, lines, circles, arcs, ellipses, rectangles, grooves, O-rings, distances, angles, heights, open clouds, closed clouds, planes, calculation functions, and more.
5. Multiple Sensor Configurations:
5.1 Optical imaging
2D: distance (maximum distance, minimum distance, average distance), angle, diameter, radius, cone angle, height;
Straightness, flatness, roundness, perpendicularity, inclination, parallelism, symmetry, concentricity, position, point profile, curve profile.
5.2 Touch Probes
3D: distance, angle, diameter, radius, cone angle, height;
Straightness, flatness, roundness, cylindricity, perpendicularity, inclination, parallelism, symmetry, concentricity, position, point profile, curve profile.
