4-20mA Output Differential Pressure Transmitter
Piece
Negotiable
Product information
High-quality 4-20mA Output Differential Pressure Transmitter supplied by Shanghai Cixi Instrument Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Range Ratio:
0-10000mmwc
Process Connection:
1"150# Direct Flange
Accuracy Grade:
1.0G
Production Capacity:
5000/Month
HS Code:
9026201090
Specification:
CE, ISO, SGS
Model NO.:
CX-PT-3351
Customized:
Customized
Specifications
Range Ratio:
0-10000mmwc
Process Connection:
1"150# Direct Flange
Accuracy Grade:
1.0G
Production Capacity:
5000/Month
HS Code:
9026201090
Specification:
CE, ISO, SGS
Model NO.:
CX-PT-3351
Customized:
Customized
Trade Term:
FOB, CIF, CFR, EXW
Application:
Fuming Sulphuric Acid
Trademark:
GN
IP Rating:
IP65
Certification:
ISO
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Flange Liner Materia:
PTFE
Transport Package:
Plywood/Carton
Production Process:
SemiConductor Integrated
Origin:
Shanghai
Port Of Loading:
Shanghai Port
Material:
Stainless Steel
Insatllation Diaphragm:
Tantalum Other Wetted Part
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-11-04
Annual Revenue Amount:
Not specified
Numbers Of Employees:
39
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
Bussiness Licence, CE Certificates, conductmty meter, coriolis mass flow meter, digital pressure gauge, digital thermometer, dissolved oxygen meter, gas mass flow meter, ISO, ISO Certificate, Letter Patent, Measurement Certificate, ORP meter, oval gear flow meter, PH meter, pressure gauge, pressure switch, pressure transmitter, rotameter, SGS Certificates
Product descriptions from the supplier

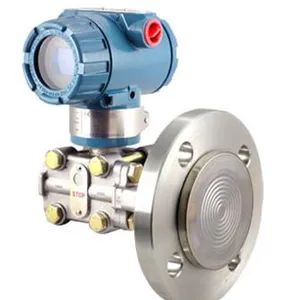

CX-PT-3351 4-20MA Output Differential Pressure Transmitter
Remote differential/level transmitter is used for prevent the medium in the pipe direct into the transmitter. The capillary (filled with fluid) is connected between pressure sensing diaphragm and transmitter. It is used for measuring liquid, gas or steam's level/flow or pressure, then change it as 4-20mA signal output.
CX-PT-3351 remote differential pressure transmitter can use together with Hart handhold device.
CX-PT-3351 remote flange type differential pressure/level transmitter can used as the following condition:
1.tested medium is corrosive ;
2.need to isolate high temperature tested medium and transmitter;
3.tested medium has solid seston or high viscosity medium;
4.tested medium leads by lead pressure pipe and easily solidify or crystallize;
5.replace medium need to clean test convertor carefully;
6.test convertor need to keep hygiene. Use for: corrosive or viscosity liquid.
Selection
Attn:1.filled 200 series silicone oil, operating temperature -40~+149ºC;filled high-temp proof silicone oil, operating temperature -20~+315ºC.
Remote differential/level transmitter is used for prevent the medium in the pipe direct into the transmitter. The capillary (filled with fluid) is connected between pressure sensing diaphragm and transmitter. It is used for measuring liquid, gas or steam's level/flow or pressure, then change it as 4-20mA signal output.
CX-PT-3351 remote differential pressure transmitter can use together with Hart handhold device.
CX-PT-3351 remote flange type differential pressure/level transmitter can used as the following condition:
1.tested medium is corrosive ;
2.need to isolate high temperature tested medium and transmitter;
3.tested medium has solid seston or high viscosity medium;
4.tested medium leads by lead pressure pipe and easily solidify or crystallize;
5.replace medium need to clean test convertor carefully;
6.test convertor need to keep hygiene. Use for: corrosive or viscosity liquid.
Selection
| CX-PT-3351 | remote differential pressure/ level transmitter | |||||
| code | range KPa | |||||
| 3 | 0-1.3~7.5 | |||||
| 4 | 0-6.2~37.4 | |||||
| 5 | 0-31.1~186.8 | |||||
| 6 | 0-117~690 | |||||
| 7 | 0-345~2068 | |||||
| 8 | 0-117KPa~1MPa | |||||
| 9 | 0-0.4~2.5MPa | |||||
| 0 | 0-1.6~10MPa | |||||
| code | output | |||||
| E | 4-20mADC | |||||
| S | intelligent | |||||
| code | flange material | flange material | ||||
| 22 | 316SST | 316SST | ||||
| code | additional function | |||||
| S1 | one remote device | |||||
| S2 | two remote device | |||||
| code | option | |||||
| M1 | 0-100% linear indicator meter | |||||
| M3 | 3digit and a half LCD display meter | |||||
| M4 | intelligent meter display | |||||
| B1 | pipeline installation bend bracket | |||||
| B2 | board installation bend bracket | |||||
| B3 | pipeline installation flat bracket | |||||
| d | explosion suppression type dIIBT4 | |||||
| i | Intrinsically safe type iaIICT6 | |||||
Attn:1.filled 200 series silicone oil, operating temperature -40~+149ºC;filled high-temp proof silicone oil, operating temperature -20~+315ºC.
