4~20mA Output Liquid /Milk /Beer Turbine Flow Meter
1 Piece
$1,5001 Piece
$200Product information
High-quality 4~20mA Output Liquid /Milk /Beer Turbine Flow Meter supplied by WEIHAI KUNKE FLOW INSTRUMENT CO., LTD.. Bulk wholesale pricing ranges from $200 to $1,500 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Pressure Rating:
1.6MPa
Package Gross Weight:
10.000kg
Production Capacity:
3000 Pieces/Year
Package Size:
45.00cm * 17.00cm * 19.00cm
HS Code:
9026100000
Certification:
CE, ISO, SGS
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Measurement Object:
Closed Pipeline
Specifications
Pressure Rating:
1.6MPa
Package Gross Weight:
10.000kg
Production Capacity:
3000 Pieces/Year
Package Size:
45.00cm * 17.00cm * 19.00cm
HS Code:
9026100000
Certification:
CE, ISO, SGS
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Measurement Object:
Closed Pipeline
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Specification:
DN15
Size:
DN4-DN200
Measuring Principle:
Electrical Principles
Trade Term:
FOB, EXW, CIF, DAP
Application:
Industrial Production
Model NO.:
KLWGYC-DN10
Payment Term:
LC, T/T, PayPal, Western Union
Medium:
Liquid
Measuring Media:
Liquid
Output Type:
Pluse Output
Communication Protocol:
RS485
Payment Methods:
Support payments in USD
Sensor:

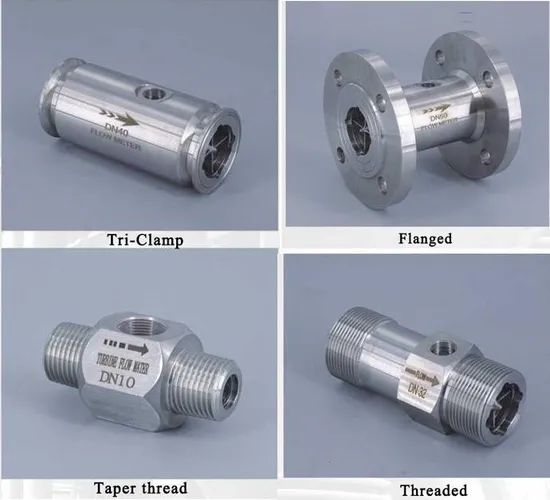

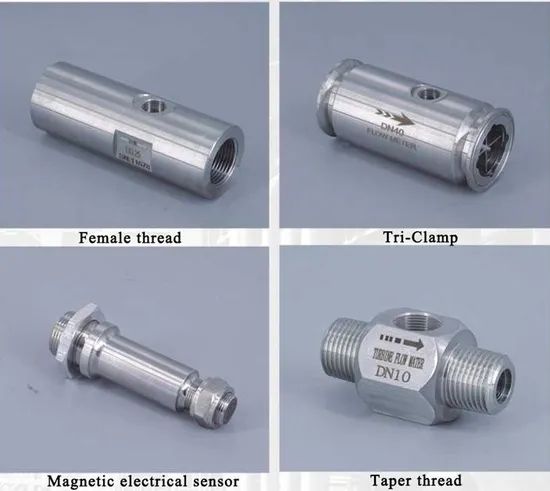

Tube/Flange
Type:
Turbine Flow Meter
Main Application:
Water, Wastewater, Fuel Oil, Milk\ Soybean Oil \Clearwater
Origin:
Weihai
Transport Package:
Wooden Box Package or Carton Package
Trademark:
kunkeandao
Port Of Loading:
qingdao
Accuracy:
±0.6-1%
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2019-03-07
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, EXW, CIF, DAP
Port Of Loading:
qingdao
Certificates:
CE certification, CERTIFICATE OF CONFORMITY ENVIRONMENTAL MANAGENT SYSTEM, CERTIFICATE OF CONFORMITY QUALITY MANAGEMENT SYSTEM CERTIFICATION, CNEX Explosion-proof Certificate, Enterprise certificate
Product descriptions from the supplier

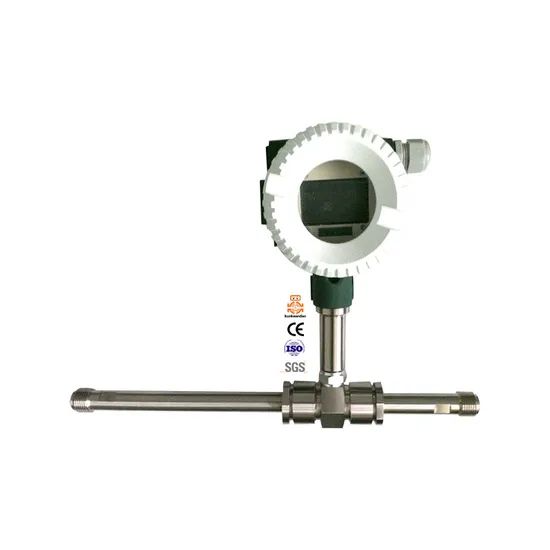

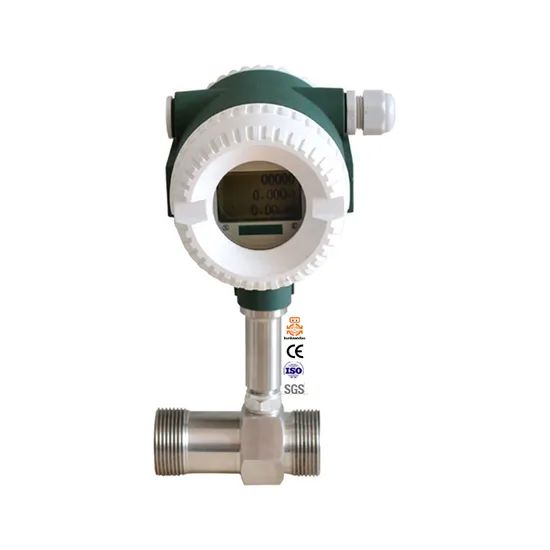

4~20mA Output Liquid /Milk /Beer Turbine Flow Meter
LWGY series turbine flow sensor (hereinafter referred to as sensor) is a rotational speed flowmeter based on the principle of torque balance. Suitable for stainless steel, corundum, cemented carbide and other non-corrosive effect, without fiber, particles and other impurities in the liquid measurement in the closed pipeline. Widely used in petroleum, chemical industry, metallurgy, water supply, paper and other industries. It is an ideal flow measurement and energy saving instrument. It can measure pure water, fresh water, pure water, medicinal residue, milk, soybean oil, edible oil, diesel oil, lubricating oil, diesel oil, jetoil.
LWGY series turbine flow sensor (hereinafter referred to as sensor) is a rotational speed flowmeter based on the principle of torque balance. Suitable for stainless steel, corundum, cemented carbide and other non-corrosive effect, without fiber, particles and other impurities in the liquid measurement in the closed pipeline. Widely used in petroleum, chemical industry, metallurgy, water supply, paper and other industries. It is an ideal flow measurement and energy saving instrument. It can measure pure water, fresh water, pure water, medicinal residue, milk, soybean oil, edible oil, diesel oil, lubricating oil, diesel oil, jetoil.
Quantitative control systerm is composed of flowmeter ,flow quantity control instrument .solenoid valve and distribution box.
1.Extractable start ,stop ,zero button.
2.Can simultaneously control the opening of the valve and pump
3.Can set 8 constant usage
4.Power outage,continue to quantity according to previous values after reboot.
5.Quickable quantitative number ,quantitative value ,quantitative time
6.Installing a miniature printer to print quantitative data.
7.All Chinese LCD display,easy to operate.
8.Mountable size valve control quantitative ,more accurate.
2.Can simultaneously control the opening of the valve and pump
3.Can set 8 constant usage
4.Power outage,continue to quantity according to previous values after reboot.
5.Quickable quantitative number ,quantitative value ,quantitative time
6.Installing a miniature printer to print quantitative data.
7.All Chinese LCD display,easy to operate.
8.Mountable size valve control quantitative ,more accurate.
| LWGY | Explain | |||||
| Classify | LWGY | Basic model,+5-24DCV power supply | ||||
| LWGYA | Two-wire system current output, remote transmission |
|||||
| LWGYB | Battery powered field display | |||||
| LWGYC | field display/Two-wire system current output | |||||
| LWGYD | RS485 communication output | |||||
| Inside nominal diameter |
4 | 4mm,general turbine flow range 0.04~0.25m3/h | ||||
| 6 | 6mm,general turbine flow range 0.1~0.6m3/h | |||||
| 10 | 10mm,general turbine flow range 0.2~1.2m3/h | |||||
| 12 | 12mm,general turbine flow range 0.2~2m3/h | |||||
| 15 | 15mm,general turbine flow range 0.6~6m3/h | |||||
| 20 | 20mm,general turbine flow range 0.7~7m3/h | |||||
| 25 | 25mm,general turbine flow range 1~10m3/h | |||||
| 32 | 32mm,general turbine flow range 1.5~15m3/h | |||||
| 40 | 40mm,general turbine flow range 2~20m3/h | |||||
| 50 | 50mm,general turbine flow range 4~40m3/h | |||||
| 65 | 65mm,general turbine flow range 7~70m3/h | |||||
| 80 | 80mm,general turbine flow range 10~100m3/h | |||||
| 100 | 100mm,general turbine flow range 20~200m3/h | |||||
| 125 | 125mm,general turbine flow range 25~250m3/h | |||||
| 150 | 150mm,general turbine flow range 30~300m3/h | |||||
| 200 | 200mm,general turbine flow range 80~800m3/h | |||||
| Anti-explosion | No mark, non - explosive type | |||||
| B | Anti-explosion | |||||
| Accuracy class | A | Accuracy 0.5 grade | ||||
| B | Accuracy 1 grade | |||||
| Turbine type | A | Wide range turbine Ordinary turbine |
||||
| B | ||||||
Kunke has formed the radiation sales system and professional after-sales team to provid the full range of technical support and 24-hour uninterrupted point-to-point fast service for production installation, commissioning and online use, using only after-sales service information stystem, to achieve rapid response for the users and rapid processing market. Now our products have been sold to all provinces and autonomous regions and exported to South Korea, Russia, the United States, Indonesia and other countries.
1.Q:When the liquid turbine flowmeter is not stable and the measurement is not accurate, how to deal with it?
A:1. The actual flow exceeds the measuring range of the instrument or is unstable. 2. The instrument coefficient K is set incorrectly. 3. Hang fibers and other debris inside the sensor. 4, there are bubbles in the liquid. 5. There is strong electromagnetic field interference next to the sensor.
6, the sensor bearing and shaft are seriously worn.
2.Q:When the "check" signal of the liquid turbine flowmeter is displayed but the flow signal is not displayed?
A:1. The indirect line between the sensor and the display instrument is wrong; 2, or open circuit, short circuit, poor contact and other faults; 3, the amplifier is faulty or damaged;
3.Q:Turbine flowmeter flow fluctuation is large?
A:Whether the water source is pulsating flow
4.Q:The liquid turbine flowmeter shows a small flow rate, but the actual flow rate is relatively large.?
A:The general cause of this problem is that the impeller is not rotating fast enough or the blade is broken. Remove the flow from the pipe and check the meter for entanglement or breakage.
5.Q:Liquid turbine flowmeter display error is relatively large?
A:First check whether the flow sensor coefficient (K value) and other parameters of the meter are set correctly.
