4.3'' LCD Display with Capacitive Touch (PCAP) Function
1-49 Piece
$4850-99 Piece
$45100 Piece
$40Product information
High-quality 4.3'' LCD Display with Capacitive Touch (PCAP) Function supplied by Shenzhen rCloud Technology Co., Ltd. Bulk wholesale pricing ranges from $40 to $48 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Package Gross Weight:
0.500kg
Production Capacity:
10000000PCS/Year
Response Time:
10ms
Package Size:
16.00cm * 12.00cm * 6.00cm
Color Numbers:
16.7m
Lead Time:
25 days (1 - 100 Pieces)To be negotiated ( > 100 Pieces)
Aspect Ratio:
4:3
Optimum Resolution:
800X480
Specifications
Package Gross Weight:
0.500kg
Production Capacity:
10000000PCS/Year
Response Time:
10ms
Package Size:
16.00cm * 12.00cm * 6.00cm
Color Numbers:
16.7m
Lead Time:
25 days (1 - 100 Pieces)To be negotiated ( > 100 Pieces)
Aspect Ratio:
4:3
Optimum Resolution:
800X480
HS Code:
8531200000
Active Area:
95.04X53.86 mm
Transport Package:
Carton
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR, EXW
Interface Type:
HDMI
Payment Term:
LC, T/T, PayPal, Western Union
3D:
Not 3D
Widescreen:
Not Widescreen
Model NO.:
RCS-TM0430-L3
Color Pixel Arrangement:
RGB Stripe
Port Of Loading:
Shenzhen Port
Payment Methods:
Support payments in USD
Type:
TFT
Feature:
Touch Display
Backlight Type:
White LED
Trademark:
rCloud
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017-11-07
Annual Revenue Amount:
Not specified
Numbers Of Employees:
16
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port
Certificates:
CE, Others
Product descriptions from the supplier
Detail
Specification
Feature
The RCS-TM0430-L3 is a compact 4.3-inch LCD display with a TFT/IPS panel, offering a vibrant visual experience with its 800x480 pixel resolution and effective display area of 95.04×53.86mm. It provides convenience and versatility with an HDMI LCD interface for seamless connectivity and a USB touch interface for intuitive touch interactions. The display supports plug and play functionality for Windows 7, 8, and 10 systems. Suitable for embedded systems, handheld devices, and interactive displays, the RCS-TM0430-L3 delivers a reliable and user-friendly experience in a compact size, making it an excellent choice for various applications.
To ensure optimal performance and durability of the display, please adhere to the following guidelines:
- Operating Temperature: Operate the display within the recommended temperature range of -20 to 70 degrees Celsius to prevent damage or malfunctions.
- Storage Temperature: Store the display in a suitable environment with temperatures ranging from -30 to 80 degrees Celsius to maintain its integrity.
- Surface Hardness and Transparency: The display screen has a surface hardness of 6H or higher, providing scratch resistance, and offers over 82% transparency for clear visuals.
- Long Service Life: The display is designed for long-lasting performance and durability, ensuring reliable functionality over an extended period.
- Working Voltage: The display is compatible with a working voltage of 3.3V, allowing it to be connected to various devices and power sources.
- Compact Size and High Definition: Despite its compact size of no more than 15cm on each side, the display delivers a high-definition visual experience with an 800x480 pixel resolution, offering superior clarity and detail.
| Backlight Type | White LED |
| Power consumption | 500(Max) mA |
| System Support 1 | Android/Linux (need to be configured first) |
| System Support 2 | Win7/Win8/Win10(Plug and play) |
| Pixel pitch | 0.1188×0.1122 mm |
| Transparency | >82% |
| Sampling Rate | 20~100 Hz |
Package
Shipment
Certificates
Business partner
Company Profile
Established in 2017, Shenzhen rCloud Technology Co.,Ltd ( rCloud ) is professional hardware & software solution provider for global gaming machine , which are focus on R&D manufacturing and marketing Illuminated card reader, RFID card reader, Hybrid card reader and Player Tracking System for Global Gaming System . To insist "Know what you need , Do what we can", we committed to becoming comprehensive solution provider for gaming industry .During these years ,We have worked with Novomatic ,EGT ,Advansys , princess and playtech etc.
In Further development , we invest more to touch monitor factory which specialized in designing and manufacturing capacitive touch panel, Touch curved gaming monitor , LCD display etc.The total facilities are more than 5,000 square meters, in which over 2,000 square meters are 100 Class dust-free workshop. In order to provide our customers with high quality and satisfactory products, we improve the latest technology and equipment constantly. We trust that our accumulated experience, well-skilled manpower, advanced technologies and reliable quality control are the most distinguished factor to satisfy the customer's requirements.In the near future , We are the first choice of many of World's largest gaming manufacturers around the world.
FAQ
1)Q:What is the size and resolution of this display?
A:The actual size of the display is 105.80×85.09×6.73mm, but there may be errors due to different measurement methods; the resolution of the display is 800*480 pixels.
2)Q: How is the display screen composed?

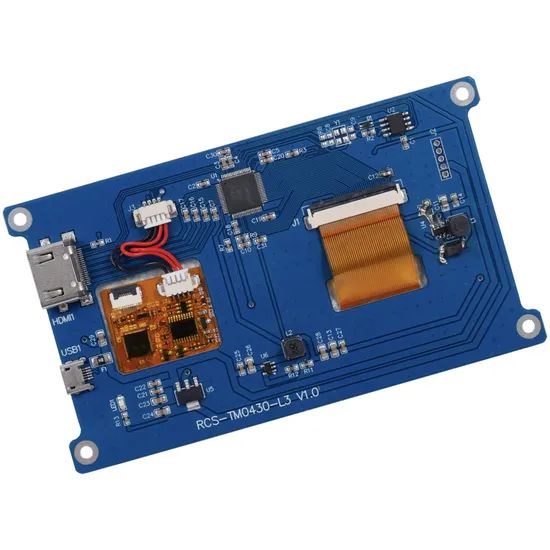

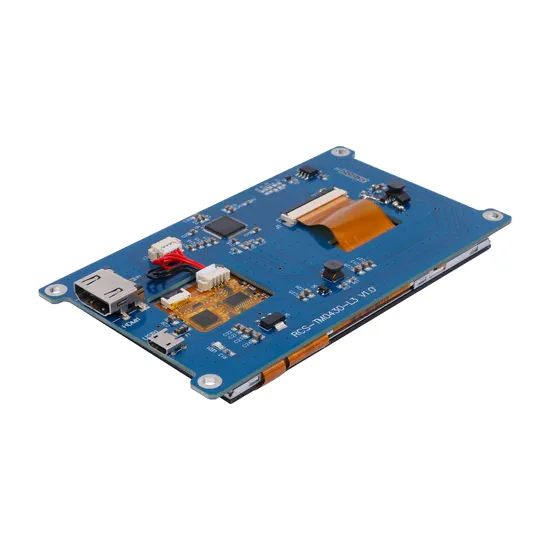

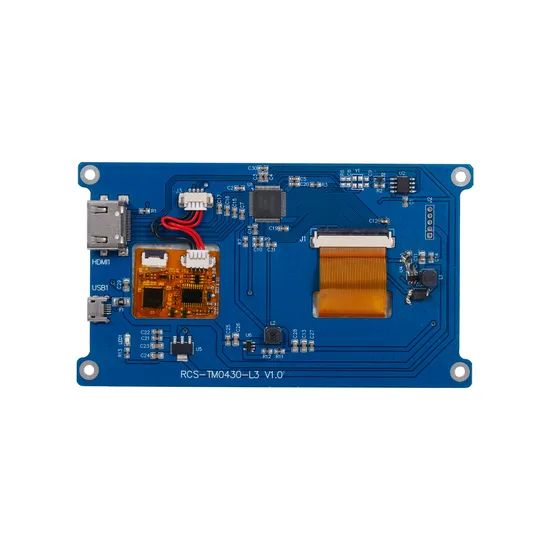

A:The display screen is composed of LCD display screen, CTP touch screen and PCB board.
3)Q: What systems can the display support?
A: The display supports plug-and-play for the following systems: Win7/Win8/Win10, but the following systems need to be configured before further use: Android/Linux.
A:The actual size of the display is 105.80×85.09×6.73mm, but there may be errors due to different measurement methods; the resolution of the display is 800*480 pixels.
2)Q: How is the display screen composed?
A:The display screen is composed of LCD display screen, CTP touch screen and PCB board.
3)Q: What systems can the display support?
A: The display supports plug-and-play for the following systems: Win7/Win8/Win10, but the following systems need to be configured before further use: Android/Linux.
