4 Baskets Sterilizer for Canned Food Mushroom Sterilization Machine with 4 Baskets Dn1200X3600
Piece
Negotiable
Product information
High-quality 4 Baskets Sterilizer for Canned Food Mushroom Sterilization Machine with 4 Baskets Dn1200X3600 supplied by Wenzhou Ranking Imp. & Exp. Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Max Working Pressure:
0.35 MPa
Batch Sterilization Capacity:
100L ~ 5000liter
Max Sterilization Temp.:
125 Degree C
Production Capacity:
2000PCS Every Season
Electric Tension:
220V
HS Code:
84198990
Theory:
Autoclave
Wter Inlet Pump:
Available
Specifications
Max Working Pressure:
0.35 MPa
Batch Sterilization Capacity:
100L ~ 5000liter
Max Sterilization Temp.:
125 Degree C
Production Capacity:
2000PCS Every Season
Electric Tension:
220V
HS Code:
84198990
Theory:
Autoclave
Wter Inlet Pump:
Available
Origin:
China
Back Pressure By:
Compressed Air
Trade Term:
FOB, CIF, CFR, EXW
Sterilizer Chamber Layout:
Horizontal / Vertical
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Port Of Loading:
Ningbo Port, Shanghai Port
Plate Heat Exchanger:
Optional
Model NO.:
R-I mushroom sterilization machine
Sterilizer Construction Material:
Stainless Steel
Material:
Stainless Steel
Heating Medium:
Steam / Electric
Ultra High Temperature Alarm:
Ultra High Temperature Alarm
Transport Package:
Wooden / Nylon
Specification:
water spray, with 2 sterilization baskets, 100L~5T
Energy Recovery:
with Heat Recovery Tank
LCD Display:
with LCD Display
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-02-04
Annual Revenue Amount:
Not specified
Numbers Of Employees:
8
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port, Shanghai Port
Certificates:
Our Business License
Product descriptions from the supplier
Steam Spray Counter Pressure Retort sterilizer sterilize retort
4 baskets sterilizer for canned food / mushroom sterilization machine with 4 baskets DN1200x3600
Steam Water Spray Retort
A sterilization retort is frequently known as a retort sterilizer or a sterilization vessel. In certain regions and countries, the term sterilizer may refer to an autoclave or an autoclave-based sterilizer. Additionally, 'clave' is sometimes used interchangeably with sterilizer retort.A wide range of containers is commonly used for fruits, beverages, meat, fish, tin cans, glass jars, PP bottles, and vacuum-sealed packaging—most of these require sterilization prior to reaching the supermarket. A retort sterilizer is the ideal equipment for this process.
4 baskets sterilizer for canned food / mushroom sterilization machine with 4 baskets DN1200x3600 pictur
Retort description
DN1200×3600 PLC control technical parameters
Energy consumption
4 baskets sterilizer for canned food / mushroom sterilization machine with 4 baskets DN1200x3600
Benefits / advantage
4 baskets sterilizer for canned food / mushroom sterilization machine with 4 baskets DN1200x3600
4 baskets sterilizer for canned food / mushroom sterilization machine with 4 baskets DN1200x3600
Price
4 baskets sterilizer for canned food / mushroom sterilization machine with 4 baskets DN1200x3600
The cost of our retort sterilizer varies depending on the retort's diameter and the machine's body length, as these factors differ based on application needs. To provide you with a precise quote, kindly share your preferred retort size and the length of the sterilization unit. Alternatively, you may provide the dimensions of your product packaging along with the batch volume you intend to process. Based on this information, we’ll recommend the ideal configuration and give you a clear pricing option.
Offer 4 baskets sterilizer for canned food / mushroom sterilization machine with 4 baskets DN1200x3600
4 baskets sterilizer for canned food / mushroom sterilization machine with 4 baskets DN1200x3600
Steam Water Spray Retort
A sterilization retort is frequently known as a retort sterilizer or a sterilization vessel. In certain regions and countries, the term sterilizer may refer to an autoclave or an autoclave-based sterilizer. Additionally, 'clave' is sometimes used interchangeably with sterilizer retort.A wide range of containers is commonly used for fruits, beverages, meat, fish, tin cans, glass jars, PP bottles, and vacuum-sealed packaging—most of these require sterilization prior to reaching the supermarket. A retort sterilizer is the ideal equipment for this process.
4 baskets sterilizer for canned food / mushroom sterilization machine with 4 baskets DN1200x3600 pictur
Live case: Customer request
Retort equipment.
Water Spray Type Sterilizer having 1200mm diameter and 3600mm long
Complete Fully Automatic System with PLC Touch Screen Controller
With 6 sets of carts and trays
Inside diameter is 1200mm and 3600 inside retorting chamber length
1200mm x 800mm x 800mm Cart
1200mm x 800mm x 150mm trays
This is for canned food and flexible pouches
Suggested product
According to the above request, you are suggested to Choose our DN1200×3600 retort.
Main working process:
A retort, commonly known as an autoclave, is a pressurized container designed to heat food—such as in pouches, tin cans, glass jars, or PP bottles—under precise temperature conditions for a set duration to eliminate harmful microorganisms. Once processed in this system, your product achieves a significantly extended shelf life.

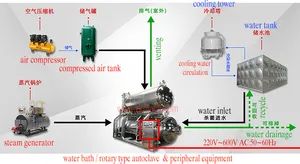

Here is the main working process: (Sterilizer retort working flow)
Step 1 loading the cart and close the door
Put your tin can into the baskets and push the baskets into the retort chamber is ok
Step 2 pump water to the retort Chamber
Water pump was turn on <automatically> to fill the retort chamber
Step 3 turn on steam for heating
Steam will pass through the plate heat exchanger while chamber water circulating through it
Step 4 sterilization
keep the 121 DC <it is sterilization temperature, adjustable> and the right pressure for a certain period of time
Step 5 cooling
cooling water was pumped to the plate heat exchanger to cooling the chamber water to the preset temperature
Step 6 drainage
After cooling temperature is arrived, chamber water will be pumped out automatically and one batch sterilization finished.
..........Retort equipment.
Water Spray Type Sterilizer having 1200mm diameter and 3600mm long
Complete Fully Automatic System with PLC Touch Screen Controller
With 6 sets of carts and trays
Inside diameter is 1200mm and 3600 inside retorting chamber length
1200mm x 800mm x 800mm Cart
1200mm x 800mm x 150mm trays
This is for canned food and flexible pouches
Suggested product
According to the above request, you are suggested to Choose our DN1200×3600 retort.
Main working process:
A retort, commonly known as an autoclave, is a pressurized container designed to heat food—such as in pouches, tin cans, glass jars, or PP bottles—under precise temperature conditions for a set duration to eliminate harmful microorganisms. Once processed in this system, your product achieves a significantly extended shelf life.
Here is the main working process: (Sterilizer retort working flow)
Step 1 loading the cart and close the door
Put your tin can into the baskets and push the baskets into the retort chamber is ok
Step 2 pump water to the retort Chamber
Water pump was turn on <automatically> to fill the retort chamber
Step 3 turn on steam for heating
Steam will pass through the plate heat exchanger while chamber water circulating through it
Step 4 sterilization
keep the 121 DC <it is sterilization temperature, adjustable> and the right pressure for a certain period of time
Step 5 cooling
cooling water was pumped to the plate heat exchanger to cooling the chamber water to the preset temperature
Step 6 drainage
After cooling temperature is arrived, chamber water will be pumped out automatically and one batch sterilization finished.
Retort description
- Material of Construction: SUS 304
- Retort Size: DN 1200 × 3600 (L) × 6-8 mm(thickness)
- 1 cart size: 1200 (L) × 800 (W) × 800 (H)
- 1 tray Size: 1200mm (L) × 800mm (W) × 160 mm (H)
- Retort Capacity:
- 6 Baskets
- 1 cart = 5 trays (800mm/160mm)
- Total Trays = 30
- Total Trays Required: 30×2 = 60 trays
- Total Baskets Required: 6×2 = 12 Baskets
- Total Inside Trolley: 12
- Total Outside Trolley required: 6
- Basket Design .......
DN1200×3600 PLC control technical parameters
| No. | Item name | Description | Quantity / pc(s) |
| 1 | Retort body | 1200×3600mm | 1 |
| 2 | Plate heat exchanger | 25M2 ~30 M2 stainless steel | 1 |
| 3 | Support base | SUS304 | 1 |
| 4 | Connecting pipeline | SUS304 | 1 |
| 5 | Air cylinder | SC32*50S | 1 |
| 6 | Ball valve | SUS304 | 6 |
| 7 | Pneumatic valve | DN50 PN25 001251A | 2 |
| 8 | Pneumatic valve | DN20 PN25 0011311 | 1 |
| 9 | Ball valve | G1/4 | 2 |
| 10 | Ball valve | G1/2 | 2 |
| 11 | Ball valve | G1 | 1 |
| 12 | Steam reducing valve | DN50 thread connection | 1 |
| 13 | Steam filter | DN50 | 1 |
| 14 | Circulation pump | 50T/H 7.5KW 26m lift head | 1 |
| 15 | Air pressure reducer | AR500 0.05-0.85 | 1 |
| 16 | Liquid-level probe | SB-1 | 2 |
| 17 | Liquid level meter | DN20 L=1400 | 1 |
| 18 | pressure transmitter | EJA430A | 1 |
| 19 | temperature sensor | Pt100 L=150 | 1 |
| 20 | safety valve | A42Y-16P DN50 0.2-0.4 | 1 |
| 21 | pressure gage | Y100,0-0.6MPA | 2 |
| 22 | Sterilization basket | 1200×800×800mm (160mm height each tray, each baskets have 5 trays |
12 |
| 23 | Trolley | Design according to the baskets | 6 |
4 baskets sterilizer for canned food / mushroom sterilization machine with 4 baskets DN1200x3600
| 1 | Power consumption | 11KW/H |
| Power supply | 415V 50Hz 3phase | |
| 2 | Cooling water / tap water consumption | 3~4T / batch |
| 3 | Steam boiler requested | 1T/H steam output 0.7Mpa steam pressure |
| 4 | Air compressor needed | 2M3/min 0.8Mpa pressure |
| 5 | Compressed air storage tank | ≥ 2000Liter |
Benefits / advantage
4 baskets sterilizer for canned food / mushroom sterilization machine with 4 baskets DN1200x3600
- Quick heating in preheating process
- uniform heat distribution in sterilizer chamber
- Rapid and even cooling.
- Low electricity, steam and water consumption.
- Safe counter pressure control during all process phases.
- Accurate temperature control
- Suitable for different types and sizes of package.
4 baskets sterilizer for canned food / mushroom sterilization machine with 4 baskets DN1200x3600
- Pressure gauge
- Temperature thermometer
- Safety valve
- Safety lock
- Gasket sealing ring
- Pressure relief valve
- Compressed air inlet valve
- Water inlet pump
- Steam inlet valve and by pass valve (optional)
- Pipe filter for cooling water
- Filter screen for water outlet pipe (optional for glass jar sterilizer)
- Countdown Timer for sterilization period / cooking phase
- Level meter
- Plate heat exchanger (optional)
- Round Paper recorder / paper less recorder (optional)
- USB Date logger (optional)
- Insulated Hot water tank (optional)
- Conveyor Chain inside the sterilizer retort (optional)
- PLC control system (optional)
- Air compressor
- Compressed air storage tank
Price
4 baskets sterilizer for canned food / mushroom sterilization machine with 4 baskets DN1200x3600
The cost of our retort sterilizer varies depending on the retort's diameter and the machine's body length, as these factors differ based on application needs. To provide you with a precise quote, kindly share your preferred retort size and the length of the sterilization unit. Alternatively, you may provide the dimensions of your product packaging along with the batch volume you intend to process. Based on this information, we’ll recommend the ideal configuration and give you a clear pricing option.
Offer 4 baskets sterilizer for canned food / mushroom sterilization machine with 4 baskets DN1200x3600
