4-Wire HD Interphone Home Security 7 Inches Video Doorphone
1 Set
$11 Set
$110Product information
High-quality 4-Wire HD Interphone Home Security 7 Inches Video Doorphone supplied by Shenzhen Eeguard Technology Co., Ltd.. Bulk wholesale pricing ranges from $1 to $110 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Max Length Of Line Connection:
100meters
Transport Package:
10PCS/CTN
Specification:
188*136*22mm
Connection:
4 Wires
Production Capacity:
50, 000sets/Month
Screen:
7" Color Digital Screen
Signal Support:
800tvl/ 1080P
HS Code:
8517699000
Specifications
Max Length Of Line Connection:
100meters
Transport Package:
10PCS/CTN
Specification:
188*136*22mm
Connection:
4 Wires
Production Capacity:
50, 000sets/Month
Screen:
7" Color Digital Screen
Signal Support:
800tvl/ 1080P
HS Code:
8517699000
Power Consumption:
9W(Max), 2.5W(Standby)
Power Supply:
AC100V-240V 50/ 60Hz /DC15V/0.8A
Signal Formats:
CVBS / Ahd
Origin:
China
Model NO.:
ER012HDT&ED003HD
Trade Term:
FOB
Trademark:
OEM / ODM
Color:
Optional White/Black
Certification:
RoHS, CCC, FCC, CE, ISO9001
Port Of Loading:
Shenzhen YanTian port
Image Capture:
Supports
Indoor Monitor Unlock Release:
Supports
Outdoor Panel Unlock Release:
Supports
Installation:
Surface-Mounted
Payment Term:
T/T
Voice Service:
With Voice Service
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-05-23
Annual Revenue Amount:
Not specified
Numbers Of Employees:
49
Preferred Payment Term:
T/T
Preferred Trade Term:
FOB
Port Of Loading:
Shenzhen YanTian port
Certificates:
CE, ISO9001:2015
Product descriptions from the supplier

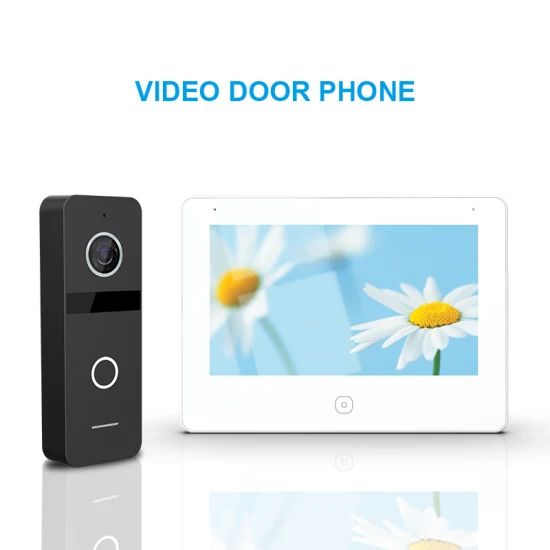

4-WIRE HD Interphone Home Security 7 Inches Video Doorphone
Description:-

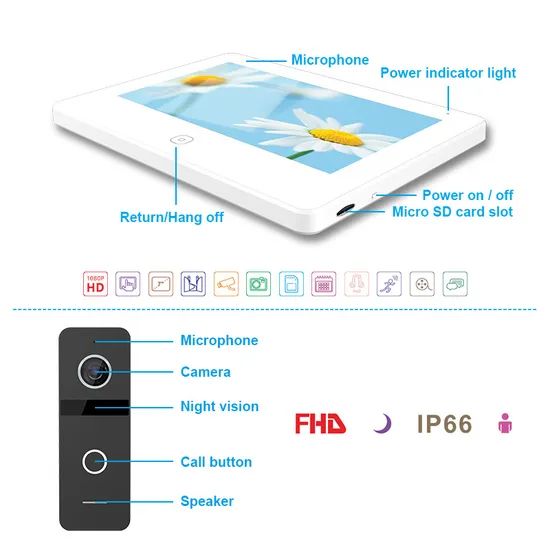

Monitors:
1. 7 inch color TFT digital screen
2. Hands free
3. Touch Keys
4. Surface-mounted
5. External adapter
6.4 Wires/Cat-5or Cat-6connection
7. Supports 4 video channels
8. Supports maximum length of line connection: 100m
9. Power Supply:DC15V/0.8A
10.Power consumption:9W(Max)-2.5W(Standby)
11. TFT resolution:1024*600

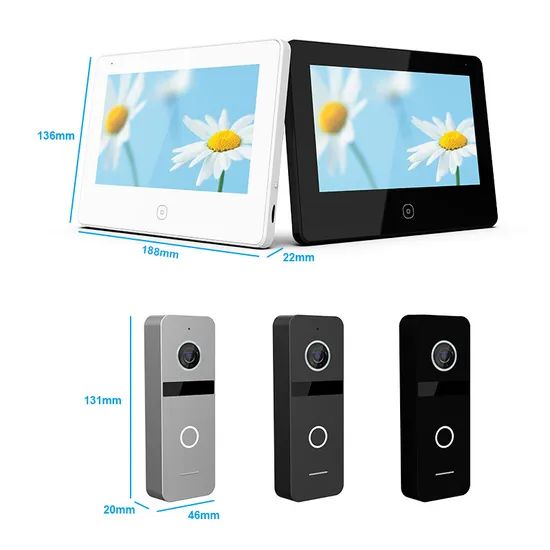

12. Dimension:188x136x22mm
Doorbells:-
1. 1/3" High-Definition color camera
2. Resolution: 1080P
3. With night vision
4. Metal case
5.100° / 155° View angle (Optional)

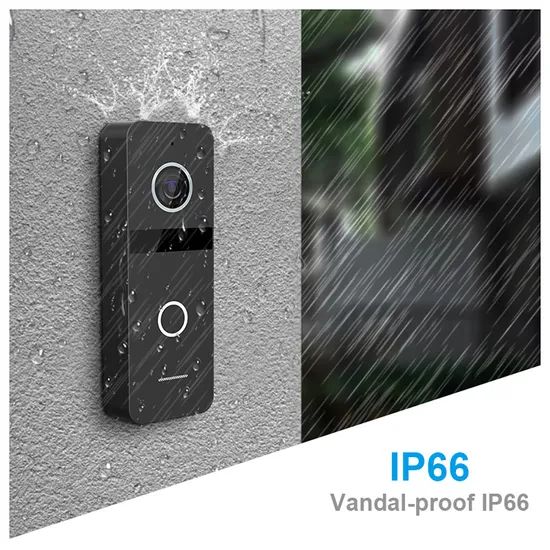

6. Protection Standard: IP66.
7. 4 wires connection
8. Surface/angled construction
9 Supports lock control
10. Operating temperature: - 30 ºC to + 60ºC
11. Power: 10 - 15V
12.Dimension:133*46*20mm
Functions:-
Monitors:
1. Lock control / Broadcast / Calendar / Alarm clock
2. Capture over 100pcs images with internal flash
3. Monitor doorbell or CCTV cameras
4. Make calls between monitors
5. Monitor listening to another monitor
6.DVR function, with both Video and audio
7. Answer machine function
8. Auto take pictures from doorbell camera
9. Supports Message leave
10Can take Images or record video from doorbell, even you are talking with visitor
11.Multimedia manager
12.Photo frame
13.Outdoor panel unlock release
14.Indoor monitor unlock release
Type of signal: CVBS, AHD(up to 1080P)
Max. supports:
1).2 outdoor doorbells+4 indoor monitors+2 CCTV cameras
2).1 outdoor doorbell+4 indoor monitors+3 CCTV cameras
Doorbells:-
1). Surface/corner construction
2). Supports lock control
Specification:-
Monitors:
Doorbells:
All our models are passed CE, RoHS, REACH certificates, and with 2 years warranty, you are welcome to visit our factory or take samples to test our quality.
website: eeguard.en.made-in-china.com
FQA:-
Q: Can i get a sample to test first?
E: Yes, you are welcome to take samples to test our quality at anytime.
Q: Can you do OEM / ODM for customers?
E: Yes, we do OEM & ODM service, we also do LOGO, Giftbox designs, any design as your like.
Description:-
Monitors:
1. 7 inch color TFT digital screen
2. Hands free
3. Touch Keys
4. Surface-mounted
5. External adapter
6.4 Wires/Cat-5or Cat-6connection
7. Supports 4 video channels
8. Supports maximum length of line connection: 100m
9. Power Supply:DC15V/0.8A
10.Power consumption:9W(Max)-2.5W(Standby)
11. TFT resolution:1024*600
12. Dimension:188x136x22mm
Doorbells:-
1. 1/3" High-Definition color camera
2. Resolution: 1080P
3. With night vision
4. Metal case
5.100° / 155° View angle (Optional)
6. Protection Standard: IP66.
7. 4 wires connection
8. Surface/angled construction
9 Supports lock control
10. Operating temperature: - 30 ºC to + 60ºC
11. Power: 10 - 15V
12.Dimension:133*46*20mm
Functions:-
Monitors:
1. Lock control / Broadcast / Calendar / Alarm clock
2. Capture over 100pcs images with internal flash
3. Monitor doorbell or CCTV cameras
4. Make calls between monitors
5. Monitor listening to another monitor
6.DVR function, with both Video and audio
7. Answer machine function
8. Auto take pictures from doorbell camera
9. Supports Message leave
10Can take Images or record video from doorbell, even you are talking with visitor
11.Multimedia manager
12.Photo frame
13.Outdoor panel unlock release
14.Indoor monitor unlock release
Type of signal: CVBS, AHD(up to 1080P)
Max. supports:
1).2 outdoor doorbells+4 indoor monitors+2 CCTV cameras
2).1 outdoor doorbell+4 indoor monitors+3 CCTV cameras
Doorbells:-
1). Surface/corner construction
2). Supports lock control
Specification:-
Monitors:
| Screen | Color TFT digital screen |
| Screen size | 7'' |
| Outdoor panel unlock release | Supports |
| Indoor monitor unlock release | Supports |
| Definition | 1024*600 |
| Type of signal | CVBS, AHD(up to 1080P) |
| Connection | 4 Wires |
| Maximum length of line connection | 100m |
| Video channels quantity | 4 |
| Additional monitors quantity | 3 |
| Memory block connection | Built in card-reader for micro SD card |
| Image capture | Supports |
| DVRwith both video and audio | Supports |
| Power | DC15V/0.8A |
| Dimension |
188x136x22mm
|
Doorbells:
| Subscribers quantity | 1 |
| Camera | 1/3''Color CMOS |
| Angle of view | 100° /155°(Optional). |
| Protection Standard | IP66 |
| Type of signal | CVBS/AHD/TVI/CVI |
| Resolution | 800TVL/1080P(Optional) |
| Construction | Surface/ 30° angled mounting |
| Operating temperature | - 30 ºC to + 60ºC |
| Connection | 4 wires |
| Lock control | Supports |
| Power | DC10-15V |
| Dimension | 133*46*20mm |
All our models are passed CE, RoHS, REACH certificates, and with 2 years warranty, you are welcome to visit our factory or take samples to test our quality.
website: eeguard.en.made-in-china.com
FQA:-
Q: Can i get a sample to test first?
E: Yes, you are welcome to take samples to test our quality at anytime.
Q: Can you do OEM / ODM for customers?
E: Yes, we do OEM & ODM service, we also do LOGO, Giftbox designs, any design as your like.
Q: What's your MOQ?
E: it's no MOQ for neutral models. The MOQ is 300PCS/Model to print your logo & giftbox.
E: it's no MOQ for neutral models. The MOQ is 300PCS/Model to print your logo & giftbox.
Q: How about your lead-time?
E: It's 2-5days for samples; It's about 25 working days after get your deposit for bulk order.
Q: What's your warranty for your products?
E: 2 years after the shipment.
E: It's 2-5days for samples; It's about 25 working days after get your deposit for bulk order.
Q: What's your warranty for your products?
E: 2 years after the shipment.
