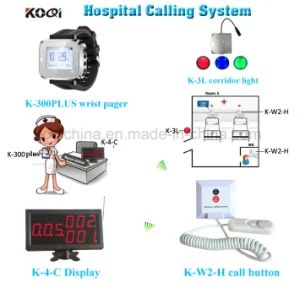

433.92 MHz Hospital Patient Call Button Nurse Calling System

1. Nurse Calling System is widely used in the service area. It consist of room's bed button for patient use and signal receiver for nurse/doctoruse. When a patient need any service, he or she just press the button near to him or her, then their room's bed number will be shown on the display for nurse's attention.


2. Please be kindly noted as follows:
1) A complete system should consist of transmitter and signal receiver, the two parts have to work together.
2) The package size and total weight should be subject the final quantity you ordered.


3. Specification:

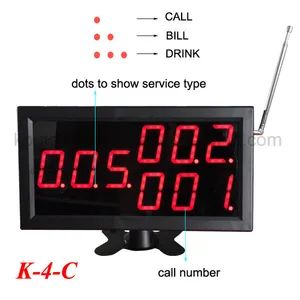

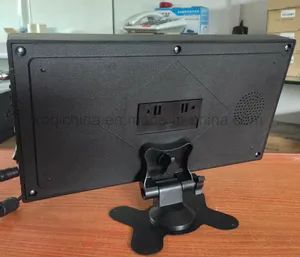

Specification of display receiver K-4-C:
1. With high strength ABS shell;durable in use
2. Use digital code technology and the function is steady and reliable.
3. Show 3-digit number from 001-999
4. Can work with 999pcs 1-key or multi-keys call button in max
5.Can show different service type by red dot.
6.Can show 3 groups of number at the same time
7.Can save 63 calling info in turn,and apply in basic service place
8.Dimension:282*150*34mm

Technical parameters:
Working voltage: DC12-18V
Working current: <10mA
Working Frequency: 315MHz±75k / 433.92mhz











Specification of wirst watch K-300plus:
1. Can work with 500pcs 1-key and multi-key transmitter in max
2. Can show 3 group call number in one time
3.Show 4-digit number from 0001-9999 and first letter can be A-Z
4.Can indicate different service type via words or letter.
( call; bill; drink; dessert; help etc and A-Z)
5. Can record when call come in and Can count the call times of each number
6.Can track the history calls up and down
7.Shows current time when stand-by
8.3 reminder ways:sound promt and vibration or both
9.Battery is rechargeable
10. Dimension:65*44*19mm





Specification of K-3L room light:
1.With 3 color: red, blue,green
2.Different color for different service type or service area
3.It can work with 30 transmitter in max
4.With separate output power supply

Technical paramenters:
Working voltage:DC7.5-12V
Working current:<20MA
Working Frequency:433.92mhz
Dimension:78*78*60mm





Specification of K-W2-H call button
1.Work with our receiver to combined the wireless calling system
2.Can be installed on wall-mounted installation.
3.When the customers or patients need help only push cord to call, the calling number will be shown on the screen, so everyone can easy to know who is calling.
4.3-key:Call button from cord;Call button and cancel button
5.Color:White
6.Material:PC

Technical Parameter:
Use Frequency:433.92mhz
Transmitted Power:≤10mW
Transmitted Distance:>200m in open area
Dimension:80*80*10mm
Any language any LOGO acceptable



4. Shipping information:
DHL, EMS, FedEx, UPS, Post airmail door to door service, 5-7 days from China to your country.


5. Warranty: One year


6. FAQ
Applications
Wireless calling system can be used in restaurants, hotels, hospitals, tea house, coffee shops, health clubs, beauty salon, SPA center, bars, swimming pool, beach, etc

What are the components of the wireless calling system?
1. Wireless receiver, installed on the count
2. Call button, installed on each table
3. Signal repeater (optional), enhance the signal

How does the system works?
1. After your customer gets seated, they can press the button sitting on their table to call the service worker if they need.
2. When the customer presses the call button on their table, their table number will appear on the reciever with ringing. Waiters then head over to the table and provide service to the customer promptly and quickly.
