4G OBD II Car GPS Tracker with Smart Engine Detection Read Fuel Lever Consumption (TK428-BE)
1-9 Piece
$4010-99 Piece
$36100 Piece
$35.5Product information
High-quality 4G OBD II Car GPS Tracker with Smart Engine Detection Read Fuel Lever Consumption (TK428-BE) supplied by Guangzhou Topten Electronics Factory. Bulk wholesale pricing ranges from $35.5 to $40 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Receiveing Sensibility:
-162dBm
Hot Start:
1 Sec Average
Warranty:
1 Year
Working Voltage:
10 ~60VDC
Warm Start:
2 Sec Average
Cold Start:
40sec Average
Production Capacity:
500000 PCS/Month
Size Of Main Unit:
54.0*51.5*28.5(mm)
Specifications
Receiveing Sensibility:
-162dBm
Hot Start:
1 Sec Average
Warranty:
1 Year
Working Voltage:
10 ~60VDC
Warm Start:
2 Sec Average
Cold Start:
40sec Average
Production Capacity:
500000 PCS/Month
Size Of Main Unit:
54.0*51.5*28.5(mm)
Receiving Ways:
56 Channels
Specification:
73g
HS Code:
8512301200
Speed Accuracy:
<=0.2m/S (Wide-Open Area)
Positioning Accuracy:
<=10m (Wide-Open Area)
Posotion Accuracy:
<=10m(Open Area)
Position Mode:
Auto 2D/3D
Trade Term:
FOB, CIF, EXW
Origin:
Guangzhou China
Port Of Loading:
Guangzhou, Shenzhen
Payment Term:
LC, T/T, PayPal, Western Union
Transport Package:
Neutral Packing Box in English
GSM Frequencies:
Quad-Band: 850MHz/900MHz/1800MHz/1900MHz
Inside Backup Battery:
Rechargeable 3.7V 350mAh Li-ion Battery
Certification:
RoHS, FCC, CE
Model NO.:
TK428-BE
Trademark:
TOPTEN(we offer OEM)
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2005-06-21
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, EXW
Port Of Loading:
Guangzhou, Shenzhen
Certificates:
1. CE Certification for TK310, 2.FCC Certification for TK310, 3.RoHS Certification for TK310, 4.CE Certification for TK210, 5.FCC Certification for TK210, 6.RoHS Certification for TK210, 7.CE Certification for MT113, 8.FCC Certification for MT113, 9.RoHS Certification for MT113, CE certification TK228, TK228 FCC certification, TK228 Rohs certification
Product descriptions from the supplier

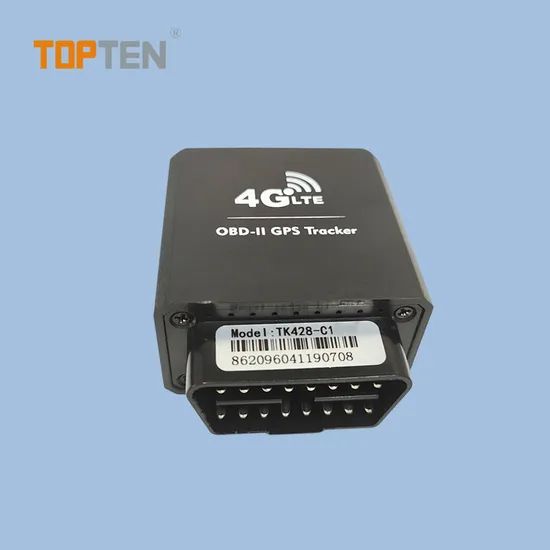

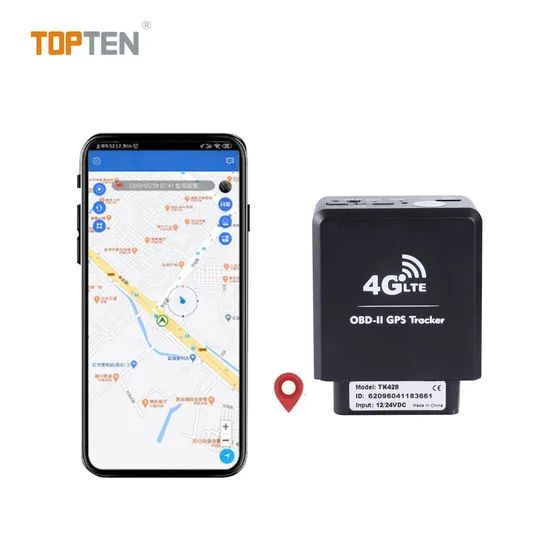

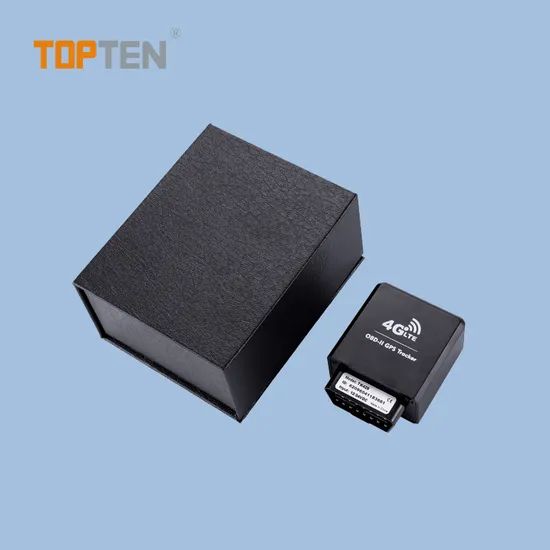

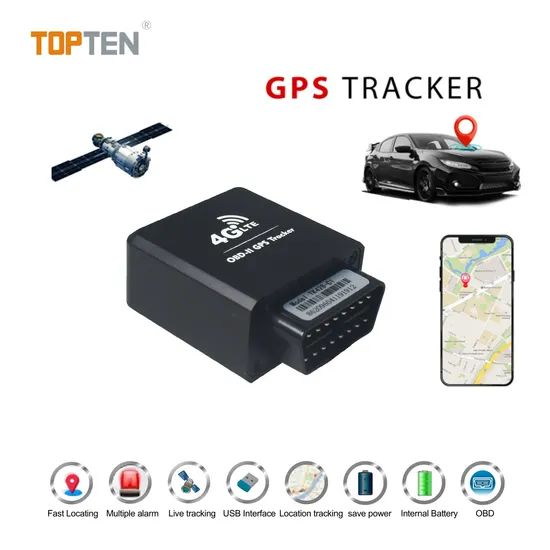

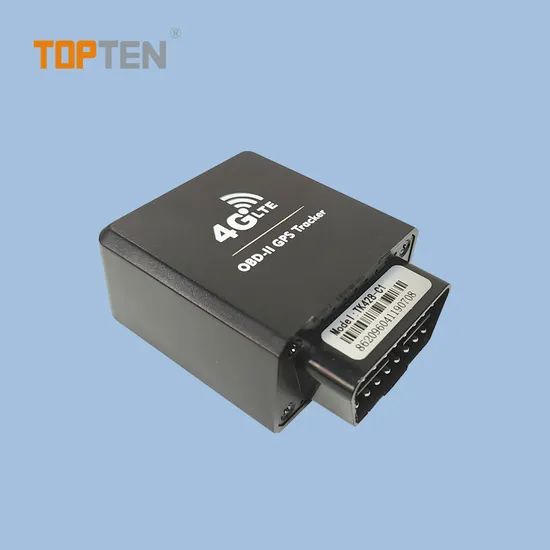

4G OBD II Car GPS Tracker with Smart Engine Detection Read Fuel Lever Consumption (TK428-BE)
TK428 OBD-II GPS tracker can also be used to do vehicle's telemetry via OBD connector, it can read the vehicle's ECU's data (speed, rpm, odometer, speed, fuel consumption, harsh acceleration, harsh brake, DTC code, driver behavior data...etc) via CAN-BUS.
It has plug & play design, which is compatible with all the cars with OBD-II connector, and it supports all the CAN-BUS protocols as followings:
Features & Functions
1. Plug & play design with OBD-II connector, compatible with all the vehicles with OBD-II connector, supports most of vehicles with the CAN-BUS;
2. Track on command or by time interval via SMS/GPRS;
3. Arm/disarm by SMS or phone call.
4. Check the car's real physical address (such as city name, street name.);
5. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.
6. Check the location directly by the Google map's URL;
7. Data logger to store 8000 waypoints.
8. Smart engine ON/OFF detection;
9. Odometer function
10. Over-speed alarm;
11. Movement alarm which can be used as an alarm;
12. Engine on alarm;
13. Vibration alarm;
14. Power failure alarm, with internal rechargeable backup battery;
15. Acceleration & deceleration(crash) alarm;
16. Turn-over alarm;
17. Trailer alarm;
18. Routine optimization when vehicle turns a corner;
19. OTA function(firmware upgraded on air);
20. Voltage range: 10V-60VDC, suitable for car or big truck.
21. Reliable design of framework with hardware watchdog.
22. Power save working mode.
23. Remote diagnostics function. Transmission of the CANBUS data via GPRS network:
(1) Vehicle's real-time data: battery's voltage, RPM, speed, TAP throttle opening, engine load, coolant temperature, fuel consumption, odometer, error code & times, acceleration times & deceleration times;
(2) Driver behavior data: ignition time, total driving time, total idling time, average engine hot-start time, average speed, history high speed, history RPM, total acceleration times & total deceleration times.
(1) Vehicle's real-time data: battery's voltage, RPM, speed, TAP throttle opening, engine load, coolant temperature, fuel consumption, odometer, error code & times, acceleration times & deceleration times;
(2) Driver behavior data: ignition time, total driving time, total idling time, average engine hot-start time, average speed, history high speed, history RPM, total acceleration times & total deceleration times.
Alarm Types
Vibration Alarm
In arming status, if the vehicle is vibrated, it will send out the alarm.
Power Failure Alarm
At any time, ff the car battery is cut off, it will send out the alarm.
Engine ON Alarm
In arming status, if the vehicle engine is ON, it will send out alarm SMS and call the preset phone.
Movement Alarm
In arming status, the movement alert is enabled automatically. Once the car moves away from the parking point for the preset distance, it will send out the alarm..
Over-speed Alarm
At any time, if the vehicle runs over the speed limitation, it will send out the alarm.
Turn Over Alarm
At any time, if the vehicle turns over more than 60 degree last 16 second, it will send out the alarm.
Acceleration & Deceleration (Crash) Alarm
At any time, if the vehicle speeds up suddenly or harsh brake, it will trigger the event alarm

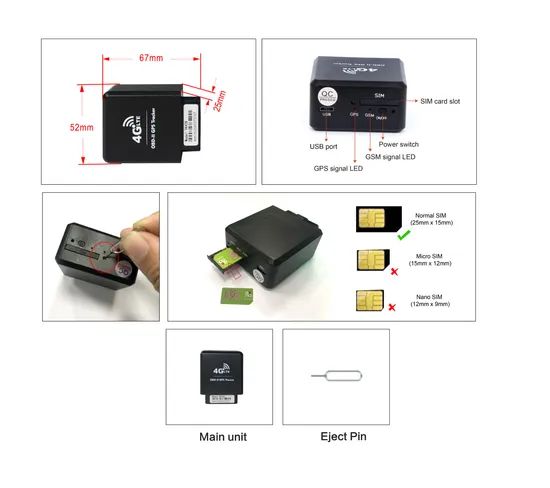

Installation
Our Office & Factory
Nice Memories with Our Friend
Topten always welcome your inquiry! Thank you~
: )
