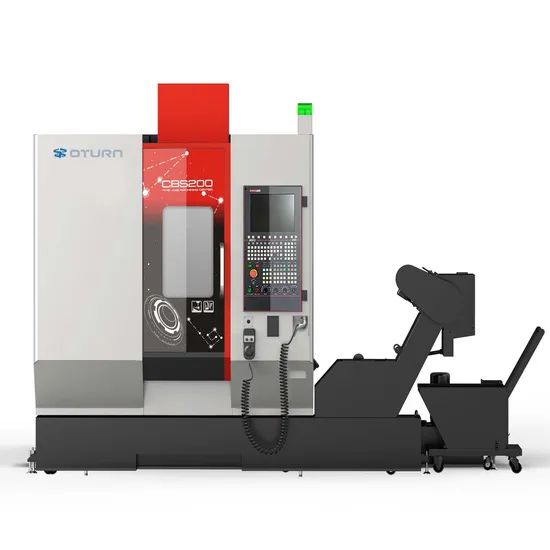

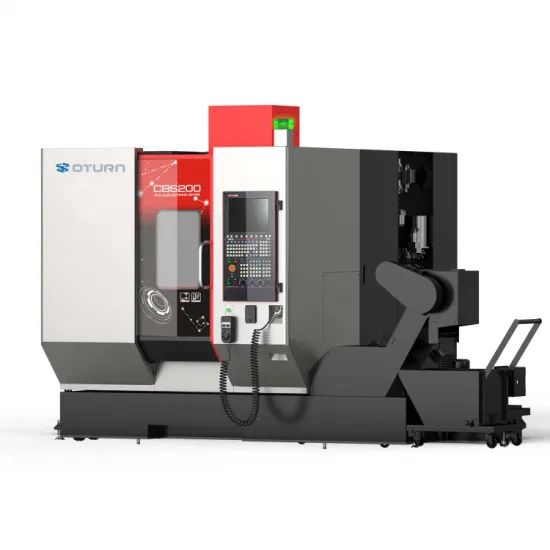

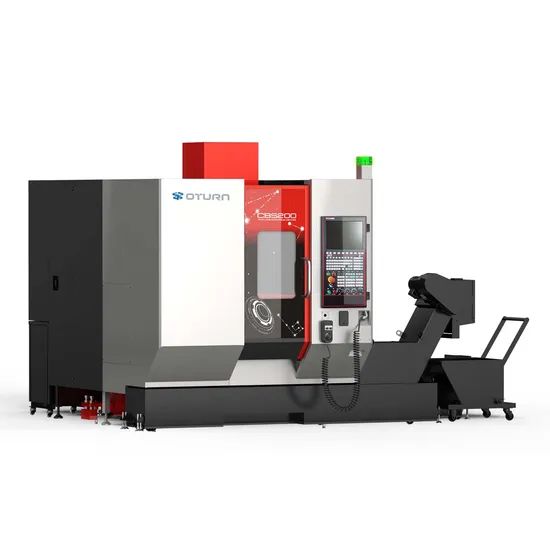

5-Axis Simultaneous CNC Milling Machine CBS200 Vertical 5 Axis CNC Machining Center

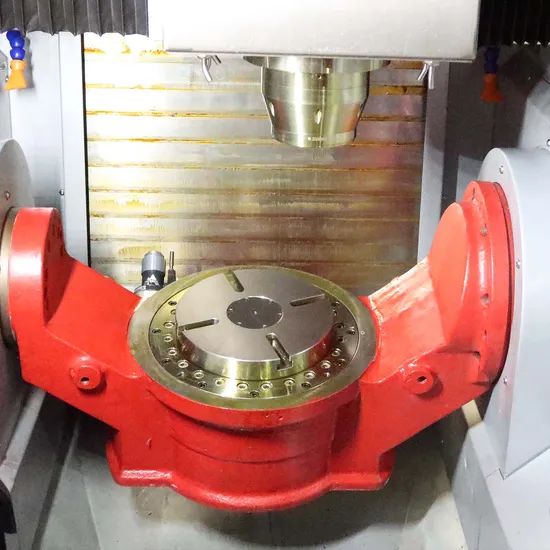

The high-speed precision five-axis bridgetypemachining center CBS200 developed has the characteristics of high rigidity, high precision and high efficiency processing. CBS series machine tools adopt a bridge structure layout, and the XYZ axis movement is not affected by the AC axis, which can maintain high-precision processing for a long time; the X/Y/Z/A/C axes are fully closed-loop control to ensure high-precision processing; the whole machine adopts finite element analysis Each component is designed to provide the best overall stable performance.
The three-axis rapid displacement is 48 M/min, the T-T tool change time is only 5 seconds, and the tool magazine is fully loaded for 24 hours without alarm. The running machine and the 3-dimensional inspection of each machine's trial processing sample ensure the high efficiency, continuous stability of the machine tool after leaving the factory. . It is suitable for various two- and three-dimensional concave and convex models with complex shapes that require 5-axis linkage for one-time processing. It is more suitable for both small and medium-sized batches of multi-variety processing and production, and can also be used in automatic lines for mass production.

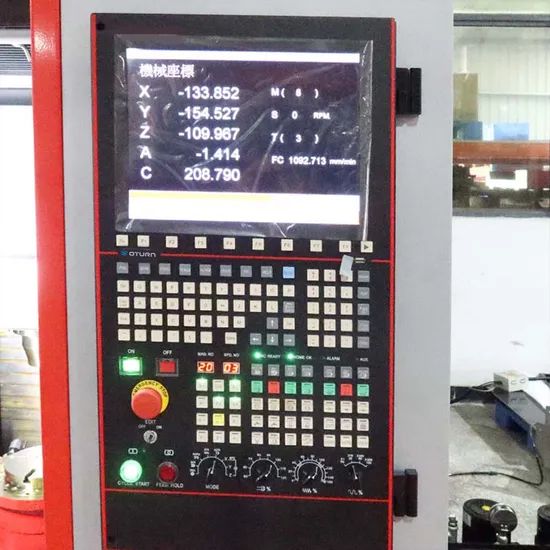

Adopting the latest C80 plus system, 15-inch large LCD screen, tool path dynamic graphic display, intelligent alarm display, self-diagnosis and other functions make the use and maintenance of the machine tool more convenient and faster; the high-speed bus communication method greatly improves the data of the CNC system Processing power and control performance, the program storage capacity is increased to 4G, and the pre-reading capability is increased to 3000 lines/second, making it easy to read data quickly and accurately. Efficient transfer and online processing of large-volume programs.



Q1:How can l choose the most suitable machines?
A: Please tell me your specifications, and we will help you select the best model, or you can choose the exact model yourself. Alternatively, you can send us the product drawings, and we will recommend the most suitable machines for your needs.

Q2: What are the main products of your company?
A: We specialize in all kinds of machines, such as CNC Lathe Machine , CNC Milling Machine, CNC Turning Machine, Vertical Machining Center, Horizontal Machining Center, Lathe Machines, Turning and milling composite processing so on.

Q3: Where is our factory located? How can l visit there?
A: We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong. You are warmly welcome to visit us.

Q4. How do you transport it?
A: Provide Transportation Solution DDP/CIF/FOB/FCA.

Q5: What are the Payment Terms?
A: T/T, 30% initial payment when ordering, 70% balance payment before shipment.

Q6:What's the OMQ?
A: 1 set. (Only some low cost machines will be more than 1 set )

We want to know:
1. We strongly suggest you tell us the size, and material of your workpiece for our evaluation, if possible, better to send us a workpiece drawing so that we can recommend you the most suitable model.
2. If need a CIF Price, please kindly tell us the port of destination.
