5 Inch 800X480 LCD Screen TFT Module with HDMI Driver Board for Raspebrry Pi

5 inch 800x480 LCD Screen TFT Module with HDMI Driver Board for Raspebrry PI



Product Specification:

• 5"standard display, 800x480 resolution,maximum HDMI resolution 1920X1080 is supported
• Capacitive touch screen, support 5 point touch maximum
• Built-in OSD menu adjustment function (adjustable Contrast/ Brightness/Saturation, etc.)

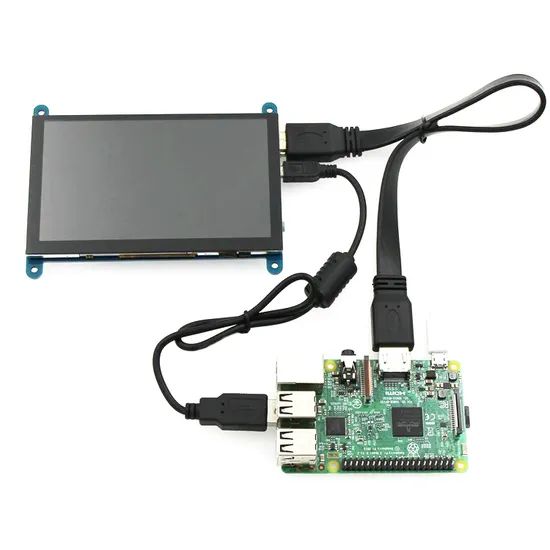

• It is compatible with mainstream mini PC such as Raspberry Pi, BB Black, Banana Pi
• It can also be used as a general-purpose HDMI display, connecting computers, TV boxes, Microsoft Xbox360 and so on

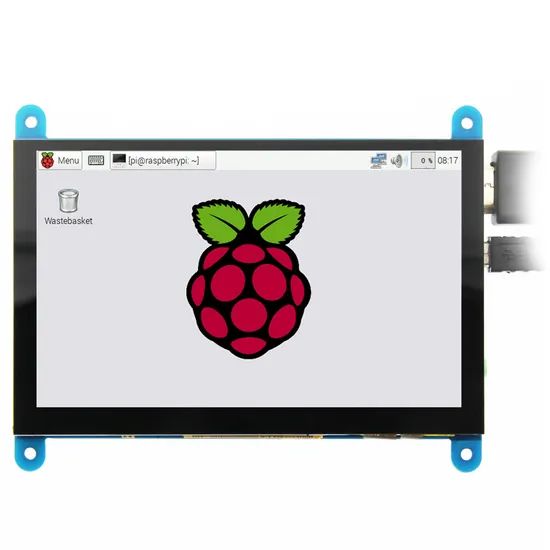

• Used as a Raspberry Pi display that supports Raspbian, Ubuntu, Kodi, Win10 IOT, single-touch, free drive
• Work as a PC monitor, support Win7, Win8, Win10 system 5 point touch (XP and older version system: single-point touch), free drive
• Support HDMI audio output
• CE, RoHS certification

Parameters:

• Size: 5.0 (inch)
• SKU: MPI5001
• Resolution: 800 × 480 (dots)
• Touch: 5 point capacitive touch
• Audio output: support

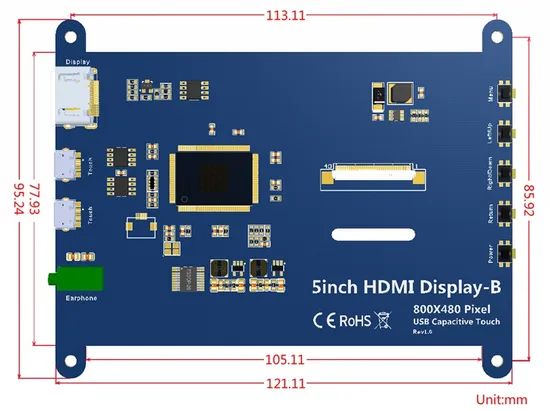

• Dimensions: 121.11*95.24 (mm)
• Package Size: 153*135*51 (mm)
• Rough Weight(Package containing): 259 (g)
• Power Dissipation: 0.30A*5V

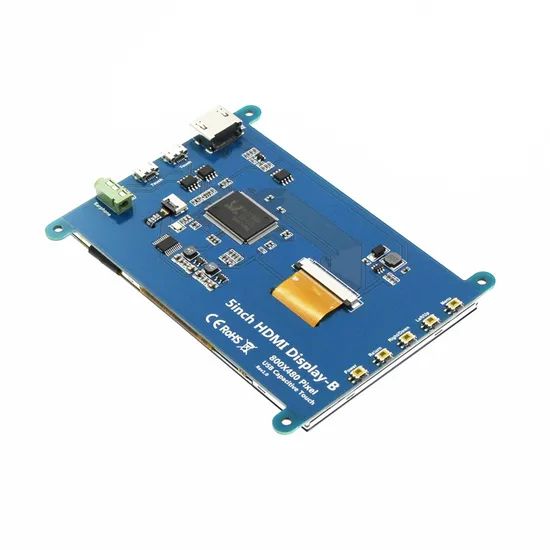

Hardware Description:



1) Earphone: 3.5mm Audio output interface
2) & 3) Touch: USB connector ( For power supply and touch output, the functions of the both are the same, can just use one of them)
4) Display: HDMI interface ( For connecting motherboard and LCD monitor)
5) Power: Turn on or off display and backlight to save power consumption
6) Return: Return (Only valid in the OSD Settings menu)
7) Right/Down: Direction Right/Down (Backlight shortcut key)
8) Left/Up: Direction Left/Up (Backlight shortcut key)
9) Menu: Open the OSD / Select key (Only valid in the OSD Settings menu)
