5-Inch Liquid Crystal Display for Industrial Heater Safety Monitors LCD Module
2 Piece
$112 Piece
$12.18Product information
High-quality 5-Inch Liquid Crystal Display for Industrial Heater Safety Monitors LCD Module supplied by Shenzhen Hzy Photoelectric Technology Co., Ltd.. Bulk wholesale pricing ranges from $11 to $12.18 per Piece with a minimum order of 2 Piece. Inquiry for latest prices.
Operating Temp:
-20~70 ℃
Storage Temp:
-30~80 ℃
Active Area:
108.0*64.8mm
Outline Size:
120.7*75.8*3.0mm
Production Capacity:
2000000PCS/Year
Response Time:
2ms
Driving Voltage:
3.3 V
Package Size:
40.00cm * 35.00cm * 25.00cm
Specifications
Operating Temp:
-20~70 ℃
Storage Temp:
-30~80 ℃
Active Area:
108.0*64.8mm
Outline Size:
120.7*75.8*3.0mm
Production Capacity:
2000000PCS/Year
Response Time:
2ms
Driving Voltage:
3.3 V
Package Size:
40.00cm * 35.00cm * 25.00cm
Package Gross Weight:
8.000kg
Resolution:
800*480
Optimum Resolution:
800*480
HS Code:
8524919090
Viewing Direction:
All
Transport Package:
Carton
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Specification:
Customized
Trade Term:
FOB, CIF, CFR, EXW
Model NO.:
HZ050YPBS01-A0
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Feature:
LED Backlight Display, With Remote Control
Backlight:
LED*18, White Color, Brightness 350CD/M2
3D:
Not 3D
Widescreen:
Not Widescreen
Interface Type:
RGB
Port Of Loading:
Shenzhen Port
Aspect Ratio:
Square Screen
Driver IC:
St7262
Payment Methods:
Support payments in USD
Type:
TFT
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port
Certificates:
Backlight ROHS, Certificate, COG module ROHS, credit certificate, High-tech Enterprise Certificate, IATF 16949, Innovative small and medium-sized enterprises, ISO14001, ISO9001, LCD ROHS, Patent Certificate, Specialized, Innovative, and High-Quality Small and Medium-sized Enterprise Certificate, TFT REACH, TFT ROHS, TOUCH PANEL, touch panel 2, TOUCH PANEL 3, WK certificate
Product descriptions from the supplier
SONA2024 2.2.1
4
Q:Products are in stock? How long can you deliver?
A: Our product is mainly customized. Drawing finished within 3 days; samples finished within 2 weeks. Large batch delivery takes 5-6 weeks.
Product Description
Product features
1,The full name of TFT is Thin Film Transistor. Each pixel on TFT display is driven by a thin film transistor, The TFT display is a type of active matrix liquid crystal display device.
2, TFT display module is composed of a TFT LCD panel, driver IC, FPC and backlight unit.
3, The luminance of display module could be customized as per your requirements.
4, Capacitive & Resistive touch panel/ Demo board is available for your option.
5, It's Standard and Ready-made TFT LCD Module.
6, We have professional and experienced team to make custom solution base on your design.
1,The full name of TFT is Thin Film Transistor. Each pixel on TFT display is driven by a thin film transistor, The TFT display is a type of active matrix liquid crystal display device.
2, TFT display module is composed of a TFT LCD panel, driver IC, FPC and backlight unit.
3, The luminance of display module could be customized as per your requirements.
4, Capacitive & Resistive touch panel/ Demo board is available for your option.
5, It's Standard and Ready-made TFT LCD Module.
6, We have professional and experienced team to make custom solution base on your design.

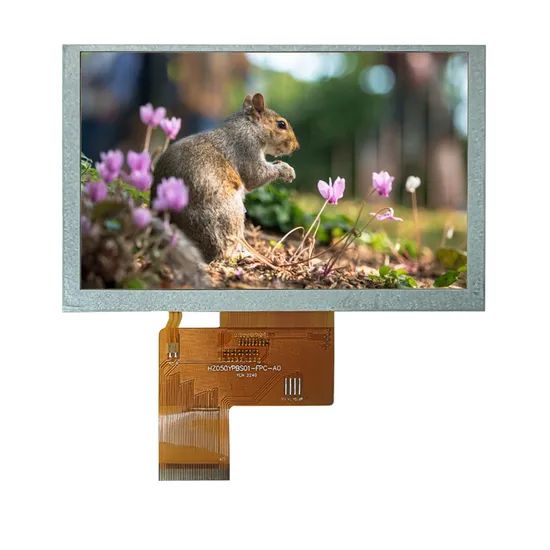

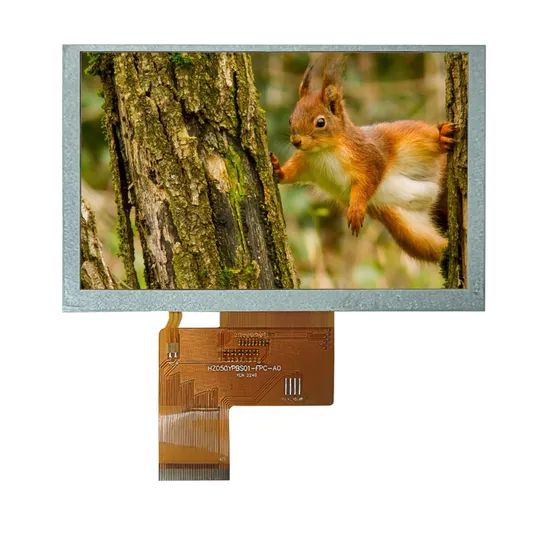

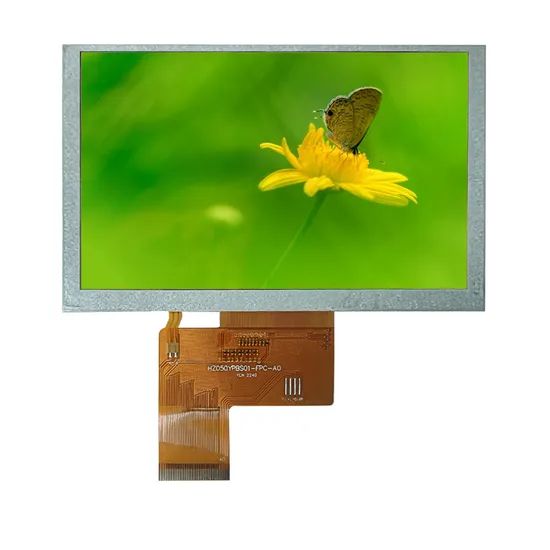

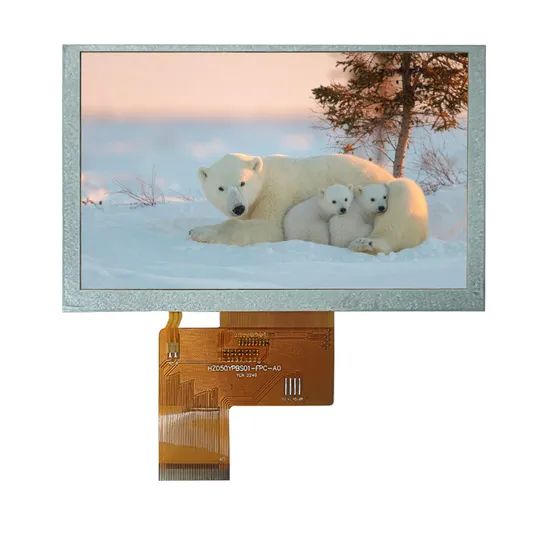

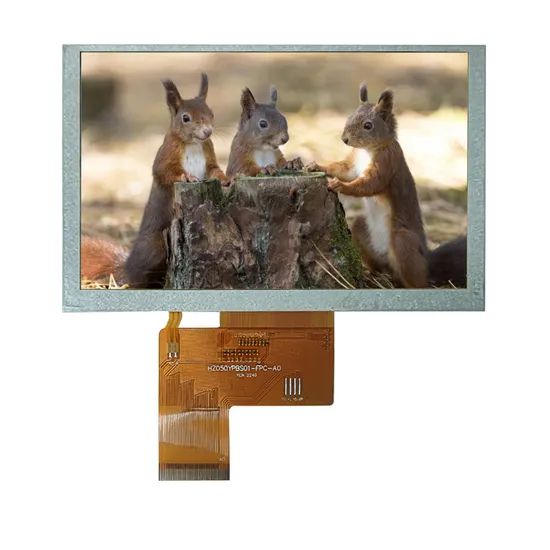

Description | 5.0 inch TFT LCD display |
Active Area | 108.0*64.8mm |
Outline Size | 120.7*75.8*3.0mm |
Resolution | 800*480 |
Controller | ST7262 |
Driving Voltage | 3.3V |
Viewing Direction | All |
Working Temperature | -20~70 ℃ |
Storage Temperature | -30~80 ℃ |
Interface | RGB |
Backlight | LED*18, White color, brightness 350cd/m2 |
Specification
Packaging & Shipping
Product Application
We can provide ODM/OEM service for worldwide customers, capable to provide customize solution based on customer's product application , like medical industry,communications industry,industrial equiment ,smart home appliance industry,communication hand-held device,smart meters measuring devices,automotive products etc.
You may also like
Company Profile

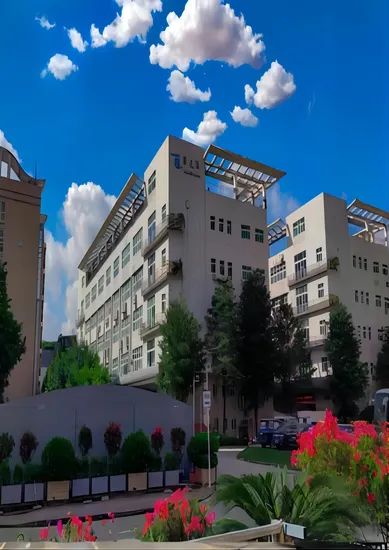

SHENZHEN HZY PHOTOELECTRIC TECHNOLOGY CO.,LTD.
Shenzhen HZY Photoelectric Technology Co.,Ltd, established in 2011, is a new high-tech enterprise, specializes in designing, manufacturing and marketing on LCD display field.
There are emplyees of 350 people and professional R&D team. Our factory has advanced production facilities to produce TN/STN/VATN displays and three assembly lines for COG,COB and TFT modules, with capacity of 600K units of modules per month and 2KK units of backlight per month. Over last 10 years we have been leaders in the designing and manufacturing of display products. Our products are widely used in medical instruments, smart home application, consumer electronic, industrial control
instruments , automotive and so on. Our customers are mainly concentrated in Europe,
South-America area, Southeast Asia, Korea.
Taking product quality as the lifeline of the company, our company has established a scientific and rigorous quality management system, and has successively passed ISO9001, IATF16949, ISO14001 and other system certifications.
There are emplyees of 350 people and professional R&D team. Our factory has advanced production facilities to produce TN/STN/VATN displays and three assembly lines for COG,COB and TFT modules, with capacity of 600K units of modules per month and 2KK units of backlight per month. Over last 10 years we have been leaders in the designing and manufacturing of display products. Our products are widely used in medical instruments, smart home application, consumer electronic, industrial control
instruments , automotive and so on. Our customers are mainly concentrated in Europe,
South-America area, Southeast Asia, Korea.
Taking product quality as the lifeline of the company, our company has established a scientific and rigorous quality management system, and has successively passed ISO9001, IATF16949, ISO14001 and other system certifications.
Certifications
FAQ
1
Q:Can we customize product? What cost will be included?
A:The product can be customized, but lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight , Bezel and so on.
Q:Can we customize product? What cost will be included?
A:The product can be customized, but lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight , Bezel and so on.
2
Q: Payment Terms?
A:Paypal can be accepted for sample, but Credit Card and T/T paid in advance for mass production.
Q: Payment Terms?
A:Paypal can be accepted for sample, but Credit Card and T/T paid in advance for mass production.
3
Q: What is your delivery method?
A:EXW Shenzhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your forwarder.
Q: What is your delivery method?
A:EXW Shenzhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your forwarder.
4
Q:Products are in stock? How long can you deliver?
A: Our product is mainly customized. Drawing finished within 3 days; samples finished within 2 weeks. Large batch delivery takes 5-6 weeks.
5
Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product related information and test reports.
Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product related information and test reports.
6
Q: What is the minimum order quantity?
A: All our products have MOQ requirement, please contact our salesman for detailed information.
7
Q: Are you open to OEM processing?
A: Yes, we can OEM.
Q: What is the minimum order quantity?
A: All our products have MOQ requirement, please contact our salesman for detailed information.
7
Q: Are you open to OEM processing?
A: Yes, we can OEM.
