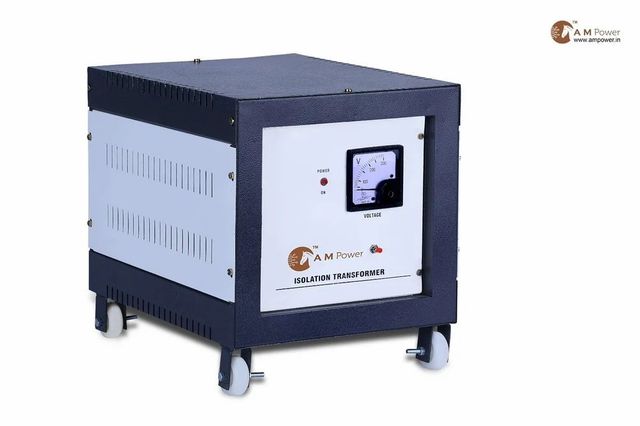

5 kVA 1 kVA Single Phase Isolation Transformer Power 1 kVA Voltage 230V Phase 1 Phase Brand A M Power Power Rating 5

Product Description

A M Power’s Isolation Transformers redefine safety in the electrical domain. These transformers, equipped with advanced features like multiple shielding techniques, serve as a robust defense against electrical disturbances, ensuring a secure environment for powered circuits and equipment.

How It Works

By creating isolation between the incoming power supply and the powered circuit, A M Power’s Isolation Transformers eliminate electrical noises, attenuate spikes, and provide comprehensive protection. The transformers act as silent sentinels, guarding against potential disruptions that could compromise the longevity of equipment.

Use Cases

In settings where electrical disturbances pose a threat, such as telecom setups, biomedical facilities, and color photography labs, A M Power’s Isolation Transformers excel. They are indispensable for securing equipment from the adverse effects of spikes and high-frequency power line noises.

“Protect your machinery from electrical disruptions – our Isolation Transformers shield against noise and surges.”

Features

• Neutral Conductor: 100%
• Frequency: 50 +/-3 Hz / 60 Hz on request
• Regulation: 2–4 % or as required
• Impedance: Max. 4 % or as required
• Input/Output Configuration (Single Phase): Line–Neutral / Earth
• Enclosure Protection Class: IP21 for Air Cooled
• Termination Type: Terminal Board / Stud – Bolts / Bus Bar
• Efficiency: Better than 97%
• Insulation Class / Level: F Class / 155°C & H Class / 180°C
• Winding: 99.9% pure Electrolytic grade Copper / Aluminum
• Coupling Capacitance: Better than 0.1 pf / other on request
• Common Mode Noise Attenuation: 80 – 100 dB / better on request
• High Voltage Breakdown Test: 2.5 KV for one minute between windings and Earth
• Galvanic Insulation: Better than 500 Mega-Ohms-DC Isolation @ 2500V
• Construction: Double wound, multiple shielding technique, varnish and vacuum impregnated
• Input/Output Configuration (Three Phase): Delta/Star (Dyn11 standard vector group/other on request)

Standard Features and Advantages

• Improved Safety: Isolation between the source and equipment ensures enhanced safety for both operators and equipment.
• Reduced Surges and Spikes: Special shielding techniques help reduce high-frequency noise, surges, and spikes.
• High Performance: Optimized for low eddy current loss and high harmonic current carrying capacity.
• Reduced Coupling Capacitance: Better isolation and prevention of interference caused by ground loops.
• Improved Power Quality: Reduces transmission of DC components and lowers leakage currents and output impedance.
• Quiet Operation: Designed for noise-free performance.

Optional Features / Accessories

• Analog / Digital Metering: For monitoring input and output voltages.
• Output On Indication: LED/Lamps for output status.
• Digital Earth Leakage Meter: For sophisticated machines and instruments.
• Input Circuit Breaker: For safety and protection.
• Multiple Tapping at Input and Output: For flexibility and customization.
