500 Liter Water Spray Autoclave Sterilizer DN800X1000
Piece
Negotiable
Product information
High-quality 500 Liter Water Spray Autoclave Sterilizer DN800X1000 supplied by Wenzhou Ranking Imp. & Exp. Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Max Working Pressure:
0.35MPa
Voltage:
220V
Production Capacity:
500 Sets Per Season
HS Code:
8419899090
Sterilzation Control:
Automatic Control
Origin:
China
Specification:
DN400~DN1500
Model NO.:
DN800x1000
Specifications
Max Working Pressure:
0.35MPa
Voltage:
220V
Production Capacity:
500 Sets Per Season
HS Code:
8419899090
Sterilzation Control:
Automatic Control
Origin:
China
Specification:
DN400~DN1500
Model NO.:
DN800x1000
Autoclave Diameter:
Dn400~Dn1500
Trade Term:
FOB, CIF, CFR, EXW
Sterilization Pot Body Length:
L=500~6000mm
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Port Of Loading:
Ningbo Port, Shanghai Port
Transport Package:
Nylon
Sterilization Tank Material:
Ss304
Process:
Sterilizing
Sterilizing Tank Thickness:
δ=6
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-02-04
Annual Revenue Amount:
Not specified
Numbers Of Employees:
8
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port, Shanghai Port
Certificates:
Our Business License
Product descriptions from the supplier
small scale autoclave sterilizer DN800x1000 DN900x1500
(PLC control autoclave and manual control autoclave)
small scale autoclave sterilizer
ater spray sterilizer retort (autoclave steam spray type PLC control)
automatic control advanced double vessel edition
Section 1 Product introduction
Spray autoclave model DN900x1500 features a 0.9-meter diameter and 1.5-meter cylindrical body. Constructed from SS304 stainless steel. It includes a sterilization compartment positioned beneath a hot water reservoir. Both the sterilization chamber and the hot water tank are wrapped in premium thermal insulation capable of withstanding up to 137°C. Temperature regulation is managed via a PLC control system. Equipped with a Siemens touch panel interface. Changes in temperature and pressure are logged onto an SD card or a USB drive. Data can be printed at any time. Additionally, recorded values can be plotted as graphs on a personal computer.
Section 2 standard and regulation adopted
1. Spray autoclave Fabrication, inspection and testing and acceptance
Pressure vessels Standard GB-150-2011
pressure vessels safety and technical supervision regulation
Section 3 General description
Water spray type autoclave sterilizer / retort autoclave PLC control specification
Section 6 Electrical list
please send emial to our online service team to get the full specification of the water spray type sterilizer autoclave.
Water-steam spray type autoclave sterilizer / retort autoclave picture
water spray type autoclave sterilizer / retort autoclave accessories
1. Safety valve
2. Safety lock
3. Steam inlet valve, steam outlet valve
4. Water inlet valve, water outlet valve
5. Water circulation pump
6. All related pipes and fittings
7. PLC Control panel
8. Sterilizer baskets and trolley.
autoclave sterilizer baskets for sterilization
autoclave sterilizer price
every autoclave sterilizer we offer—whether it's a spray model or a rotary design, double vessel or single vessel—is constructed entirely from stainless steel. due to fluctuations in stainless steel market rates, the cost of our autoclaves may vary. the prices displayed on this page or our site might not reflect the current pricing for your specific unit. for accurate and up-to-date quotes, please reach out to our online support team. Thank you.
(PLC control autoclave and manual control autoclave)
small scale autoclave sterilizer
ater spray sterilizer retort (autoclave steam spray type PLC control)
automatic control advanced double vessel edition
Section 1 Product introduction
Spray autoclave model DN900x1500 features a 0.9-meter diameter and 1.5-meter cylindrical body. Constructed from SS304 stainless steel. It includes a sterilization compartment positioned beneath a hot water reservoir. Both the sterilization chamber and the hot water tank are wrapped in premium thermal insulation capable of withstanding up to 137°C. Temperature regulation is managed via a PLC control system. Equipped with a Siemens touch panel interface. Changes in temperature and pressure are logged onto an SD card or a USB drive. Data can be printed at any time. Additionally, recorded values can be plotted as graphs on a personal computer.
Section 2 standard and regulation adopted
1. Spray autoclave Fabrication, inspection and testing and acceptance
Pressure vessels Standard GB-150-2011
pressure vessels safety and technical supervision regulation
2. Welding specification for Rotary Autoclave
NB/T 47015-2011 (JB/T 4709)
3. Nondestructive testing of pressure equipment
NBT 47013.3-2015
Section 3 General description
1. Spray autoclave DN900x1500 double vessel edition mainly made of SS304.
2. A dual-vessel design features the lower unit as a sterilization chamber and the upper one as a hot water holding tank. Once sterilized, the hot water (ranging from 121 to 135°C) is transferred to the upper vessel for brief retention. Afterward, the user removes the processed items and introduces fresh products for sterilization. The stored hot water from the upper vessel is then circulated back into the lower chamber. This cycle shortens the sterilization duration and cuts down on water usage. At the close of daily operations, the remaining water can be utilized to sanitize additional machinery.
Tips:
1. Double vessle autoclave and single vessle autoclave are all available
2. Electric heating autoclave and steam heating autoclave sterilizer are all available
3. PLC control type autoclave and manual control type sterilizer autoclave are all available
Tips:
1. Double vessle autoclave and single vessle autoclave are all available
2. Electric heating autoclave and steam heating autoclave sterilizer are all available
3. PLC control type autoclave and manual control type sterilizer autoclave are all available
3. Steam and hot water serve as the heat source to maintain sterilization temperatures within the 50 to 135°C range. The temperature progression is displayed in real time on the control interface, and historical temperature data is stored on an SD card.
4. The sterilization vessel's pressure is dynamically regulated. During the final stage of a batch, when hot water is drained, without pressure balancing, a vacuum forms inside the pot, potentially damaging the processed material. A pressure balancing feature has been built directly into the control system
5. You can install many different program for different product
6. A safety mechanism was fitted to the gear-operated door to ensure operational safety. The door cannot be opened if the sterilization vessel is under pressure.
7. Water enters the sterilization vessel from its base and is distributed as a spray from the upper portion of the pot.8. Hot water is directed onto the sterilization trays via the top, left, and right openings of the autoclave.
9. English edition control system.
10. Operator can shift between "manual" and "automatic" by a click on touch screen
11. Carts and baskets are all offered and are all made of stainless steel
Water spray type autoclave sterilizer / retort autoclave PLC control specification
Section 6 Electrical list
| S.N. | Item | Description | QTY | Tips |
| 1 | PLC | SR40 or equivalent model | 1 Nos | Siemens |
| 2 | Analog Expansion Modules | EM DR08 | 1 Nos | Siemens |
| 3 | Switch quantity extension module | EM AE04 | 2 Nos | Siemens |
| 4 | Touch panel | Smart 10" | 1 Nos | Siemens |
| 5 | Paperless recorder | AX102 | 1 Nos | Yokogawa (Japan) |
| 6 | MPI cable | 1 Nos | Siemens | |
| 7 | ..... | |||
| 8 | ||||
| 9 | ||||
| 10 | ||||
| 11 | ||||
| 12 |

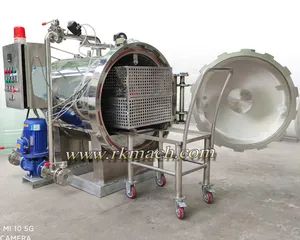

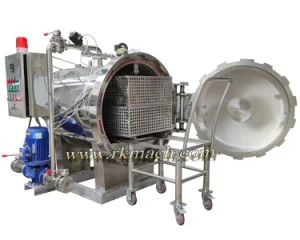

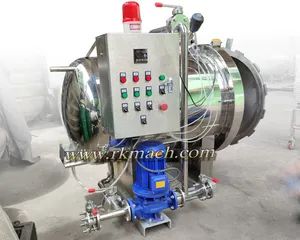

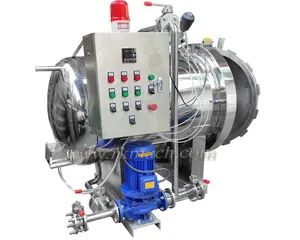

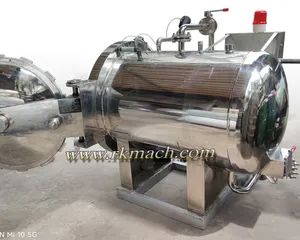

Water-steam spray type autoclave sterilizer / retort autoclave picture
water spray type autoclave sterilizer / retort autoclave accessories
1. Safety valve
2. Safety lock
3. Steam inlet valve, steam outlet valve
4. Water inlet valve, water outlet valve
5. Water circulation pump
6. All related pipes and fittings
7. PLC Control panel
8. Sterilizer baskets and trolley.
autoclave sterilizer baskets for sterilization
autoclave sterilizer price
every autoclave sterilizer we offer—whether it's a spray model or a rotary design, double vessel or single vessel—is constructed entirely from stainless steel. due to fluctuations in stainless steel market rates, the cost of our autoclaves may vary. the prices displayed on this page or our site might not reflect the current pricing for your specific unit. for accurate and up-to-date quotes, please reach out to our online support team. Thank you.
