500 Square Meter Cold Storage Refrigerator, Cold Room Refrigerator
1 Piece
$201 Piece
$20,000Product information
High-quality 500 Square Meter Cold Storage Refrigerator, Cold Room Refrigerator supplied by Changzhou Yang Chuan Precision Machinery Co., Ltd.. Bulk wholesale pricing ranges from $20 to $20,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Model NO.:
001
Warranty:
3-5 Years
Package Gross Weight:
3000.000kg
HS Code:
3921139000
Production Capacity:
5000
Panel Thickness:
50mm, 75mm, 100mm, 120mm, 150mm, 200mm
Package Size:
600.00cm * 500.00cm * 400.00cm
Structure:
Assembled
Specifications
Model NO.:
001
Warranty:
3-5 Years
Package Gross Weight:
3000.000kg
HS Code:
3921139000
Production Capacity:
5000
Panel Thickness:
50mm, 75mm, 100mm, 120mm, 150mm, 200mm
Package Size:
600.00cm * 500.00cm * 400.00cm
Structure:
Assembled
Fire Rating:
B1
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Surface Material:
Colored Steel, 304 S.S Sheet.Aluminum Sheet
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR
Suitable For:
Factory
Condensing Unit:
Famous Brand
Usage:
Food, Blood, Medicine
Refrigerant:
Freon
Certification:
ISO, CE
Origin:
Jiangsu
Payment Term:
LC, T/T
Size:
Large
Condition:
New
Use Nature:
Production
Specification:
SS/ PPGL/Al
Port Of Loading:
Shanghai Port
Payment Methods:
Support payments in USD
Transport Package:
Wooden Case
Trademark:
YangChuan
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-06-06
Annual Revenue Amount:
Not specified
Numbers Of Employees:
9
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shanghai Port
Certificates:
Others
Product descriptions from the supplier
Product Explanation
Low-temperature quick-freezing is the key to long-term high-quality preservation of food. Rapid cooling can make food quickly pass through the ice crystal formation zone, prevent the formation of large ice crystals in food cells, avoid damage to the cell wall, and perfectly maintain the original quality and taste of the food. The temperature of the quick-freezer is generally -15 ° C ~ -35° C. It is mainly used for low temperature and rapid freezing of food, medicine, medicine, and other items. Cooling down quickly and the preservation effect is good.
We need to know this information!
|
1: What's the dimension of cold room: Length×Width×Height by Meter
|
||||
|
2: What kind of goods will load inside? What's the indoor temperature?
|
||||
|
3: What's the industry voltage?
|

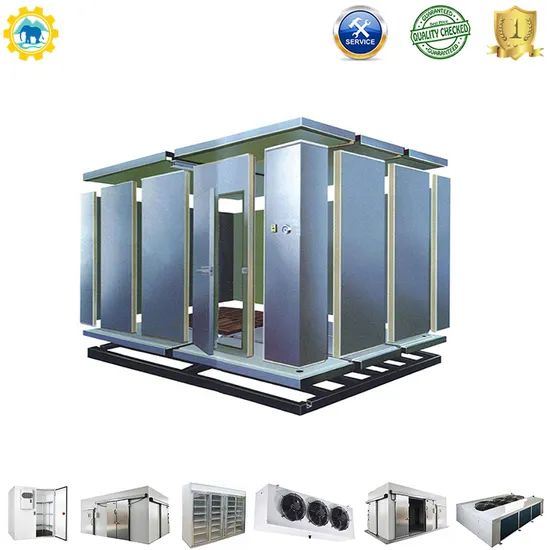

1. Cold Room Panels For Cold Room
Good waterproof performancePolyurethane cold storage board with moisture and water resistance. The rigid polyurethane has a closed-cell ratio of more than 90% and is a hydrophobic material. It does not increase the thermal conductivity due to moisture absorption, and the wall surface will also seep.
Good sound insulationThe porosity of the polyurethane material is stable and basically closed-cell structure, which not only has excellent heat preservation performance but also has resistance to freezing and thawing and sound absorption.
Strong resistance to deformationStrong resistance to deformation, not easy to crack, stable and safe finish.
Fire retardant and high-temperature resistantPolyurethane is a flame-retardant self-extinguishing material after adding flame retardant. Its softening point can reach above 250 °C, and it will only decompose at higher temperatures.
|
Product Name
|
PU sandwich panel |
|
Surface Material
|
color steel(PPGI), stainless steel, aluminum |
|
Core material
|
Polyurethane foam |
|
PU density
|
45±2KG/m3 |
|
Fire grade
|
B2 |
|
Width
|
standard width 1000mm, maximum 1050mm |
|
Length
|
Customized, maximum 11980mm |
|
Thickness
|
50/75/100/150/200mm |
|
Panels thickness (mm)
|
Temperature gap between internal-external environment
|
Height of wall panel (max)
|
Roof length (max)
|
|
mm
|
ºC
|
m
|
m
|
|
50
|
30
|
3.5
|
2.4
|
|
75
|
40
|
4.5
|
3.8
|
|
100
|
50
|
5
|
4.5
|
|
120
|
60
|
5.5
|
6
|
|
150
|
70
|
6
|
6.5
|
|
200
|
90
|
7
|
7.6
|
|
If there is a pressure gap between the internal-external environment without wind load, over-length or wind-load need to set steel wall beam.
|
|||
|
Tips: the data above is figured out according to 8-10 W / heat flux.
|
|||
2. Condensing Unit For Cold Room
Unit Cold Room Condensing Condenser Unit Evaporator Equipment For Cold Room
Yangchuan Condensing unit is the optimized combination of efficiency, reliability, easy installation, and sound performance. It is optimized designed and manufactured to reduce installation and maintenance costs, more efficient while making your production even more efficient and less noise impact for the neighborhood.
3.Evaporators For Cold Room
|
Dimension
|
Length(m)×Width(m)×Height(m) / FT |
|||
|
Refrigeration unit/Condsenor unit
|
Famous Brand etc |
|||
|
Refrigeration type/Air cooler/Evaporator
|
Air-cooled/water-cooled/evaporation cooled |
|||
|
Refrigeration
|
R22,R404A,R407C,R507a Refrigerant |
|||
|
Defrost Type
|
Electric defrosting |
|||
|
Voltage
|
220V/50Hz,220V/60Hz,380V/50Hz,380V/60Hz,440V/60Hz optional |
|||
|
PU Panel
|
New material polyurethane insulation panel,45 kg/m³ |
|||
|
Panel thickness
|
50mm,75mm,100mm,150mm,200mm |
|||
|
Type of door
|
Hanged door, sliding door,double swing electric sliding door,truck door |
|||
|
Temp of room
|
-60°C~+20°C optional/Customization |
|||
|
Fittings
|
All necessary fittings are included,optional |
|||
|
Place to assemble
|
Indoor/out door(concrete construction building/steel construction bullding |
|||
Projects for ref
FAQ
1.Can you customize the cold storage room dimension and temperature ?
Yes, we can customize the cold room dimension and temperature according to your requirements.
Any size will do, if you have no idea, please tell me the total amount of your cargo, our engineer can design it for you.
2.Can you offer refrigeration equipment?
Yes, we can offer a panel insulation system and an equipment refrigeration system.
Yes, we can offer a panel insulation system and an equipment refrigeration system.
3.What brand compressor can you offer?
Normally with original Bizter and Copeland compressor. Famous in the world.
4.How about the delivery time?
For panels, our delivery time is around 7~15 days. For equipment, our delivery time is around 25 workdays.
Time will be shorter is you are in a hurry.
