500liter Jacketed Mixer Jam Cooking Kettle Jelly Cooking Kettle 500L Cooking Kettle
1 Piece
$2,0001 Piece
$3,500Product information
High-quality 500liter Jacketed Mixer Jam Cooking Kettle Jelly Cooking Kettle 500L Cooking Kettle supplied by Wenzhou Ranking Imp. & Exp. Co., Ltd.. Bulk wholesale pricing ranges from $2,000 to $3,500 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Capacity:
100-600 Liters
Specification:
100L to 600Liter
Mixing Speed:
32rpm or VFD Controll
Production Capacity:
50000PCS/Year
HS Code:
84798200
Automatic Grade:
Automatic
Certification:
CE, ISO9001
Origin:
China
Specifications
Capacity:
100-600 Liters
Specification:
100L to 600Liter
Mixing Speed:
32rpm or VFD Controll
Production Capacity:
50000PCS/Year
HS Code:
84798200
Automatic Grade:
Automatic
Certification:
CE, ISO9001
Origin:
China
Power Source:
Electric
Trade Term:
FOB, CIF, CFR, EXW
Model NO.:
K-SM
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Thermal Insulation:
Made by PU Foam
Application:
Milk, Yogurt, Cheese
Port Of Loading:
Ningbo Port, Shanghai Port
Customized:
Non-Customized
Wet Material:
SS304 / SS316
Heating By:
Steam, Hot Water, Electric, Thermal Oil
Process:
Thermal Processing
Transport Package:
Wooden Packing
Trademark:
ranking
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-02-04
Annual Revenue Amount:
Not specified
Numbers Of Employees:
8
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port, Shanghai Port
Certificates:
Our Business License
Product descriptions from the supplier

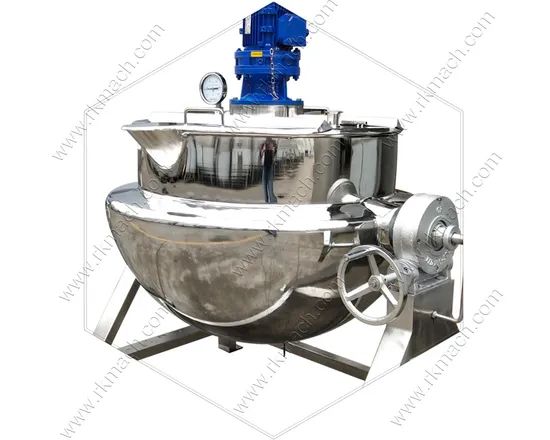

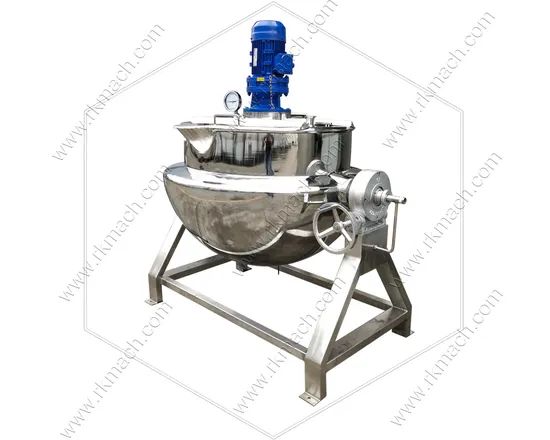

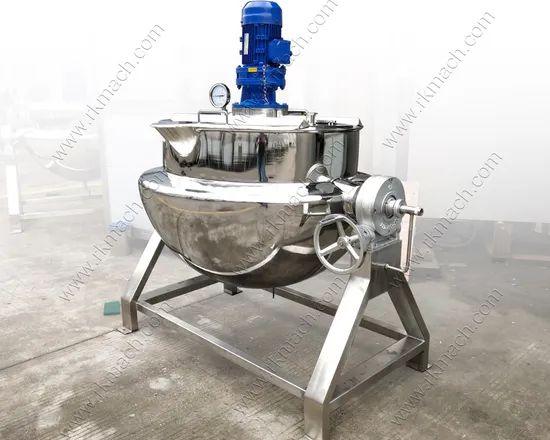

100~500Liter cooking kettle / jacket kettle / jackteded kettle
for jam and jelly heating and mixing
Stainless steel jacketed kettles serve primarily as supply vessels, cooking units, or pre-heating chambers. They can be heated using steam, electricity, or LGP gas.
AGITATED & NON-AGITATED jcaketed kettle cooker
Stainless steel jacketed kettles are available in either double-wall or triple-wall designs. Double-wall models lack thermal insulation between layers, whereas triple-wall kettles include a PU insulation layer measuring at least 2 inches thick.
Stainless steel jacketed cookers come in both stirred and static versions. The type of stirrer you select depends on what you're preparing. For instance, if you're making eggs or boiling tomatoes, a stirring blade offers no benefit. However, when preparing tomato paste or candy, a robust stirrer equipped with a scraping edge is essential.
Here is a picture of our heavy duty agitator and scrapers on the mixer.

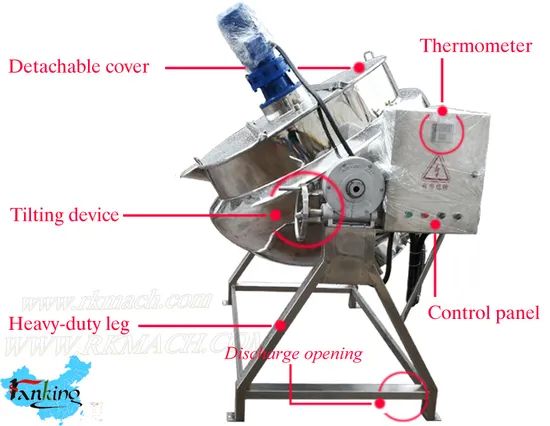

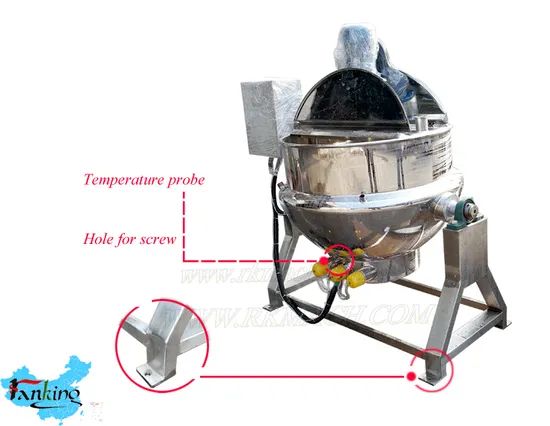

Jacketed cooker jacketed kettle structure available

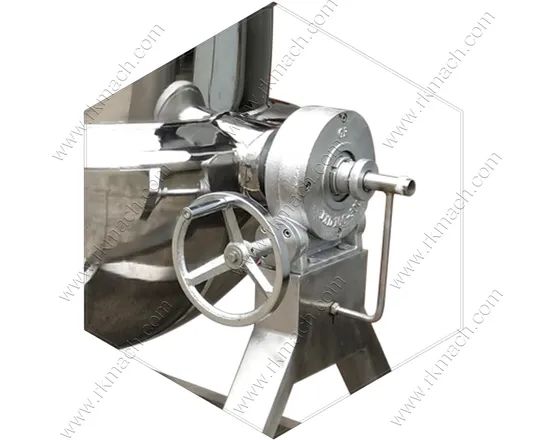

For both of the agitated and non-agitated jacketed kettle, we have vertical and tilting type kettles in production. We have a large variety of stainless steel jacketed kettles for food, cosmetic, pharmaceutical, and chemical processing. Our stainless steel cooling kettles for manufacturing include jacketed kettles, vacuum kettles, high pressure kettles, steam kettles, and with explosion-proof motors. Kettles without agitation are available as well as scrape surface agitated kettles (single motion and double motion agitation), propeller agitated kettles, high speed homogenizing kettles, and hemispherical kettles. Tilting kettles and bottom discharge kettles as well as steam cooking kettles (electric and gas fired kettles) are available. Our inventory includes in all sizes including 150 gallon, 200 gallon, 500 gallon and 1,000 gallon and both larger and smaller.
jacketed kettler application
Stainless steel jacketed kettles are widely used for food, cosmetic, pharmaceutical, and chemical processing.
Cooking kettle customer case
200L oil jacketed kettle 1 Quantity (Piece). to process Tomato Paste to Tomato Sauce. CIF Kolkata Port or Haldia Port, West Bengal, India
200Liter electric heating kettle jacketed cooker specification
200L kettle Price:
Cooking kettle shipping costs and base materials fluctuate regularly, so the prices displayed might not reflect the final amount. Contact us to obtain the most current rate.
How to use the gas heating electric heating kettle :
this kettle can be used to the cooking of milk, juice, tea, cream as well as sauce.
also, it can be used to the cooling of different kind of candy.
About heating power
Certificate : ISO CE
Package: wooden case suitbale for sea transport
Delivery: 30 days since payment confirmed
Warrant: 12 months
Quotation valid: 30days
for jam and jelly heating and mixing
Stainless steel jacketed kettles serve primarily as supply vessels, cooking units, or pre-heating chambers. They can be heated using steam, electricity, or LGP gas.
AGITATED & NON-AGITATED jcaketed kettle cooker
Stainless steel jacketed kettles are available in either double-wall or triple-wall designs. Double-wall models lack thermal insulation between layers, whereas triple-wall kettles include a PU insulation layer measuring at least 2 inches thick.
Stainless steel jacketed cookers come in both stirred and static versions. The type of stirrer you select depends on what you're preparing. For instance, if you're making eggs or boiling tomatoes, a stirring blade offers no benefit. However, when preparing tomato paste or candy, a robust stirrer equipped with a scraping edge is essential.
Here is a picture of our heavy duty agitator and scrapers on the mixer.
Jacketed cooker jacketed kettle structure available
For both of the agitated and non-agitated jacketed kettle, we have vertical and tilting type kettles in production. We have a large variety of stainless steel jacketed kettles for food, cosmetic, pharmaceutical, and chemical processing. Our stainless steel cooling kettles for manufacturing include jacketed kettles, vacuum kettles, high pressure kettles, steam kettles, and with explosion-proof motors. Kettles without agitation are available as well as scrape surface agitated kettles (single motion and double motion agitation), propeller agitated kettles, high speed homogenizing kettles, and hemispherical kettles. Tilting kettles and bottom discharge kettles as well as steam cooking kettles (electric and gas fired kettles) are available. Our inventory includes in all sizes including 150 gallon, 200 gallon, 500 gallon and 1,000 gallon and both larger and smaller.
jacketed kettler application
Stainless steel jacketed kettles are widely used for food, cosmetic, pharmaceutical, and chemical processing.
Cooking kettle customer case
200L oil jacketed kettle 1 Quantity (Piece). to process Tomato Paste to Tomato Sauce. CIF Kolkata Port or Haldia Port, West Bengal, India
200Liter electric heating kettle jacketed cooker specification
| Model | DG-200 | ||
| kettle | diameter | Φ800mm | |
| Depth | 550mm | ||
| Capacity (L) | 234 (200L working capacity + 17% allowance) |
||
| MAX Mechanical tilt | 90ºC | ||
| Connection pipes | Oil inlet | 1" | |
| Oil discharge | 1" | ||
| Motor power | 1.1kw | ||
| Electric-heating power | 24KW/H | ||
| Heating type | resistance heating elements | ||
| Heat transfer area | 1.3 m2 | ||
|
65KG | ||
| Design temperature | 180ºC | ||
| MAX working temperature | 151ºC | ||
| Design pressure | 0.095Mpa | ||
| MAX pressure | 0.095 | ||
| size | L(mm) | 1300 | |
| W ( mm ) | 1200 | ||
| H(mm) | 1600 | ||
| Accessories |
|
||
| Unit Price | Unite price | Quantity |
| Electric heating type | 2,100usd | 1PCS |
| CIF Kolkata Port or Haldia Port, West Bengal, India: 2,100usd. | ||
How to use the gas heating electric heating kettle :
- Feed thermostatic oil intot he jacket.
- Preset a temperature in the control panel
- Turn on the heating button on the control panel
- Start the mixer (if need)
this kettle can be used to the cooking of milk, juice, tea, cream as well as sauce.
also, it can be used to the cooling of different kind of candy.
About heating power
- Total heating power 24KW <3pcs heating tubes, each 8kw>
- Two heating button, one for 16KW, one for 24KW, you can use them separately or together.
- When you turn on the two heating buttons at the same time, you can use 24KW heating power.
Certificate : ISO CE
Package: wooden case suitbale for sea transport
Delivery: 30 days since payment confirmed
Warrant: 12 months
Quotation valid: 30days
