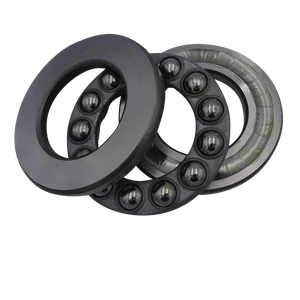

51132 Thrust Ball Bearings
1-99 sets
$10100 sets
$9.99Product information
High-quality 51132 Thrust Ball Bearings supplied by Jinan Shenglei Bearing Co., Ltd.. Bulk wholesale pricing ranges from $9.99 to $10 per sets with a minimum order of 1 sets. Inquiry for latest prices.
Package Size:
10.00cm * 10.00cm * 10.00cm
On Time Delivery Rate:
100.0%
Package Gross Weight:
2.000kg
Delivery Date:
4-9 Working Days
Main Markets:
All Over The World
Sample:
Availble
Origin:
China
Material:
Chrome Steel/Gcr15/Stainless Steel
Specifications
Package Size:
10.00cm * 10.00cm * 10.00cm
On Time Delivery Rate:
100.0%
Package Gross Weight:
2.000kg
Delivery Date:
4-9 Working Days
Main Markets:
All Over The World
Sample:
Availble
Origin:
China
Material:
Chrome Steel/Gcr15/Stainless Steel
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
EXW, CFR, CIF, DDP, Others, FOB
Feature:
Long Life Low Noise
Service:
OEM/ODM
Transport Package:
Plastic Bag+Single Box+Carton+Pallet
Port Of Loading:
Qingdao, Beijing, Shanghai
Cage:
Steel Cage.Copper Cage.Nylon Cage
Customizable:
Support
Payment Methods:
Support payments in USD
Payment Term:
T/T, LC, D/P, Western Union
Trademark:
ZYSL
Shipment:
by Sea,by Air,by Express
Specification:
high quality
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2011-06-27
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, LC, D/P, Western Union
Preferred Trade Term:
EXW, CFR, CIF, DDP, Others, FOB
Port Of Loading:
Qingdao, Beijing, Shanghai
Certificates:
EPR_Germany_Packing, GPSR, ZYSL
Product descriptions from the supplier
Product Description
51132 thrust ball bearings
A part of our procusts:
ZYSL 51132 thrust ball bearings
|
Product Name |
Thrust Ball Bearing |
|
Material |
stainless steel/chrome steel |
|
Standard |
DIN GB ISO JIS BA ANSI |
|
Used |
building industry machinery |
|
Cage material |
Nylon, steel, copper or your request etc. |
|
Feature |
Smooth, good quality, long life, resistance to wear, dependable,performance, high precision |
|
Row Number |
Single row |
|
Application |
Auto, tractor, machine tool, electric machine, water pump, agricultural machinery, textile machinery etc. |
|
Packing |
Ours or according to customer's requirements |
|
Payment Terms |
T/T or Western Union, 50% in advance, rest of 50% shall be finished before shipping, paypal,Offical Bank Account. |
|
OEM |
Technical drawing or samples needed |
|
Delivery Lead Time |
3~5 days after receiving your payment of goods |
Pictures show
Chrome steel cage
Copper cage
Introduction:
ZYSL thrust ball bearings are produced as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load.
ZYSL thrust ball bearings are separable, i.e. the shaft washer, housing washer(s), ball and cage assembly(s) can be mounted separately. Shaft washers have a ground bore to enable an interference fit. The bore of the housing washer is turned and always larger than the shaft washer bore.
ZYSL thrust ball bearings are separable, i.e. the shaft washer, housing washer(s), ball and cage assembly(s) can be mounted separately. Shaft washers have a ground bore to enable an interference fit. The bore of the housing washer is turned and always larger than the shaft washer bore.
Single direction thrust ball bearings
Single direction thrust ball bearing
ZYSL single direction thrust ball bearings consist of a shaft washer, a housing washer and a ball and cage assembly (fig 1). As their name implies, single direction thrust ball bearings can accommodate axial loads and locate a shaft axially, in one direction only.
Dimensions
The boundary dimensions of ZYSL thrust ball bearings with flat or sphered housing washers conform to DIN 711:1988 and DIN 715:1987. The dimensions of the bearings with flat housing washers conform to ISO 104:2002.
The values given for the height H1 for bearings with sphered housing washer(s) are valid only for ZYSL bearings with ZYSL washers.
Tolerances
ZYSL thrust ball bearings are made toNormaltolerances as standard. Some single direction bearings with flat housing washer are also available with increased accuracy to tolerance classP6or tolerance classP5specifications. Contact ZYSL for availability before ordering.
Normal, P6 and P5 tolerances are in accordance with ISO 199:1997.
Misalignment
Thrust ball bearings with flat housing washers cannot accommodate any misalignment between the shaft and housing or angular misalignment between the support surfaces in the housing and on the shaft.
The bearings with sphered housing washers are generally used with sphered seat washers and can compensate for initial misalignment between the support surfaces in the housing and on the shaft
Feature of Thrust roller bearings
1. Single direction, deep-groove thrust ball bearing for applications that support heavy axial loads
in one direction
2. Open bearing for lubrication applied in place
3. Through-hardened chromium steel for durability and resistance to deformity under heavy loads
4. Pressed sheet steel retainer evenly spaces rollers for reduced friction, vibration, and noise
5. Grooved raceways for higher speeds and thrust-bearing capacity than flat washers
Application of thrust roller bearing
• thrust roller bearing Spherical roller thrust bearing's load form a certain angle with the bearing
axis line, transfer from one raceway to another raceway. Spherical roller thrust bearings have
specially designed raceways and accommodate a large number of asymmetrical rollers. thrust roller
bearing, The rollers have an optimum conformity with the washer raceways to optimize load distribution
along the roller length. Therefore, they can accommodate relatively high speeds, heavy axial loads in
one direction and heavy radial loads. The load is transmitted between the raceways at an angle to the
bearing axis. Spherical roller thrust bearings are self-aligning and insensitive to static misalignment
of the shaft relative to the housing thrust roller bearing.
Drawing
Related models and specifications
| Designation ISO |
Designation GHOST |
Weight (kg) |
Dimension d×D×B |
| 51120/P6 | E8120 | 0.95 | 100*135*25 |
| 51120/P5 | D8120 | 0.95 | 100*135*25 |
| 51122/P6 | E8122 | 1.13 | 110*145*25 |
| 51122/P5 | D8122 | 1.13 | 110*145*25 |
| 51124/P6 | E8124 | 1.15 | 120*155*25 |
| 51124/P5 | D8124 | 1.15 | 120*155*25 |
| 51126/P6 | E8126K | 1.7 | 130*170*30 |
| 51126/P5 | D8126K | 1.7 | 130*170*30 |
| 51128/P6 | E8128 | 1.87 | 140*180*31 |
| 51128/P5 | D8128 | 1.87 | 140*180*31 |
| 51130M/P6 | E8130 | 2.3 | 150*190*31 |
| 51130M/P5 | D8130 | 2.3 | 150*190*31 |
| 51132M/P6 | E8132 | 2.46 | 160*200*31 |
| 51132M/P5 | D8132 | 2.46 | 160*200*31 |
| 51134M/P6 | E8134 | 3.1 | 170*215*34 |
| 51134M/P5 | D8134 | 3.1 | 170*215*34 |
| 51136M/P6 | E8136 | 3.23 | 180*225*34 |
| 51136M/P5 | D8136 | 3.23 | 180*225*34 |
| 51138M/P6 | E8138 | 4.2 | 190*240*37 |
| 51138M/P5 | D8138 | 4.2 | 190*240*37 |
| 51140M/P6 | E8140 | 4.2 | 200*250*37 |
| 51140M/P5 | D8140 | 4.2 | 200*250*37 |
| 51144/P6 | E8144 | 4.6 | 220*270*37 |
| 51144/P5 | D8144 | 4.6 | 220*270*37 |
| 51148/P6 | E8148 | 7.5 | 240*300*45 |
| 51148/P5 | D8148 | 7.5 | 240*300*45 |
| 51152/P6 | E8152 | 7.9 | 260*320*45 |
| 51152/P5 | D8152 | 7.9 | 260*320*45 |
| 51156/P6 | E8156 | 11.8 | 280*350*53 |
| 51156/P5 | D8156 | 11.8 | 280*350*53 |
| 51160 | 8160 | 17.9 | 300*380*62 |
| 51164 | 8164 | 18.7 | 320*400*63 |
| 51168 | 8168 | 20.6 | 340*420*64 |
| 51168/P6 | E8168 | 20.6 | 340*420*64 |
| 51168/P5 | D8168 | 20.6 | 340*420*64 |
| 51172 | 8172 | 23.9 | 360*440*65 |
| 51180 | 23 | 400×480×65 | |
| 51184 | 25.2 | 420×500×65 | |
| 511/530 | 57.1 | 530×640×85 | |
| 511/600 | 64.9 | 600×710×85 | |
| 511/670 | 105 | 670*800*105 |
