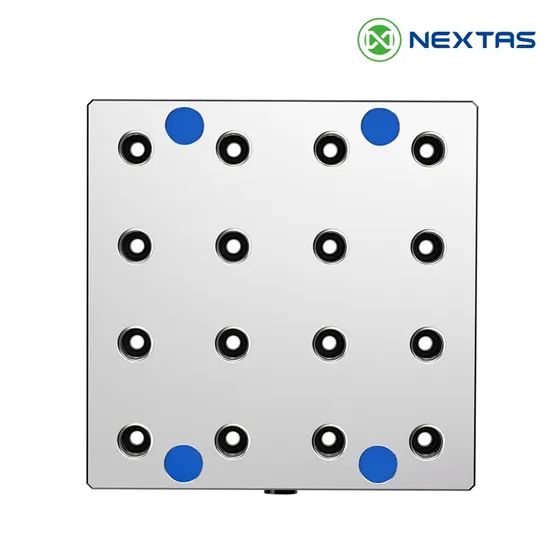

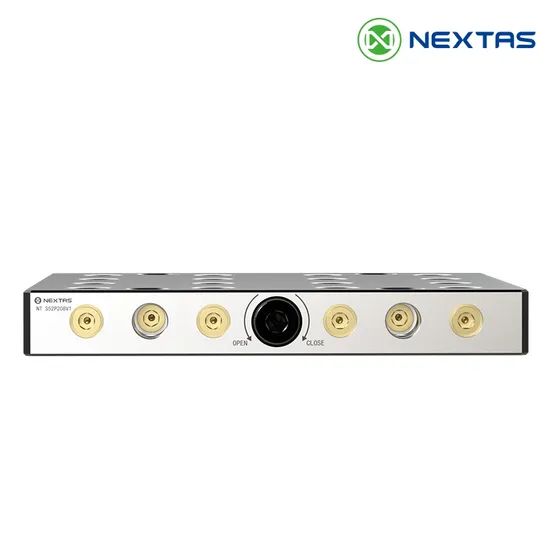

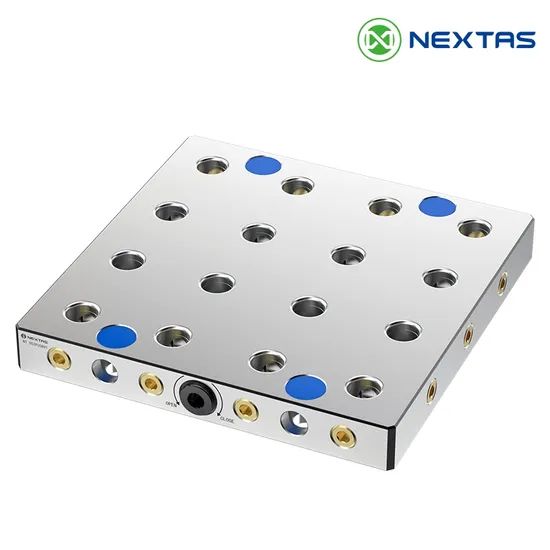

52mm Standard Base CNC Machine Center Accessories Size Middle Power Manual Origin Zhuhai Structure Solid Trademark
1-9 Piece
$94010-99 Piece
$920100 Piece
$900Product information
High-quality 52mm Standard Base CNC Machine Center Accessories Size Middle Power Manual Origin Zhuhai Structure Solid Trademark supplied by NEXTAS CO., LTD. Bulk wholesale pricing ranges from $900 to $940 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Package Gross Weight:
15.000kg
Specification:
208*208*27mm
Package Size:
50.00cm * 50.00cm * 15.00cm
Production Capacity:
5000
HS Code:
8479909090
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Transport Package:
EPE Foam & Packing Box & Wooden Box
Specifications
Package Gross Weight:
15.000kg
Specification:
208*208*27mm
Package Size:
50.00cm * 50.00cm * 15.00cm
Production Capacity:
5000
HS Code:
8479909090
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Transport Package:
EPE Foam & Packing Box & Wooden Box
Trade Term:
FOB, EXW
Certification:
ISO 9001:2008, ISO 9001:2000, CE, ISO 14001 ISO45001
Power:
Manual
Size:
Middle
Model NO.:
NT-S52P208V1
Trademark:
Nextas
Customized:
Non-Customized
Type:
Positioner & Fxiture
Structure:
Solid
Material:
Stainless Steel
Payment Methods:
Support payments in USD
Payment Term:
T/T, LC, PayPal, Western Union, Small-amount payment
Origin:
Zhuhai
Port Of Loading:
Zhuhai Port; Shenzhen Port
Shape:
with Anvil
Logo Printing:
with Logo Printing
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2009-03-06
Annual Revenue Amount:
Not specified
Numbers Of Employees:
366
Preferred Payment Term:
T/T, LC, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, EXW
Port Of Loading:
Zhuhai Port; Shenzhen Port
Certificates:
ISO45001:2018
Product descriptions from the supplier
SONA2024 2.2.1
Exceptional Rigidity and Stability:Precision-ground from high-grade materials, our plates provide a solid, stable base that absorbs vibration and withstands heavy cutting forces.
True Modularity:Available in various sizes and configurations (single, dual, quad-module) to fit any machine table and application, from small vises to large tombstone fixtures.
Plug-and-Play Implementation:Dramatically simplifies the adoption of a zero-point system. Simply bolt the plate to your machine's T-slots and connect the air supply to start saving setup time.
What are its common specifications?
Typical sizes like 125×125×27 mm, repeat positioning accuracy < 0.005 mm, pitch 52 or 96 mm, clamping force 20 KN.
How to install the plate?
Clean the mounting surface, use bolts to secure it to the machine table or fixture base, and tighten to the right torque.
Can it be used with different machine tools?
Yes, but check compatibility in terms of table size, mounting interface, and required accuracy first.
What to do if positioning accuracy drops?
Check for damage, clean, verify bolt tightness, inspect pneumatic parts, and contact the manufacturer if needed.
Are there different types and how to choose?
Available in various shapes, sizes, and features. Choose based on workpiece size, clamping needs, and machine compatibility.
Can it be customized?
Some manufacturers offer customization. Contact them with your needs to discuss possibilities, costs, and lead times.
How does it compare to automatic systems?
It's more affordable but slower for part changeovers than automatic systems. Choose based on production needs and budget.
Product Description
Core Advantage
Standardized Machine Interface:Instantly create a universal grid on your machine table, allowing any fixture or pallet to be mounted with perfect alignment every time.
Exceptional Rigidity and Stability:Precision-ground from high-grade materials, our plates provide a solid, stable base that absorbs vibration and withstands heavy cutting forces.
True Modularity:Available in various sizes and configurations (single, dual, quad-module) to fit any machine table and application, from small vises to large tombstone fixtures.
Plug-and-Play Implementation:Dramatically simplifies the adoption of a zero-point system. Simply bolt the plate to your machine's T-slots and connect the air supply to start saving setup time.
Work Principle
Work Benefit
The manual zero point plate positions workpieces via precision holes with 52mm/96mm spigot spacing. Manual operation clamps them securely. Its 0.005mm accuracy ensures stable, consistent positioning. Made of 53-58HRC hardened material, it maintains precision, enabling reliable workpiece fixing for machining, boosting efficiency and accuracy.
The manual zero point plate transforms industrial manufacturing by ensuring precise (0.005mm) workpiece positioning via standard 52mm/96mm holes. It cuts setup time, enhances machining accuracy, reduces costs with competitive pricing, and offers custom solutions plus solid after-sales support, elevating efficiency and quality.
Zero Point Plate Main Features:
1. Follows 52mm/96mm international spigot hole standards:Ensures perfect compatibility with global machinery, cutting setup time by avoiding adapter needs, and streamlining workflow across diverse equipment.
2. 0.005mm precision meets top global standards:Delivers exceptional accuracy for high-precision tasks, guaranteeing consistent part quality, critical for industries demanding tight tolerances.
3. 53-58HRC material hardness:Offers superior wear resistance and long lifespan, withstanding heavy, frequent use to reduce replacement and maintenance costs.
4. Competitive, affordable pricing:Combines high performance with cost-effectiveness, making advanced positioning accessible to businesses of all sizes without quality compromises.
5. Strong R&D team for customization:Tailors plates to specific needs like unique sizes or holes, providing personalized solutions beyond off-the-shelf options.
6. Excellent after-sales service:Includes installation help and troubleshooting, minimizing downtime and ensuring long-term user confidence in the investment.
Specification

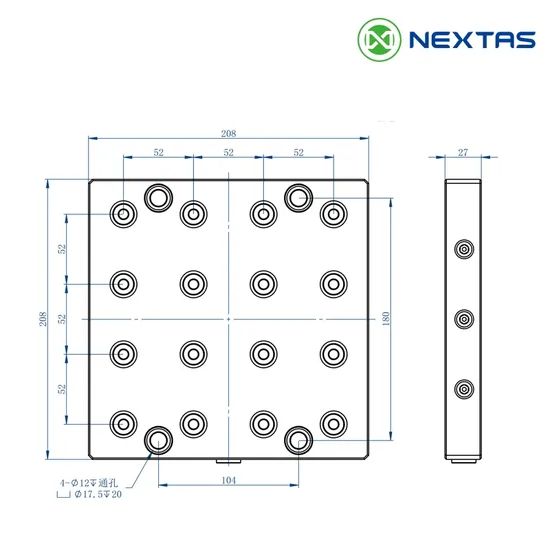

Model Number | Spigot Space | Dimensions | Repeatability Accuracy | Clamping Force | Material Hardness | Weight |
NT-S52P125V1 | 52mm | 125*125*27mm | 0.005mm | 20,000N | 53-58HRC | 2.8KG |
NT-S52P125V2 | 52mm | ∅125*27mm | 0.005mm | 20,000N | 53-58HRC | 2.2KG |
NT-S52P150V1 | 52mm | 150*116*27mm | 0.005mm | 20,000N | 53-58HRC | 3KG |
NT-S52P150V2 | 52mm | 150*116*60mm | 0.005mm | 20,000N | 53-58HRC | 6.9KG |
NT-S52P150V3 | 52mm | 150*116*100mm | 0.005mm | 20,000N | 53-58HRC | 11.5KG |
NT-S52P213V1 | 52mm | 213*108*100mm | 0.005mm | 2*20,000N | 53-58HRC | 4.2KG |
NT-S52P208V1 | 52mm | 208*208*100mm | 0.005mm | 4*20,000N | 53-58HRC | 8.2KG |
NT-S52P160V1 | 52mm | ∅160*27mm | 0.005mm | 20,000N | 53-58HRC | 3.5KG |
NT-S96P172V1 | 96mm | ∅176*27 | 0.005mm | 30,000N | 53-58HRC | 4.5KG |
NT-S96P192V1 | 96mm | 192*156*27mm | 0.005mm | 30,000N | 53-58HRC | 5.4KG |
NT-S96P192V2 | 96mm | 192*192*27mm | 0.005mm | 30,000N | 53-58HRC | 7.5KG |
NT-S96P192V3 | 96mm | 192*156*60mm | 0.005mm | 30,000N | 53-58HRC | 11.7KG |
NT-S96P192V4 | 96mm | 192*156*100mm | 0.005mm | 30,000N | 53-58HRC | 19.3KG |
NT-S96P330V1 | 96mm | 330*156*27mm | 0.005mm | 2*30,000N | 53-58HRC | 10KG |
NT-S96P330V2 | 96mm | 330*330*27mm | 0.005mm | 4*30,000N | 53-58HRC | 22KG |
NT-S96P246V1 | 96mm | ∅246*27 | 0.005mm | 30,000N | 53-58HRC | 9.5KG |
Compatibility with Self-Centering Vise: Over 90% Setup Time Cut
Versatile for Vertical/Horizontal MCs & 3/4/5-Axis Systems
A key advantage of the manual zero point plate is its perfect compatibility with self-centering vises, which reduces workpiece setup time by over 90%. Traditional setups need repeated manual alignment, which is time-consuming and error-prone, harming part quality. When paired with a self-centering vise, the plate uses pre-set zero references and auto-centering, letting operators fix workpieces in seconds. This is vital for high-mix, low-volume production with frequent job changes, as it increases machine utilization and output while maintaining precision.
The manual zero point plate is highly versatile, fitting vertical/horizontal machining centers (VMCs/HMCs) and 3-axis, 4-axis, 5-axis CNC systems. In vertical machining, it stabilizes workpieces for milling, drilling, and tapping. In horizontal setups, it uses gravity to support longer/heavier workpieces. For complex 4/5-axis tasks like contouring, its precise alignment ensures quality. It serves industries like automotive, aerospace, and medical device manufacturing, eliminating the need for multiple specialized tools, reducing costs, and simplifying inventory management.
Certifications
Company Profile
NEXTAS PROFILE
NEXTAS Co. Ltd. was established in March 2009, dedicated to industrial workholding solutions for 15 years. NEXTAS has 450+ employees, including R&D technical personnel accounted for 55%, R&D production base of 43, 600 squaremeters, for high-quality, batch demand for products to provide a strong guarantee.
NEXTAS continues to introduce international advanced technology research and development personnel, for industrial manufacturing in various fields of industry pain points to start solving the problem, the product super-generation R&D technology innovation, R&D capabilities and application of leading domestic technology, Nextas industrial quick-exchange technology specifically for enterprises to provide standardized cost reduction and eficiency of the overall solution and one-stopservice for intelligent manufacturing
Mission: Provide competitive inteligent manufacturing solutions and create value for customers through continuous innovation.
Vision: Innovation with Smart Solutions
Values: Win-win, Innovation, Cooperation, integrity, Efficiency, Commitment
NEXTAS continues to introduce international advanced technology research and development personnel, for industrial manufacturing in various fields of industry pain points to start solving the problem, the product super-generation R&D technology innovation, R&D capabilities and application of leading domestic technology, Nextas industrial quick-exchange technology specifically for enterprises to provide standardized cost reduction and eficiency of the overall solution and one-stopservice for intelligent manufacturing
Mission: Provide competitive inteligent manufacturing solutions and create value for customers through continuous innovation.
Vision: Innovation with Smart Solutions
Values: Win-win, Innovation, Cooperation, integrity, Efficiency, Commitment
After Sales Service
Professional Sales & After-Sales Service
NEXTAS has a professional R&D design team who have 15 years experience in precision manufacturing processes, they can provide a whole set of quick change fixture system customazation design scheme base on customer's process needs.
NEXTAS can provide one-stop technical solutions and technical support such as process, fixture, and programming for customers' processing difficulties on a one-to-one basis.
NEXTAS has a professional technology team who can offer matching application and professional after-sales service, to allow customers choose us without any worries.
Mission:Provide competitlve intellgent manufacturing solutions and create value for customers through continuous innovation.
Vision:Innovation with Smart Solutions
Values:Win-win, Innovation, Cooperation, integrity, Eficiency, Commitment.
Vision:Innovation with Smart Solutions
Values:Win-win, Innovation, Cooperation, integrity, Eficiency, Commitment.
FAQ
FAQ
What's the function of MANUAL ZERO POINT PLATE?
It enables fast, accurate part changeovers and setups in machining by providing a standard zero - point reference.
It enables fast, accurate part changeovers and setups in machining by providing a standard zero - point reference.
What are its common specifications?
Typical sizes like 125×125×27 mm, repeat positioning accuracy < 0.005 mm, pitch 52 or 96 mm, clamping force 20 KN.
How to install the plate?
Clean the mounting surface, use bolts to secure it to the machine table or fixture base, and tighten to the right torque.
Can it be used with different machine tools?
Yes, but check compatibility in terms of table size, mounting interface, and required accuracy first.
How to maintain the plate?
Clean the surface and contact points, check bolt tightness, lubricate moving parts, and inspect pneumatic parts.
Clean the surface and contact points, check bolt tightness, lubricate moving parts, and inspect pneumatic parts.
What to do if positioning accuracy drops?
Check for damage, clean, verify bolt tightness, inspect pneumatic parts, and contact the manufacturer if needed.
Are there different types and how to choose?
Available in various shapes, sizes, and features. Choose based on workpiece size, clamping needs, and machine compatibility.
Can it be customized?
Some manufacturers offer customization. Contact them with your needs to discuss possibilities, costs, and lead times.
How does it compare to automatic systems?
It's more affordable but slower for part changeovers than automatic systems. Choose based on production needs and budget.
User Reviews
Write a review
File a complaint
Supplier Review
Summary by Vivian
TRUST STARS
3.8/5
0 Reviews
NEXTAS CO., LTD, based in China, specializes in a wide range of CNC machining tools and accessories, including 3 Jaw CNC Lathe Machine Chucks, 5-Axis Fixtures, Quick Change Precision Vises, and Pneumatic Chucks. They offer products such as 52mm CNC Machinery Tool Accessories, Zero Point Plate, and Self-Centering Vises, catering to various applications like medical, EDM machining, and general CNC processing. The company’s trade terms are FOB, and they provide solutions like R Series Pneumatic Chucks, Machine Work Tables, and Positioning Fixtures, utilizing materials like hardened stainless steel and hydraulic pneumatic systems to ensure strong clamping force and reliable operation.
Company Verification
0/4
Profile Completeness
67%
Avg. Product Score
0/5
Responsiveness
0%
Certification
ISO45001:2018
