5W 10W UV Laser Marking Machine with Cover Origin China HS Code 845611 Trademark SMART Model NO. ZXJN-5WC -C Laser Power 3W 5W 10W
Set
Negotiable
Product information
High-quality 5W 10W UV Laser Marking Machine with Cover Origin China HS Code 845611 Trademark SMART Model NO. ZXJN-5WC -C Laser Power 3W 5W 10W supplied by Jiangmen Smart Technology Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Laser Wave Length:
355nm
Laser Power:
3W 5W 10W
Production Capacity:
5000sets/Year
HS Code:
845611
Origin:
China
Technical Class:
Continuous Wave Laser
Trade Term:
FOB, EXW, CFR, CIF
Laser Visibility:
Invisible
Specifications
Laser Wave Length:
355nm
Laser Power:
3W 5W 10W
Production Capacity:
5000sets/Year
HS Code:
845611
Origin:
China
Technical Class:
Continuous Wave Laser
Trade Term:
FOB, EXW, CFR, CIF
Laser Visibility:
Invisible
Payment Term:
LC, T/T, PayPal, D/P, Small-amount payment, Western Union, Money Gram
Applicable Material:
Metal or Non-Metal
Trademark:
SMART
Marking Method:
Scanning Marking
Laser Classification:
Solid Laser
Laser Wavelength:
UV Laser
Type:
UV Laser Marking Machine
Cooling System:
Water Cooling
Transport Package:
Wooden Box
Model NO.:
ZXJN-5WC -C
Port Of Loading:
Zhenzhen Port, Guangzhou Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2020-07-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, D/P, Small-amount payment, Western Union, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
Zhenzhen Port, Guangzhou Port
Certificates:
Certificates
Product descriptions from the supplier

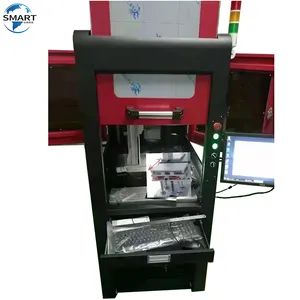

5W UV laser marking machine with cover:
Model:ZXJN-5WC -C (254lens)
Laser Power:5W
Laser Wave Length:355nm
Repetition frequency:10-200KHz
Engraving Area:400*400mm
Engraving Depth:≤0.1mm
Min character:0.15mm
Maximum machining speed :≤7000mm/s
Repeat marking accuracy:0.003mm
Power Need:AC220V/50Hz/10A 0-100% continuous adjustable
Cooling system:Air/water-cooled
System environment:Windows XP/Win7
Overall Power:0.8KW
Software Professional: Laser Marking Software
Beam quality M2:<1.1 .
the minimum line width :0.005mm
Focus spot diameter:<0.01mm
Operating ambient temperature: 15ºC-35ºC
Machine size:1100*800*1600 mm
Packing size:1250*950*1850mm
Packing weight:285KG
As UV laser have good quality light beam and very small focusing spot so it can mark with high
precision and ultrafine effect. Most Materials can absorb UV light therefore the application is wider than others. Small heat-affected zone and no thermal effect without burning.High marking speed and efficiency. The whole unit have stable performance and small size with low power consumption.
Machine working environment requirements:
The ambient temperature should be between 15-35ºC and air conditioning should be installed
The humidity requirement is < 60%. No condensation, dehumidifier should be installed
Power requirements:220V;50Hz
The fluctuation of power supply network: ± 15%, and the ground wire of power grid meets the international requirements. Where the voltage amplitude is more than 15%, electronic automatic voltage and current stabilizing devices shall be installed;
There shall be no strong electromagnetic signal interference near the installation equipment. Avoid radio transmitting station (or relay station) around the installation site
Foundation amplitude: less than 50um; vibration acceleration: less than 0.05g. Avoid a large number of stamping machine equipment nearby;
Equipment space requirements to ensure smoke-free and dust-free, to avoid metal polishing and grinding dust serious working environment;
Pressure:86-106kpa
Some environments should be equipped with anti-static floor, strengthen shielding, etc
There are strict requirements for the water quality of working cooling circulating water. It is required to use pure water, deionized water or distilled water. It is not allowed to use tap water, mineral water and other liquids containing high metal ions or other minerals
Equipment structure
| No. | Item | Description |
| 1 | Optical system | Laser / galvanometer / field lens / beam expander |
| 2 | exercise system | X,Y,Z axis |
| 3 | Control System | Computer / electrical control box |
| 4 | Software system | Special software for marking |
| 5 | Operating system | Windows |
| 6 | Mechanical structure | Steel plate and aluminum alloy mixed closed case |
Logo of high end electronic products.
Food, PVC pipes, pharmaceutical packaging materials (HDPE, Po, PP, etc.) marking, microporous, pore diameter D ≤ 10 μ M.
Marking and scribing of flexible PCB.
Removal of metallic or non-metallic coatings.
Micro hole and blind hole processing of silicon wafer.
Laser marking:
1. Expose the deeper layers of the target material by evaporating the surface layer of the target material with laser (light energy)
2. Use laser (light energy) to make the surface material undergo chemical and physical changes, and "carve" the required pattern and text;
3. Use laser (light energy) to burn off part of the material, thereby revealing the pattern and text to be etched.
Laser marking is characterized by non-contact processing. It can be marked on any special-shaped surface. The work piece will not deform or generate internal stress. It is suitable for marking materials such as metal, plastic, glass, ceramic, wood, leather, etc. The symbol size can range from millimeters to microns, which is of special significance for product anti-counterfeiting.
Laser marking: The basic principles of static marking and flying marking are the same. The main difference lies in the driver software! Flying marking is vector marking, which relies on the movement of the printed object to achieve font engraving. It is often used in conjunction with assembly lines, with fast marking speed and high efficiency. For static marking, the cursor simply forms words on the plane!
| Laser type | Wavelength | Principle | Applicable products | Features | ||||||||
| Metal | Plastic | Paper | Wood | Glass | Ceramics | Cloth | Jade | Supplement | ||||
| UV | 355nm | The reaction mechanism is achieved through photochemical ablation, that is, relying on laser energy to break the bond between atoms or molecules, so that it becomes a small molecule gasification, evaporation mark | √ | √ | √ | √ | √ | √ | √ | √ | Flexible PCB boards, polymer materials | Cold light source, good beam quality, small spot, fine marking; wider application range; fast marking speed, high material efficiency, small size, low power consumption, etc. |
| Fiber | 1064nm | Use light energy to make the surface material undergo physical or chemical changes, thereby engraving permanent marks such as patterns, trademarks and text | √ | Partial | √ | √ | √ | √ | Leather, polymer materials | The photoelectric conversion efficiency is extremely high, saving electricity; small size, small footprint; no chiller is required, completely air-cooled; long life, extremely high repetition frequency | ||
| CO2 | 10.6um | Use a laser beam to irradiate the surface of the material, and the light energy curtain is instantly converted into heat energy, so that the surface of the material is instantly partially melted or even vaporized, thereby forming a mark | Partial | √ | √ | √ | √ | √ | √ | Rubber, crystal, artificial stone | Laser marking is clear and permanent, fast, high yield, pollution-free, maintenance-free and low cost. | |
| Green light | 532nm | The green light laser marking machine uses side pumping | √ | √ | Reflective materials such as gold and silver | Small spot, more concentrated energy, high electro-optical conversion efficiency, good beam quality, clear contrast | ||||||
| Infrared picosecond | 1064nm | Picosecond laser has the characteristics of ultra-short pulse width, ultra-high instantaneous power, and ultra-small focusing area | √ | √ | √ | √ | √ | √ | √ | √ | Brittle material cutting | High frequency punch width is narrow and the frequency is high, which is suitable for fine marking or flying marking. |
Galvanometer
Perfect replica marking
Equipped with high-performance micro motor, fast marking speed, stable operation, high precision and longer service life
Perfect replica marking
Equipped with high-performance micro motor, fast marking speed, stable operation, high precision and longer service life
Field lens
Precise marking range
The use of high-performance lenses has good light perception, uniform lighting, light volume, and is not afraid of environmental challenges.
Precise marking range
The use of high-performance lenses has good light perception, uniform lighting, light volume, and is not afraid of environmental challenges.
Upgrade/column
Precise, stable and smooth
High-performance rulers and more accurate marking and positioning
High-quality benchmarks make the lifting column stable and smooth
Precise, stable and smooth
High-performance rulers and more accurate marking and positioning
High-quality benchmarks make the lifting column stable and smooth
Workbench board
Professional and convenient
25X25 hole spacing allows you to better position,
You can combine the modules to achieve more marking needs
Multi-station marking with software improves work efficiency
Professional and convenient
25X25 hole spacing allows you to better position,
You can combine the modules to achieve more marking needs
Multi-station marking with software improves work efficiency
Control panel (Multilingual customization )
Professional and convenient
Simple and fast control system, humanized control switch
Safe and effective anti-leakage setting, equipped with USB interface
Professional and convenient
Simple and fast control system, humanized control switch
Safe and effective anti-leakage setting, equipped with USB interface
Installation circuit
Standardization, craftsmanship
Implement strict installation standards, pursue details,
Be safer and more efficient, and good quality will accompany you for a long time
Standardization, craftsmanship
Implement strict installation standards, pursue details,
Be safer and more efficient, and good quality will accompany you for a long time
Q1:What is the delivery time for the machine?
A1:Standard models delivery time is usually 7 - 15 days
Customized models delivery time is usually within 15-30 working days.
Q2:Are the displayed prices final offers?
A2: No, It is a price range. The final quotation depends on the buyer's requirements.
Q3: I don't know which one is suitable for me?
A3:Please tell me your
1) Your materials
2)The desired effect
3)Max size of your material
4) Max marking or cutting thickness
5) Popular cut thickness
Q4:How to install and use it?
A4:Before shipment, we will install, debug and test production in the production plant. And provide training videos and English user manuals for the installation, operation, maintenance and troubleshooting of the machine. When you encounter installation, usage or adjustment issues, we will provide technical guidance via email, fax, phone /Messenger/WhatsApp, etc.
If need we will send one mechanical engineer for machine installation guidance and production debugging. Payment is required depending on different countries and regions.
Q5:How do you provide after-sales service?
A5:You need to confirm with our engineers in the group now what the problem is, and our engineers will check if they can solve it by remote technical guidance. If need we will send one mechanical engineer for machine installation guidance and production debugging.
Q6: This machine has problems within the warranty period. What should I do?
A6:The quality guarantee period is 12 months from the date when the goods arrive at the destination port. Except for man-made damage, we are responsible for providing spare parts free of charge during the warranty period. After the quality guarantee period, if any repair or replacement of parts is required, payment must be made.
Q7 What is the wholesale price?
A7:If you are a wholesaler, distributor or agent, please contact us to obtain wholesale prices.
Q8:Are you a manufacturer or a trading company?
A8:we are a manufacturer company, Combining geographical advantages, we have 11 years of manufacturing and we are also working together with our raw material suppliers developing new items every year, to reduce material cost and offer final discount to customers.
Q9:How do you handle quality control and product inspection?
A9:We implement strict quality control measures and have a dedicated inspection team to ensure all products meet international standards before shipping. Finally we provide clients with production pictures and videos for checking before delivery.
Q10:Can you do OEM/ODM?
A10:Yes, we offer customized solutions for OEM and ODM projects, tailored to meet specific customer requirements and branding.
Q11:May we visit your factory?
A11:We welcome potential clients to visit our factory.Please schedule an appointment in advance to ensure we can provide you with a comprehensive tour.
Q12:Can products be customized?
A12:Absolutely, we can customize our products based on your specifications and requirements.
Q13:What is the MOQ (Minimum Order Quantity)?
A13:The MOQ for our products is [1set], and we are willing to discuss this further for long-term partnerships or special circumstances.
Q14:Do you have a product catalog?
A14:Yes, we have a detailed product brochure that includes technical specifications and high-resolution images. We can provide it upon request.
Q15:Do you have technical specifications for the product?
A15:We can provide detailed technical specifications for every product we offer.
Q16:Can we customize the LOGO?
A16:Yes, we can customize the product with your company's logo, subject to certain design guidelines and approval processes.
Q17:What is your regular packaging?
A17:Standard packing by sea or air
