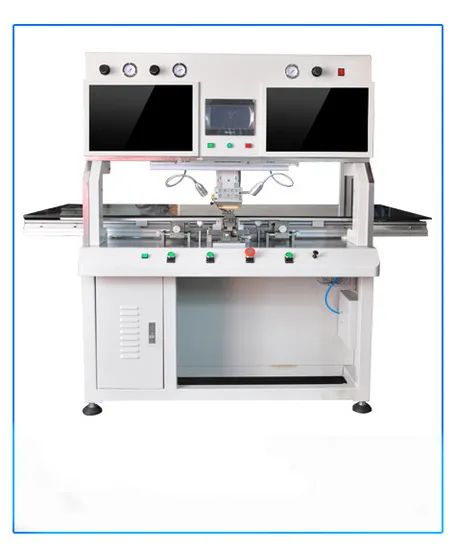

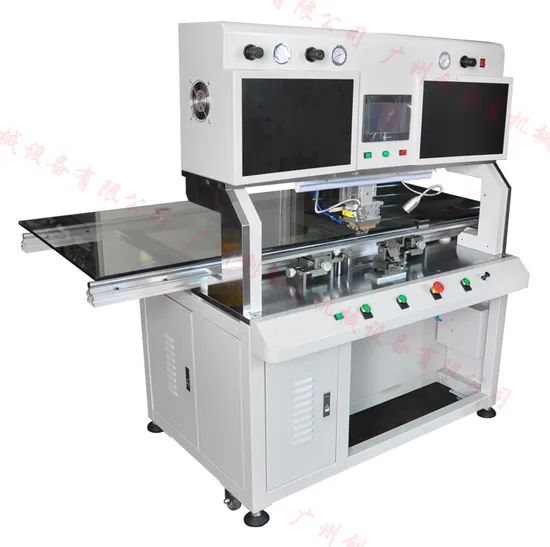

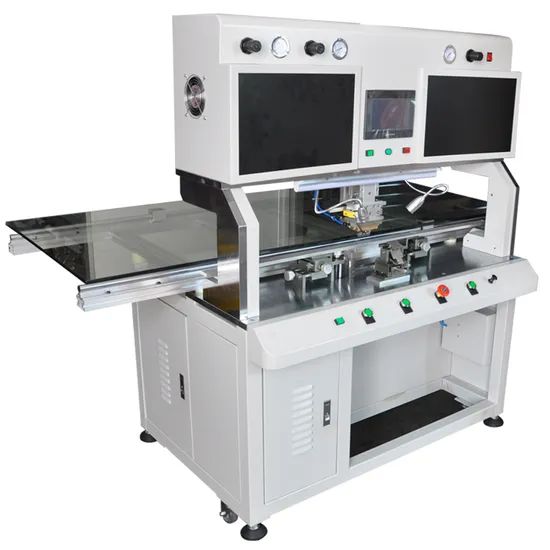

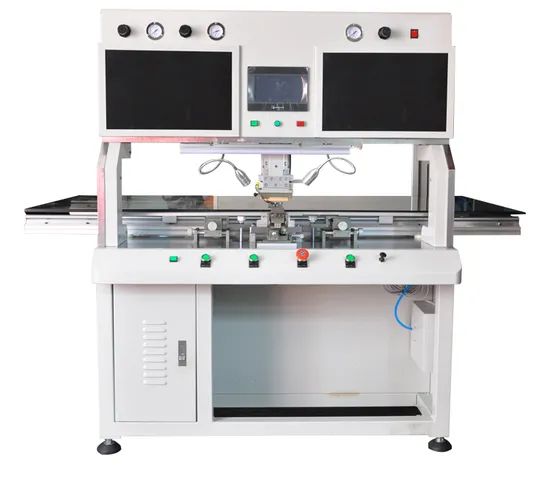

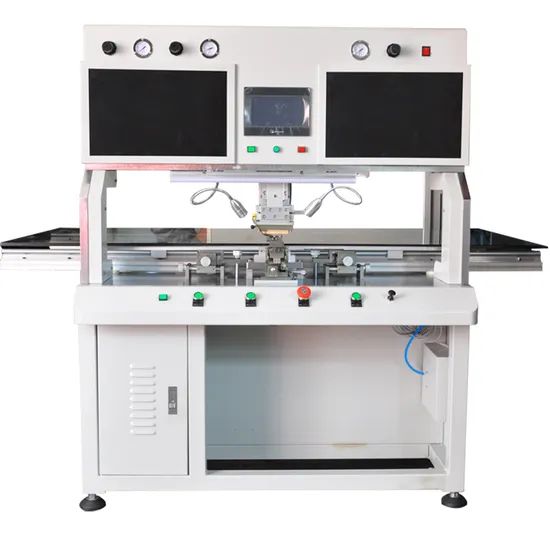

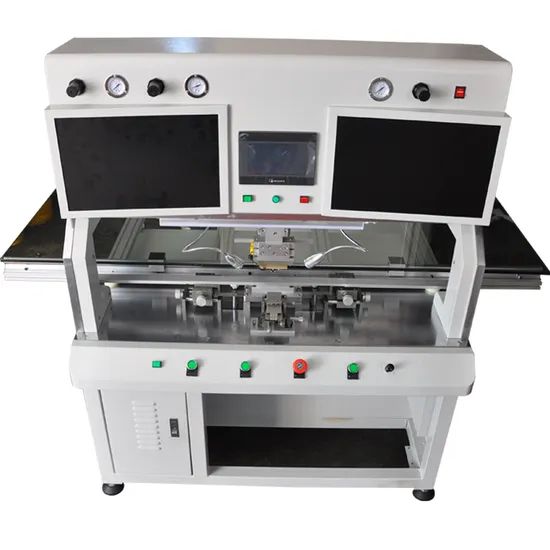

616dh LED TV Bonding Machine Platform

616dh LED TV Bonding Machine Platform - Image 1
616dh LED TV Bonding Machine Platform - Image 2
616dh LED TV Bonding Machine Platform - Image 3
616dh LED TV Bonding Machine Platform - Image 4
616dh LED TV Bonding Machine Platform - Image 5
616dh LED TV Bonding Machine Platform - Image 6
616dh LED TV Bonding Machine Platform - Image 1
616dh LED TV Bonding Machine Platform - Image 2
616dh LED TV Bonding Machine Platform - Image 3
616dh LED TV Bonding Machine Platform - Image 4
616dh LED TV Bonding Machine Platform - Image 5
616dh LED TV Bonding Machine Platform - Image 6

1-4 Piece

$3,100

5 Piece

$3,000

Product information

High-quality 616dh LED TV Bonding Machine Platform supplied by Guangzhou Chuang Li You Machinery Co., Ltd.. Bulk wholesale pricing ranges from $3,000 to $3,100 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.

Production Capacity:

1000

Package Size:

123.00cm * 92.00cm * 175.00cm

Package Gross Weight:

450.000kg

Specification:

450KG

Model NO.:

616DH

Trademark:

CLY

Refund Policy:

Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Specifications

Production Capacity:

1000

Package Size:

123.00cm * 92.00cm * 175.00cm

Package Gross Weight:

450.000kg

Specification:

450KG

Model NO.:

616DH

Trademark:

CLY

Refund Policy:

Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Trade Term:

FOB, CIF

Origin:

Guangzhou

Port Of Loading:

Guangzhou Huangpu Port

Payment Term:

LC, T/T

Payment Methods:

Support payments in USD

Training:

Teach Online or Learning for Training Videos

Transport Package:

Wooden Box

Business Details

Country:

China

Business Types:

Not specified

Main Markets:

Not specified

Main Products:

Year Established:

2016-09-27

Annual Revenue Amount:

Not specified

Numbers Of Employees:

Not specified

Preferred Payment Term:

LC, T/T

Preferred Trade Term:

FOB, CIF

Port Of Loading:

Guangzhou Huangpu Port

Certificates:

CE

Product descriptions from the supplier

Model NO. 618SH Use LCD Screen Repair Tab Bonding
Other Name LCD Repair Bonding Machine Peak Power 1500W
Voltage AC220V Hot Pressing Time Can Be Set (S)
Work Pressure 0.3~0.4 (MPa)

Machine Shape Size 1800(L)X1200(W)X1520(H)mm
Peak Temperature + / - 0.3 Degrees Celsius Weight 450kg

Guangzhou Chuang Li You Machinery Co., Ltd.

Product Features:

  • Capable of repairing any screen size below 100 inches.
  • Refurbishes various screen components such as black belt, color line, ribbons, and more.
  • Pulse heating precision of +/-0.3ºC.
  • Rapid response time from room temperature to 180 degrees in just 2 seconds.
  • High plane precision of 0.005 mm on the hot-pressing side.
  • Low repair rate and user-friendly operation.

Enhance your screen repair capabilities with our advanced machinery!

616dh LED TV Bonding Machine Platform
Model number 618SH
Heating Mode Pulse
PID Temperature Control System Brand Siemens temperature control module
Temperature curve:Factory Reset
Peak temperature + / - 0.3 degrees Celsius
From room temperature to 180 degrees response time for 2 seconds
Brand:the United State OMEAG
Heat Press Head Materials: titanium alloy
Place of origin: the United States
Plane precision (hot-pressing side) : 0.005 mm
Industrial Control Unit PLCS:DELTA
HDMI:Weinview
Imaging Unit COF counterpoint: under counterpoint (optical path: lens>quartz>ITO electrode COF package)
PCB counterpoint: no
Microscope magnification: 20 ~ 100 consecutive times
Number of lens: 2
COF counterpoint display: 19 inch
PCB counterpoint display:no
Light above:yes
Light down:no
COF Trimming Unit Place of origin: Taiwan
Type of guide rail:V guide rail
Accuracy: 0.01
Adjustable direction: X/Y/R
X-y range: + / - 6.5mm
R range:coarse adjustment 360 degrees, fine adjustment + / - 5 degrees
COF Fixture Mechanical clamping fixture way,Z to tilt radius can be adjusted/ Adjustable horizontal angel/COF can be extended
Lens Fine-Tuning Unit Type of guide rail: precise cross rail .
Control mode: X - Y - Z micrometer control
Position Detection NO
Silicone Skin/Tefloon Change position manually
LCD Drive (Platform) Sliding or fixed optional manually
Alarm Abnormal:temperature/thermocouple anomaly/actions
Heat Seal Head Counterpoint Independent pneumatic,Pressure reducing valve be adjusted manually
Control Way Touch screen + button operation
Parameter Setting According to the need to set to storage more groups of hot-pressing parameters
Voltage AC220 v
Peak Power 1500W
Weight 450kg
Size Of Machine (mm) 1800(L)X1200(W)X1520(H)mm

Product Description: LCD TV Repair Bonding Machine

Thank you for your interest in our LCD TV Repair Bonding Machine. Here are some key details:

  • Payment:We accept payment terms EXW/FOB/CIF, by T/T. We recommend 100% deposit in advance, or 50% deposit and 50% paid before delivery.
  • Delivery Time:Approximately one week.
  • Warranty:We offer a standard 1-year warranty and lifetime technical support.
  • Training:Choose between factory training or video training. More details can be foundhere.
  • Packaging:Our machine is carefully packaged for shipping.
  • Installation:Refer to our video guide on the disassembly procedure for easy installation upon receipt.

For further inquiries or to place an order, please contactGuangzhou Chuang Li You Machinery Co., Ltd.

616dh LED TV Bonding Machine Platform

616DH Specification

Double Head Manual platform Automatic Pressure Machine

  1. Equipment Model Number:618SH (Double Head)
  2. Device Description:Repair screen machine / Bonding machine
  3. Device Uses:FPC, COF, TAB, LCD Panel, and PCB combination bonding
  4. Applicable LCD panel specifications:7″-100″
  5. Applicable LCD panel thickness:0.3MM-1.1MM [Single glass]
  6. Bonding IC number:Multiple / Panel Can be set
  7. Bind direction:X or Y Unidirection
  8. Bonding IC size:Replaceable blade according to IC specifications (The original machine is equipped 50X1.4)
  9. Device processing time:TFT, 3.8S/chip
  10. Production Beats:TAB, 100 pcs/H
  11. Bonding Accuracy:Within ± 1.5μm (support 4K screen)
  12. Highest positioning accuracy setting:±0.5μm (Currently domestic the highest index)
  13. Equipment requirements the work environment:Clean, No dust, Clean room
  14. Supply Pressure:0.3~0.5Mpa (Dry air source)
  15. Power Supply:AC 220V±10%, 50HZ, 1500W
  16. Heating Type:Pulse (rapid heating / cooling and auxiliary cooling function)
  17. PID Temperature Control System:Brand: DELTA. The peak temperature: within +/- 0.3 degrees Celsius. Room temperature time to 180 degrees the response time within 2 seconds
  18. Hot pressing head:Materials: Japan Titanium, origin: United States 50*1.4. Plane precision (hot press side): 0.001mm. Plane thickness 0.5 (Reserved 3 times grinding)
  19. Thermocouple Type:K type Original US OMEGA wire
  20. Industrial control units / Programmer:DELTA PLC FX-C14T
  21. Image unit:Panasonic image processing system. COF counterpoint: down counterpoint. PCB counterpoint: have. Number of lenses: 2. Microscopy: 30-120 Continuous zoom. COF Display: 19-inch HD X2. PCB counterpoint the display: no. Upper light source: have. Down light source: have
  22. COF trimming unit:Origin: Taiwan. Rail Type: U-rail (2056 high). Accuracy: 0.01. Adjustable direction: X/Y/R. R Itinerary: Coarse 360 degrees, fine tuning +/- 5 degrees
  23. COF Fixture:COF mechanical clamping type, Z tilt radius micrometer trimming
  24. Lens spinner unit:Control mode: X / Y / Z micrometer control. Focus Adjustment: Manually adjust the focus
  25. Position detection:None
  26. Silicone / Te flon:Manual switching position
  27. LCD stage (platform):Manual sliding or fixed optional, automatic stage can be customized
  28. Alarm device:Pressure abnormal/ temperature anomalies / thermocouple abnormal / action abnormal
  29. Hot press head counterpoint:Cylinder stop can be set at any position in the vertical direction
  30. Control mode:Touch screen + button operation Using Taiwan's Wei Lun touch screen dual-core
  31. Parameter setting:According to the need to set up Store multiple sets of hot pressing parameters
  32. Rated voltage:180-220 (customizable 110V)
  33. Peak power:400-1500W
  34. Maximum power:1500W
  35. Actual power:580W
  36. Body size:1800X1200x1520mm(L*W*H)
  37. Machine weight:450KG

With 616DH, we provide the accessories below for free. They are almost all the accessories needed by ACF/COF/TAB repairing, means no need buy other extra accessories.

No. Name Model No. Quantity Unit Specification Remark
1 Double Head Bonding Machine 618SH 1 Set Single Head
2 ACF Anisotropic Conductive Film AC-7206U-18 1 Piece 1.2X50M Glass special
3 ACF Anisotropic Conductive Film AC-2056R-35 1 Piece 2.0X50M PCB special
4 Acetone Liquid BT-H1 1 Bottle 500ML
5 Absolute Alcohol CH3CH2OH 2 Bottle 500ML
6 ACF Removing Liquid G-450 1 Bottle 500ML
7 Hitachi Blue Glue   1 Bottle 100ML
8 Fuji Silicone   1 Piece 50M
9 Tefloon   1 Piece 50M
10 Heating Solder Iron   1 Piece 30W
11 Alcohol Bottle   2 Bottle
12 TAB Cutter   1 Piece
13 Optical Microscope   1 Piece
14 LCD Test Board HXV59 1 Piece
15 Air Compressor OTS550 1 Piece   Mute Oil-free
16 Cleanroom Wipers   1 Piece
17 Cotton Swab   1 Piece
18 Handheld Magnifier   1 Piece
19 Precision Tweezers   2 Piece   High Hardness Hyperfine
