6250W Quartz Infrared Heating Lamp Emitter
10 Piece
$25Product information
High-quality 6250W Quartz Infrared Heating Lamp Emitter supplied by Huaian Yinfrared Heating Tech Co., Ltd.. Bulk wholesale pricing is $25 per Piece with a minimum order of 10 Piece. Inquiry for latest prices.
Length:
100-3000mm
Diameter:
10mm / 12mm / 15mm /11X23mm / 15X33mm
Voltage:
120-480V
Response Time:
2 Second
Power:
200-6000W
Warranty:
5000 -8000 Hours
Production Capacity:
5000 PCS / Month
Shipping Time:
7-15 Days Production
Specifications
Length:
100-3000mm
Diameter:
10mm / 12mm / 15mm /11X23mm / 15X33mm
Voltage:
120-480V
Response Time:
2 Second
Power:
200-6000W
Warranty:
5000 -8000 Hours
Production Capacity:
5000 PCS / Month
Shipping Time:
7-15 Days Production
HS Code:
851680000
Certification:
CE
Color:
Clear / Golden / White
Delivery:
DHL , FedEx ,UPS
Transport Package:
Export Wood Packing
Packing:
Export Wood Packing with Soft Plastic Foam
Trade Term:
FOB, CIF, CFR, EXW
Reflector:
Gold Reflector / White Reflector
Application:
Heating / Paint Drying / Pet Bottle Blowing
Origin:
Jiangsu, China
Payment Term:
LC, D/P, T/T, PayPal, Western Union, Small-amount payment
Material:
Quartz Glass
Product Damage Clause:
Remedy or Redo for Free
Port Of Loading:
Shanghai Port
Specification:
Sk15 / R7s / Ceramic End Cap, up to 3 meters
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2022-03-25
Annual Revenue Amount:
Not specified
Numbers Of Employees:
4
Preferred Payment Term:
LC, D/P, T/T, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
CERTIFICATION
Product descriptions from the supplier

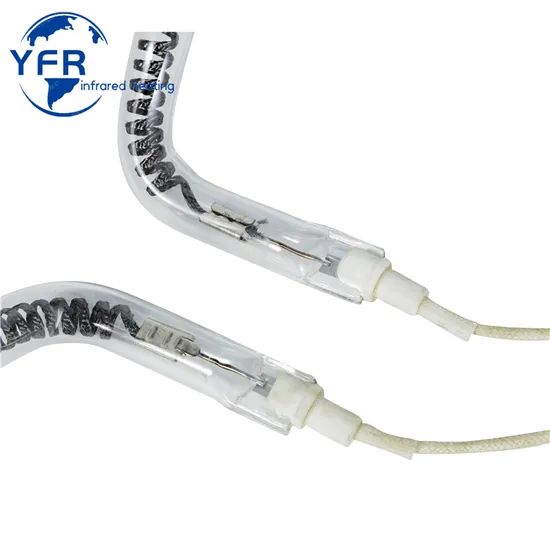

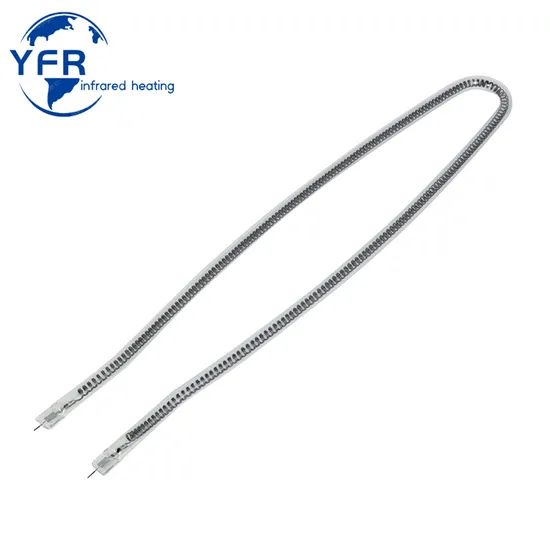

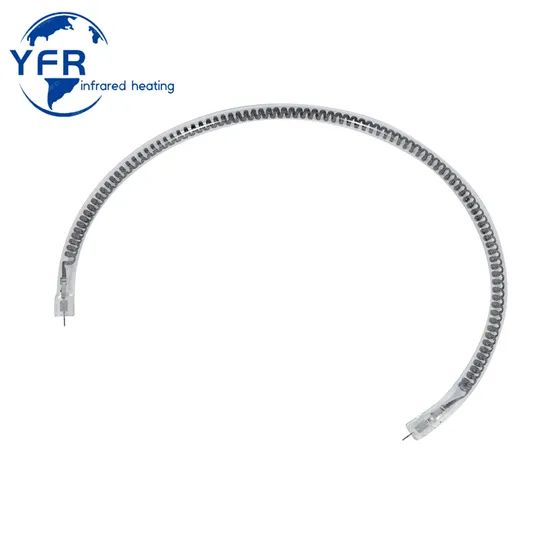

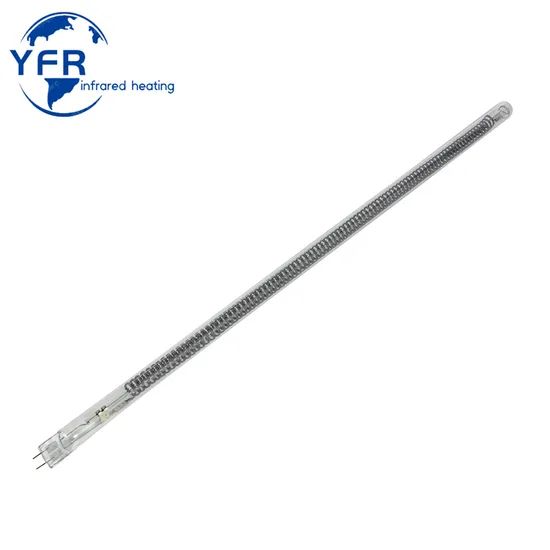

6250W Quartz Infrared Heating Lamp Emitter
Radiation heating stands out as a strong and effective alternative to convection and conventional methods. Unlike other forms, it doesn’t require physical touch with the object’s surface or transfer of heat via air or other materials. Instead, the heating source emits energy through electromagnetic waves. The effectiveness of this process depends on three key elements: the heating source’s temperature, how well the object absorbs that radiation, and the object’s form, position, and proximity to the heat source.
Infrared quartz heaters emit infrared radiation at 3.5 μm (medium wave) and 0.9 μm (short wave). By matching the wavelength to the specific characteristics of the material, optimal energy transfer is achieved, enabling quicker and more effective heating.
Infrared heating systems outperform conventional hot air setups by delivering higher energy density per square unit, a property similar to light that allows for focusing, intensification, control, and redirection.
The application of this technology can bring huge benefits:
• Rapid heating process;
• Energy saving and low ambient heat;
• The radiator is easy to control;
• No direct contact with materials and no pollution to the surrounding environment;
• Compared with traditional hot air heating equipment, infrared quartz heating modules and stoves are smaller in size and volume.
short wave Infrared heater lamp
Yinfrared has been crafting top-tier electric infrared heating solutions since 2009. We designed and set up the inaugural infrared paint drying oven for an auto manufacturer. Now, our technology powers operations across automotive, plastic, printing, food processing, electronics, textiles, and residential warmth applications.
Unlike others in the market, our core strength lies in producing quartz infrared lamps. With in-house manufacturing capabilities, we bring both the adaptability and expertise needed to tailor infrared solutions for optimal wavelength performance. Our SW and MW infrared lamps are available in single or dual tube configurations, featuring optional gold or white oxide primary reflectors.
Yinfrared produces high-grade spare lamps for a range of rival equipment. For instance, M&R’s screen printing lighting, Heidelberg’s dual-tube printing fixtures, Fostoria and Solira’s ambient warmth lamps, or Emitted Energy’s plastic welding units—our pricing is highly favorable and inventory is typically available for prompt shipment.
Wide range of applications
-Heater
-Plastic forming
-Bottle blowing
-Paint drying
-Food catering/processing and etc.
-Pre-heating of PET perform
-Fusing printing ink
-Drying process in paper mill
-Plastics thermoforming
-Silicon wafer manufacturing process in Semiconductor
-And various kind of drying processes
Advantages and features of IR lamps:
Immediate reaction. Due to the tungsten filament's minimal heat capacity, temperature regulation during heating and process stages is highly precise. Maximum heating is achieved in just a few seconds after power is applied. Additionally, power can be shut down rapidly should manufacturing need to pause.
Controllable Output. Output can be controlled precisely to match the temperature requirements of the process.
Directional Heating. Systems are able to selectively heat specific regions of the part.
Clean Heating. Electric heat source is environmentally clean and efficient.
High Heating Efficiencies. Up to 86% of input electrical power is converted to radiant energy (heat).
Technical parameters:
| Infrared heater specification | Voltage | Power | Length |
| Min | 120v | 50w | 100mm |
| Max | 480v | 10000w | 3300mm |
| quartz glass tube cross-section | 10mm 12mm 15mm 18mm | 11x23 mm twin tube | 15x33mm twin tube |
Huai'an Yinfrared is indicated to providing the highest quality dual-tube quartz infrared heater on the market. We produce
10mm, 12mm,15mm,18mm or 23mm x 11mm and 33mm x 15mm cross-section quartz tube ,medium wave, fast medium wave
and short wave twin-tube lamps heater. Our heater lamps can be made of high-temperature white oxide reflectors, high-efficiency
23K gold reflectors or pure clear quartz.
Why choose quartz glass?
The quartz glass is ideal for Infrared heating : this excellent material is completely transparent under infrared radiant, can
withstand a constant operating temperature of over 1000°C, and is chemically resistant.

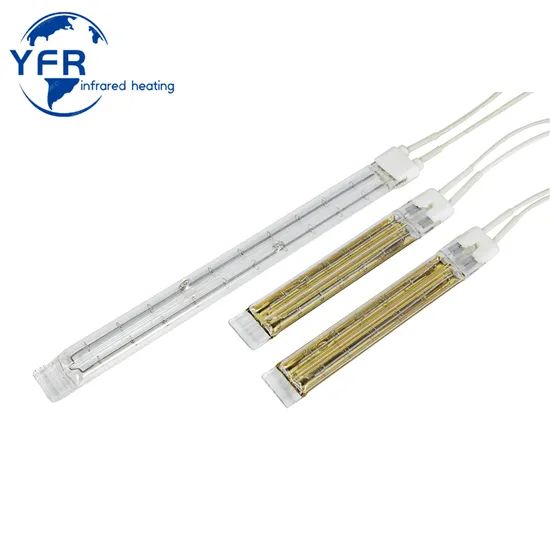

Short wave Twin tube IR emitter quartz infrared heater
"Yinfrared" use Two types of quartz tubes are used: single tube and double tube. Due to The reverse "H" shape, the double
tube provides the best mechanical resistance and allows the manufacture of launchers up to 3.5 meters in length.
Related product :
twin tube carbon infrared lamp
Carbon infrared heat lamp
carbon fiber can provide more heating efficiency . ideal for infrared heating
Tungsten halogen heat lamp
Gold Reflector for IR lamps
The Gold reflector provide more directional heating.
In order to transfer and focus the heat more effectively on the material, a special reflector is directly installed on the quartz tube.
According to specific applications and customer needs, Yinfrared usually uses gold, white and ruby reflectors on its IR transmitters.
Medium wave infrared heater for lamination
we can provide 11x23 mm and 15x33mm cross-section and length up to 4 meters .
Production process
- Strict quality control
- mature manufacturing procedure
- Be serious for all steps until lamps arrive you

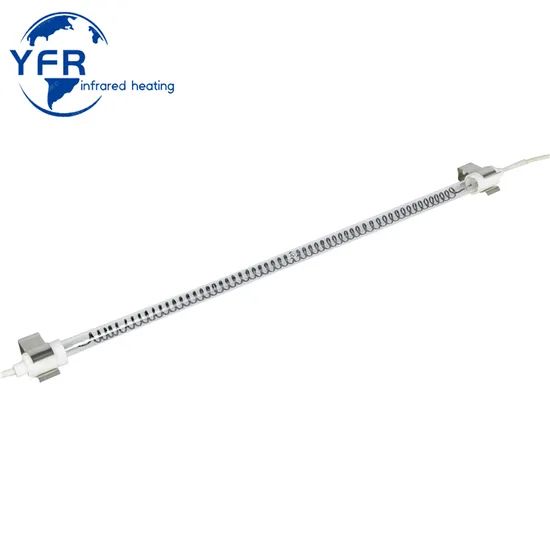

Clips, clamps and lampshade for infrared heater
If thecompleteheating system is working properly, then our infrared heaters can support your entire production process
well. You may need some clips and accessories. We also have high requirements for the quality of the accessories.
The clips can make it easy to install infrared lamps. The clamp made of stainless steel , a Effective hold to the heater,
Long-lasting and stable.
FAQ
----------------------------------------------------------------------------------
1. Are you a factory or trading company?
Yinfrared is a factory, we are professional manufacturer of infrared heater
2. Where is your factory? Can I visit your factory?
We're in city Huaian, middle of China. It's 1 hour by train from Shanghai, 2 hours by plane from Guangzhou.
You are warmly welcome to our factory, we will be happy to show you our production, QC, warehouse, etc.
3. Can I have samples? Is it free?
Yes, we are happy to offer samples for you to check and test. Depends on sample quantity and product model, we will
confirm with you whether it's free sample or not.
4. What is your term of delivery?
We accept FOB, CIF, EXW etc. Please choose the one which is the most convenient and cost effective for you.
5. What about the lead time for mass production?
It depends on the order quantity and the season you place the order. Generally speaking, the lead time of MOQ is about
Delivery takes between 7 and 15 days. We recommend initiating your request at least two months prior to your desired arrival date in your region.
6. Do you offer guarantee for the products?
Yes, it must be. We guarantee 2 years for heaters and 5000-8000 hours for infraraed heater.
7. What type of payment do you accept?
T/T.WEST UNION.PAYPAL.CREDIT CARD.
8. Is it OK to print my logo on product?
Yes, it's possible. But please kindly note we have MOQ request for different products.
9. Can you do the design for us?
Yes. We have a professional team having Good experience in box design and manufacturing. Just tell us your idea and
we will help to carry out your ideas into perfect packing boxes. It does not matter if you do not have someone to complete
files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you
finished files for confirmation.
