672 Channels Trimble R10 Gnss Receiver GPS Tracking Systems Price
1 Set
$19,0002 Set
$18,000Product information
High-quality 672 Channels Trimble R10 Gnss Receiver GPS Tracking Systems Price supplied by SHANGRAO HAODI IMP&EXP TRADING CO., LTD.. Bulk wholesale pricing ranges from $18,000 to $19,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Weight:
0.97
Horizontal Line:
1
Vertical Lines:
1
Transport Package:
1 Set Packed in 2 Cartons
Accuracy:
1mm
Static Accuracy:
2.5mm +0.5ppm, 5mm+0.5ppm
Production Capacity:
20000PCS/Year
Warranty:
3 Years
Specifications
Weight:
0.97
Horizontal Line:
1
Vertical Lines:
1
Transport Package:
1 Set Packed in 2 Cartons
Accuracy:
1mm
Static Accuracy:
2.5mm +0.5ppm, 5mm+0.5ppm
Production Capacity:
20000PCS/Year
Warranty:
3 Years
After Sales Service:
3 Years
Package Gross Weight:
30.000kg
Internal Momery:
4GB
Channel:
672 Channels
Package Size:
75.00cm * 55.00cm * 45.00cm
Rtk Accuracy:
8mm+1ppm, 15mm + 1ppm
HS Code:
9015800090
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, EXW, CIF, DDP
Contellation:
GPS, Glonass, Beidou, Galileo
Operating Principle:
Interferometric Type
Payment Term:
LC, T/T, PayPal, Western Union
Special Features:
LED Screen, Tilt Sensor, Ebuble, Two Battery
Model NO.:
R10
Model Number:
R10
Product Name:
R10 Gnss Receiver
Port Of Loading:
SHANGHAI, NINGBO, SHENZHEN
Chip:
Sirf
Payment Methods:
Support payments in USD
Application:
Topographic Survey, Engineering Survey, Marine Sur
Brand Name:
Trimble
Trademark:
Trimble
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-07-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, EXW, CIF, DDP
Port Of Loading:
SHANGHAI, NINGBO, SHENZHEN
Certificates:
battery
Product descriptions from the supplier
Product Details
| Model | R10 |
| Measurement | |
| Measuring points sooner, faster and in harsh | |
| environments with Trimble HD-GNSS technology | |
| Increased measurement productivity and traceability | |
| with Trimble SurePoint electronic tilt compensation | |
| Worldwide centimeter level positioning using Trimble | |
| CenterPoint RTX satellite delivered corrections | |
| Reduced downtime due to loss of radio signal with Trimble xFill technology | |
| Advanced Trimble Maxwell 6 Custom Survey GNSS chips with 672 channels | |
| Future-proof your investment with Trimble 360 GNSS tracking | |
| CenterPoint RTX, OmniSTAR HP, XP, G2, VBS positioning | |
| QZSS, WAAS, EGNOS, GAGAN | |
| Positioning Rates: 1 Hz, 2 Hz, 5 Hz, 10 Hz, and 20 Hz | |
| Code Differential GNSS Positioning | |
| Horizontal | 0.25 m + 1 ppm RMS |
| Vertical | 0.50 m + 1 ppm RMS |
| SBAS differential | typically <5 m 3DRMS |
| positioning accuracy | |
| Static GNSS Surveying | |
| High-Precision Static | |
| Horizontal | 3 mm + 0.1 ppm RMS |
| Vertical | 3.5 mm + 0.4 ppm RMS |
| Static and Fast Static | |
| Horizontal | 3 mm + 0.5 ppm RMS |
| Vertical | 5 mm + 0.5 ppm RMS |
| Real Time Kinematic Surveying | |
| Single Baseline <30 km | |
| Horizontal | 8 mm + 1 ppm RMS |
| Vertical | 15 mm + 1 ppm RMS |
| Network RTK | |
| Horizontal | 8 mm + 0.5 ppm RMS |
| Vertical | 15 mm + 0.5 ppm RMS |
| RTK start-up time | 2 to 8 seconds |
| for specified precisions | |
| Trimble CenterPoint RTX | |
| Horizontal | 4 cm |
| Vertical | 9 cm |
| RTX convergence time | 30 minutes or less |
| for specified precisions | |
| RTX QuickStart convergence | 5 minutes or less |
| time for specified precisions | |
| Trimble xFill | |
| Horizontal | RTK + 10 mm/minute RMS |
| Vertical | RTK + 20 mm/minute RMS |
| Physical | |
| Dimensions (W * H) | 11.9 cm x 13.6 cm (4.6 in x 5.4 in) |
| Operating temperature | -40ºC to +65ºC (-40ºF to +149ºF) |
| Storage temperature | -40ºC to +75ºC (-40ºF to +167ºF) |
| Humidity | 100%, considering |
| Ingress Protection | IP67 dustproof, protected from temporary |
| immersion to depth of 1m (3.28ft.) | |
| Shock and Vibration | Tested and meets the following environmental standards |
| Vibration | MIL-STD-810F, FIG.514.5C-1 |
| Electrical | |
| Power 11 to 24 V DC external power input with | |
| over-voltage protection on Port 1 and Port 2 (7-pin) | |
| Rechargeable, removable 7.4 V, 3.7 Ah Lithium-ion | |
| smart battery with LED status indicators | |
| Power consumption is 5.1 W in RTK rover mode with internal radio | |
| Operating times on internal battery | |
| 450 MHz receive only option | 5.5 hours |
| 450 MHz receive/transmit option (0.5 W) | 4.5 hours |
| 450 MHz receive/transmit option (2.0 W) | 3.7 hours |
| Cellular receive option | 5.0 hours |
| Communications and Data Storage | |
| Serial: 3-wire serial (7-pin) | |
| USB v2.0: supports data download and high speed communications | |
| Radio Modem: fully Integrated, sealed 450 MHz wide band receiver/transmitter | |
| with frequency range of 410 MHz to 470 MHz: | |
| - Transmit power: 2 W | |
| - Range: 3-5 km typical / 10 km optimal | |
| Cellular: integrated, 3.5 G modem, HSDPA 7.2 Mbps (download), GPRS multi-slot | |
| class 12, EDGE multi-slot class 12, UMTS/HSDPA (WCDMA/FDD) 850/1900/2100MHz, | |
| Quad-band EGSM 850/900/1800/1900 MHz, GSM CSD, 3GPP LTE | |
| Bluetooth: fully integrated, fully sealed 2.4 GHz communications port | |
| WiFi: 802.11 b,g, access point and client | |
| mode, WPA/WPA2/WEP64/WEP128 encryption | |
| External communication devices for corrections supported | |
| on - Serial, USB, Ethernet, and Bluetooth ports | |
| Data storage: 4 GB internal memory; over three years of raw | |
| observables (approx. 1.4 MB /day), based on recording every | |
| 15 seconds from an average of 14 satellites | |
| CMR+, CMRx, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1 input and output | |
| 24 NMEA outputs, GSOF, RT17 and RT27 outputs | |
| Webui | |
| Offers simple configuration, operation, status, and data transfer | |
| Accessible via WiFi, Serial, USB, and Bluetooth | |

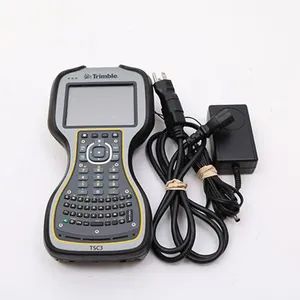

| Supported Trimble Controllers | |
| Trimble TSC3, Trimble CU, Trimble Tablet Rugged PC | |
| Certifications | |
| FCC Part 15 (Class B device), 22, 24; | |
| R&TTE CE Mark; C-Tick, A-Tick; PTCRB; WFA | |
